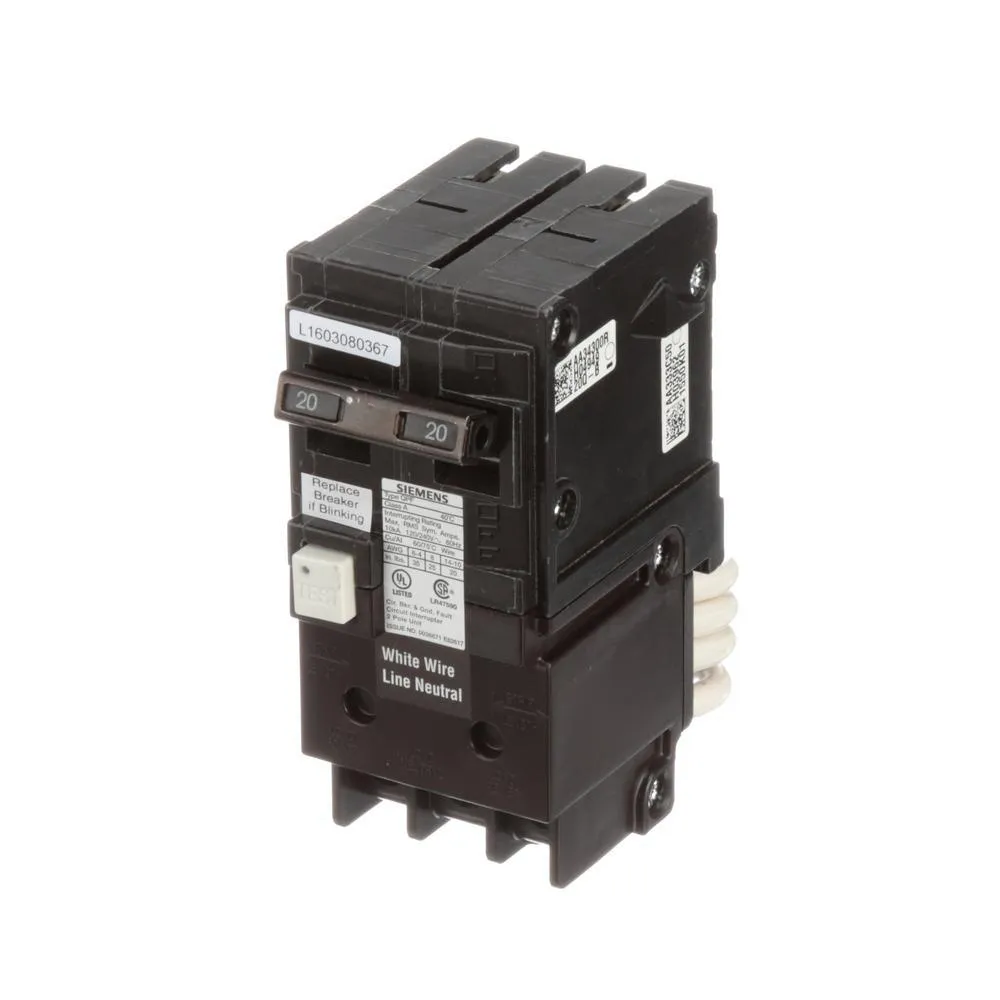

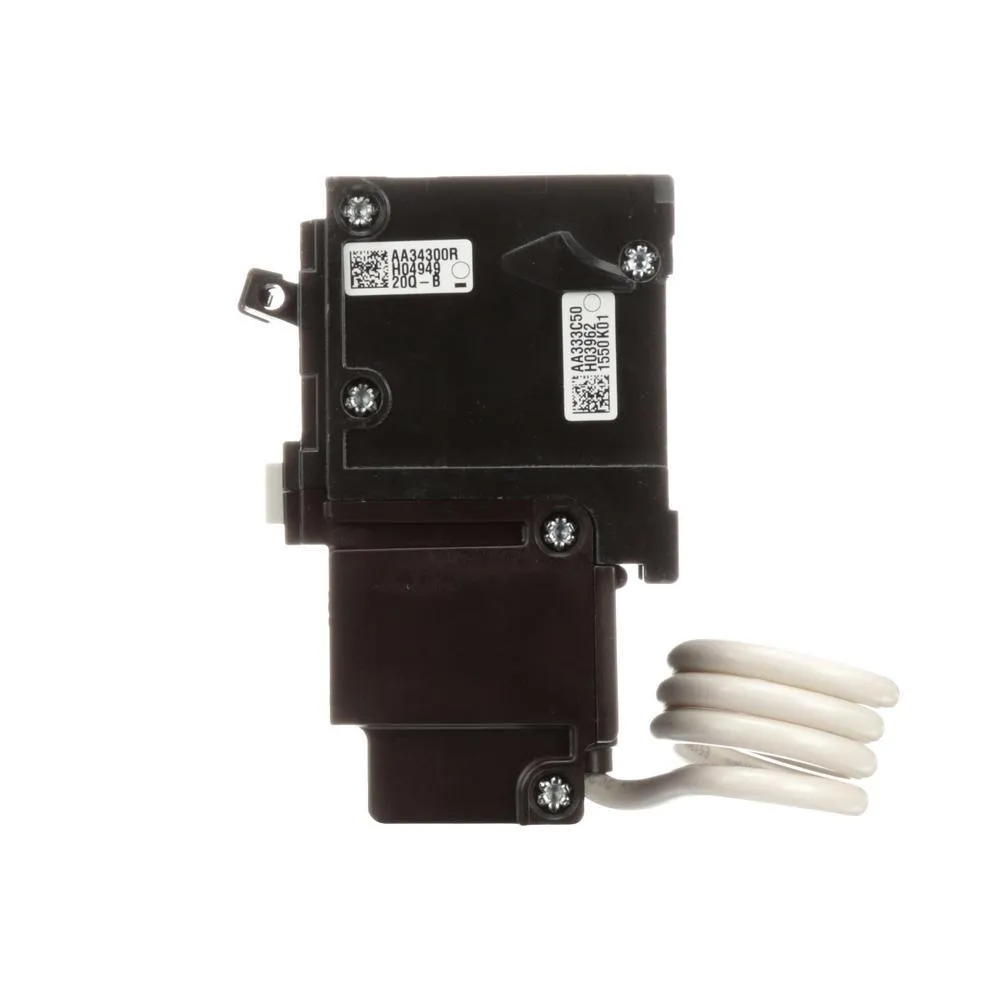

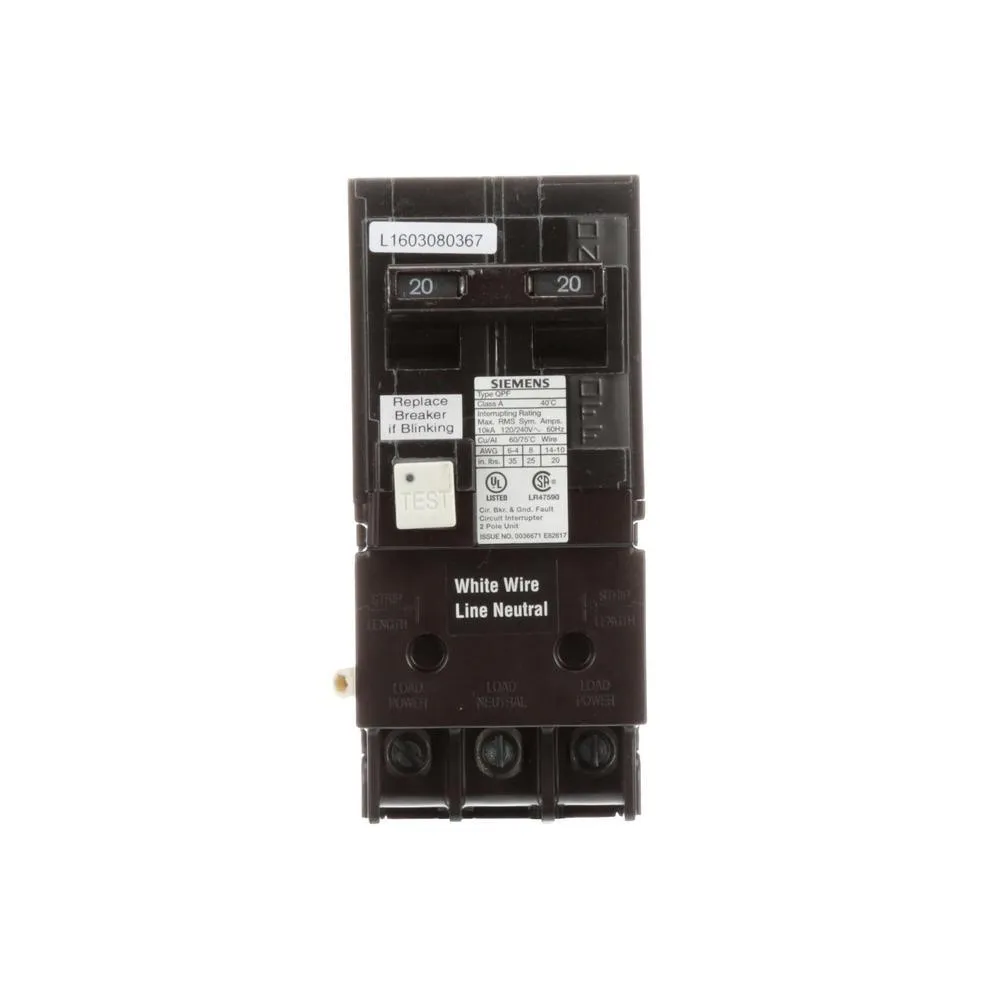

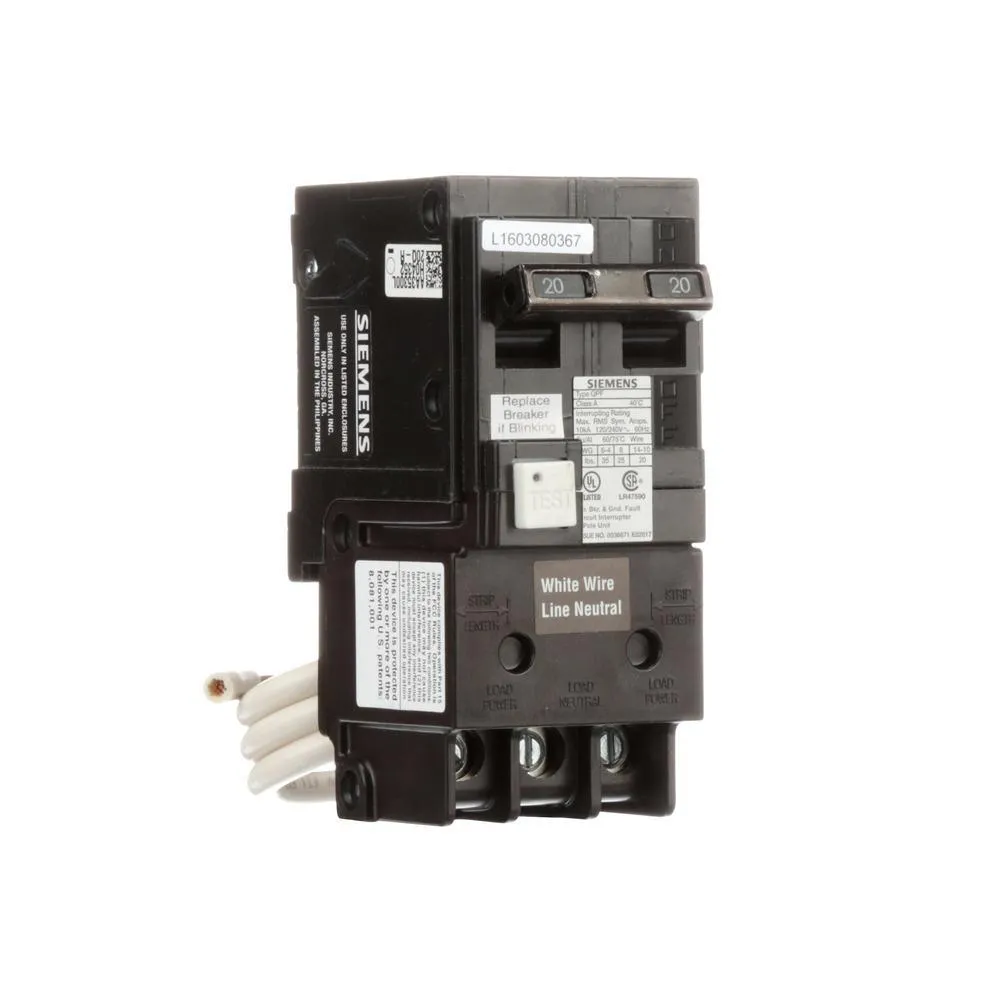

20 Amp Double Pole Type QPF2 GFCI Circuit Breaker
20 A2-pole
$89.76 each
Orders start at $399. Combine any items to reach it.
- 1 breaker
- $89.76
- Standard delivery
- $49.99 per order
- Sales tax
- Added at checkout
All orders are subject to approval.
You're not charged until your order is approved and ready to ship. Cancel free before then.
Standard delivery$49.99
Per order, added in your cart. We deliver to the 48 contiguous states.
Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns
Complete the panel
Siemens · Electrical
Details & specifications.
From the maker · Siemens’s description
Siemens GFCI circuit breakers are UL Listed and CSA Certified as Class A devices. These circuit breakers offer the new Self-Test and Lockout feature as required by UL 943, enabling the GFCI to automatically and continuously test itself to ensure that it is working properly. If it is detected that the device has been compromised, the device trips itself and locks out the homeowner from resetting the device, reducing the possibility of the homeowner incorrectly assuming that the device was tripped to prevent a ground fault.
- Double pole, 240-Volt, 20 Amp GFCI circuit breaker
- 10 kA interrupting rating
- Includes self-test as required by UL 943 as an added safety feature
- Suitable for a variety of construction applications including spas, hot tubs, kitchens, bathrooms, etc.
- Resists false tripping (shielded to prevent RF interference)
- Provides Class A GFCI protection

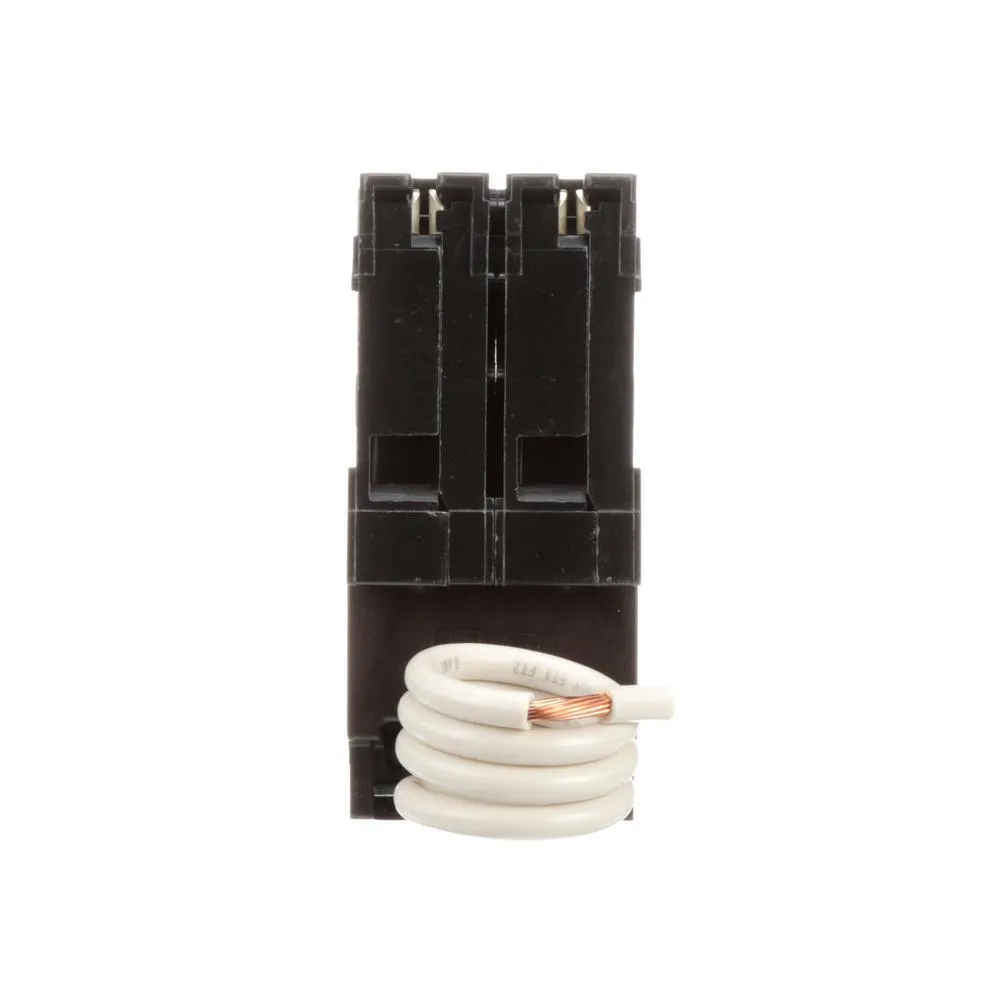

- White line neutral (pigtail) must be connected to the panel neutral for the device to function
- SKU
- 206965328
- UPC
- 887621216689
- Amps
- 20 A
- Poles
- 2-pole
- Protection
- GFCI
- Type
- Double Pole
- Mounting
- Plug-On
- Brand
- Siemens
- Maximum Amperage (amps)
- 20
- Item Weight
- 1.11
- Voltage (volts)
- 240
- Pack Size
- 1
- Power Distribution Features
- No Additional Features
- Interruption Type
- GFCI
- Product Weight (lb.)
- 1.11
- Electrical Product Type
- Breaker
- Product Height (in.)
- 7
- Product Depth (in.)
- 5
- Product Width (in.)
- 2
- Manufacturer Warranty
- 1 Year
- Certifications and Listings
- UL Listed
Specifications are provided by the manufacturer. Brand names are trademarks of their owners.
Guide
Before you buy a breaker
- 1
Match the panel
Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.
- 2
Match the wire
The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.
- 3
Protection
Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.
- 4
Tandem and quad
Two circuits in one space, only in the slots the panel label allows.
