Siemens · Electrical

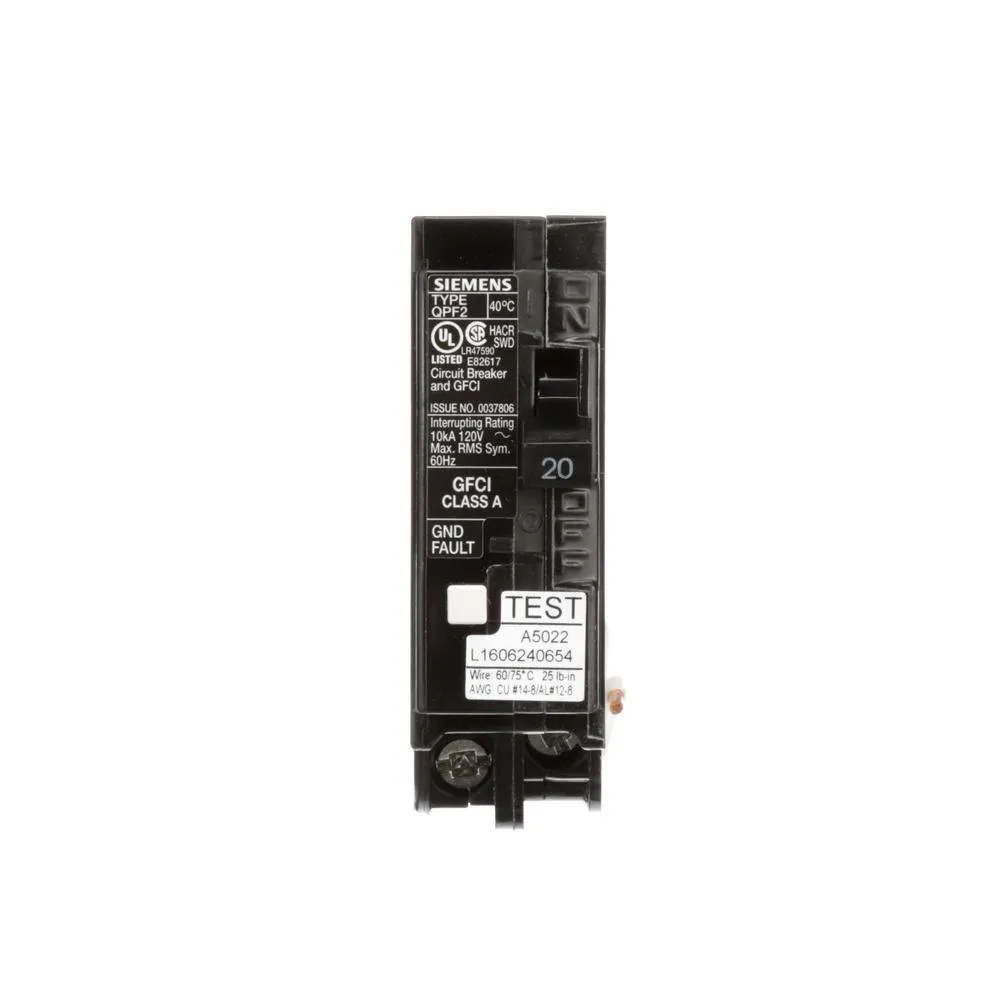

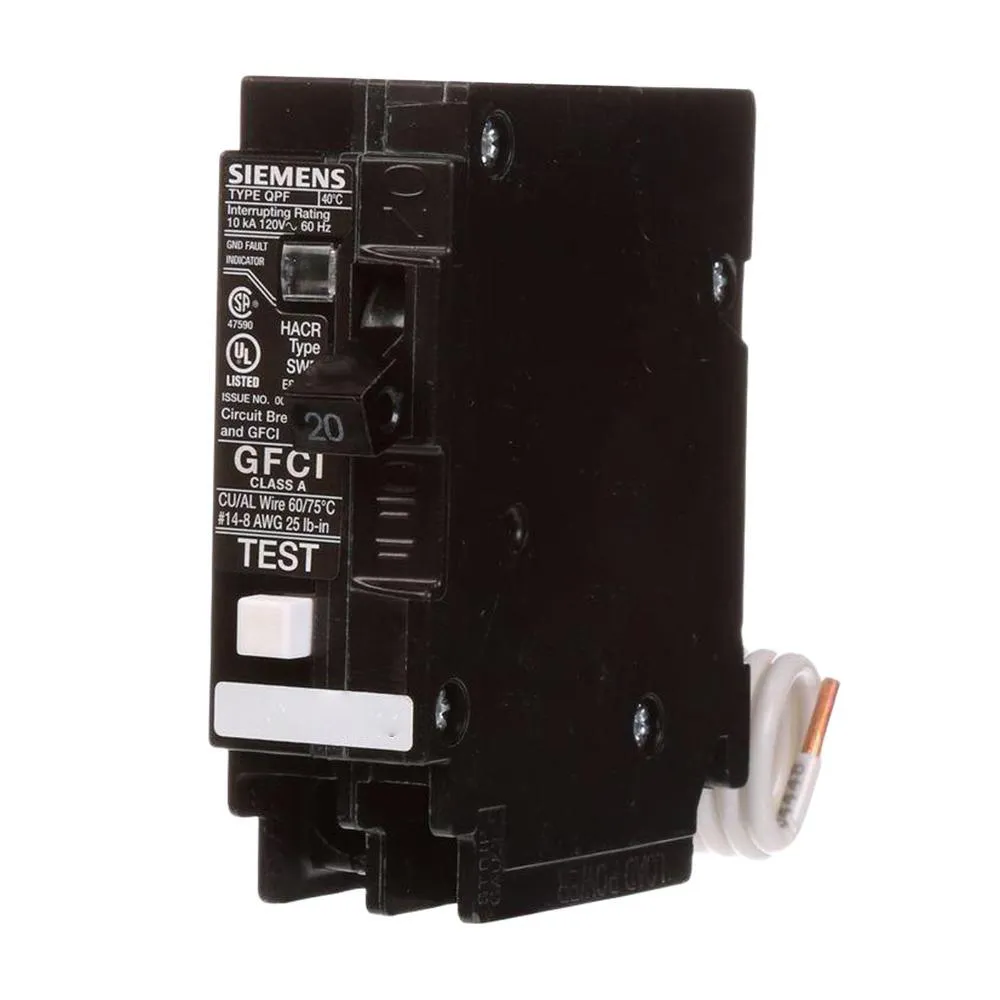

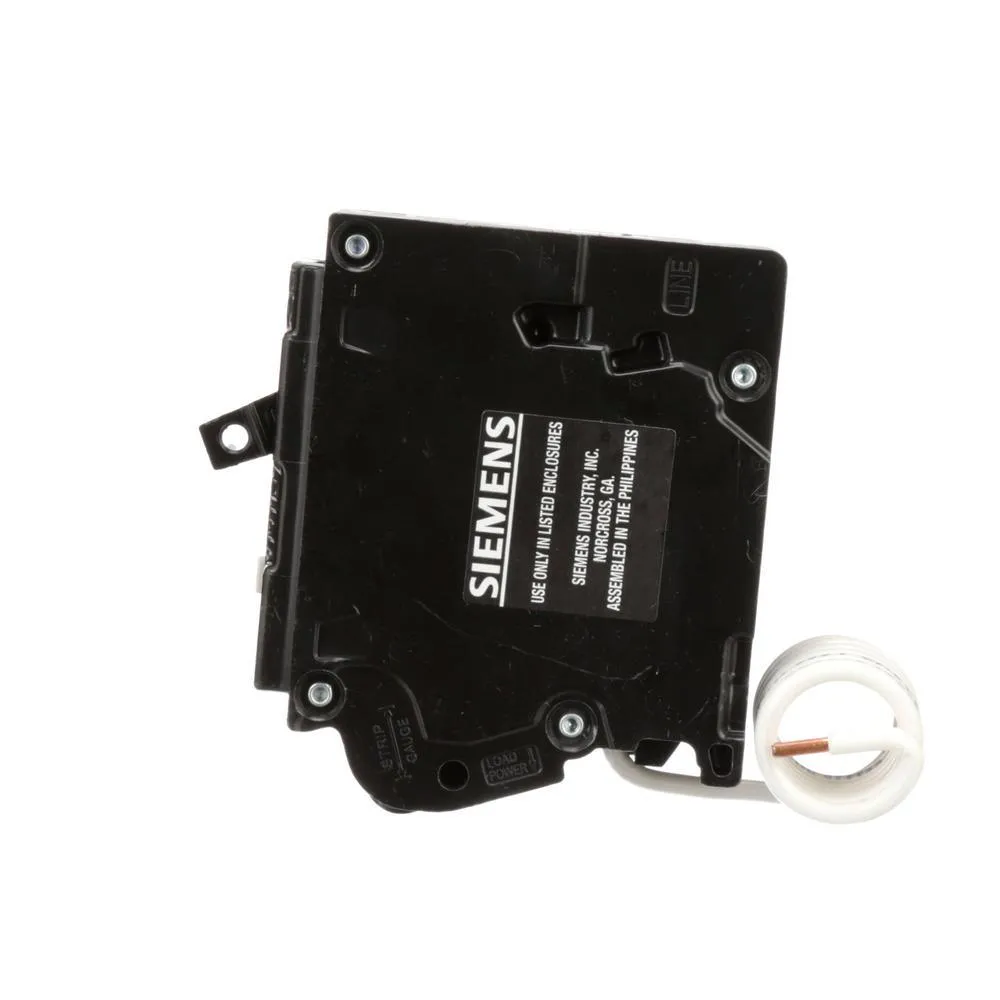

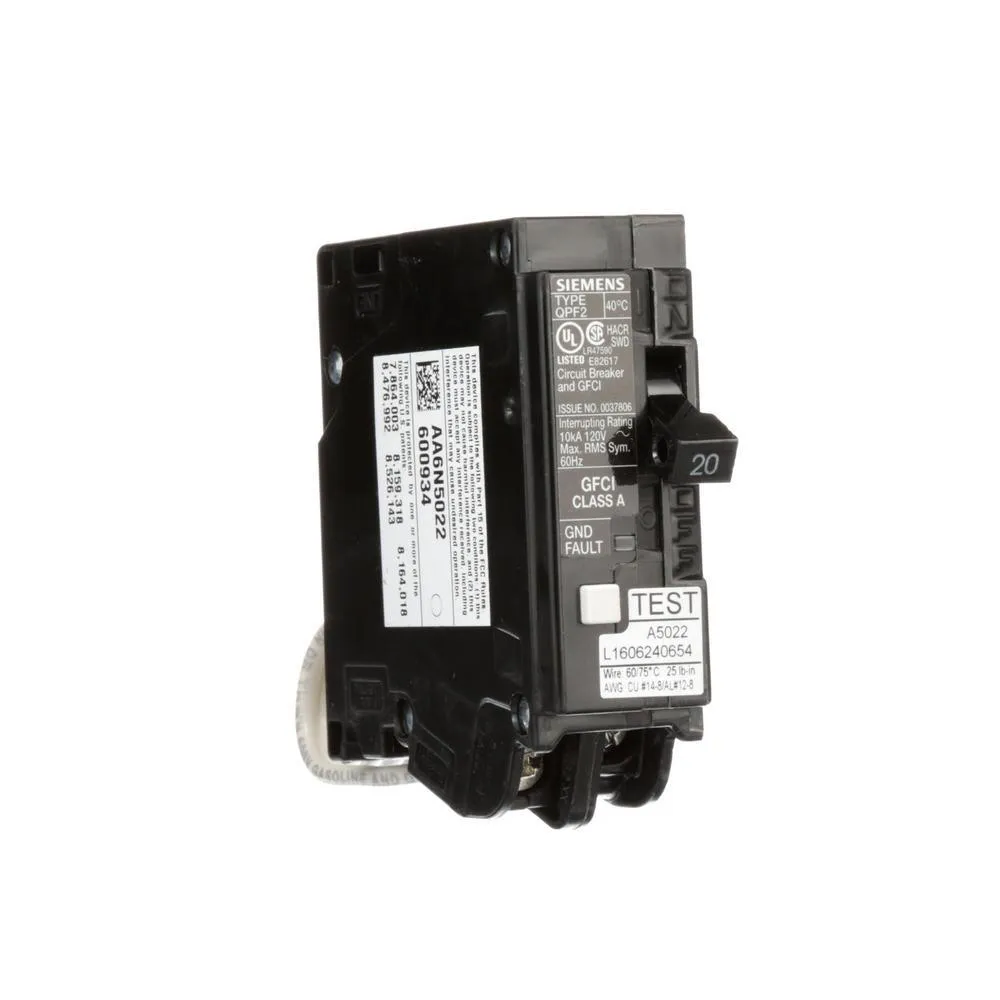

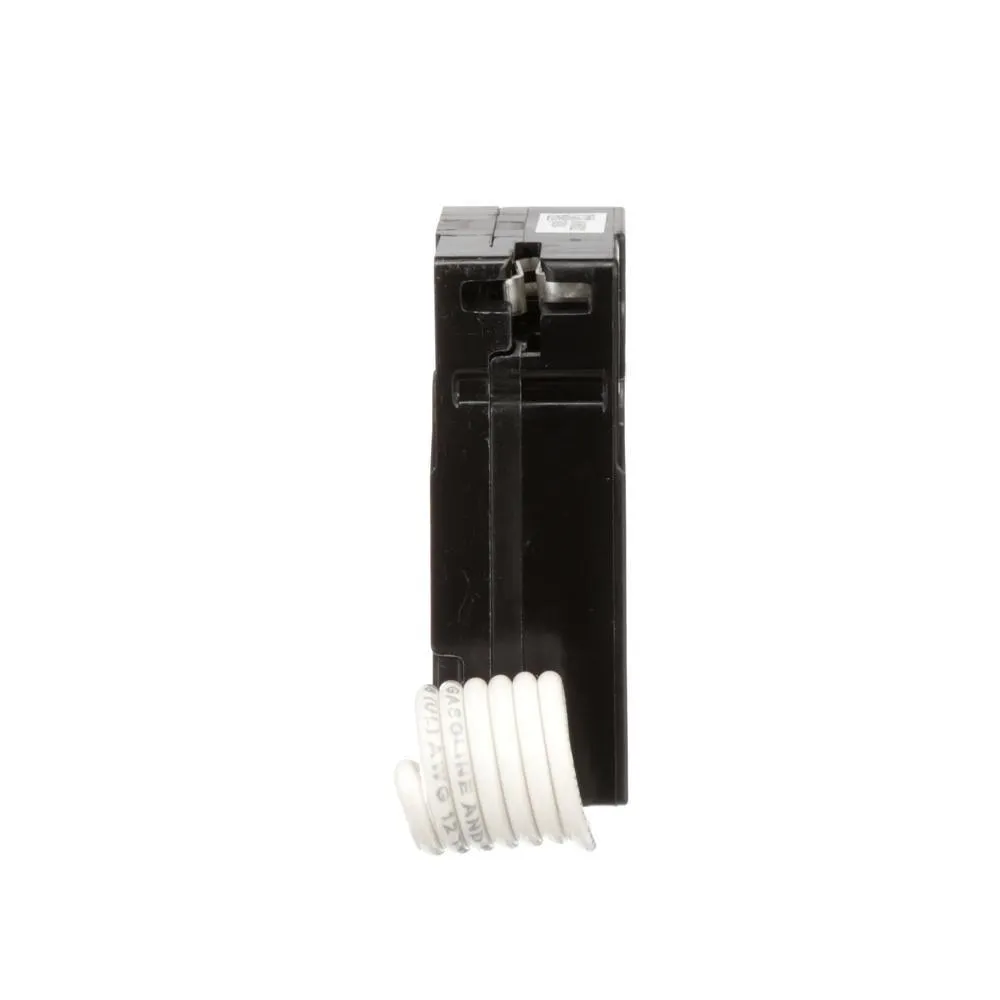

20 Amp Single Pole Type QPF2 GFCI Circuit Breaker

20 A1-pole

$54.36 each

Orders start at $399. Combine any items to reach it.

Maximum Amperage: 20 A
Breakers
1 breaker
$54.36
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Siemens · Electrical

Details & specifications.

From the maker · Siemens’s description

Siemens GFCI circuit breakers are UL Listed and CSA Certified as Class A devices. These circuit breakers offer the new Self-Test and Lockout feature as required by UL 943, enabling the GFCI to automatically and continuously test itself to ensure that it is working properly. If it is detected that the device has been compromised, the device trips itself and locks out the homeowner from resetting the device, reducing the possibility of the homeowner incorrectly assuming that the device was tripped to prevent a ground fault.

  • Single pole, 120-Volt, 20 Amp GFCI circuit breaker
  • 10kA interrupting rating
  • Includes self-test as required by UL 943 as an added safety feature
  • Suitable for a variety of construction applications including spas, hot tubs, kitchens, bathrooms, etc.
  • Resists false tripping (shielded to prevent RF interference)
  • Provides class A GFCI protection
  • White line neutral (pigtail) must be connected to the panel neutral for the device to function
SKU
206965288
UPC
887621216580
Amps
20 A
Poles
1-pole
Protection
GFCI
Type
Single Pole
Mounting
Plug-On
Brand
Siemens
Maximum Amperage (amps)
20
Item Weight
.45
Voltage (volts)
120
Product Weight (lb.)
.50 lb
Pack Size
1
Power Distribution Features
No Additional Features
Interruption Type
GFCI
Electrical Product Type
Breaker
Product Depth (in.)
1.5 in
Product Height (in.)
6.5 in
Product Width (in.)
6.75 in
Manufacturer Warranty
1 Year
Certifications and Listings
UL Listed

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Before you buy a breaker

  1. 1

    Match the panel

    Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.

  2. 2

    Match the wire

    The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.

  3. 3

    Protection

    Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.

  4. 4

    Tandem and quad

    Two circuits in one space, only in the slots the panel label allows.
