Enigma-X Frameless Sliding Shower Door (68–72 in. x 76 in.)

The DreamLine Enigma-X delivers a sleek, fully frameless sliding shower door with premium 3/8 in. clear tempered glass and brushed stainless steel hardware. Its ClearMax protective coating resists water stains for easier cleaning, while the top guide rail trims up to 4 in. for precise width adjustment.

---

Key Features:

• Frameless Design: Clean, modern look with clear 3/8 in. tempered glass

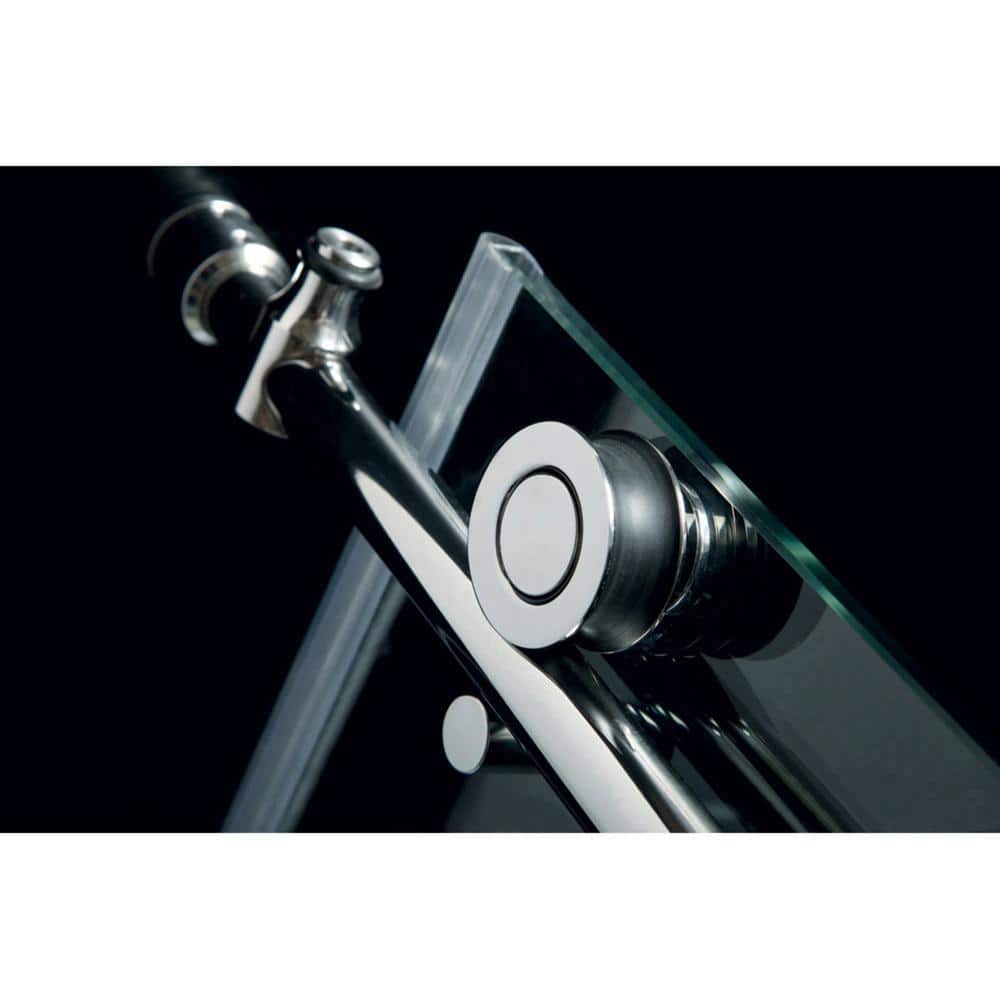

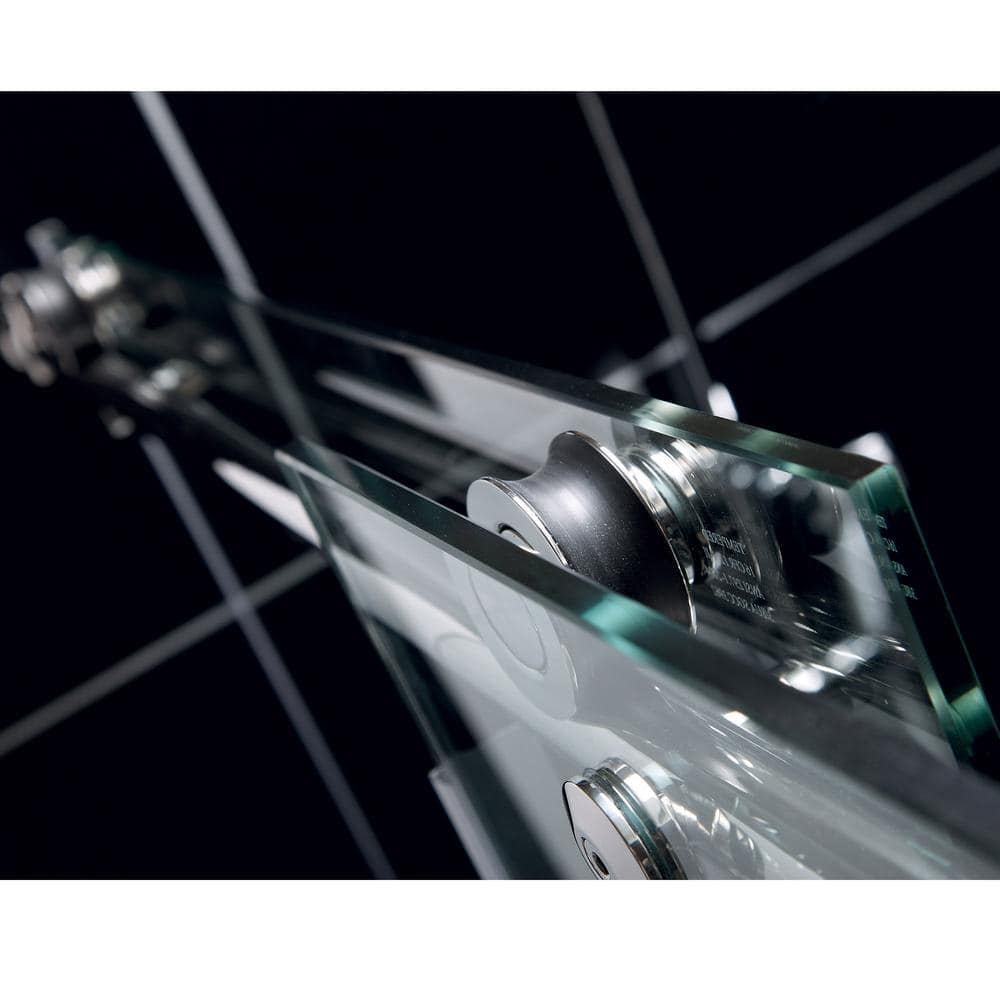

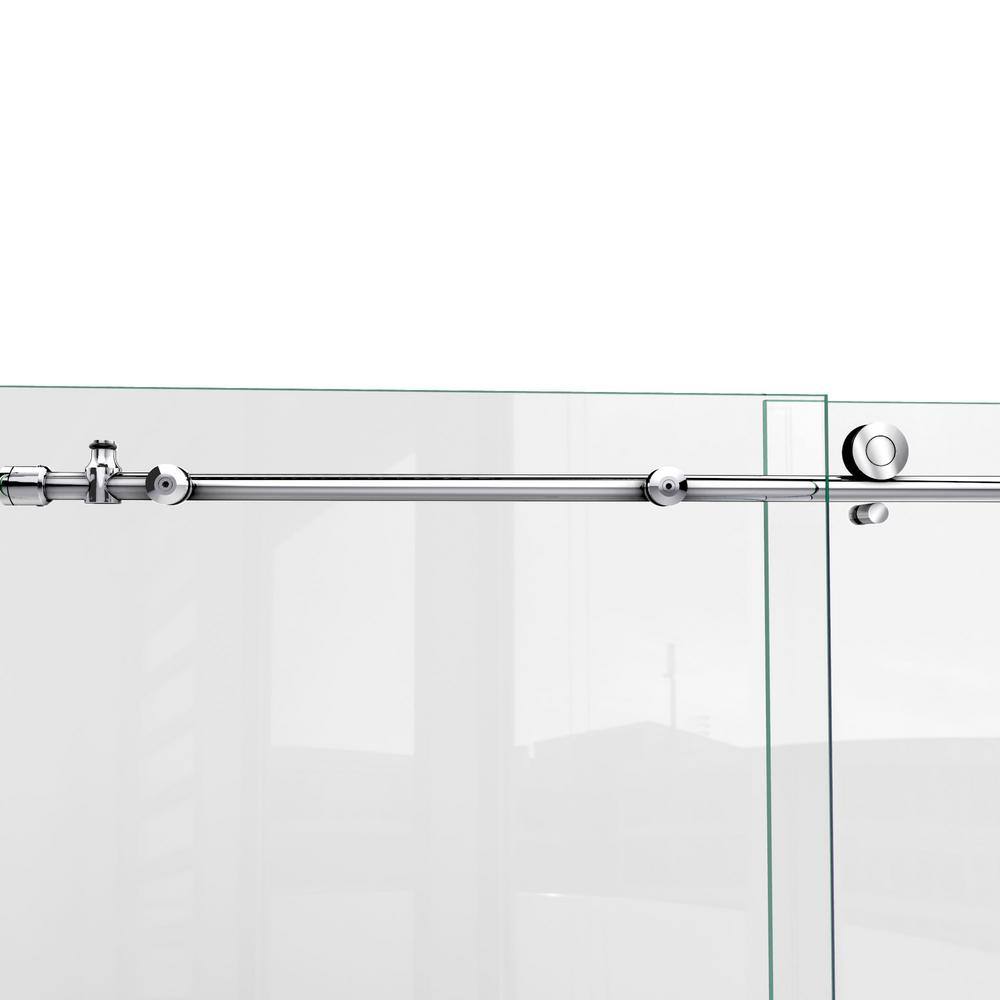

• Durable Hardware: Brushed stainless steel components with large wheel assembly for smooth glide

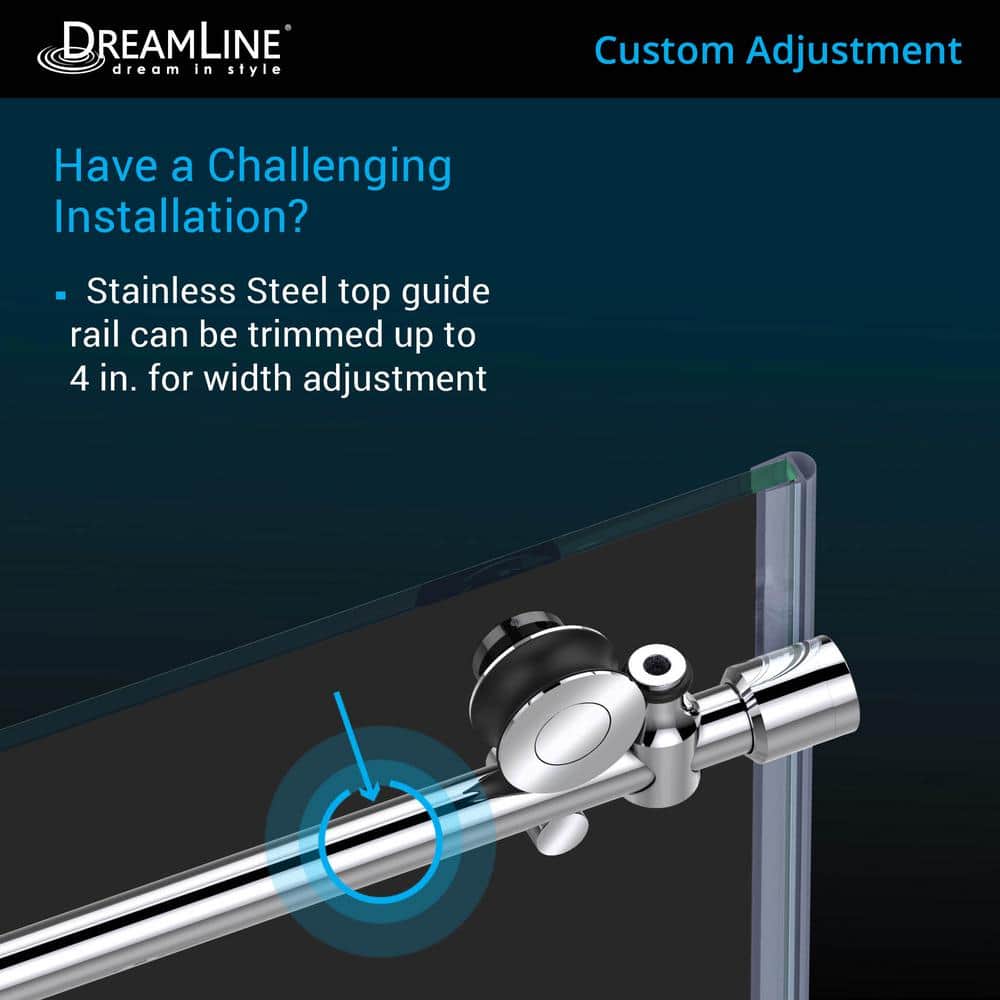

• Adjustable Width: Stainless steel top guide rail can be trimmed up to 4 in. (68–72 in. fit)

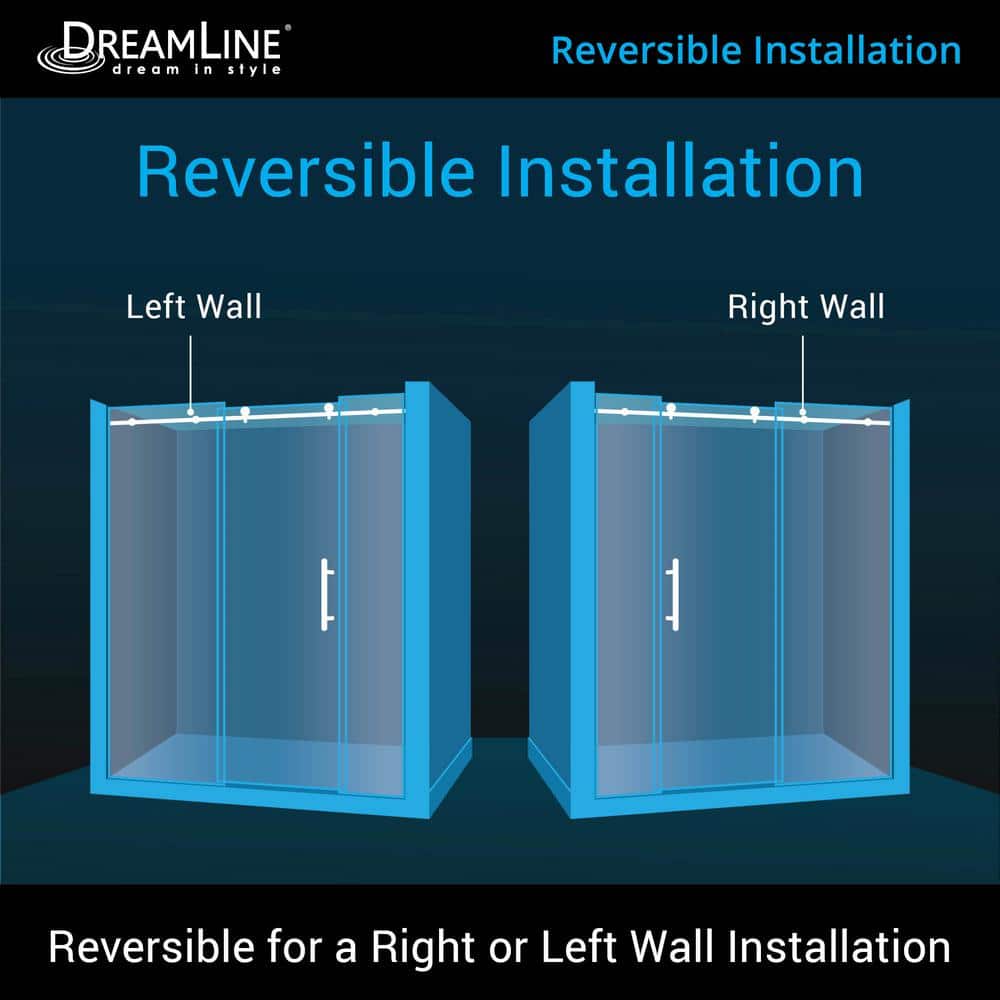

• Reversible Installation: Configure for left- or right-hand door opening

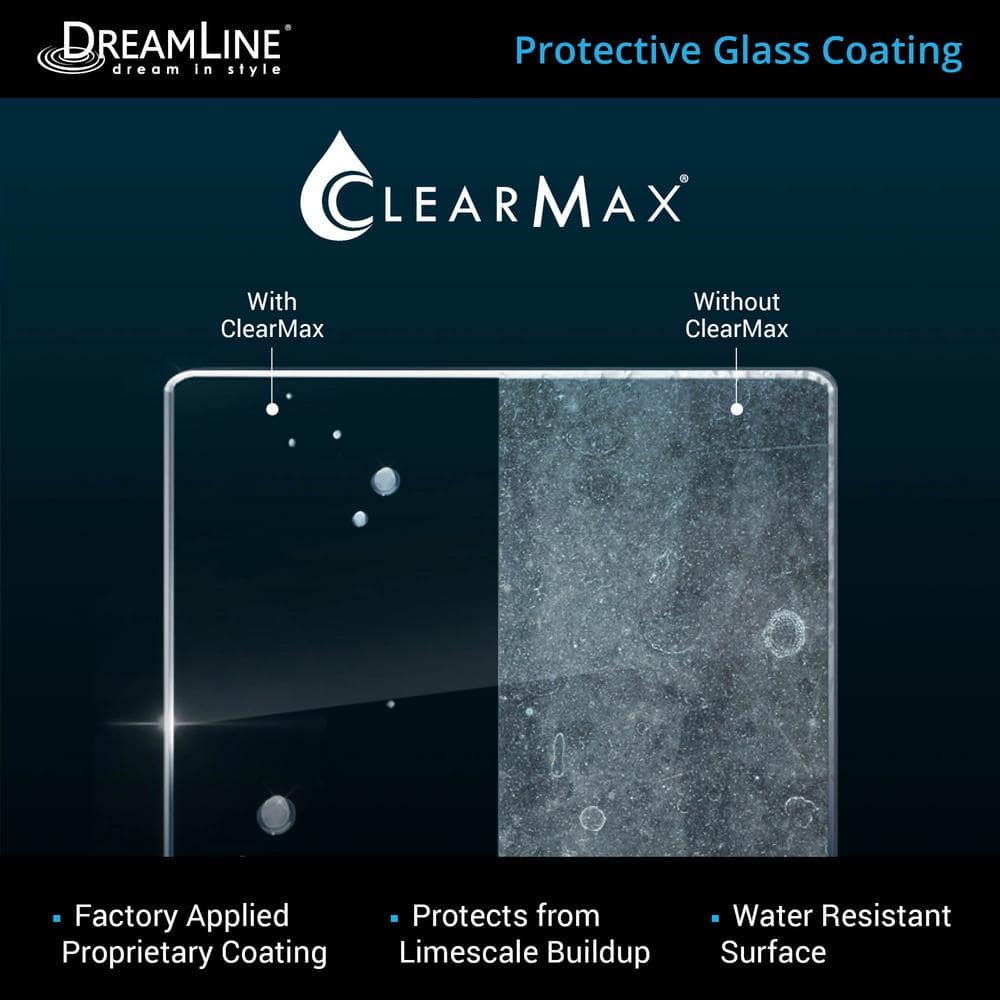

• Easy-Care Glass: ClearMax water- and stain-resistant coating reduces cleaning time

---

Specifications Table:

Specification	Details
Model Name	Enigma-X
Installation Width	68 in. – 72 in.
Height	76 in.
Walk-Through Opening Width	22.625 in. – 26.625 in.
Walk-Through Opening Height	72.125 in.
Glass Thickness	3/8 in. (10 mm)
Glass Type	Clear tempered
Glass Coating	ClearMax water and stain resistant
Configuration	Stationary panel, sliding door, and inline panel
Door Type	Sliding
Frame Type	Frameless
Hardware/Frame Finish	Brushed Stainless Steel

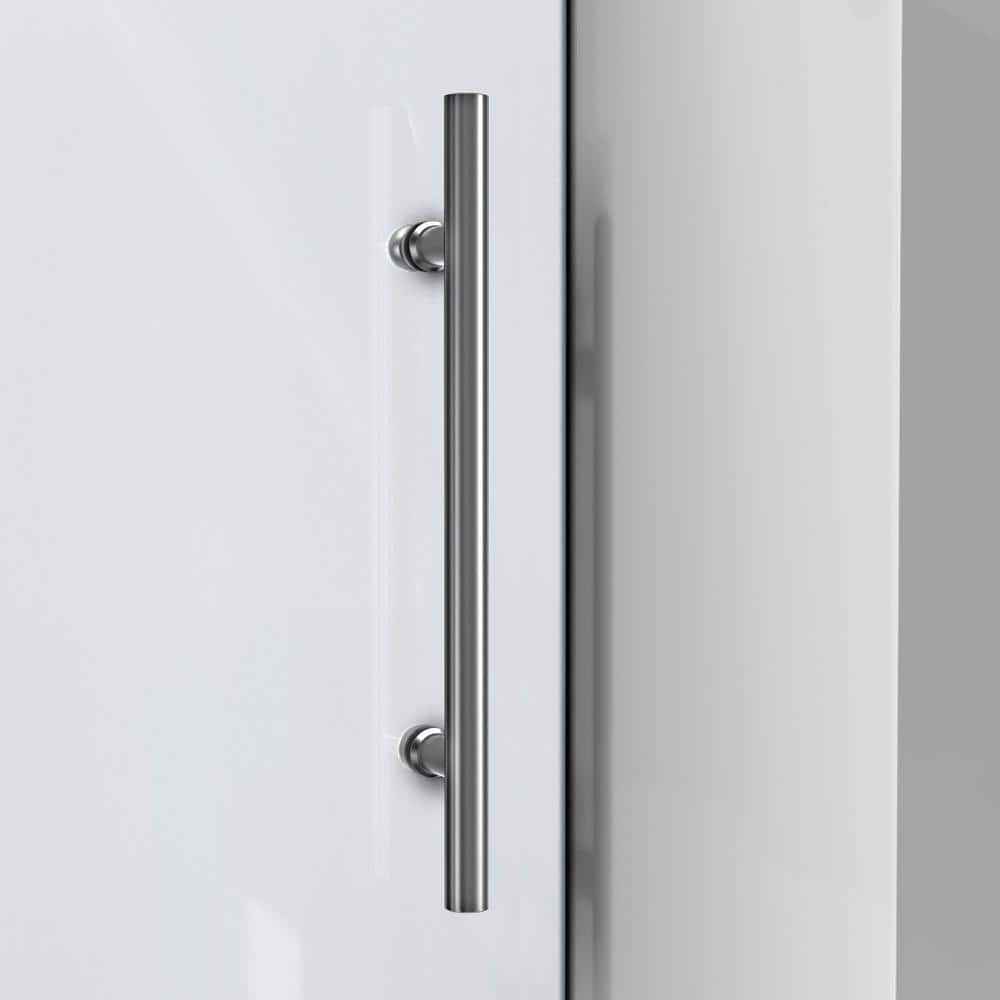

Handle Type	Bar
Handle Position	Left or Right
Installation Area	Alcove
Style	Modern
Adjustment	Top guide bar can be trimmed up to 4 in. for width adjustment
Out-of-Plumb Adjustment	None
Minimum Threshold Depth	2-3/4 in.
Included	Door hardware
Max Installed Width	72 in.
Approximate Max Installed Width	72 in.
Product Weight	245 lb
Certifications and Listings	None
Manufacturer Warranty	Limited Lifetime Manufacturer Warranty
Installation Notes	Professional installation required; drilling into threshold required; two-person installation recommended
Reversible	Yes, for right or left door opening

---

Frequently Asked Questions (FAQ):

Q: What are the overall dimensions and opening size?
A: Model fits 68–72 in. width and is 76 in. high; walk-through opening is approximately 22.625–26.625 in. wide and 72.125 in. high.

---

Q: Is the installation reversible?
A: Yes, it can be installed for either a left or right wall opening.

---

Q: Can it compensate for out-of-plumb walls?
A: No. This model has no out-of-plumb adjustment; walls must be even and finished before measuring.

---

Q: What glass and coating does it use?
A: Premium 3/8 in. (10 mm) clear tempered glass with DreamLine’s ClearMax protective coating.

---

Q: Is professional installation required?
A: Yes. A minimum 2-3/4 in. threshold depth and drilling into the threshold are required; professional installation is recommended.

---

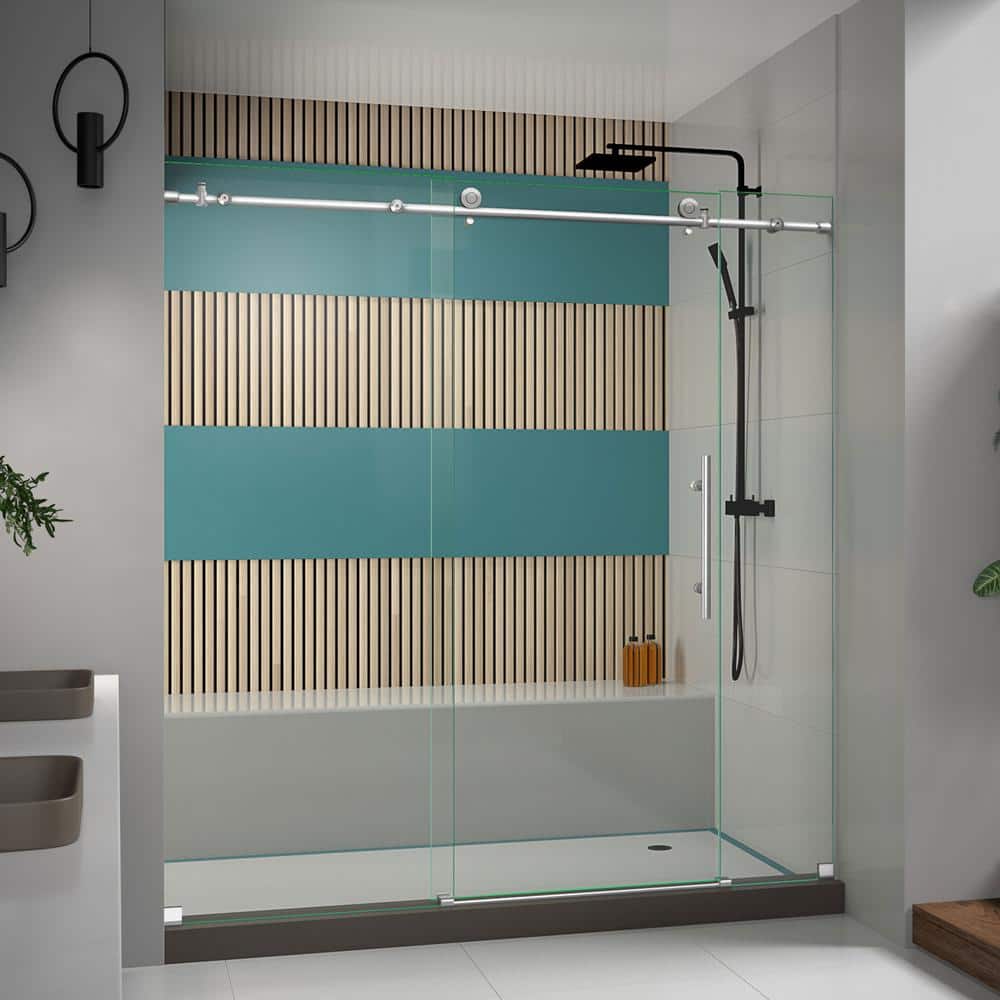

Sculptural Clarity with Effortless Motion

This frameless expanse of crystal-clear glass dissolves visual barriers, allowing materials and light to take center stage. The brushed stainless track and oversized rollers are jewelry for the bath—subtle yet striking. Pair it with textural tile and matte black fixtures for a tailored, gallery-like shower. It’s a refined essential that elevates daily rituals to a luxury experience.

---

Transform your shower into a modern sanctuary—choose Enigma-X for seamless style and smooth, reliable performance.
