BR 100 Amp 10 Space 20 Circuit Indoor 22k Main Breaker Renovation Loadcenter Value Pack (Includes 2-BR115 and 1-BR230)
Regular price $0.00Shipping calculated at checkout.

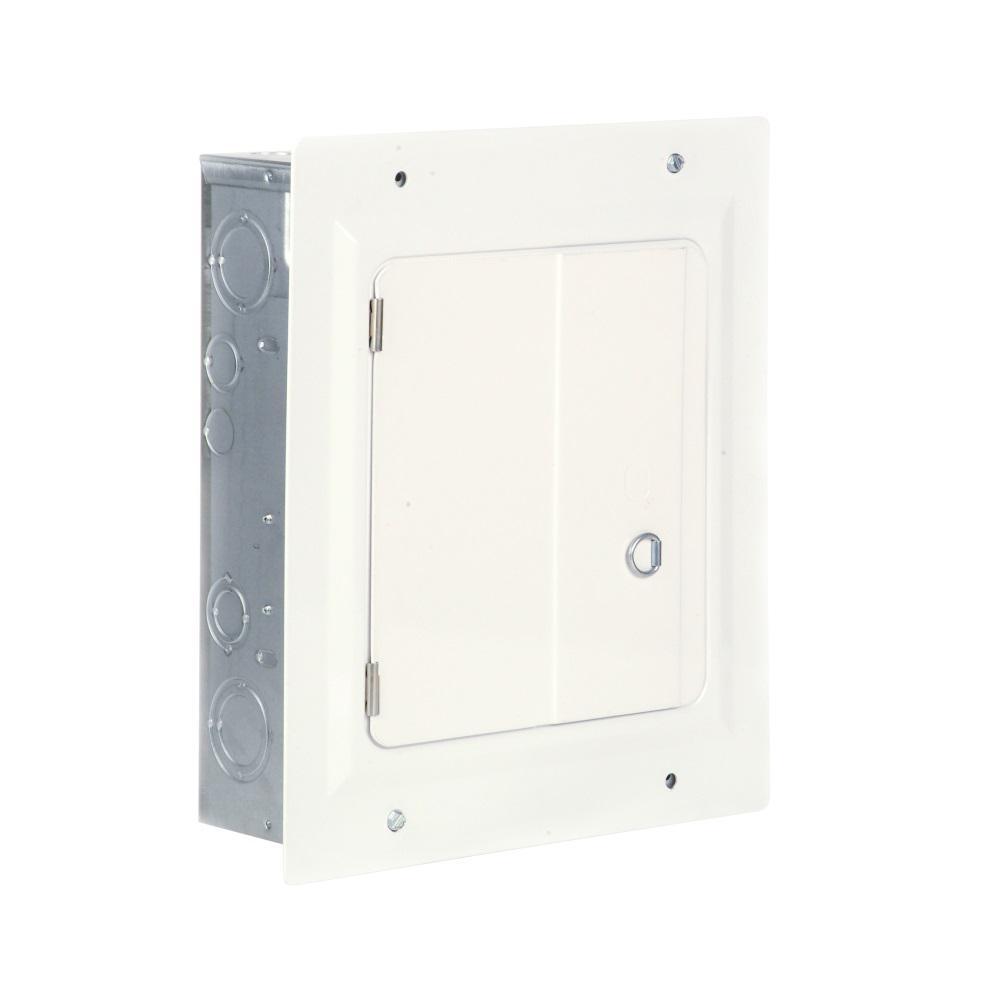

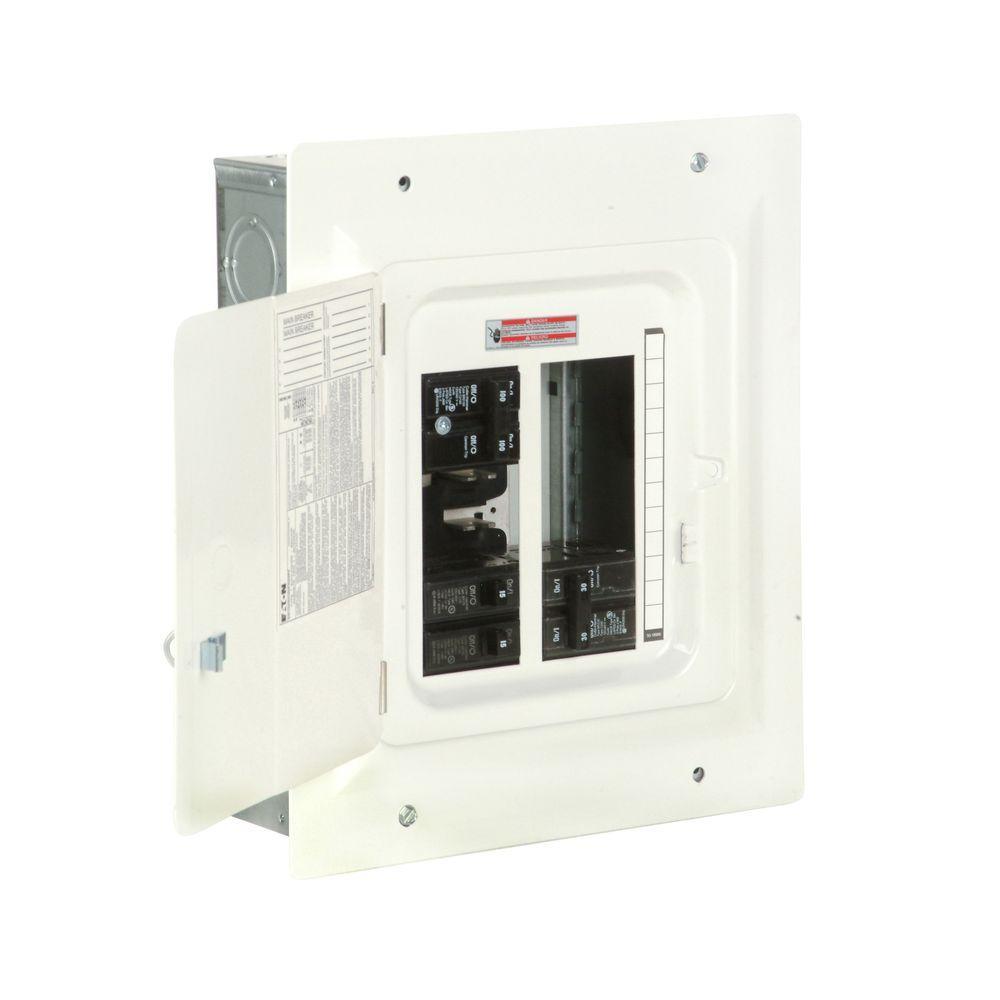

Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. The panels serve as main breaker for service entrances. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR1020H100FRNWV is a 100 amp white main breaker panel with 10 spaces and 20 circuits. It is a value pack for the cost conscious home owner or contractor. The value pack consists of the load center (and cover) plus 2-1P 15A and 1-2P 30A breakers.
Features
- Amperage Rating: 100A
- Bus Material: Aluminum
- Rated NEMA 1 for indoor use
- Feed Type: Bottom or Top which allows for straight-in wiring that saves labor and material
- Interrupt Rating: 22 kAIC
- Mounting: Flush
- Number Of Circuits: 20
- Number of Spaces: 10
- Phase: Single-phase
- Designed to replace existing loacenters and fuse boxes
- Factory installed 5-circuit terminal block(s) which allows the installer to terminate existing short wires without using wire nuts or junction boxes
- Twin-stacked neutrals are mounted up high in the loadcenter, which allows for all neutral and ground wires to be terminated in the top half of the loadcenter
- Color - White
- Includes 2 BR115 and 1 BR230 circuit breakers
- Used With: Type BR breakers
Features
| Item Weight | 13 |
| Mounting Type | Bolt On |
| Maximum Amperage (amps) | 100 |
| Electrical Product Type | Load Center and Breaker Kit |
| Voltage (volts) | 120/240 |
| Load Center Type | Main Breaker |
| Product Weight (lb.) | 13 |
| Indoor/Outdoor | Indoor |
| Number of Spaces | 10 |
| Number of Circuits | 20 |
| Returnable | 180-Day |
| Phase Type | 1 Phase |
| Load Center Mounting Type | Flush |
| Load center depth (in.) | 5 |
| Load center width (in.) | 13 |
| Load center height (in.) | 15 |
| Certifications and Listings | ANSI Certified,CSA Listed,UL Listed |
| Manufacturer Warranty | 10 years |
