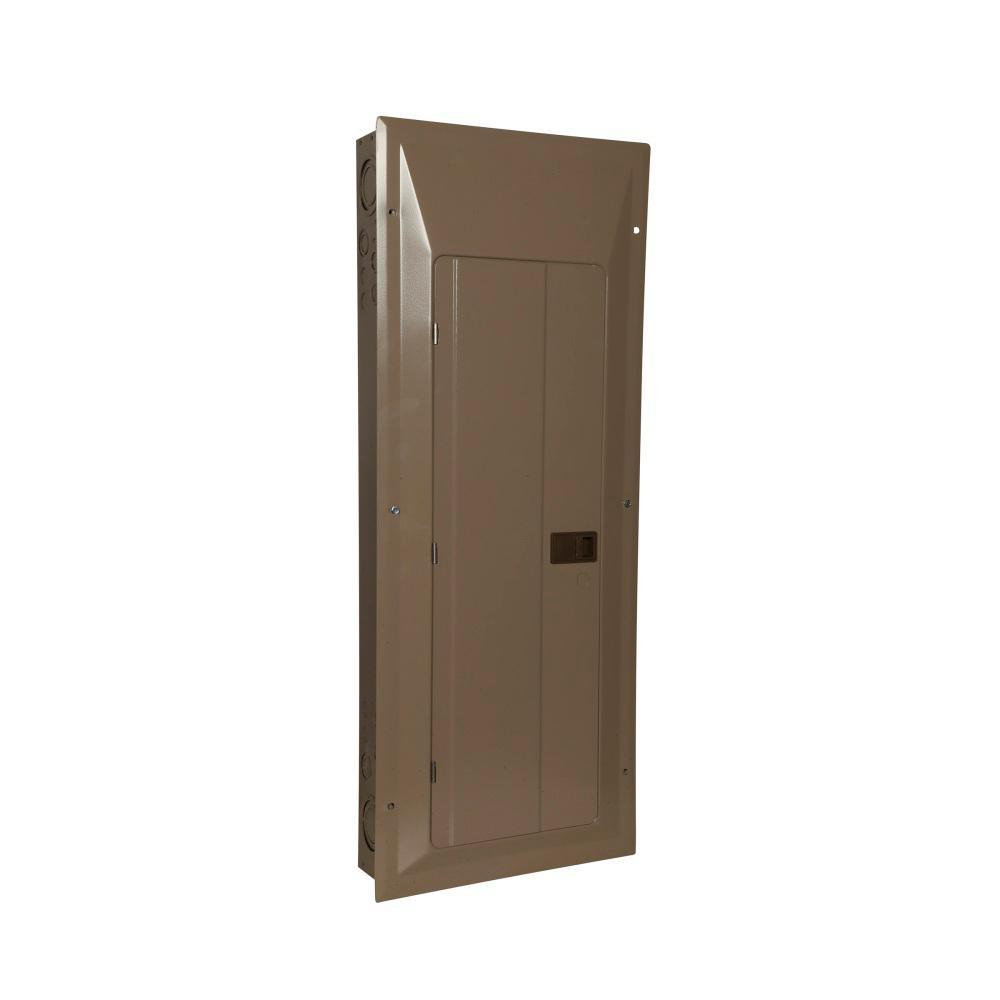

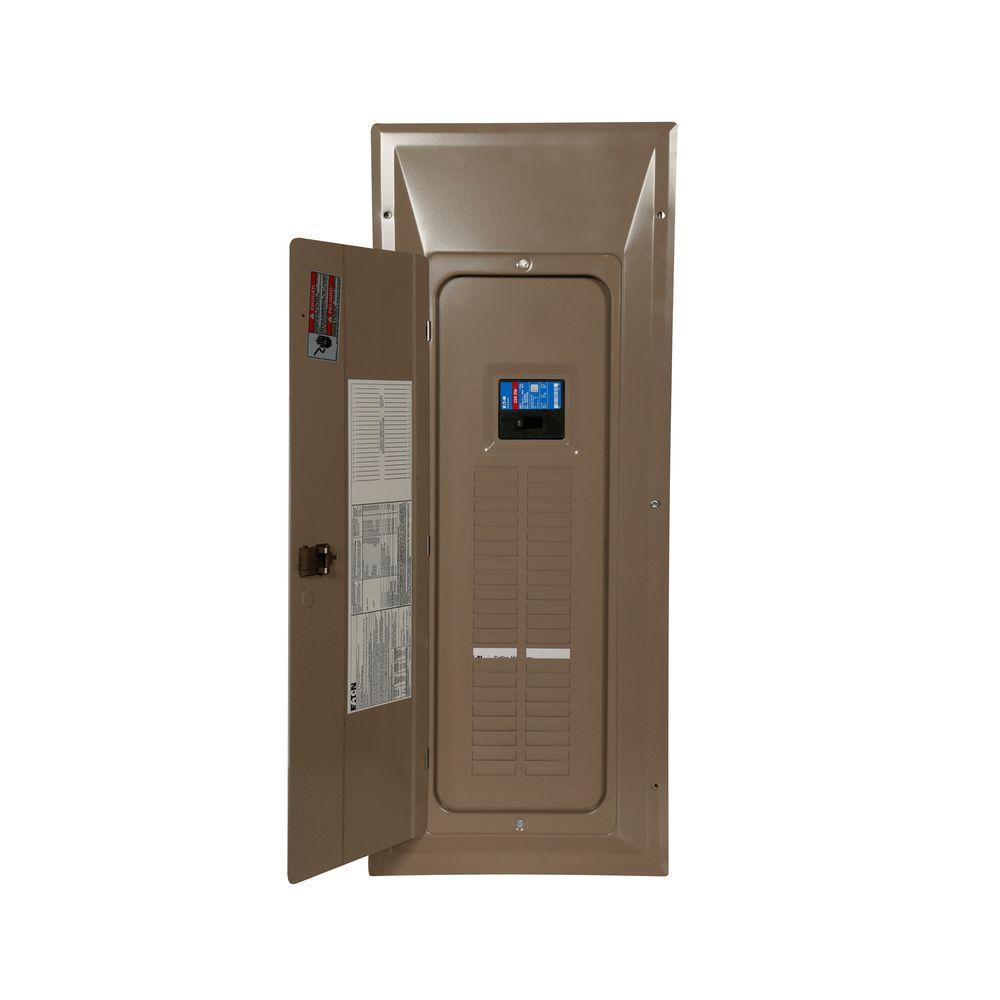

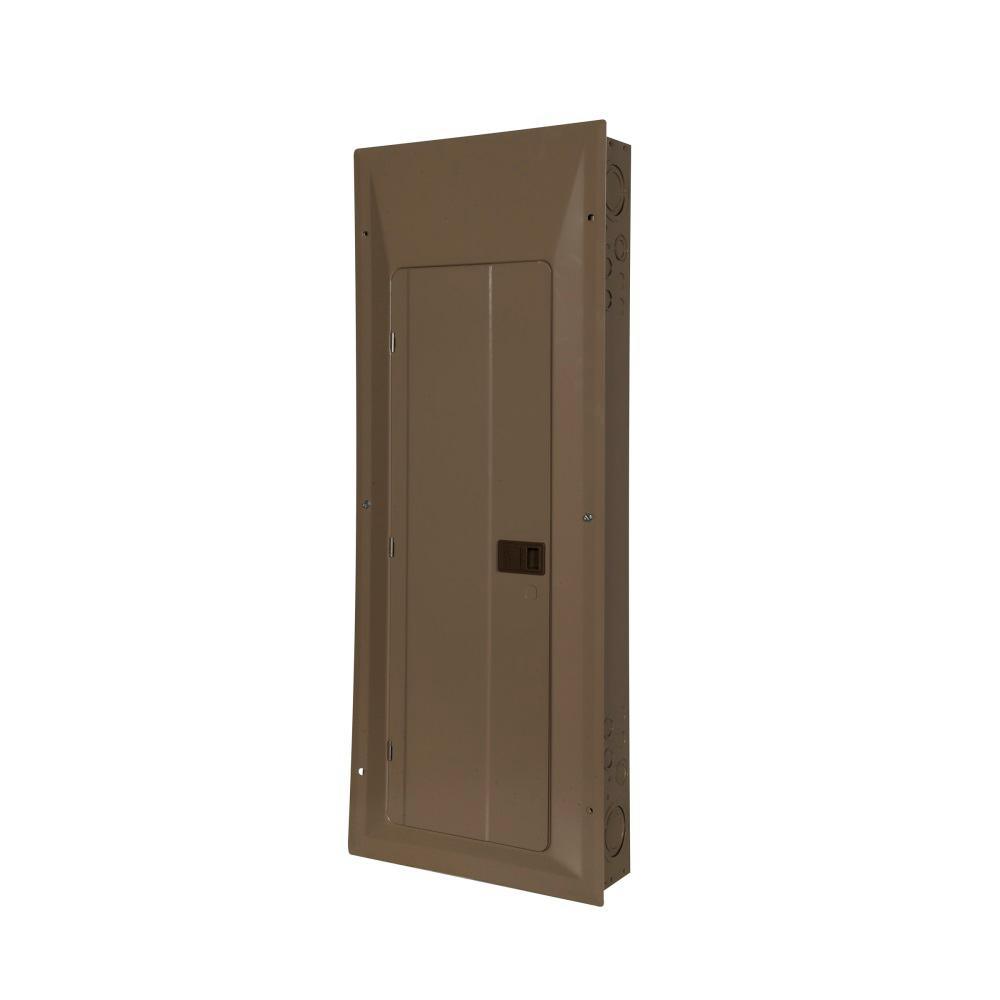

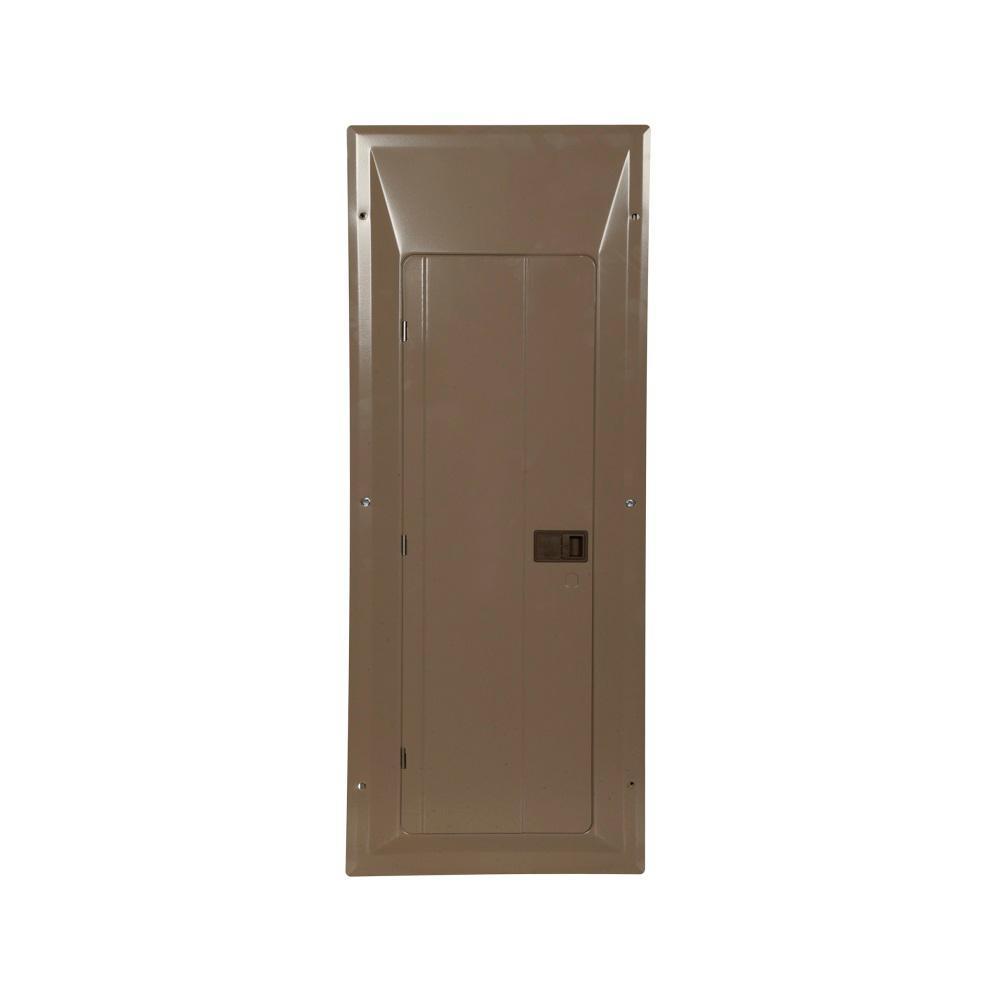

CH 200 Amp 42-Space 84-Circuit Indoor Main Breaker Load Center with Cover Value Pack (3-CH120 and 1-CH230)
Regular price $0.00Shipping calculated at checkout.
Specially designed for easy installation, Eaton's CH load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. The panels serve as main breaker for service entrances. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The CH42B200V5 is a 200 Amp main breaker with 42 spaces and 42 circuits. It is a value pack for the cost conscious home owner or contractor. The value pack consists of the load center (and cover) plus 3-1P 20A, 1-30A 2P circuit breakers.
- Amperage rating: 200A
- Bus material: copper
- Rated NEMA 1 for indoor use
- Feed type: bottom or top which allows for straight-in wiring that saves labor and material
- Interrupt rating: 25 kAIC
- Mounting: combination
- Number of spaces: 42
- Phase: single-phase

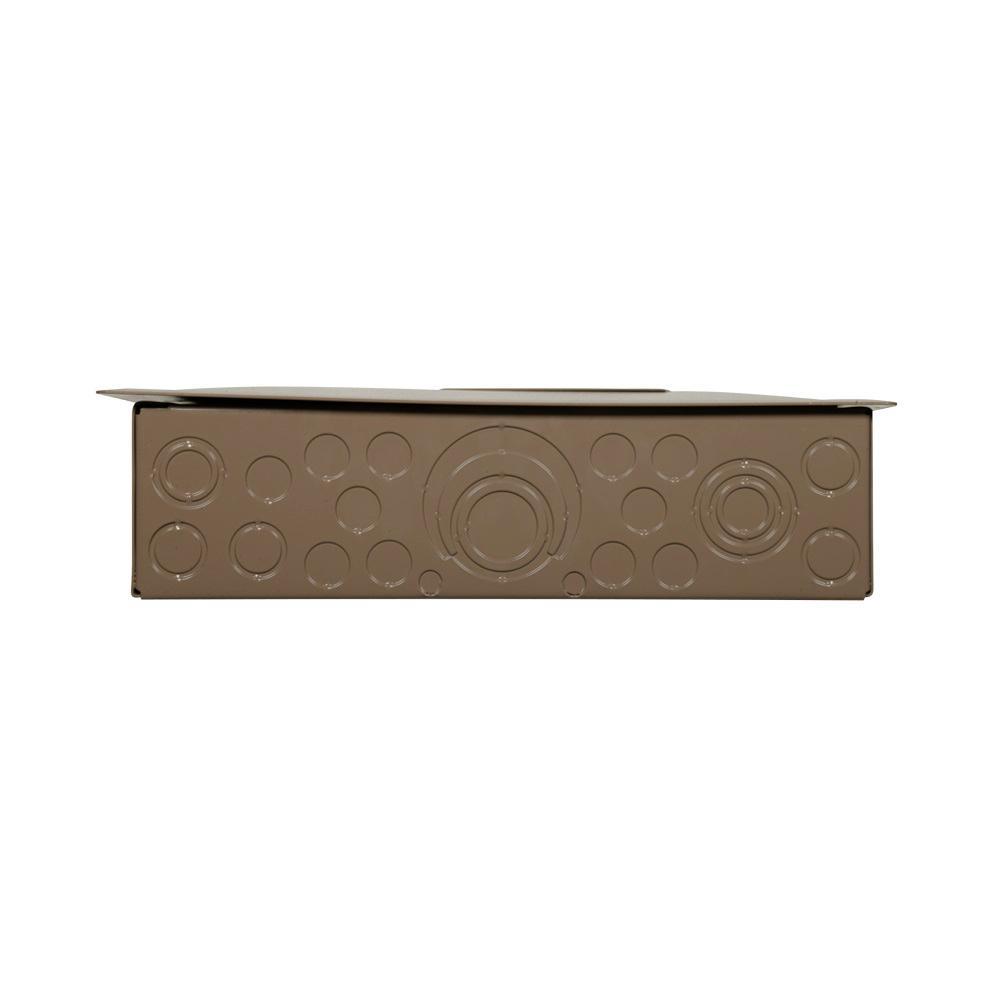

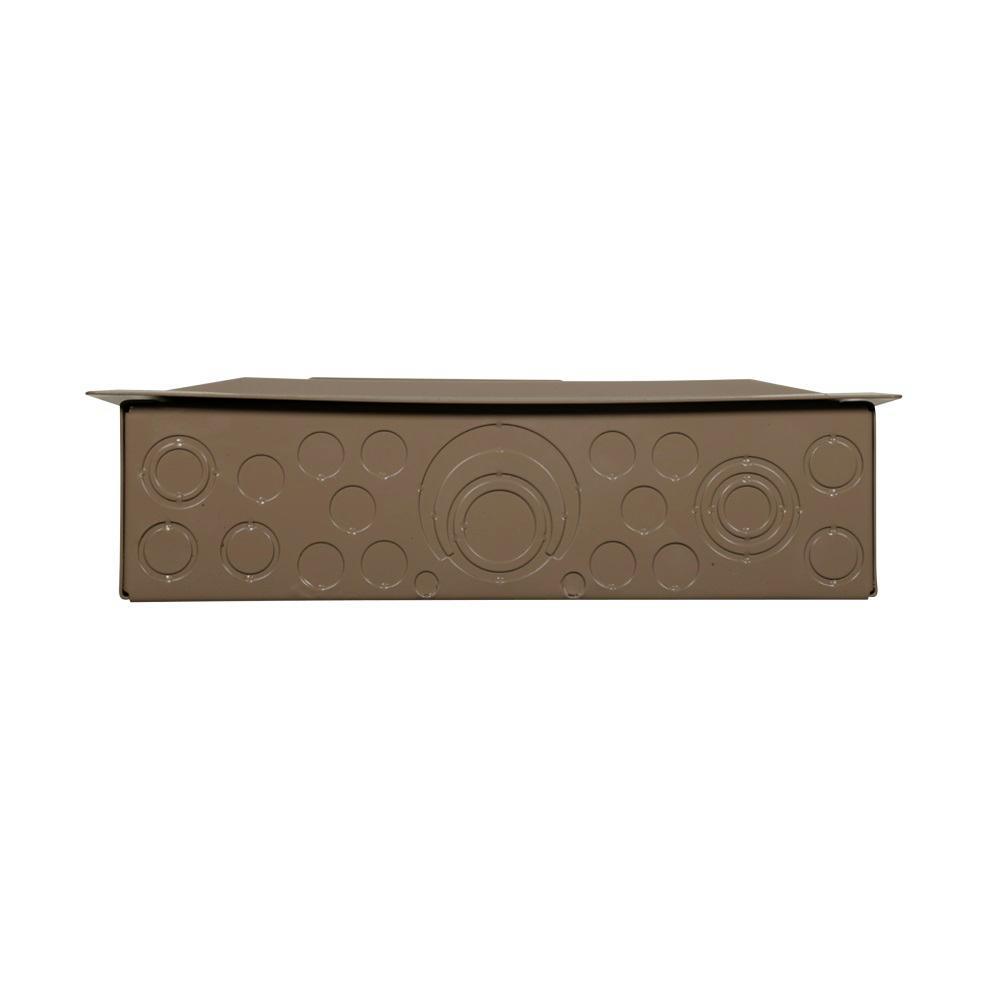

- “Tangential” center knockout easier installation for conduit applications
- 2/0 lug easily removable and can be installed in any location on the neutral bar
- Neutral bus (Strap) is easily removable for sub-panel applications
- Bonding Z-strap provides easy field conversion for service entrance applications
- Twin neutral bars minimum 150% neutral capacity
- Steel back pan provides solid and reliable breaker mounting—single piece design for stability and durability
- 1 piece silver-flashed copper bus - provides superior conductivity, corrosion resistance and durability
- Single keyhole mounting -one keyhole at the top and bottom provides easier mounting and leveling
- Includes 3-CH120 and 1-CH230 circuit breakers
- Used with: type CH breakers
-
Features
| Item Weight | 41.18 |
| Mounting Type | Bolt On |
| Number of Circuits | 42 |
| Electrical Product Type | Load Center and Breaker Kit |
| Voltage (volts) | 120/240 |
| Number of Spaces | 42 |
| Load Center Type | Main Breaker |
| Indoor/Outdoor | Indoor |
| Product Weight (lb.) | 41.18 |
| Returnable | 180-Day |
| Phase Type | 1 Phase |
| Maximum Amperage (amps) | 200 |
| Load Center Mounting Type | Flush |
| Load center width (in.) | 15.75 |
| Load center height (in.) | 39 |
| Load center depth (in.) | 4.25 |
| Certifications and Listings | ANSI Certified,CSA Listed,UL Listed |
| Manufacturer Warranty | Limited Lifetime |
