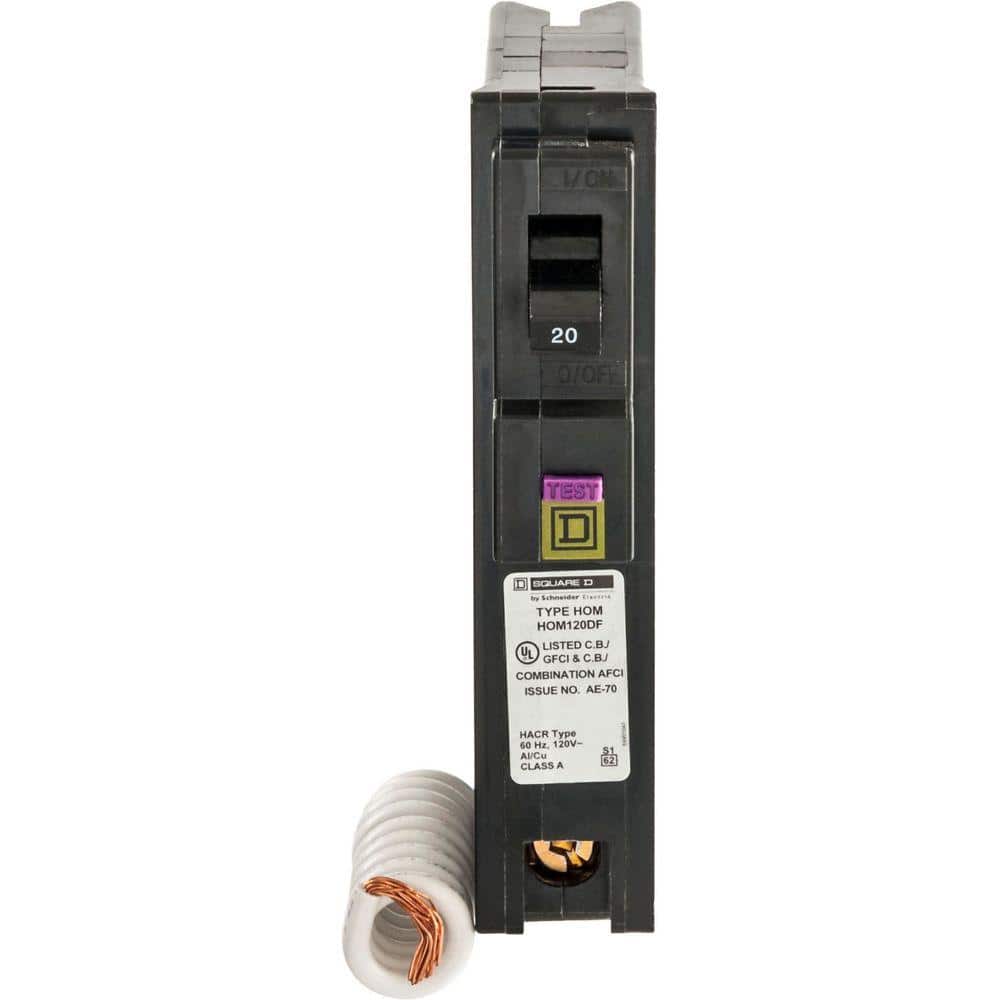

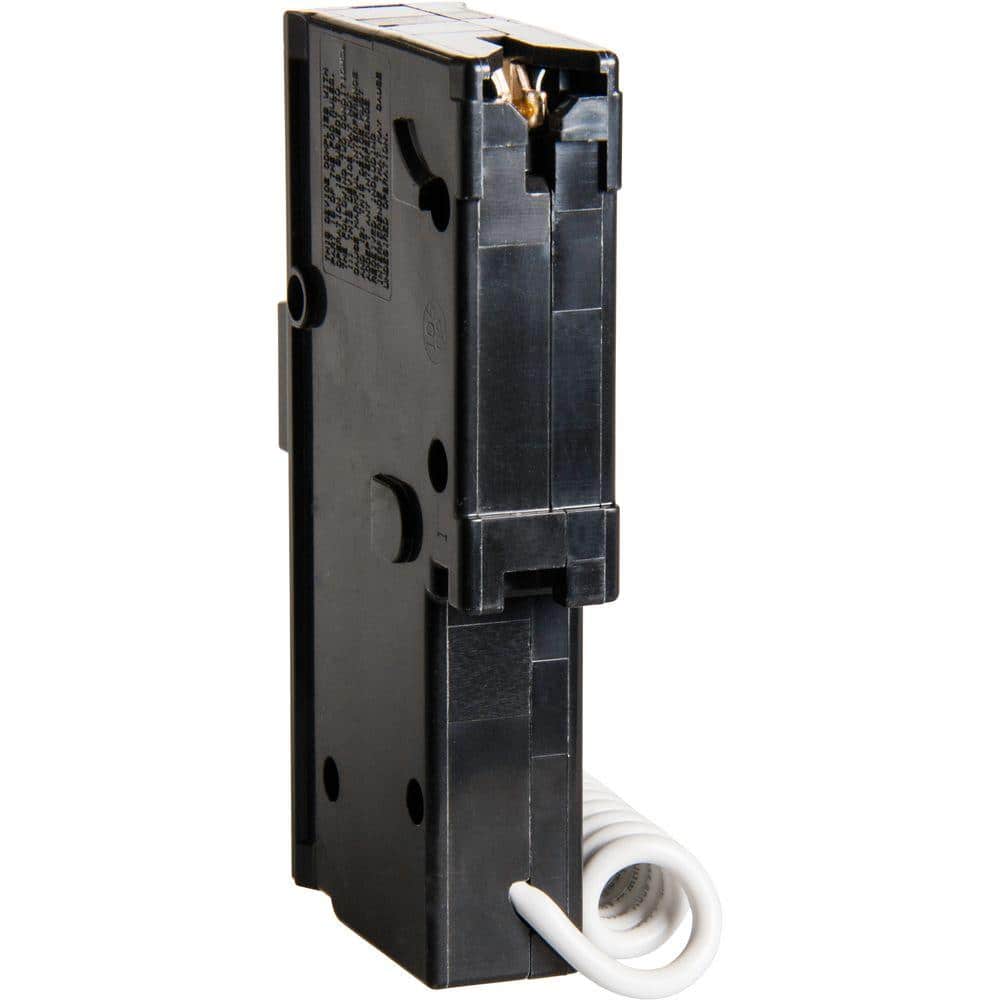

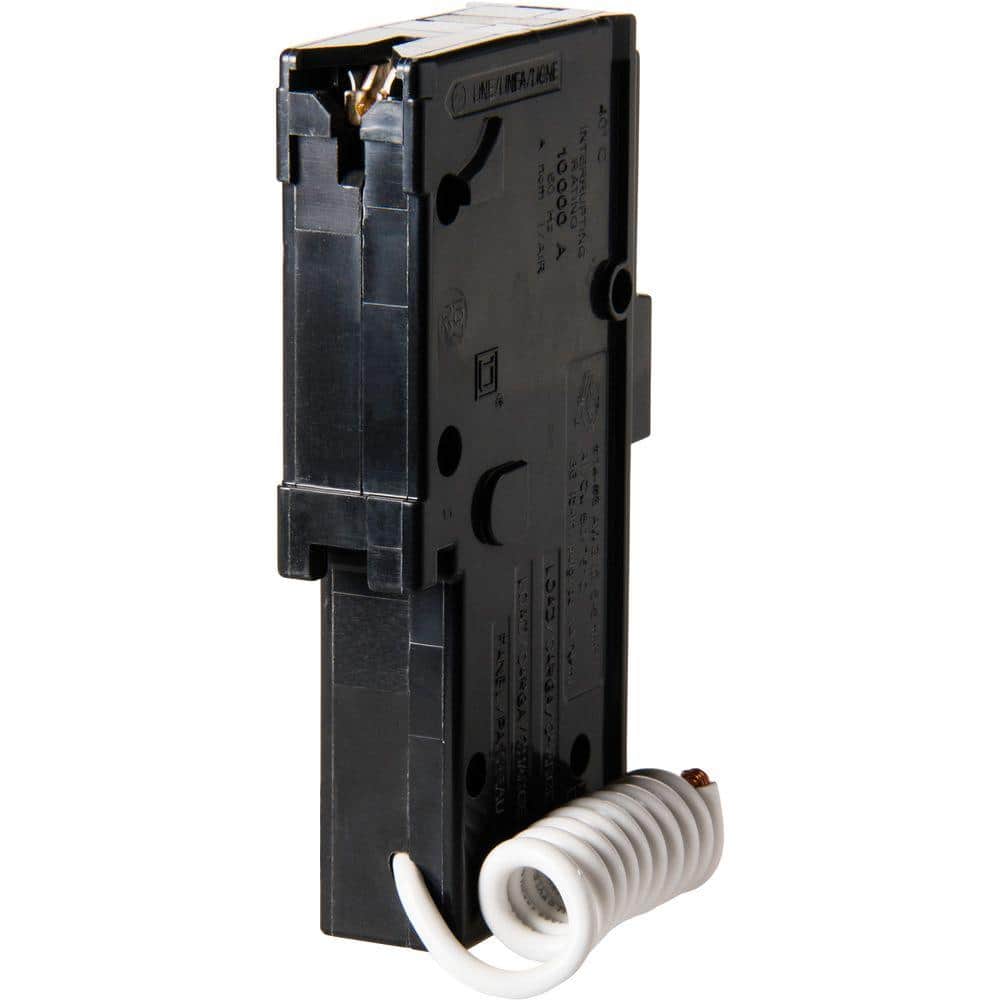

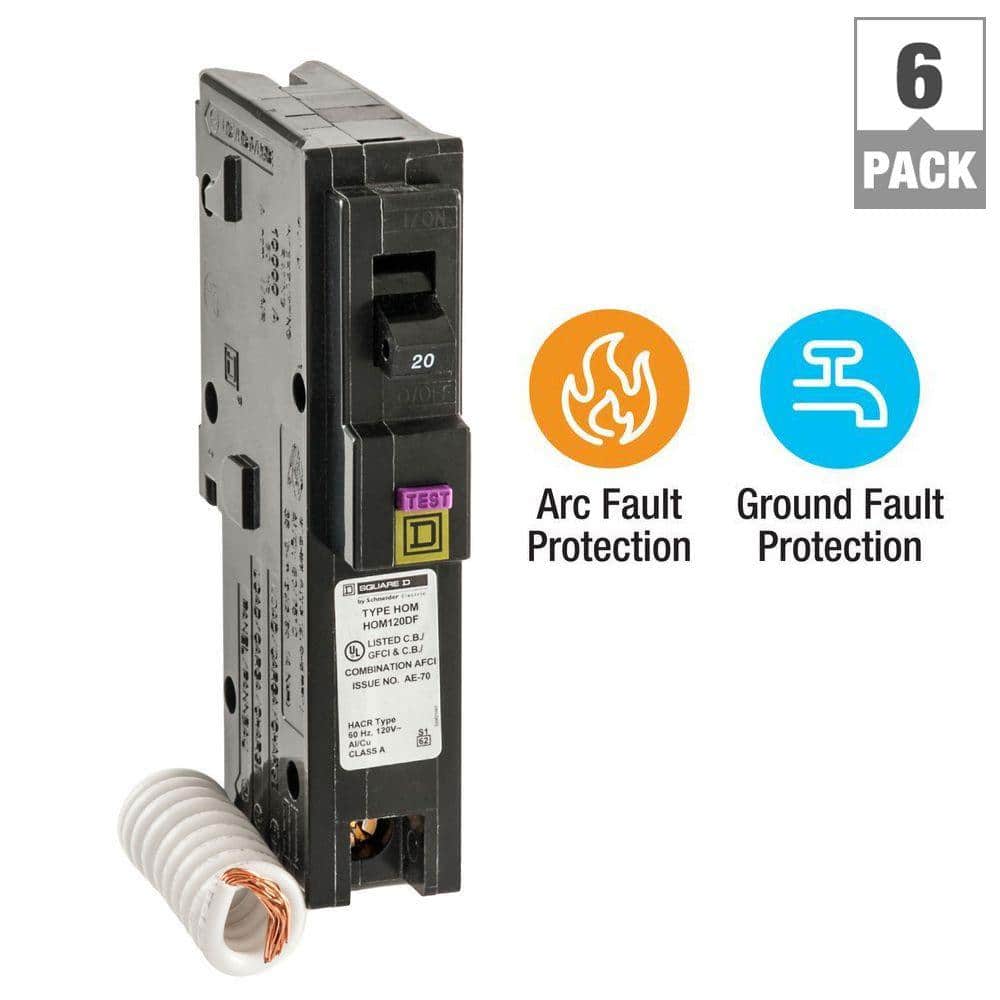

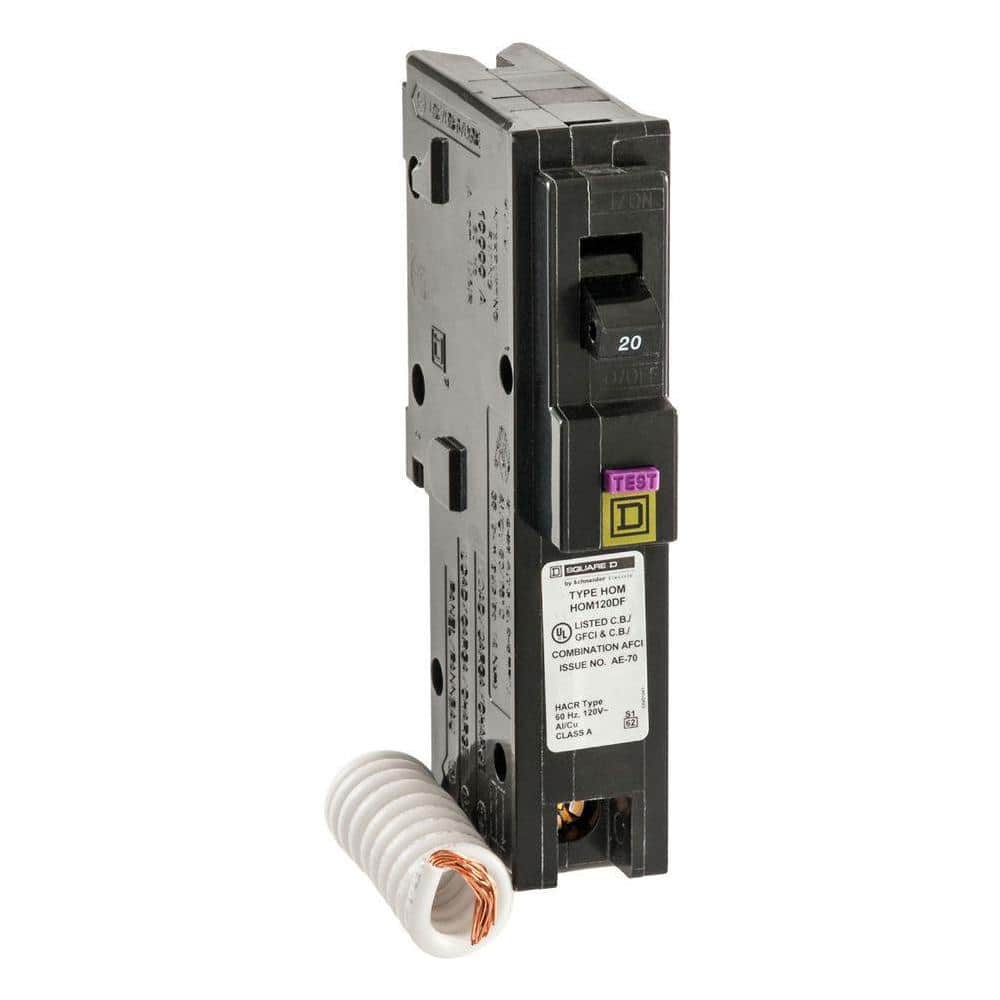

Homeline 20A Single-Pole Dual-Function Breaker, 6-Pack

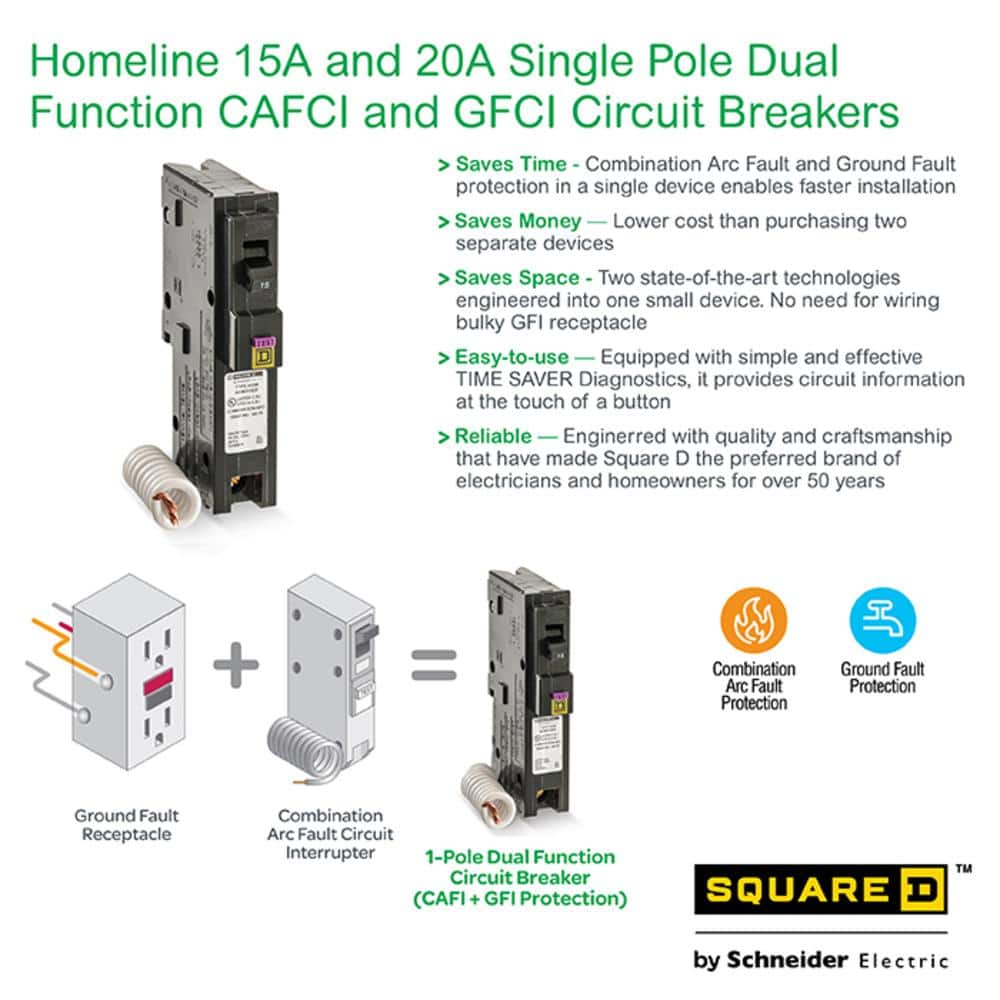

This Square D by Schneider Electric Homeline 20A single-pole breaker delivers dual protection—Combination AFCI and Class A GFCI—in one easy-to-install device. It streamlines code compliance for kitchens, laundry areas, and similar circuits while saving panel space and troubleshooting time with built-in Time Saver Diagnostics.

---

Key Features:

• Dual Protection: Combines CAFCI and Class A GFCI in one breaker for NEC-compliant safety
• Time Saver Diagnostics: Built-in feature speeds troubleshooting at the touch of a button
• Homeline Compatibility: Plug-on design fits Homeline load centers and CSEDs in one space
• Reliable Performance: 10,000 AIR rating; UL Listed and ANSI certified
• Contractor-Friendly: Reduces need for separate GFCI receptacles to save time, cost, and space

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Series	Homeline
Breaker Type	Standard
Function	Dual Function (CAFCI and GFCI)
Poles	Single-Pole
Maximum Amperage	20 A
Voltage	120/240 V
AIC Rating	10,000 AIR
Mounting Type	Plug-On
Connection Type	Non-Neutral
Trip Unit	Electronic
Number of Spaces	1

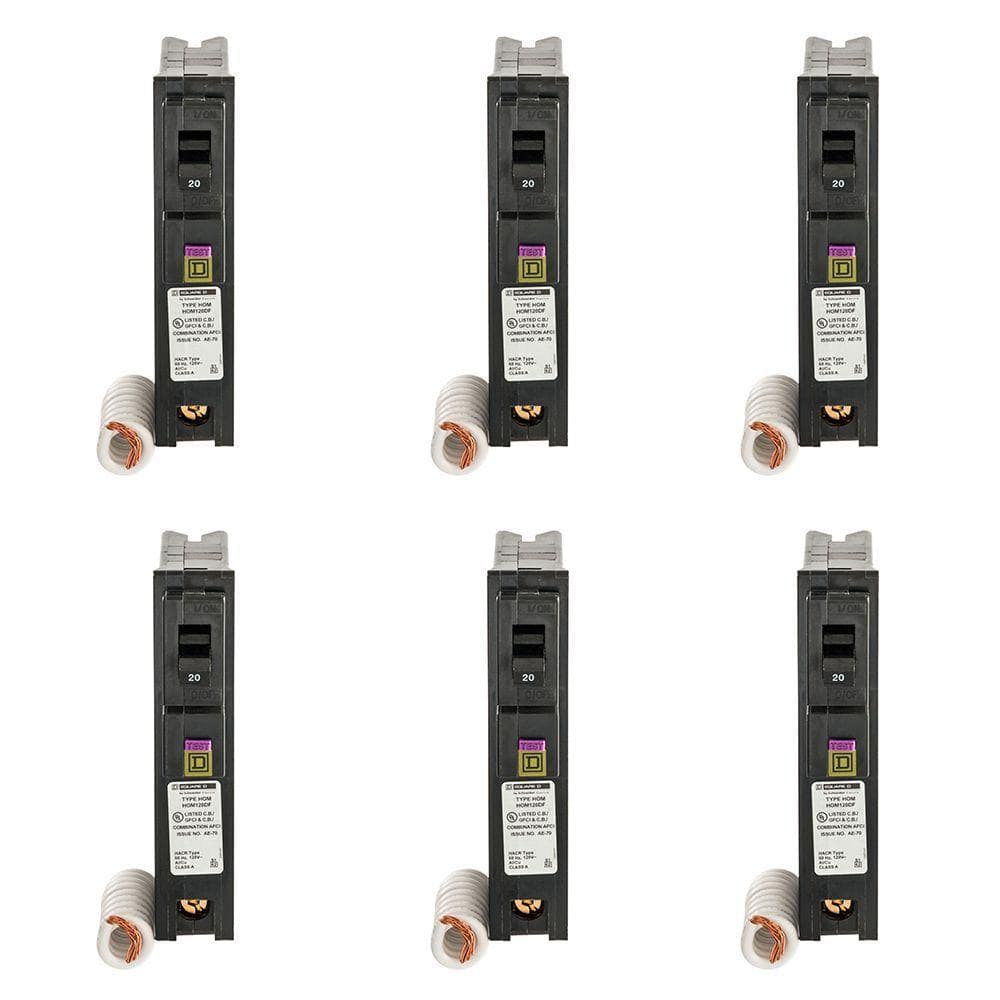

Pack Size	6
Product Width	1 in
Product Height	3.13 in
Product Depth	2.98 in
Certifications and Listings	UL Listed, ANSI Certified
Warranty	Limited lifetime warranty for the lifetime of the Homeline load center in which installed
Features	Time Saver Diagnostics; includes neutral pigtail lead

---

Frequently Asked Questions (FAQ):

Q: What panels is this compatible with?
A: It is designed for Square D Homeline load centers and CSEDs that accept single-space breakers.

---

Q: What type of protection does it provide?
A: Combination Arc Fault (CAFCI) and Ground Fault (Class A GFCI) protection in a single breaker.

---

Q: What is the voltage and amperage rating?
A: Rated 20 amps for 120/240V circuits; single-pole configuration.

---

Q: Is neutral pigtail required?
A: Yes, the breaker includes a coiled neutral pigtail lead for connection.

---

Q: Does it include a warranty?
A: Covered by a limited lifetime warranty for the lifetime of the Homeline load center in which it’s installed.

---

Safety, Streamlined

Elevate the backbone of your home’s electrical design with a breaker that marries intelligence and elegance. Its slim Homeline profile hides robust dual protection, keeping kitchens and laundry zones code-forward and clutter-free. Pair with a neatly labeled panel and clean conduit runs for a refined, purposeful utility space. It’s the quiet luxury of protection you can trust, executed with modern simplicity.

---

Upgrade your panel with dual-function protection and streamline code compliance—add this 6-pack to your project today.
