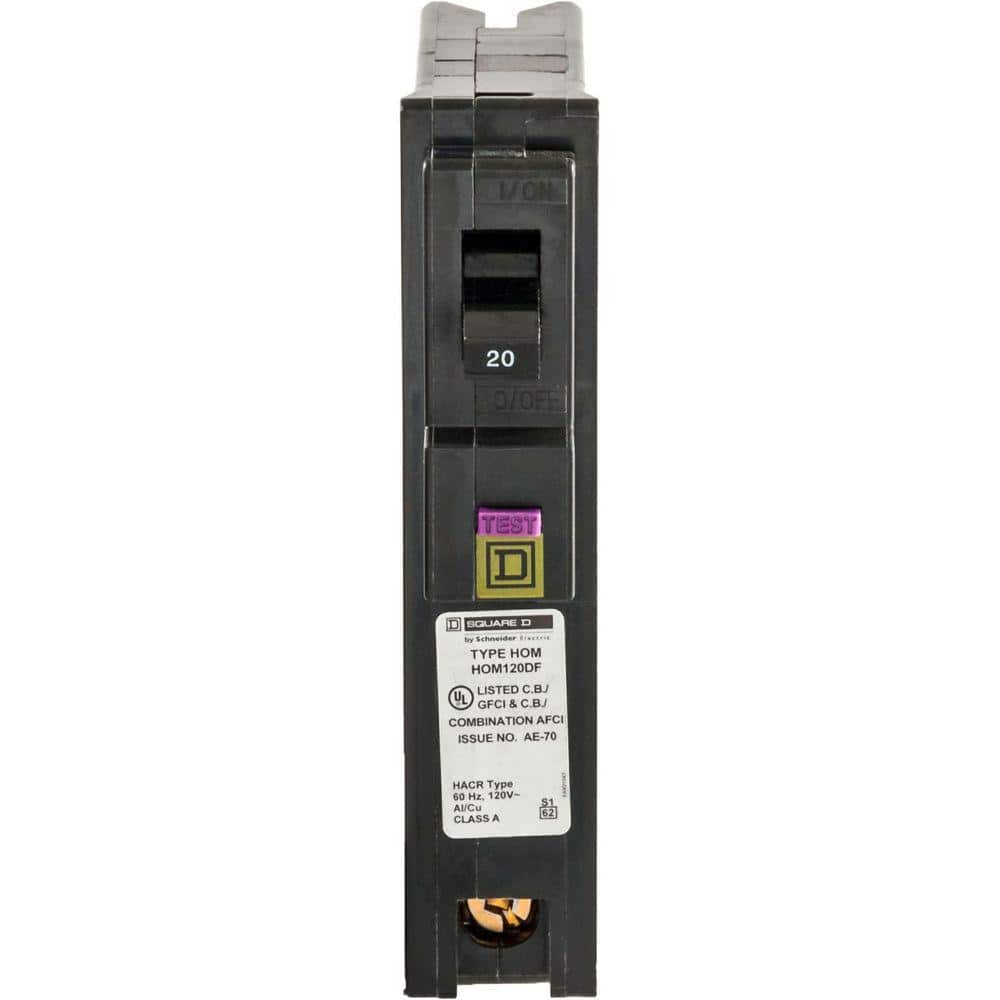

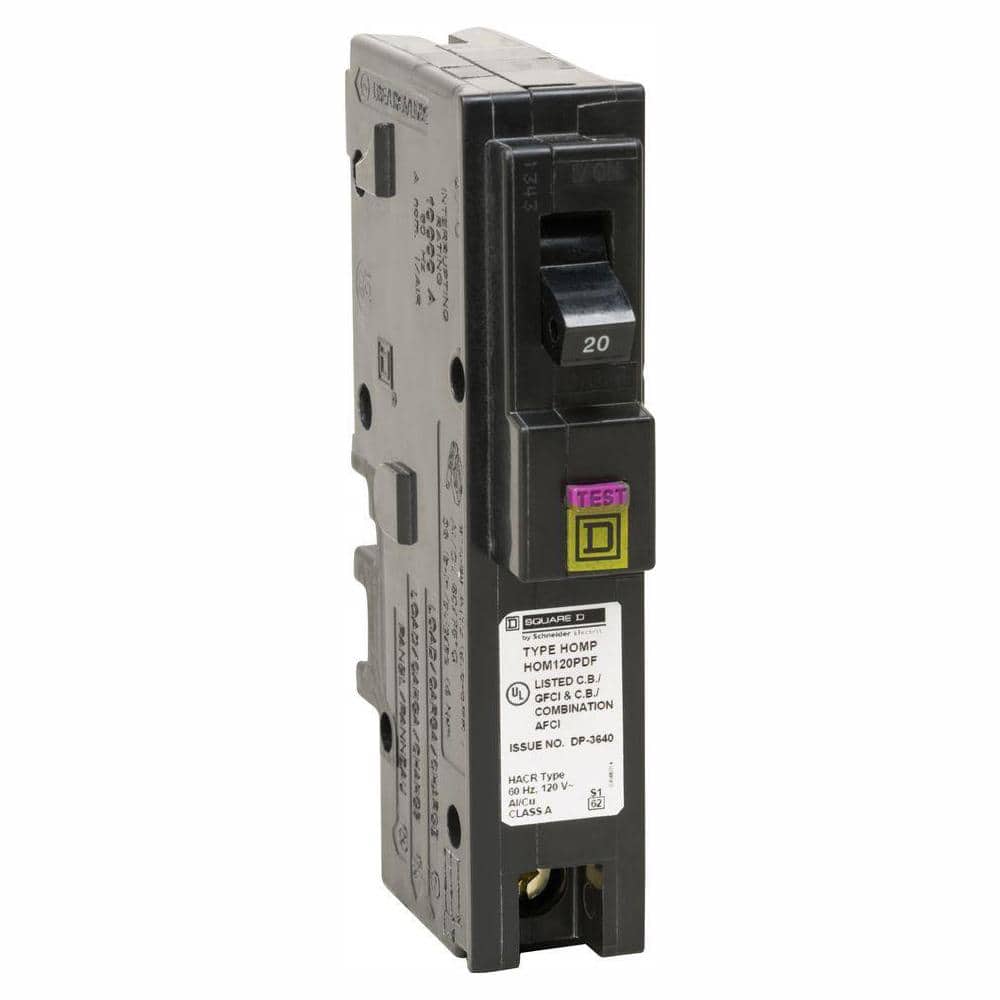

Homeline 20 Amp Single-Pole Plug-On Neutral Dual Function (CAFCI and GFCI) Circuit Breaker (6-Pack)
Regular price $417.13Homeline 20A Dual-Function Plug-On Neutral Breaker, 6-Pack
Square D by Schneider Electric Homeline dual-function breakers combine CAFCI and GFCI protection in one 20A single-pole device. The Plug-On Neutral design speeds installation with fewer connections and no pigtails, ideal for Homeline Plug-On Neutral panels.
Key Features:

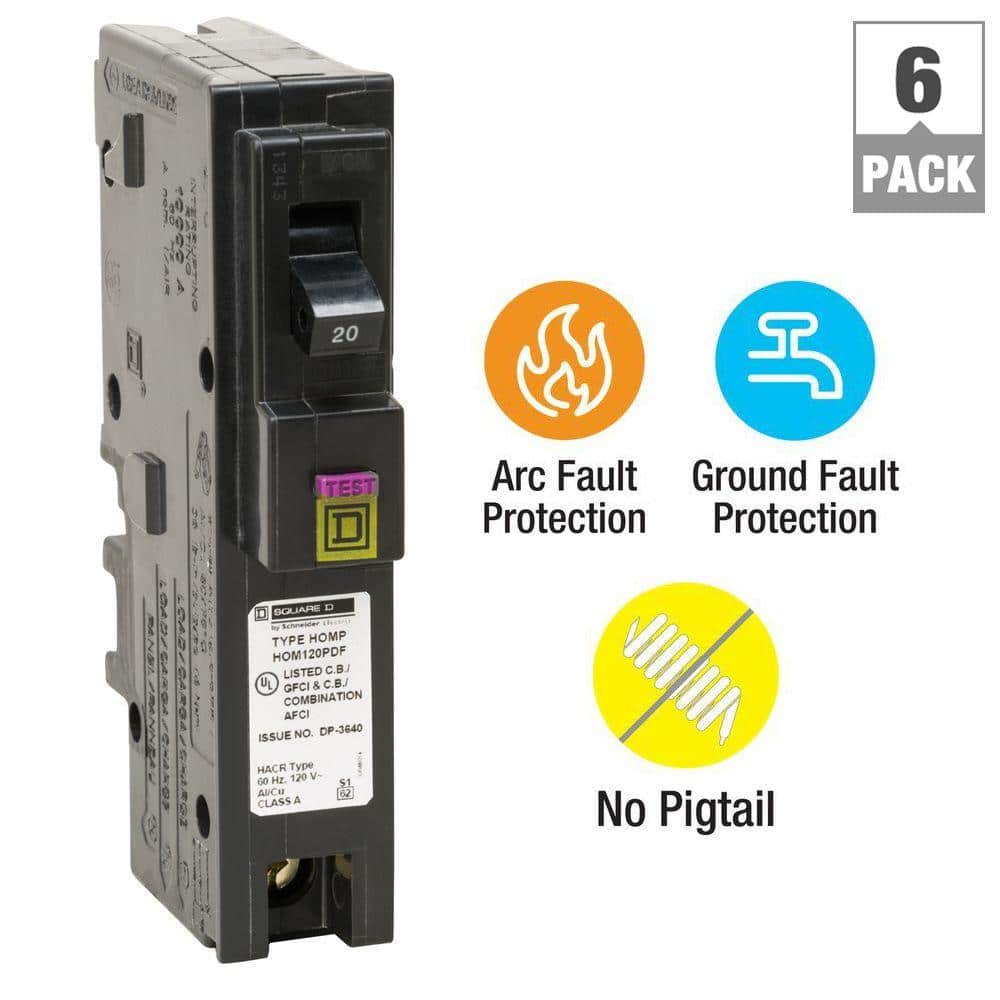

- Dual Protection: Combines Combination Arc Fault (CAFCI) and Ground Fault (Class A) safety in one breaker

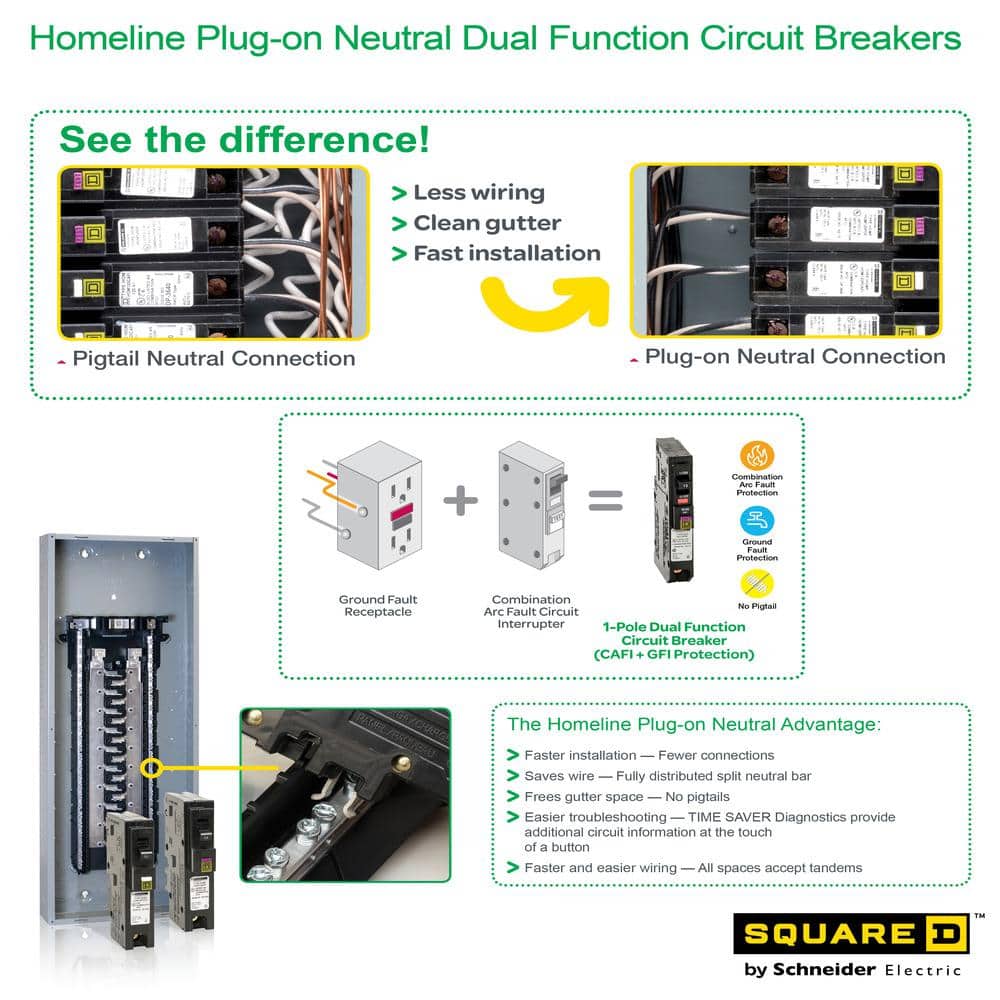

- Plug-On Neutral Design: Faster installs with fewer connections and no pigtail for cleaner gutters
- Homeline Compatibility: For use only in Homeline Plug-On Neutral load centers and CSEDs
- Time Saver Diagnostics: Provides circuit information at the touch of a button to simplify troubleshooting
- UL Listed Reliability: 10k AIR rating; electronic trip unit for dependable performance
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Series | Homeline |
| Breaker Type | Standard, Dual Function (CAFCI + GFCI) |
| Interruption Type | AFCI/GFCI |
| Maximum Amperage | 20 A |
| Poles | Single |
| Mounting Type | Plug-On |
| Connection Type | Plug-On Neutral (no pigtail) |
| Voltage | 120/240 V |
| AIC Rating | 10,000 AIR |
| Trip Unit | Electronic |

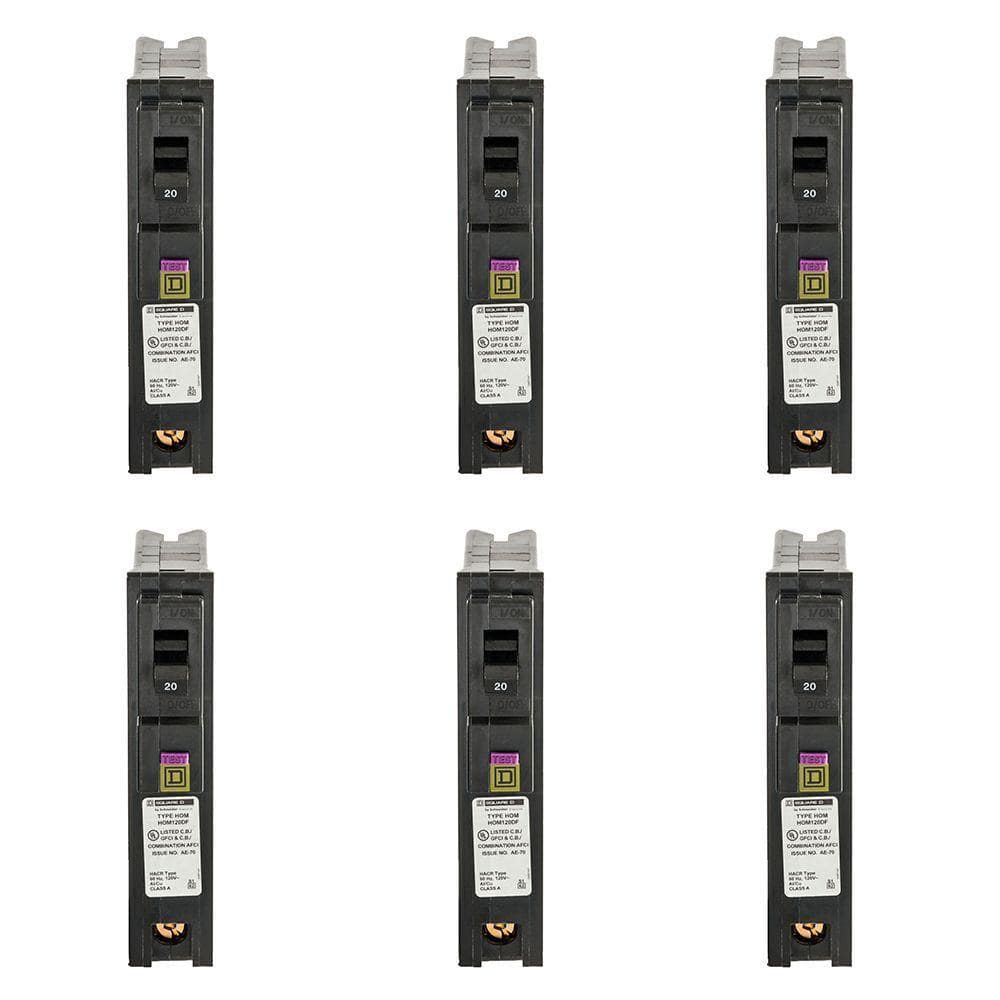

| Pack Size | 6 |
| Product Weight | 0.28 lb |
| Product Depth | 2.98 in |
| Product Height | 3.13 in |
| Product Width | 1 in |
| Certifications and Listings | UL Listed; ANSI certified |
| Warranty | Limited lifetime for the lifetime of the Homeline load center |
Frequently Asked Questions (FAQ):
Q: Is this breaker compatible with all panels?
A: No. It is for Homeline Plug-On Neutral load centers and CSEDs only.
Q: Does it require a pigtail neutral connection?
A: No. The Plug-On Neutral design eliminates the pigtail and connects directly to the neutral bar.
Q: What circuits require this dual-function protection?
A: NEC typically requires CAFCI plus GFCI on 15A and 20A kitchen and laundry circuits; check local code.
Q: What is the voltage and amperage rating?
A: Single-pole, 20A, 120/240V.
Q: What certifications and warranty are provided?
A: UL Listed; limited lifetime warranty for the lifetime of the Homeline load center.
Streamlined Safety with a Sleek, Minimal Profile
This Homeline breaker brings quiet confidence to the panel—clean lines, intuitive test button, and a compact silhouette. The Plug-On Neutral design removes clutter, opening up the gutter for a neater, more refined electrical aesthetic. Pair it throughout kitchen and laundry circuits to deliver seamless protection without visual noise. It’s the understated essential that elevates everyday living with effortless safety.
Upgrade to Homeline dual-function protection today for faster installs, cleaner panels, and code-ready safety in one step.
