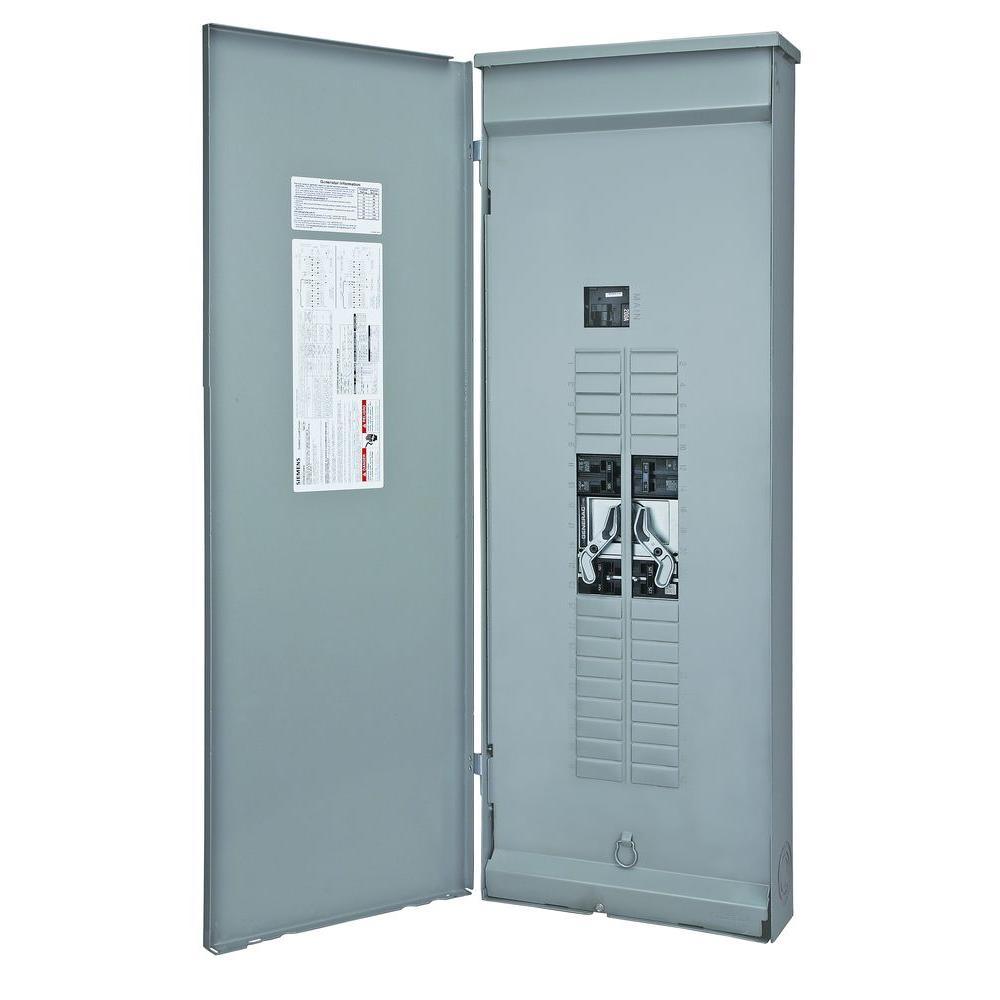

200 Amp 42-Space 54-Circuit Main Breaker Generator Ready Load Center
Regular price $0.00/
Shipping calculated at checkout.

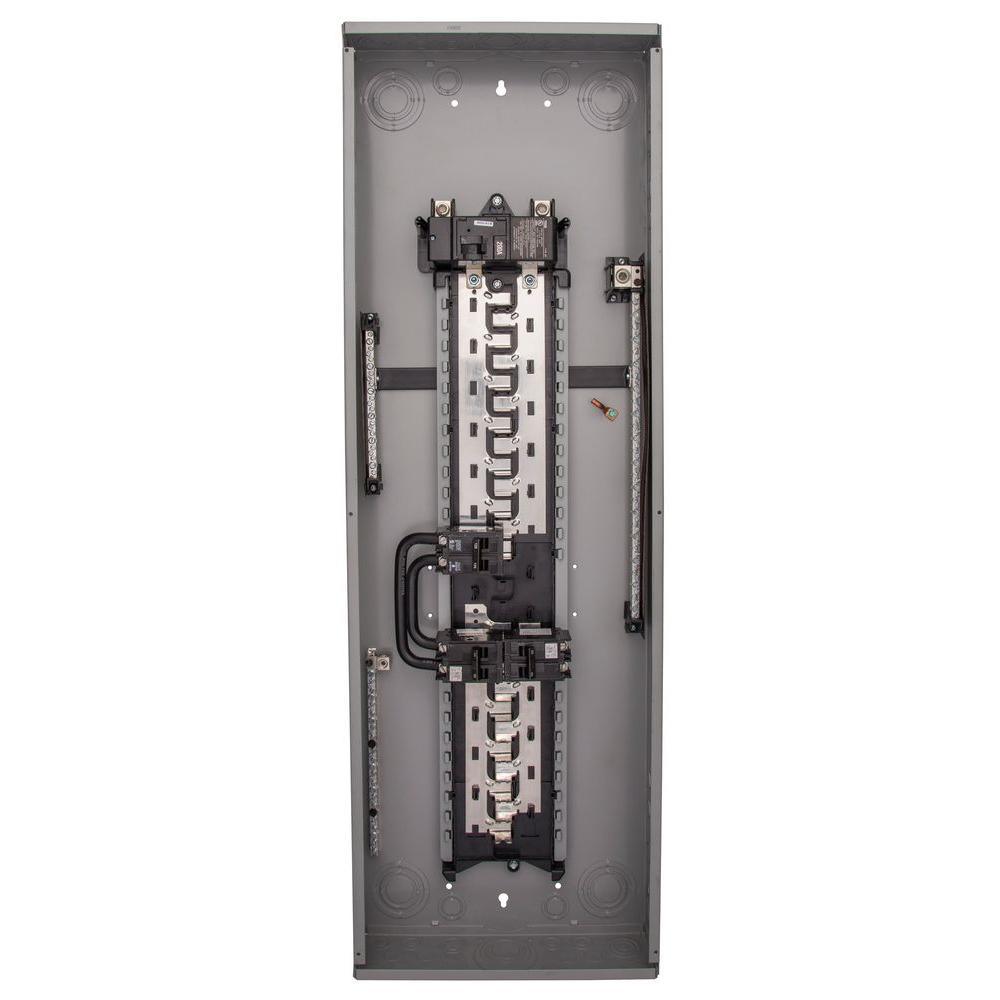

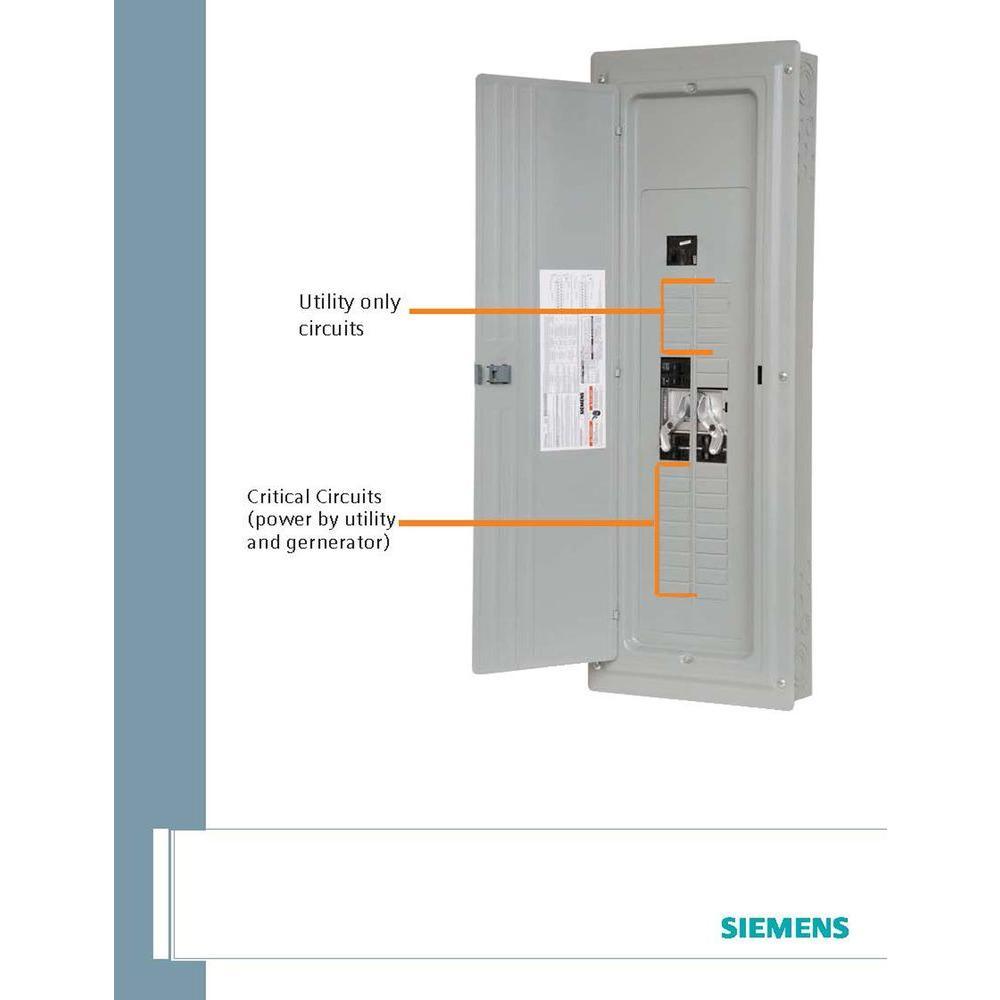

The Siemens Generator Ready Load Center can save thousands of dollars in future generator installation expenses while keeping initial expenses to a minimum. Works with an automatic standby generator or a portable generator. Instead of having one interior like standard load centers, the Siemens generator ready load center has two interiors. During normal operating utility conditions, both interiors are powered. During generator back up conditions, only the lower interior contact is powered.
Features
- 200 Amp, single phase, 42 space/54 circuit, main breaker load center with generator ready provisions for easy standby generator install
- Standby generators are hard wired into the electrical system and plumbed into the natural gas or propane supply, installing them after the home construction is complete can be costly and time consuming
- During construction, a Siemens generator ready load center can be installed eliminating the need for future rewiring and pre-planning by the builder should also include running a gas line to the future generator site, and installing a junction box
- Generator ready load centers are compatible with Siemens, Generac, guardian, and centurion type standby generators up to 30 kW in size, and any brand of portable generator up to 125A in output

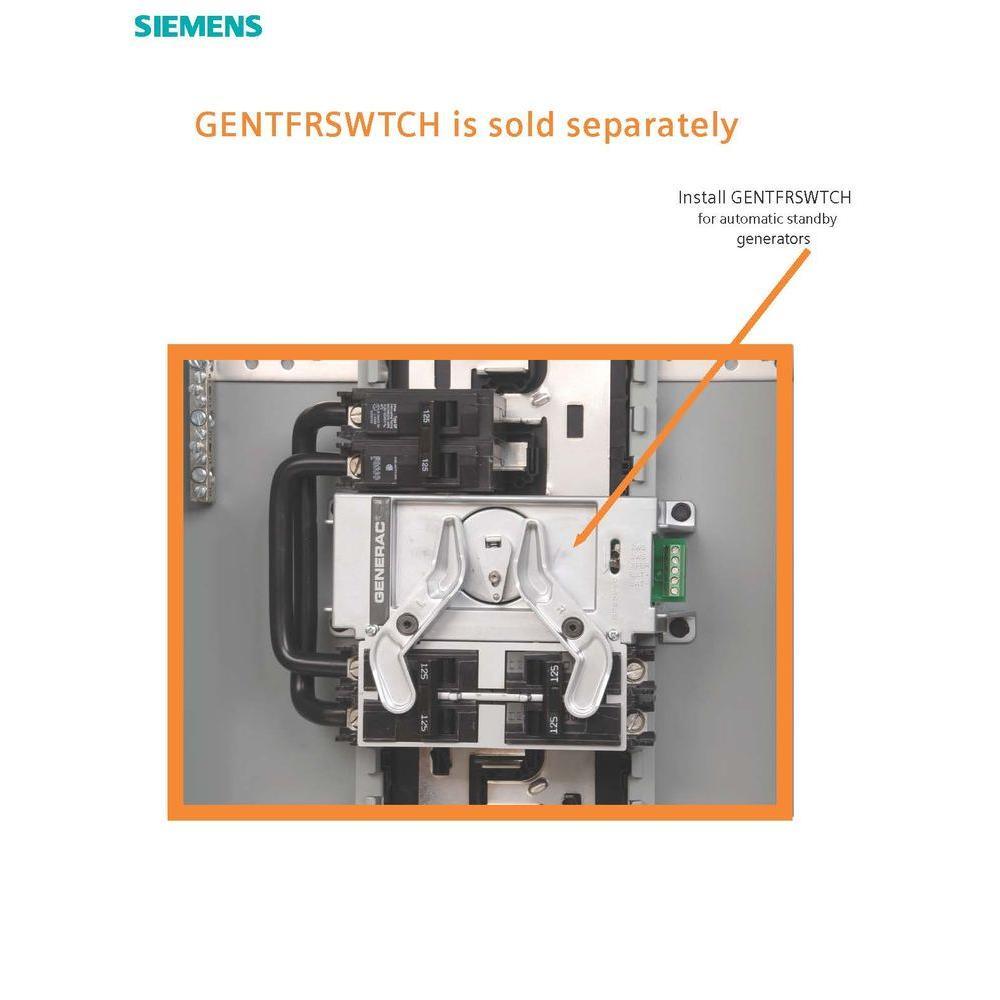

- Generator automatic transfer switch (GENTFRSWTCH) sold separately
Features
| Item Weight | 24.03 |
| Number of Circuits | 54 |
| Load Center Type | Main Breaker |
| Product Weight (lb.) | 24.03 |
| Indoor/Outdoor | Indoor |
| Returnable | 180-Day |
| Maximum Amperage (amps) | 200 |
| Voltage (volts) | 120/240 |
| Electrical Product Type | Load Center |
| Number of Spaces | 42 |
| Indoor/Outdoor2 | Indoor |
| Number of Phases | 1 |
| Mounting Type | Plug In |
| Phase Type | 1 Phase |
| Load center width (in.) | 39 |
| Load center height (in.) | 13 |
| Load center depth (in.) | 117 |
| Manufacturer Warranty | 1 Year |
| Certifications and Listings | UL Listed |
