Eaton · Electrical

200 Amp Enclosed 2-Pole Outdoor Circuit Breaker

200 A

$121.78 each

Orders start at $399. Combine any items to reach it.

Maximum Amperage: 200 A
Breakers
1 breaker
$121.78
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Eaton · Electrical

Details & specifications.

From the maker · Eaton’s description

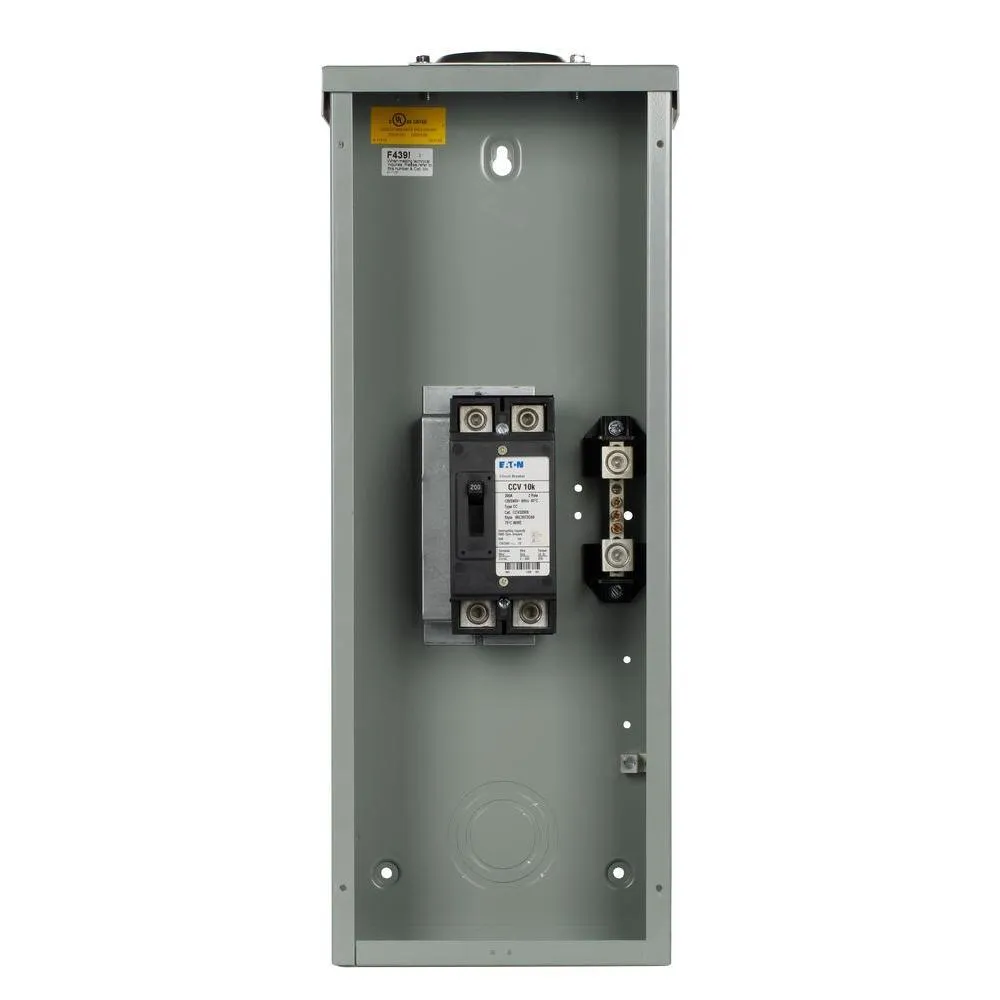

The Eaton 200 Amp double pole, type BR enclosed breaker contains a circuit breaker installed inside a weatherproof steel enclosure. The product is designed to serve as a main disconnect and protective device for feeder circuits. The unit is front operable and is capable of being padlocked in the off position. This unit is a redesign of RCC200SEBP to provide consistent breaker offering for 2P/3P devices (CC/CCV) and added labor savings to our contractors. It's the same size as the existing RCC items.

  • New neutral bar design for cleaner installation ((2) 300MCM-#6 and (4) #4-#14)
  • Factory installed load side lugs
  • Rain tight enclosure - NEMA 3R
  • 25 KAIC interrupting rating
  • Uses type DS H2 hub

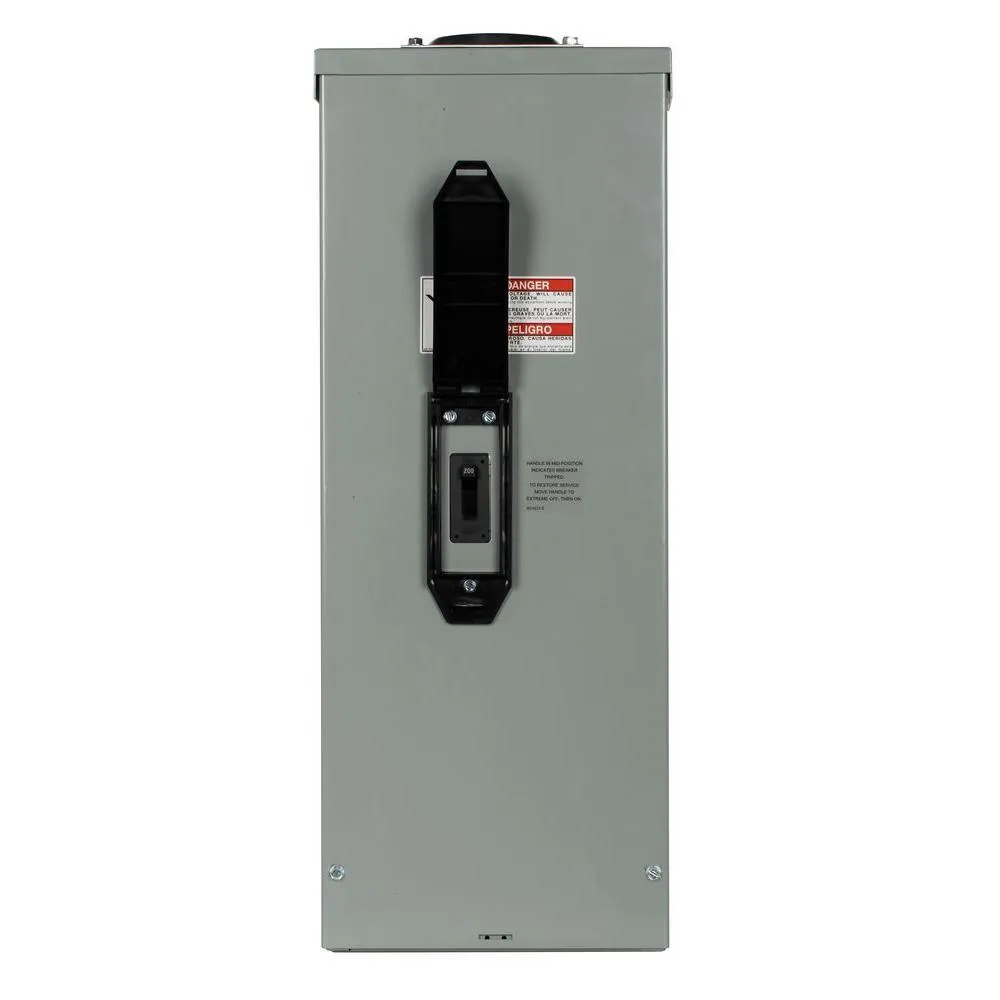

  • Front accessible for convenient operation
SKU
205936221
UPC
786685934853
Amps
200 A
Mounting
Bolt On
Brand
Eaton
Maximum Amperage (amps)
200
Item Weight
17
Product Weight (lb.)
18.30
Load Center Type
Main Breaker
Electrical Product Type
Load Center
Voltage (volts)
124/240
Indoor/Outdoor
Outdoor
Number of Circuits
0
Phase Type
1 Phase
Number of Spaces
0
Load Center Mounting Type
Flush
Load center depth (in.)
4.63
Load center width (in.)
9.25
Load center height (in.)
23.25
Manufacturer Warranty
10 year
Certifications and Listings
UL Listed

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Before you buy a breaker

  1. 1

    Match the panel

    Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.

  2. 2

    Match the wire

    The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.

  3. 3

    Protection

    Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.

  4. 4

    Tandem and quad

    Two circuits in one space, only in the slots the panel label allows.
