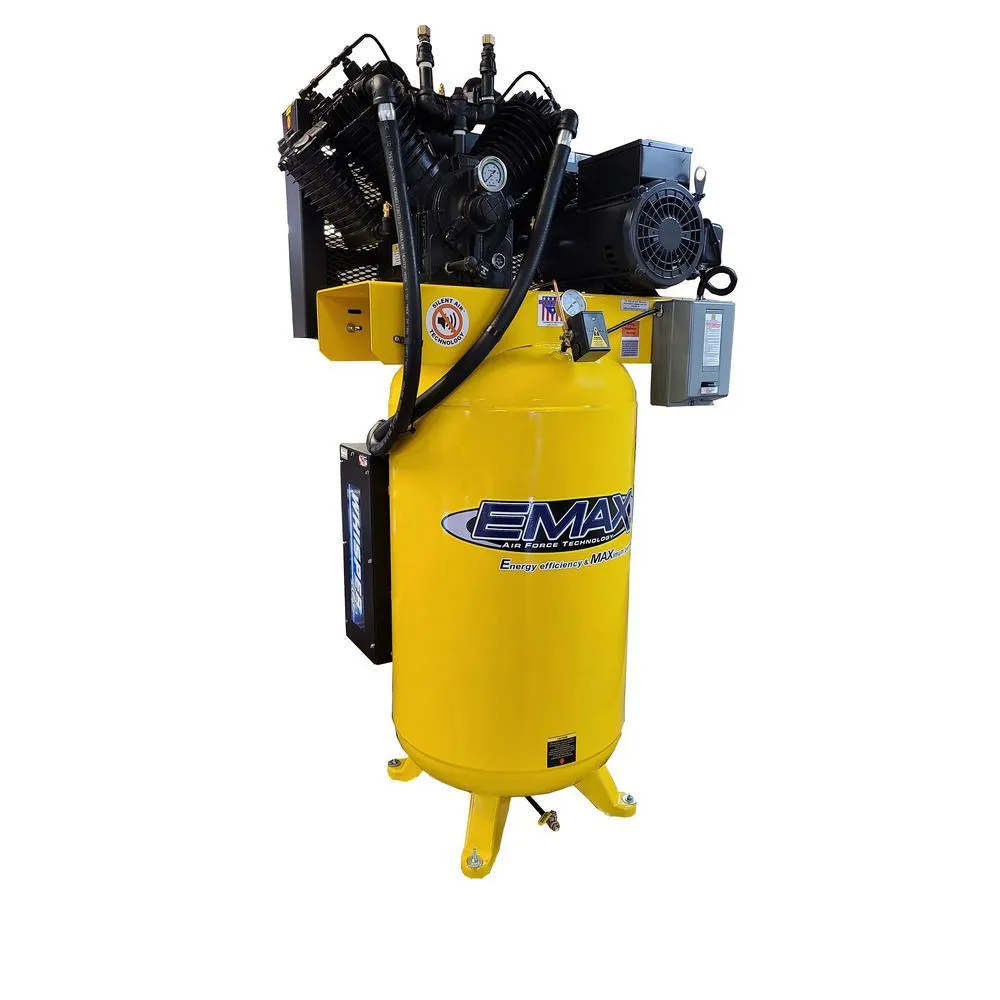

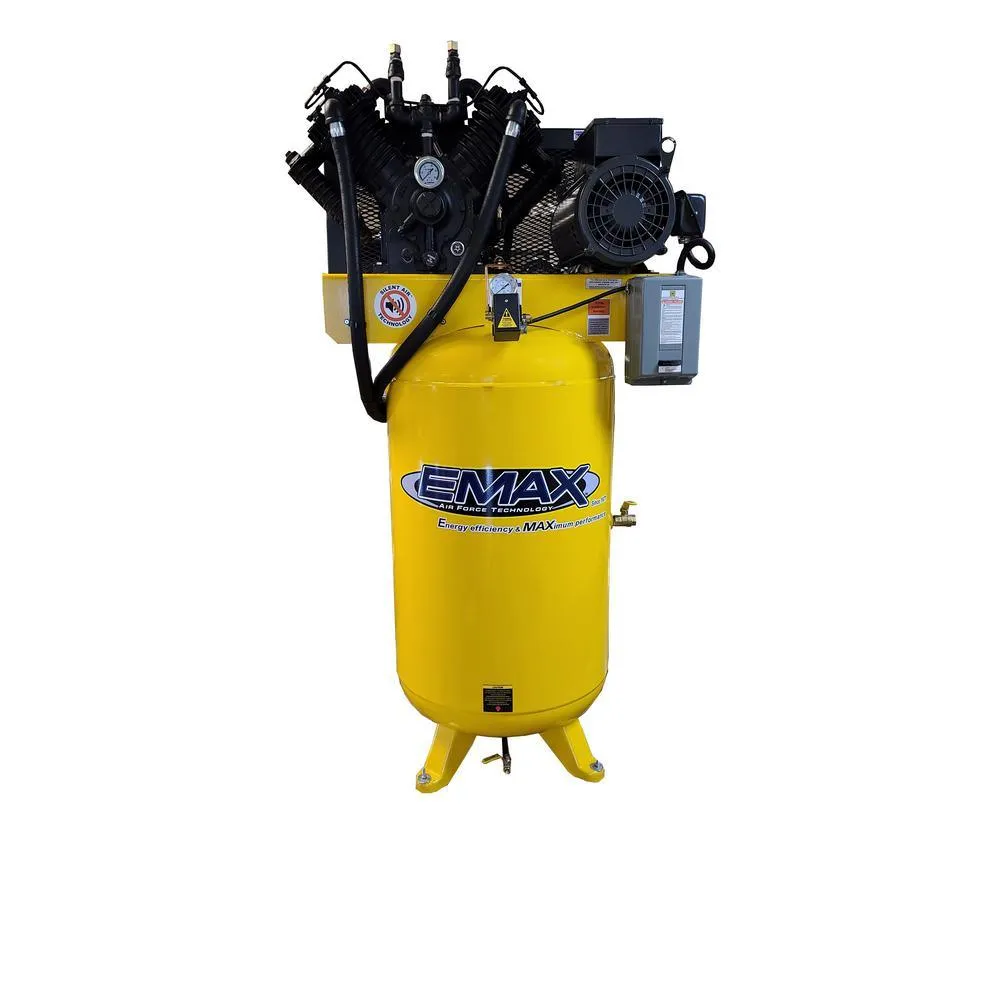

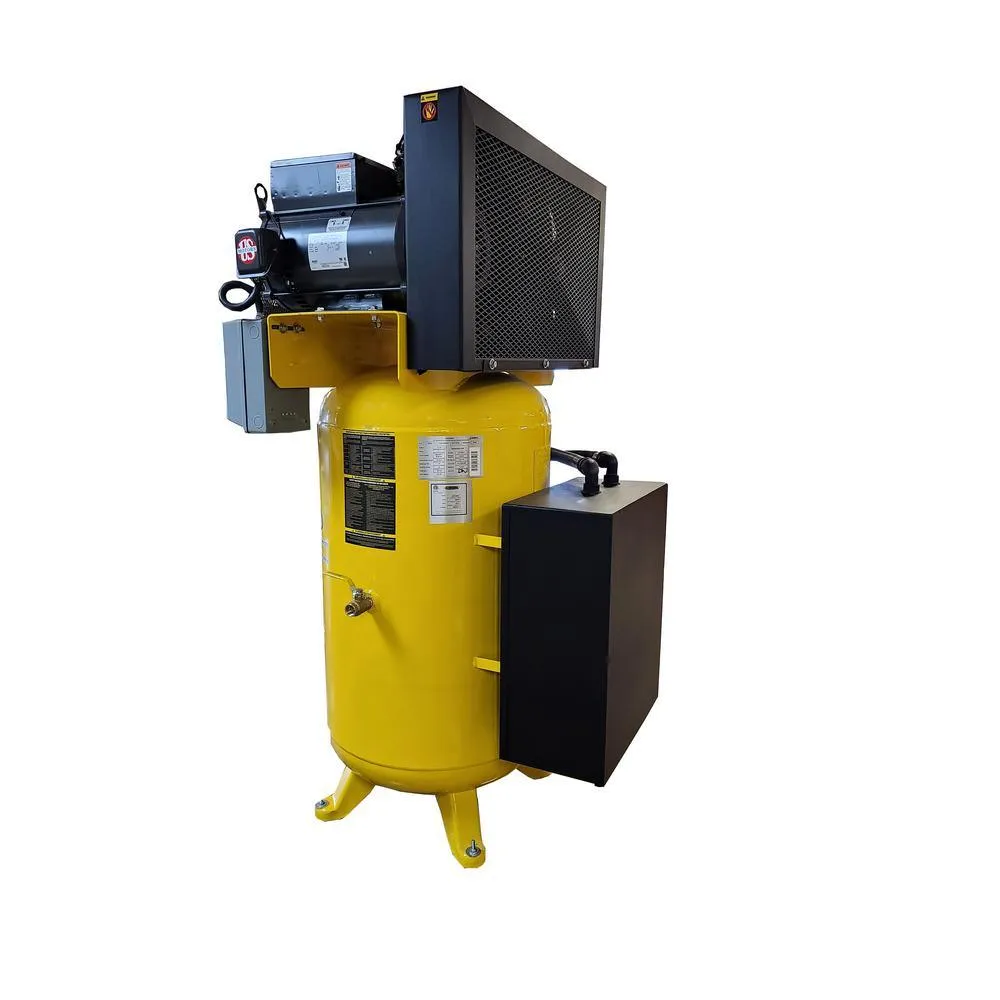

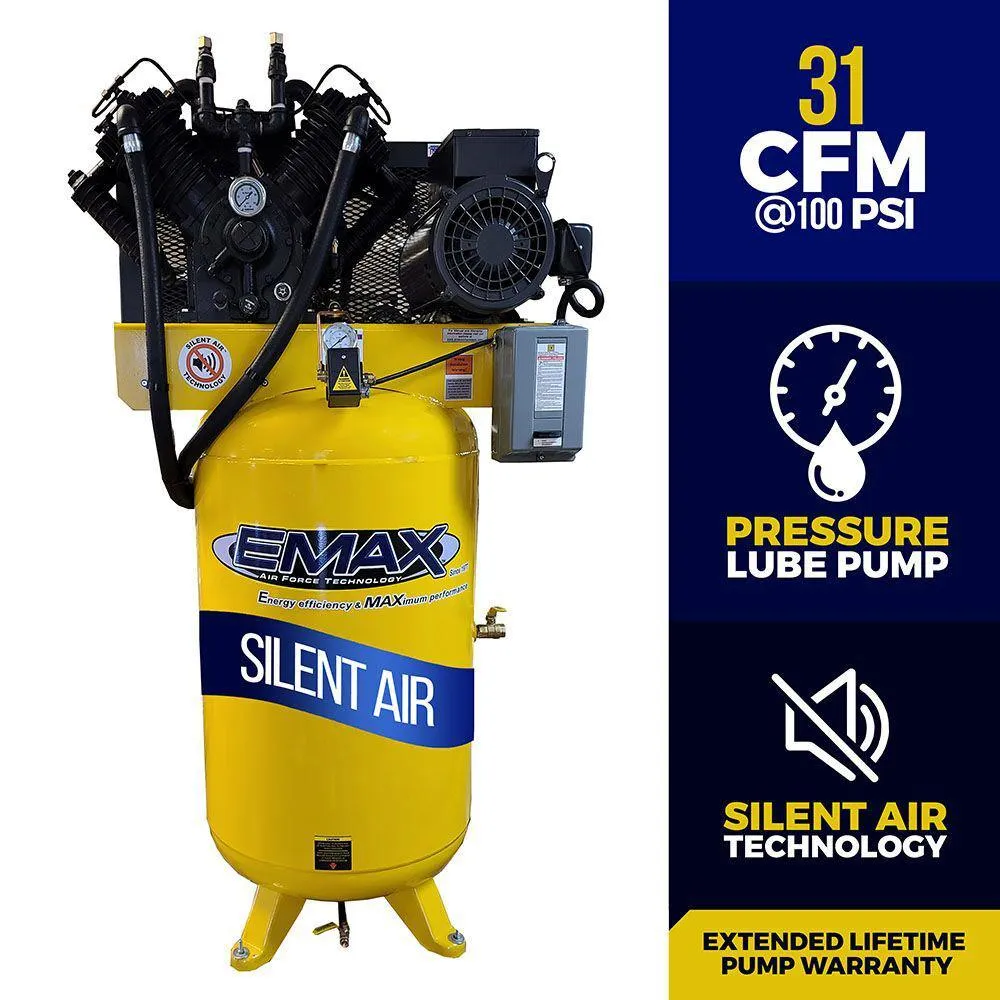

Industrial Series 80 Gal. 7.5 HP 1-Phase Silent Air Electric Air Compressor with Pressure Lubricated Pump
Regular price $3,299.00/
Shipping calculated at checkout.

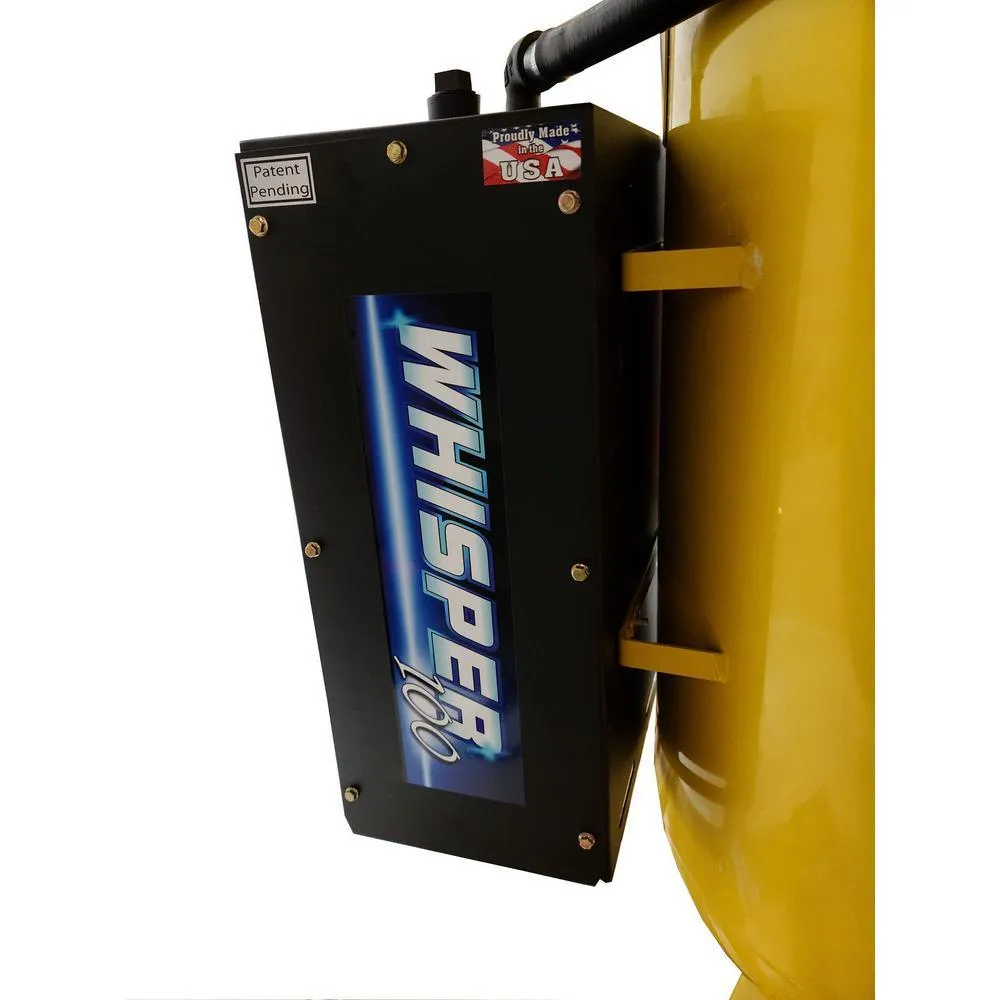

This EMAX Industrial 7.5 HP 2 Stage V4 1 Phase vertical 80 Gal. Piston Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers 34 SCFM @ 100 PSI, top PSI of 175. Our unit features industrial ODP electric motors, magnetic starters, manual ball valve tank drain, powder coated ASME tank 200PSI rating, all paired with all cast iron 70,000 Hr. rated patented pressure lubricated reciprocating pump. This unit features our patented Whisper100 silent air system already installed. The Whisper100 dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry.
Features
- California residents
- Piston series 2-stage cast iron Pressure Lubricated Pump, rated at up to 50000 hours based on B-10 bearing life rating
- Ram-tek solid steel, heavy gauge rods are built for maximum performance and durability
- Flow tek concentric disc valves deliver maximum performance and longevity
- Silent Air Technology
- Premium 5 layer filtration system prevents foreign matter from entering intake and extends pump life
- 7.5 HP industrial motor with low 1750 RPM design extends useful life
- Gate valve oil drain provides quick, clean oil changes

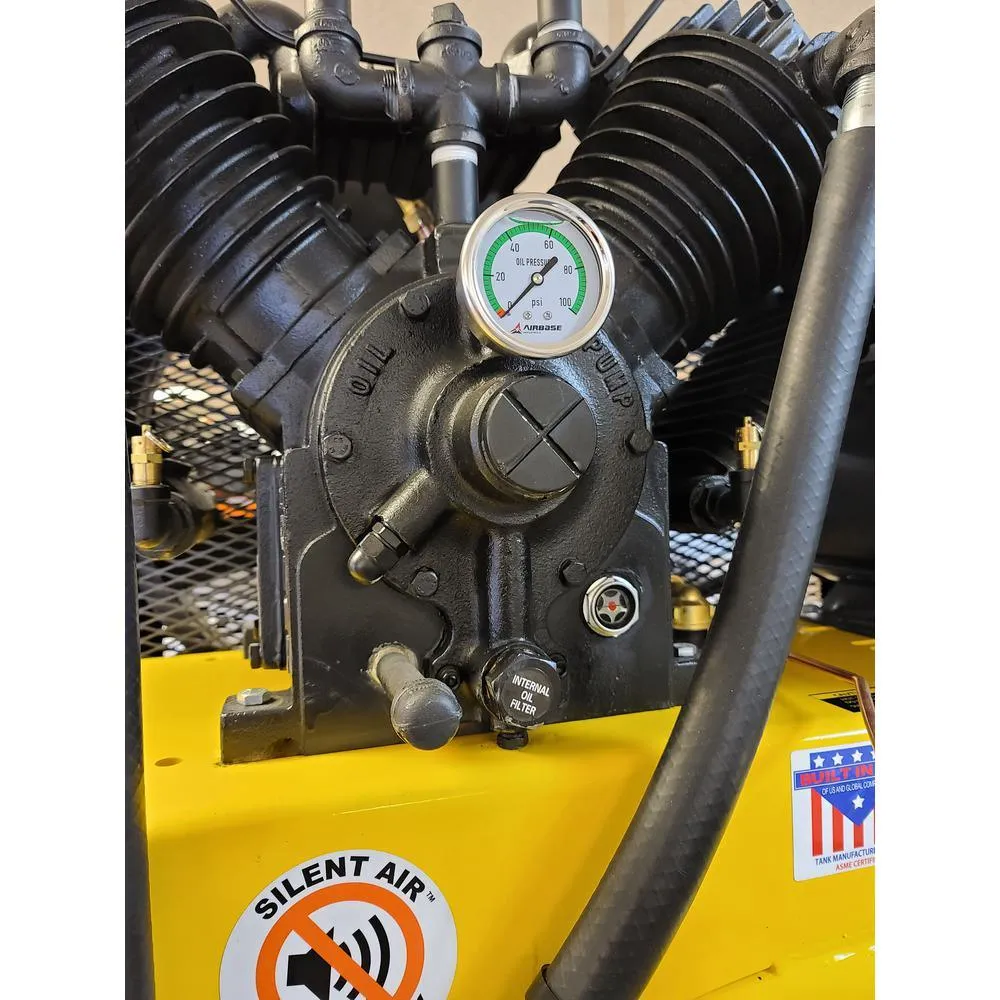

- Patented Pressure Lubricated 2-stage cast iron pump
- Magnetic starter
- 5 year warranty
- ETL Certified
- <>Need help? CLICK HERE to view our Air Compressor Buying Guide
Features
| Item Weight | 821 |
| Air Delivery SCFM @ 90PSI | 28.0 |
| Compressor/Air Tool Features | No Additional Features |
| Power Type | Corded Electric |
| Amperage (amps) | 32 |
| Voltage (v) | 208/230v |
| Air Delivery SCFM @ 40PSI | 30.0 |
| Returnable | 30-Day |
| Number of Total Batteries Included | 0 |
| Horsepower (hp) | 7.5 hp |
| Decibel Rating (Outdoor) | 67 dBA |
| Compressor Tank Capacity (Gallons) | 80 |
| Included | No additional components or accessories are included |
| Condition | New |
| Application Use | Air Brushing,Blow Cleaning,Bolting/Wrenching,Brad Nailing/Stapling,Cutting,Drilling,Finish Nailing,Framing Nailing,Grinding,HVLP Painting,Hobby Nailing,Hobby Painting,Inflation,Roof Nailing,Sanding,Spraying,Surface Prep |
| Product Weight (lb.) | 743 |
| Tank Style | Vertical |
| Maximum Pressure (psi) | 175 |
| Voltage (volts) | 208/230 |
| Portable | No |
| Compressor Volume Rating | Quiet |
| Compressor Tank Capacity (Gal.) | 80 Gal. |
| Lubrication Type | Oil-Lubricated |
| Tools Product Type | Air Compressor |
| Compressor Type | Garage & Industrial |
| Charger Included | Charger Not Included |
| Reconditioned | No |
| Battery Amp Hours | No Battery |
| Battery/Charger | Tool Only |
| Tank Material | Steel |
| Stage Count | Two Stage |
| Power Source | Electric |
| Product Height (in.) | 72 |
| Product Width (in.) | 42 |
| Product Depth (in.) | 38 |
| Certifications and Listings | CSA Listed,ETL Listed,UL Certified |
| Manufacturer Warranty | 5 Year Limited Warranty on oil-lubricated air compressor pumps and tanks |
