SHOCKWAVE RED HELIX 29‑Piece Titanium Drill Bit Set

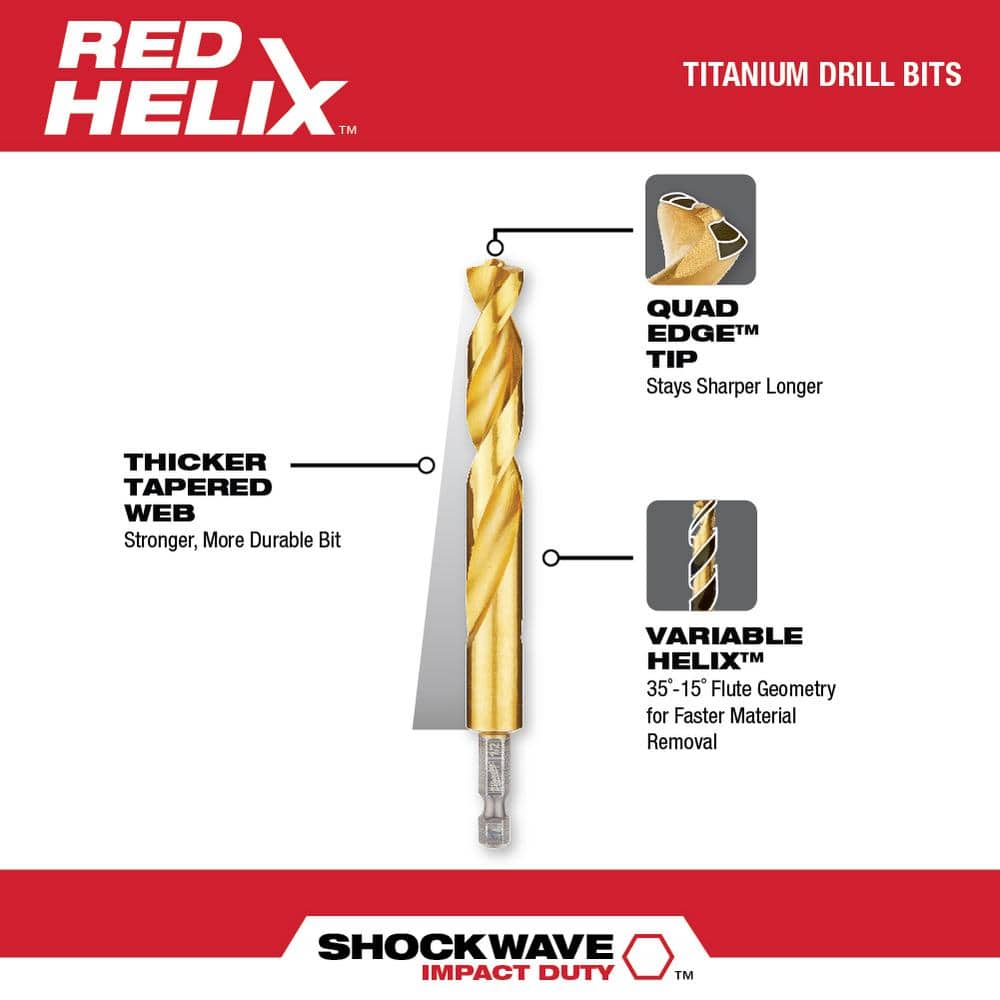

Milwaukee’s 29‑piece SHOCKWAVE RED HELIX titanium set is built for long life in metal, wood, and plastics. A QUAD EDGE tip and variable 35°–15° helix speed chip evacuation to reduce heat, while an enhanced tapered web adds strength to resist breakage. 1/4 in. hex shanks work in drills and impact drivers.

---

Key Features:

• Longer Bit Life: Titanium coating and QUAD EDGE tip stay sharper up to 5x longer than black oxide bits
• Fast Chip Removal: RED HELIX variable 35°–15° flute geometry limits heat for quicker drilling
• Stronger, More Durable: Enhanced tapered web resists breakage under load
• Impact-Rated Versatility: 1/4 in. hex shanks for use in drills or impact drivers
• Broad Application Range: Ideal for metal, wood, plastics; 29 sizes from 1/16 in. to 1/2 in.

---

Specifications Table:

Specification	Details
Set Size	29 pieces
Bit Material	Titanium
Drill Bit Type	Twist
Drill Bit Type(s) Included	Twist
Shank Style	1/4 in. Hex

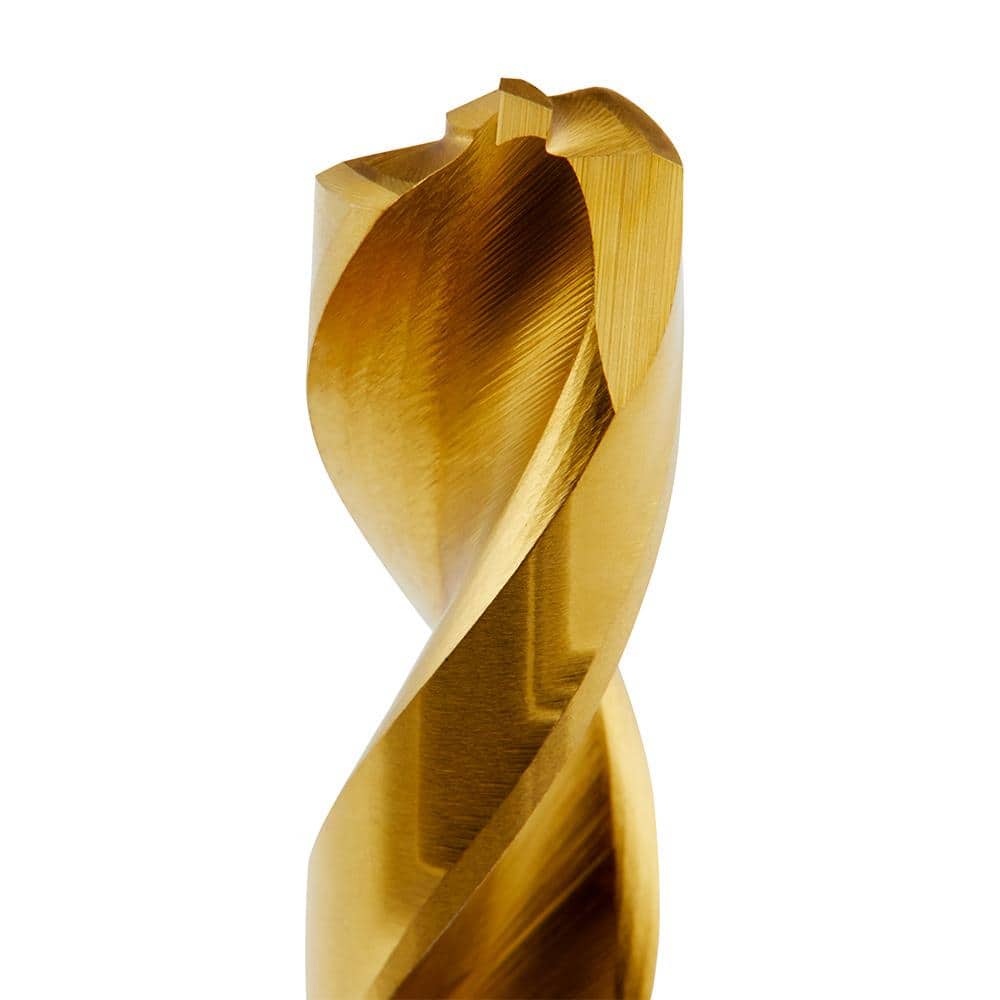

Tip	135° split point; QUAD EDGE tip
Helix	Variable helix 35°–15° for rapid chip removal
Impact Rated	Yes – SHOCKWAVE Impact Duty
Applications	Metal, wood, plastics/PVC

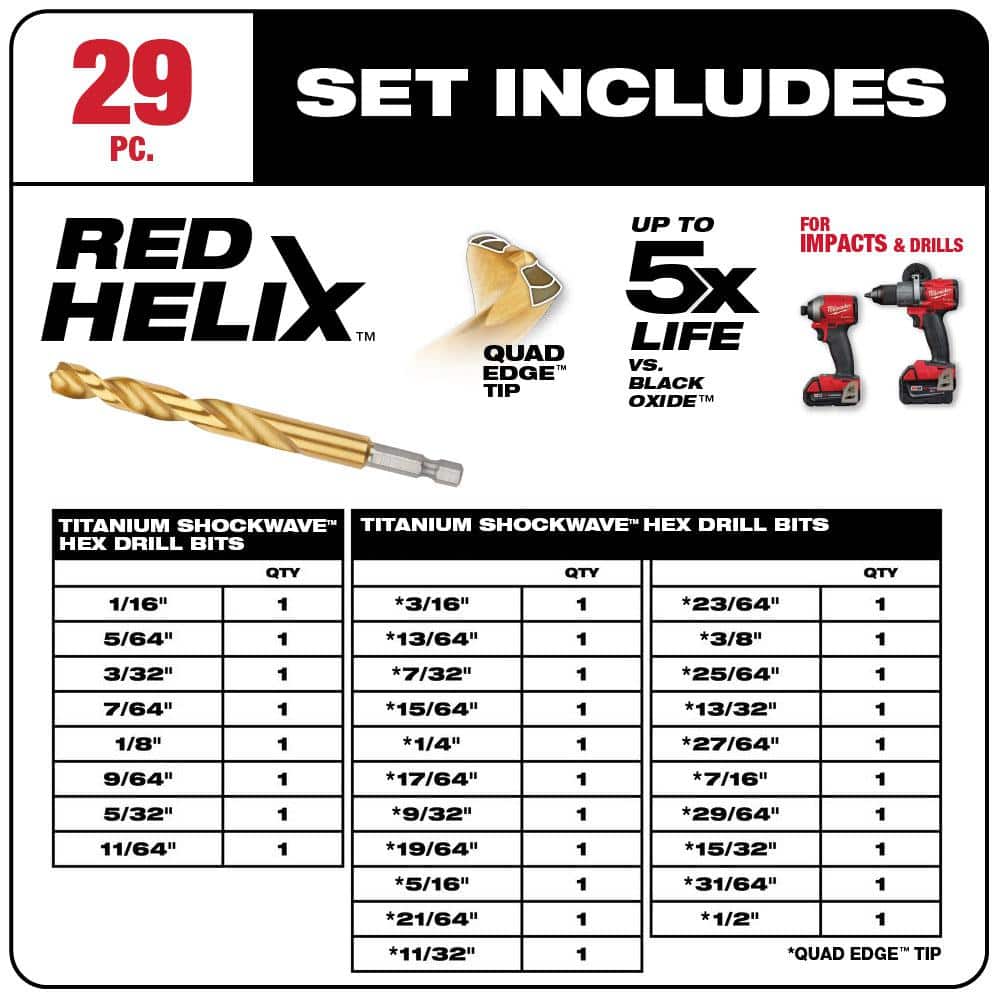

Included Sizes	1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 11/64, 3/16, 13/64, 7/32, 15/64, 1/4, 17/64, 9/32, 19/64, 5/16, 21/64, 11/32, 23/64, 3/8, 25/64, 13/32, 27/64, 7/16, 29/64, 15/32, 31/64, 1/2 in.
Individual/Set	Set
Tools Product Type	Power Tool Accessory
Product Width (in.)	10.708
Product Depth (in.)	10.039
Product Height (in.)	3.582

---

Frequently Asked Questions (FAQ):

Q: What materials can these bits drill?
A: They’re designed for metal, wood, and plastics (including PVC).

---

Q: Are the bits impact‑driver compatible?
A: Yes, each bit has a 1/4 in. hex shank for use in drills and impact drivers.

---

Q: What tip geometry do they use?
A: A 135° split point with Milwaukee’s QUAD EDGE tip for fast, precise starts and reduced walking.

---

Q: What sizes are included?
A: 29 sizes from 1/16 in. to 1/2 in., including common fractional increments; see full list in specs.

---

Q: Do they resist breaking under heavy use?
A: Yes, the enhanced tapered web increases strength to reduce premature breakage.

---

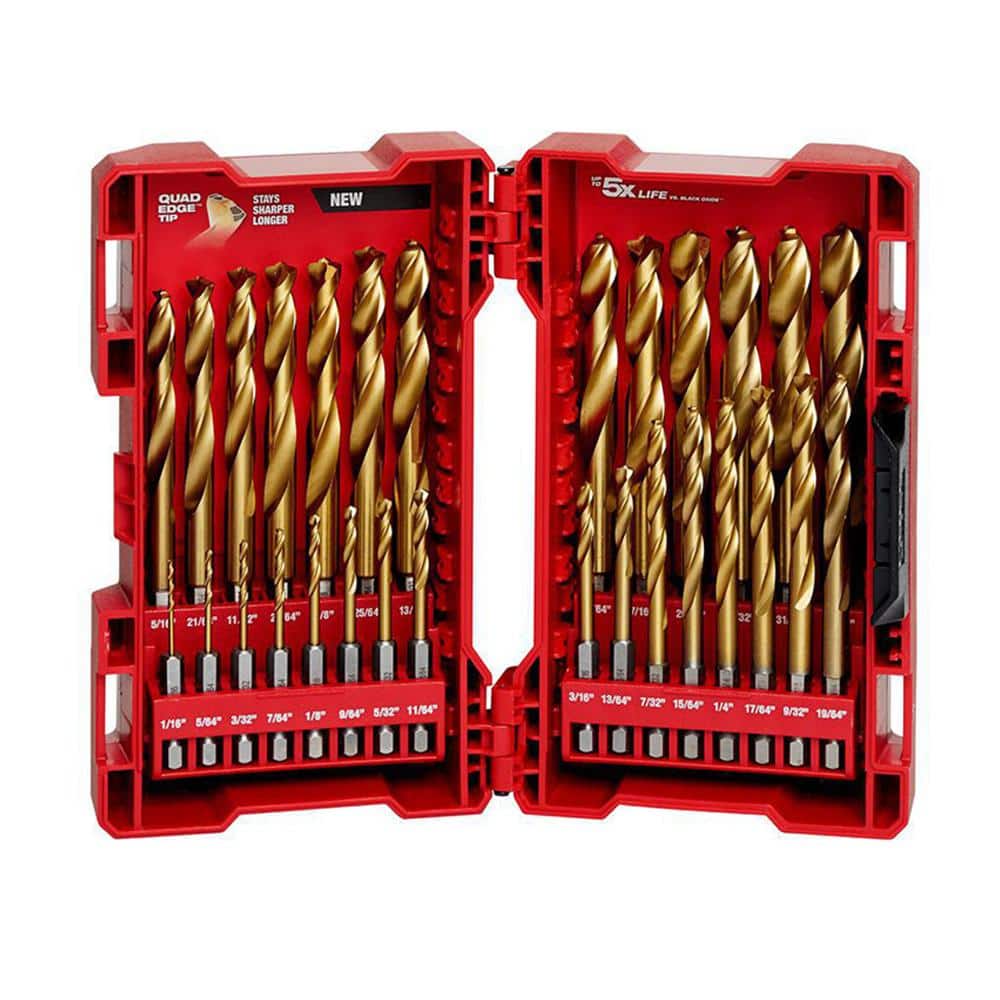

Precision Meets Power in a Sleek Red Case

This titanium set is a sculptural statement of performance—rich gold bits nestled in Milwaukee’s iconic red. The variable helix flutes catch the light like ribboned metal, a detail that speaks to speed and control. Style it on an open workshop shelf or in a mobile toolbox; the crisp case elevates your setup. It’s an essential, refined toolkit that turns everyday projects into a polished craft.

---

Equip your drill or impact driver with this 29‑piece RED HELIX titanium set and experience faster cuts and longer life on every project.
