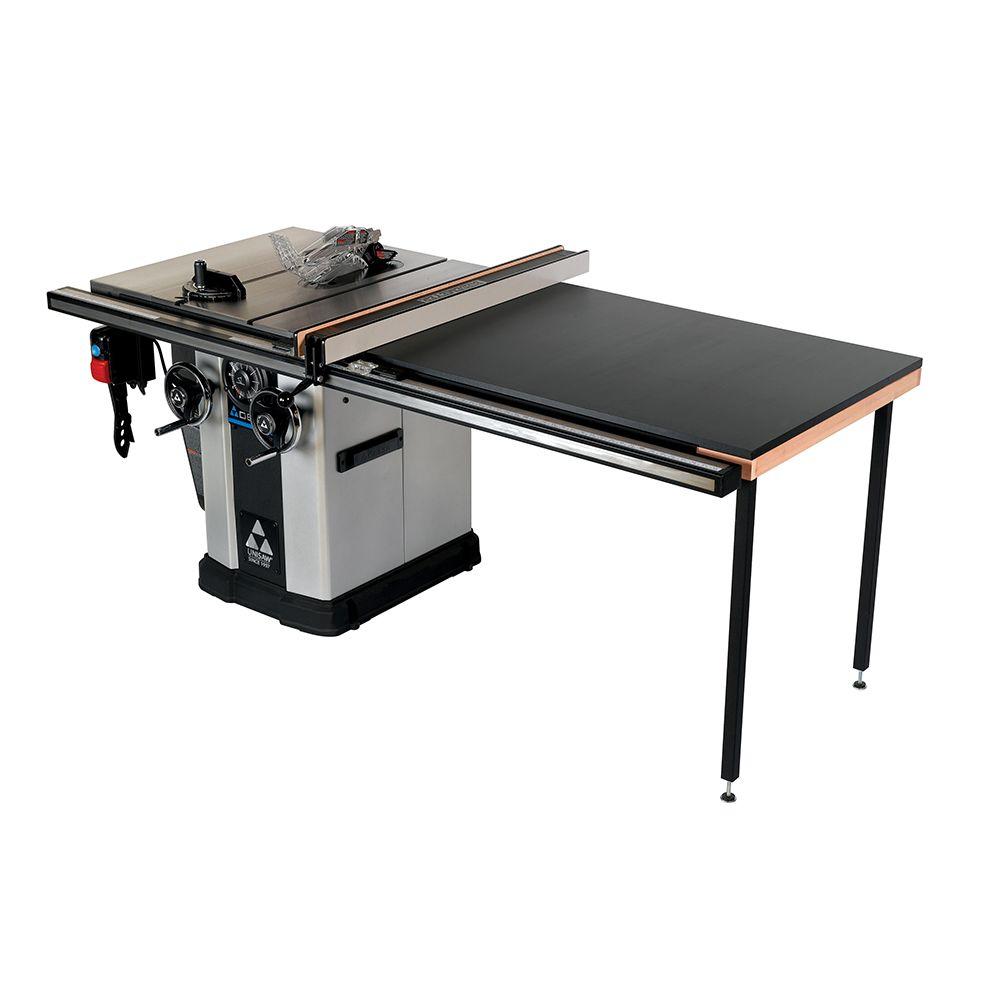

5 HP Motor 10 in. Unisaw with 52 in. Biesemeyer Fence System.
Regular price $4,199.00/
Shipping calculated at checkout.
Delta’s 36-L552 left tilt cabinet saw is ideal for woodworking, cabinet making, and boat building. It features up-front dual-crank controls with locking cams, speedometer style scales and a 52 in. Biesemeyer fence system. The powerful 5 HP 230-Volt motor is designed for the most demanding jobs. This saw is ideal for cutting large runs of hardwoods and engineered products like MDF and melamine. The riving knife enables tool-less adjustment for through- and non-through cuts including grooves for shelves and picture frames as well as dadoes, rabbets, and cheek cuts for furniture. The single-cast trunnion provides increased vibration control. Its large throat plate enables eases blade changes. Storage under the table board is convenient and expandable. Bi-level dust extraction improves dust collection.
Features
- Single-cast turn-on system results in incredible vibration control providing continuous smooth operation and dependable accuracy
- Dual front cranks make adjusting blade height and blade bevel easy, accurate and repeatable in all your operations

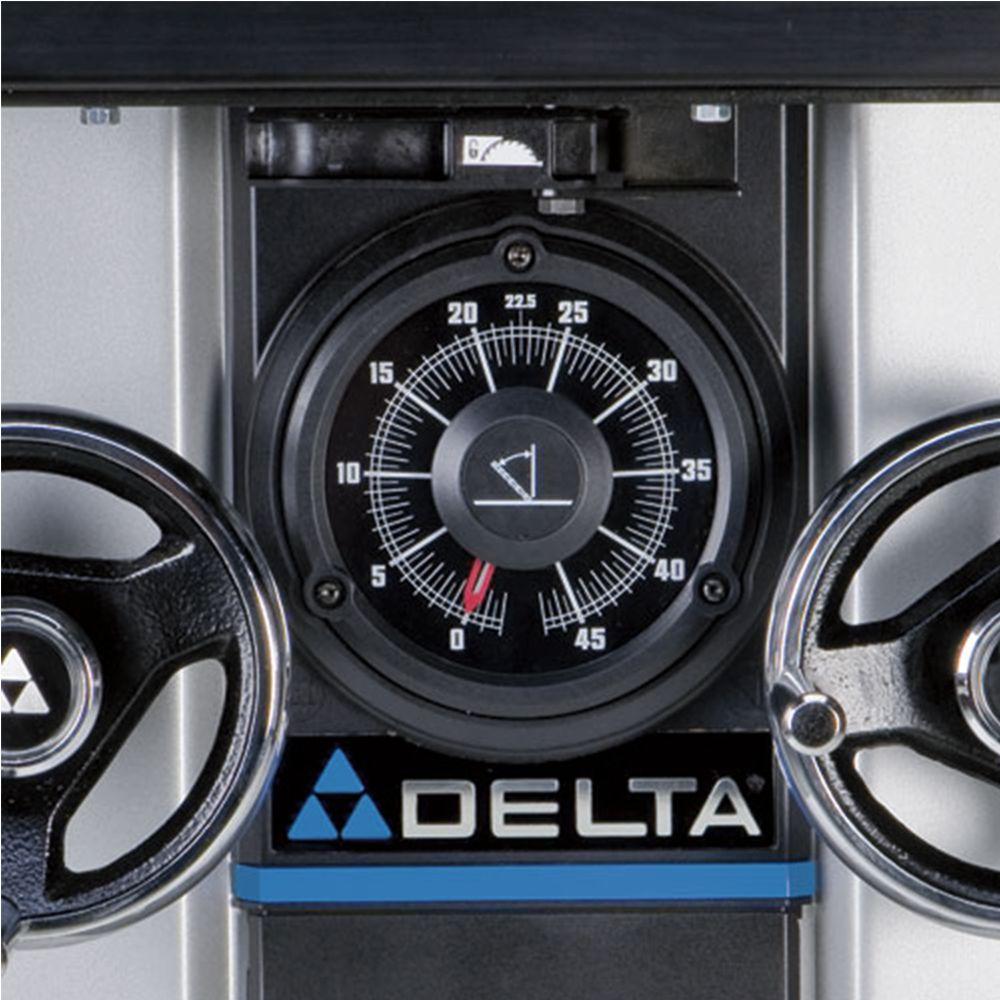

- Bevel dial allows fine tuning of the blade bevel with ease and provides accuracy you can trust to within 1/4°

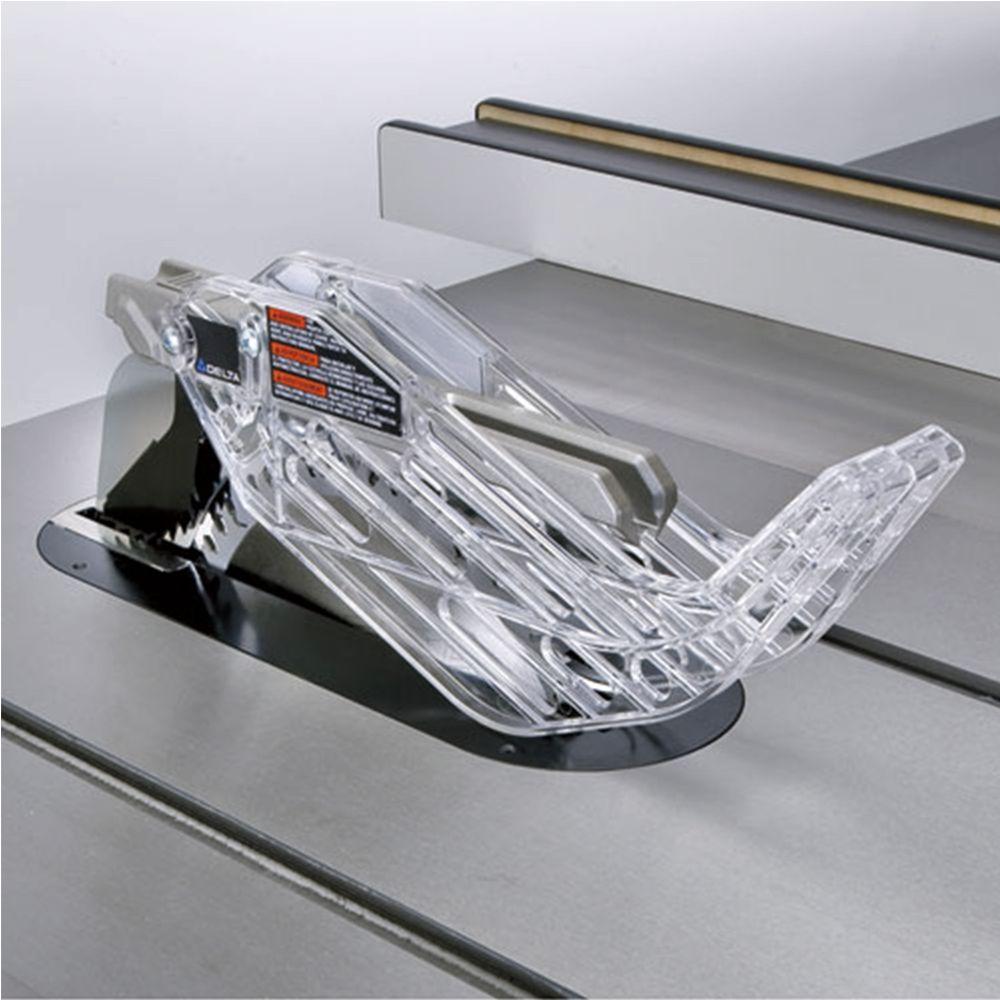

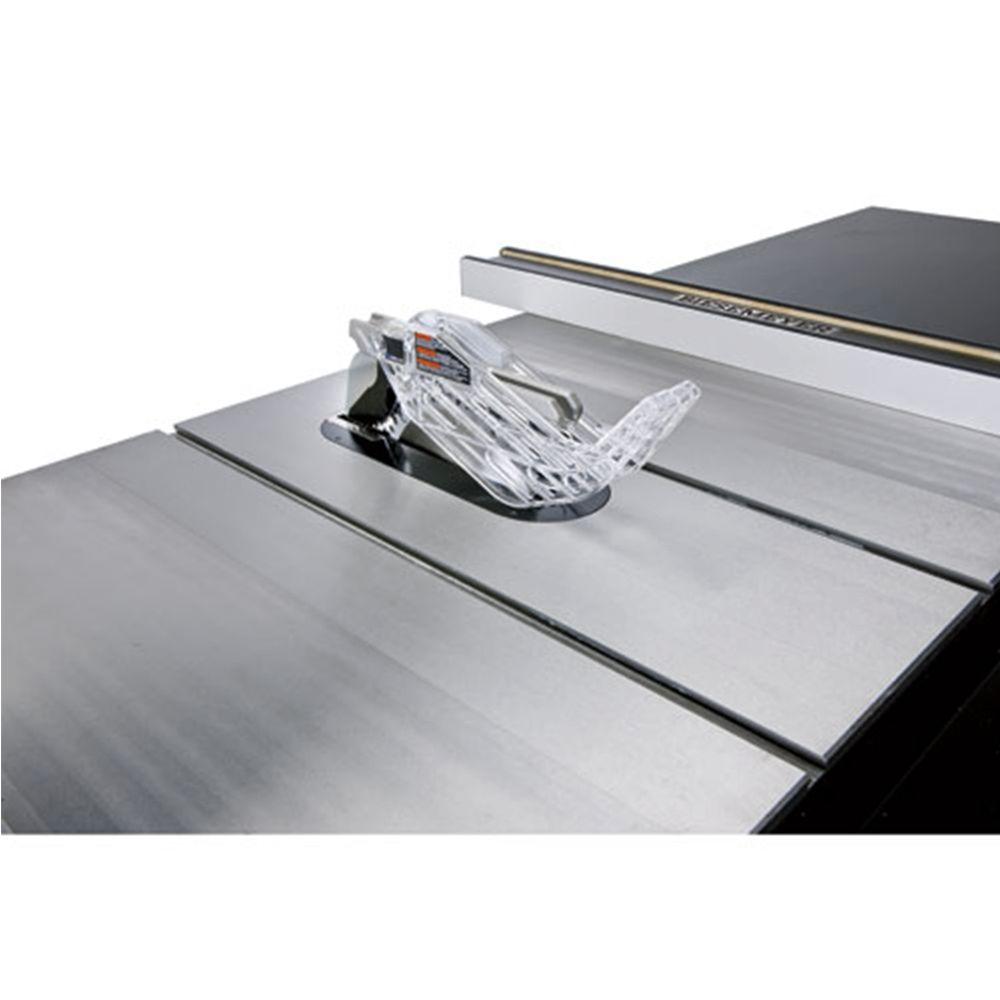

- Tool-free split guard design allows a true rise-and fall riving knife by using a lever on the front of the saw or inside the throat plate; you can then add the anti-kickback paws and guard to the riving knife without tools
- Does not include accessory drawer
Features
| Item Weight | 659.8 |
| Blade Location | Left |
| Maximum Speed (rpm) | 4300 |
| Color Family | Gray |
| Table Tilt Right Max (degrees) | 0 |
| Blade Diameter (in.) | 10 |
| Amperage (amps) | 15 |
| Included Accessories | Stand |
| Cordless/ Corded | Corded |
| Horsepower (hp) | 5 hp |

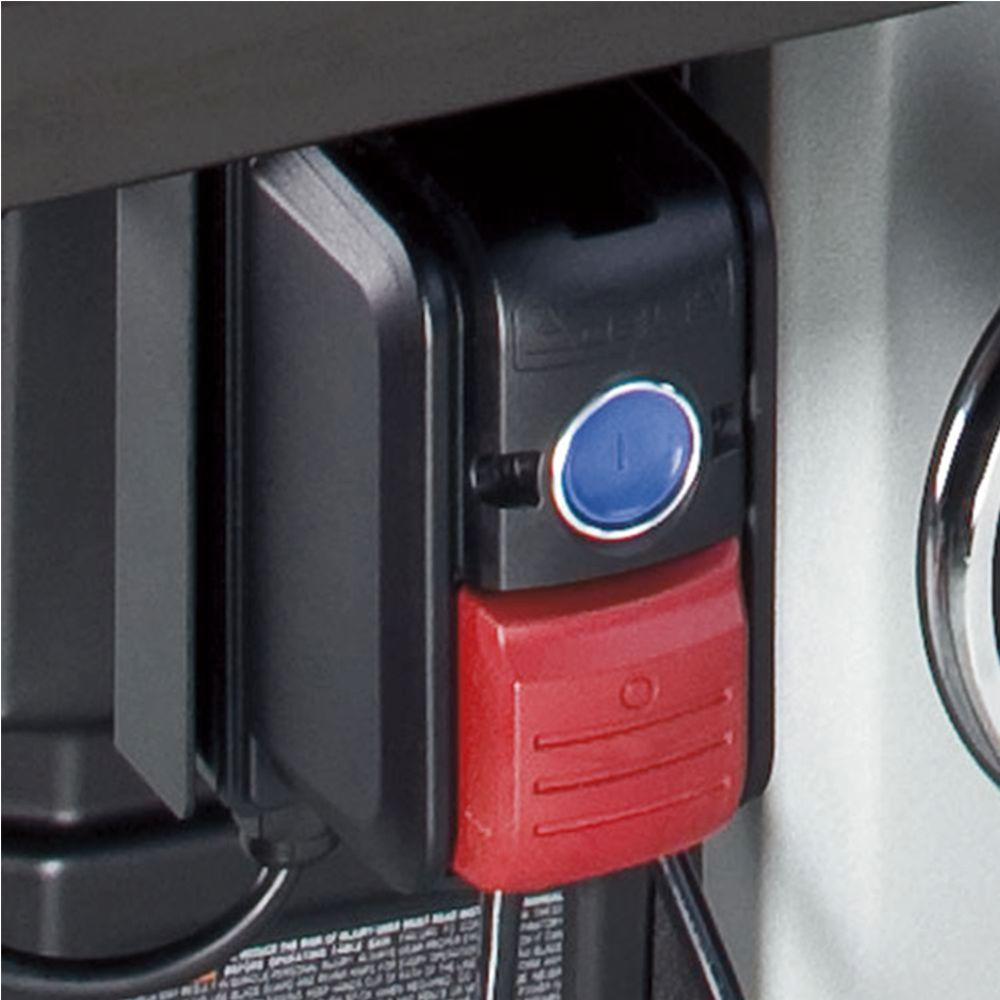

| Power Tool Features | Blade Guard System,Lockout Power Switch,Stand Included |
| Bench & Stationary Tool Type | Table Saw |
| Rip Capacity - Right | 52 |
| Condition | New |
| Cord Length (ft.) | 6 |
| Maximum Cut Depth @ 45 Deg. | 2.375 |
| Portability | Stationary |
| Cuts Through | Wood |
| Product Weight (lb.) | 659.8 |
| Depth Control | Yes |
| Construction Material | Cast Iron |
| Returnable | 180-Day |
| Dust Collection Method | 4 in. Dust Port |
| Tools Product Type | Power Tool |
| Table Tilt Left Max (degrees) | 49 |
| Blade Speed | 4300.000 |
| Rip Capacity - Left | 13.5 |
| PT Horsepower (Hp) | 5 |
| Work Table Surface | 87 in. x 37 in. |
| Blade Diameter | 10 |
| Product Depth (in.) | 259 |
| Table Length (in.) | 87 |
| Product Height (in.) | 64 |
| Product Width (in.) | 124 |
| Maximum Cut Depth @ 90 Deg. | 3.375 |
| Table Width (in.) | 37 |
| Manufacturer Warranty | 5 Year Warranty |
| Certifications and Listings | CSA Listed |
