20A Homeline Single-Pole Dual Function CAFCI/GFCI Breaker

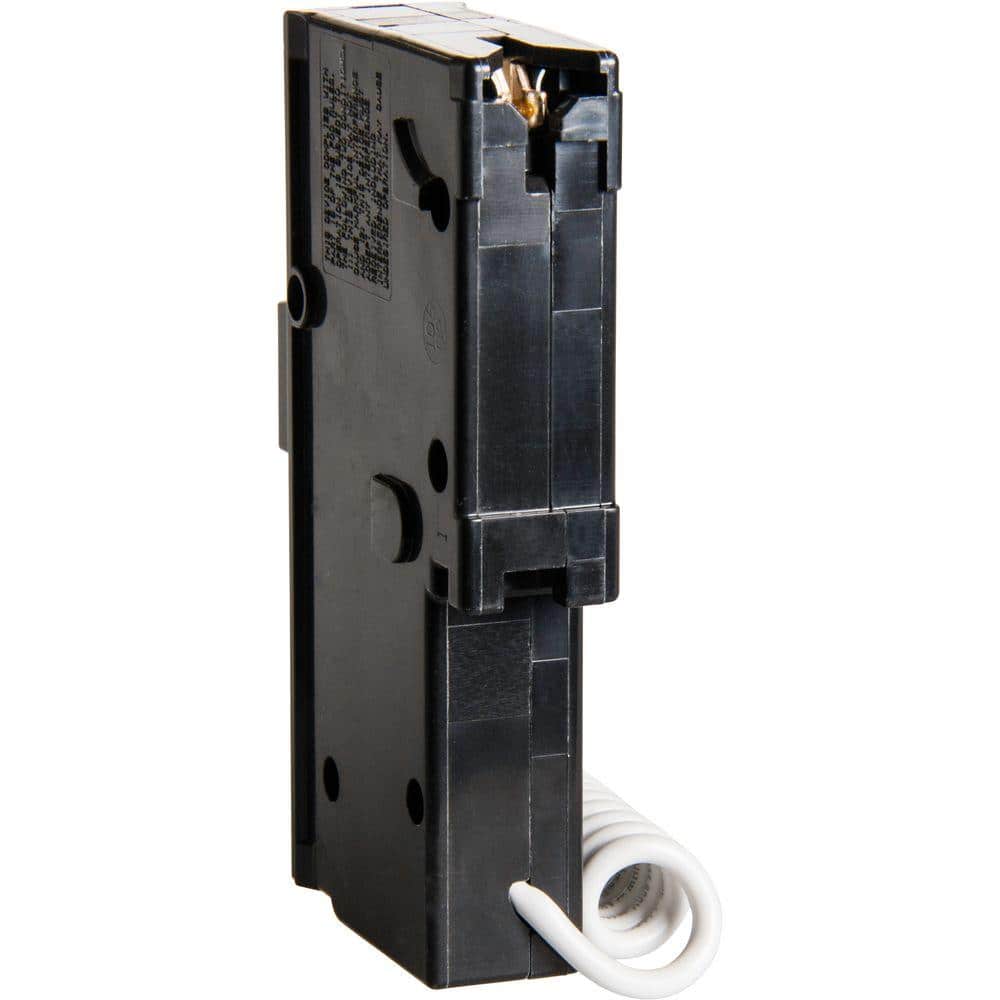

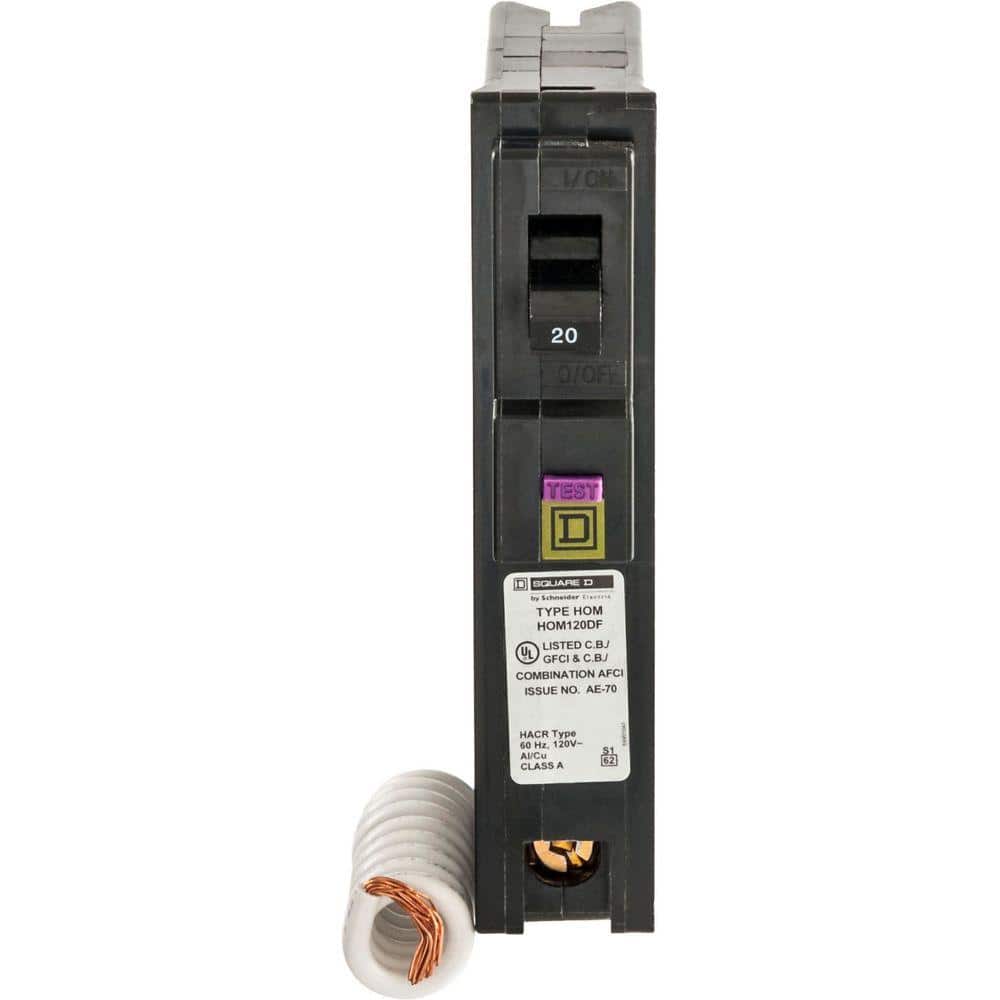

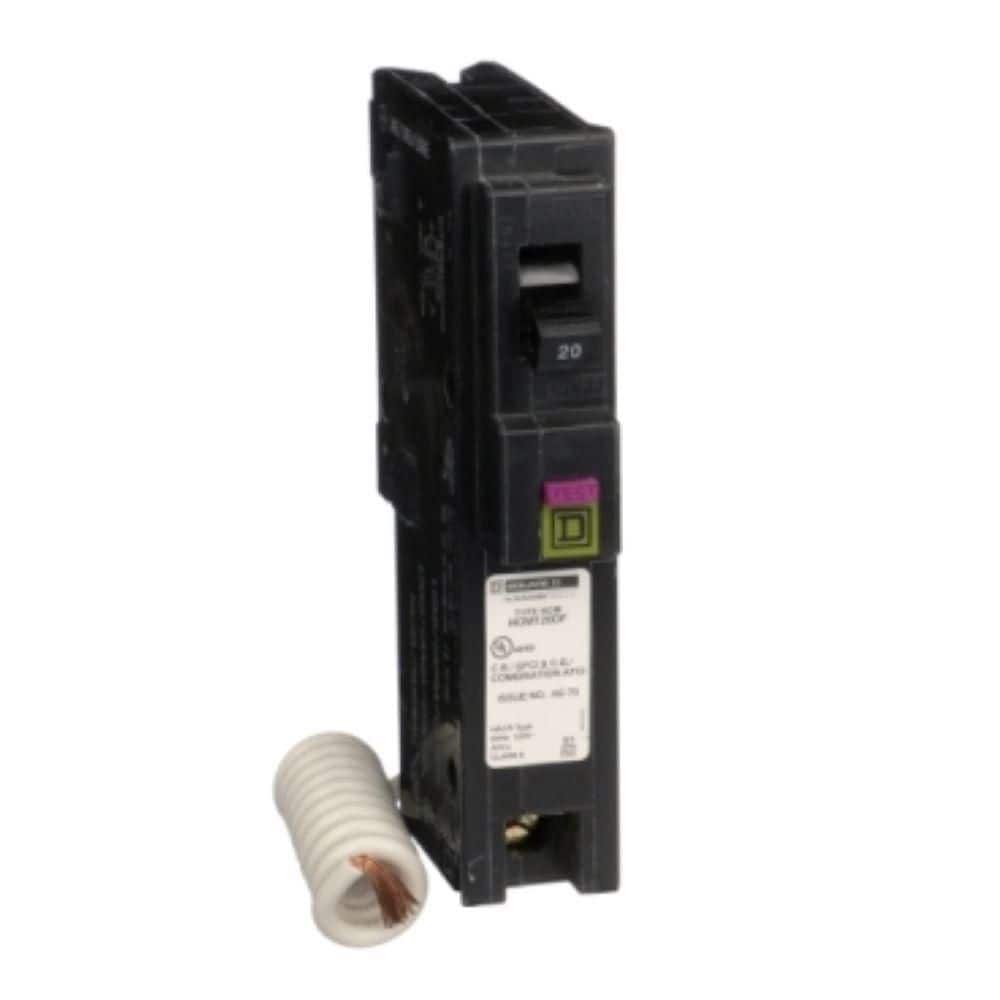

This Square D Homeline 20A single-pole circuit breaker combines Combination Arc Fault (CAFCI) and Ground Fault (GFCI Class A) protection in one plug-on device. Engineered for Homeline load centers, it saves space and simplifies installations while meeting current NEC requirements.

---

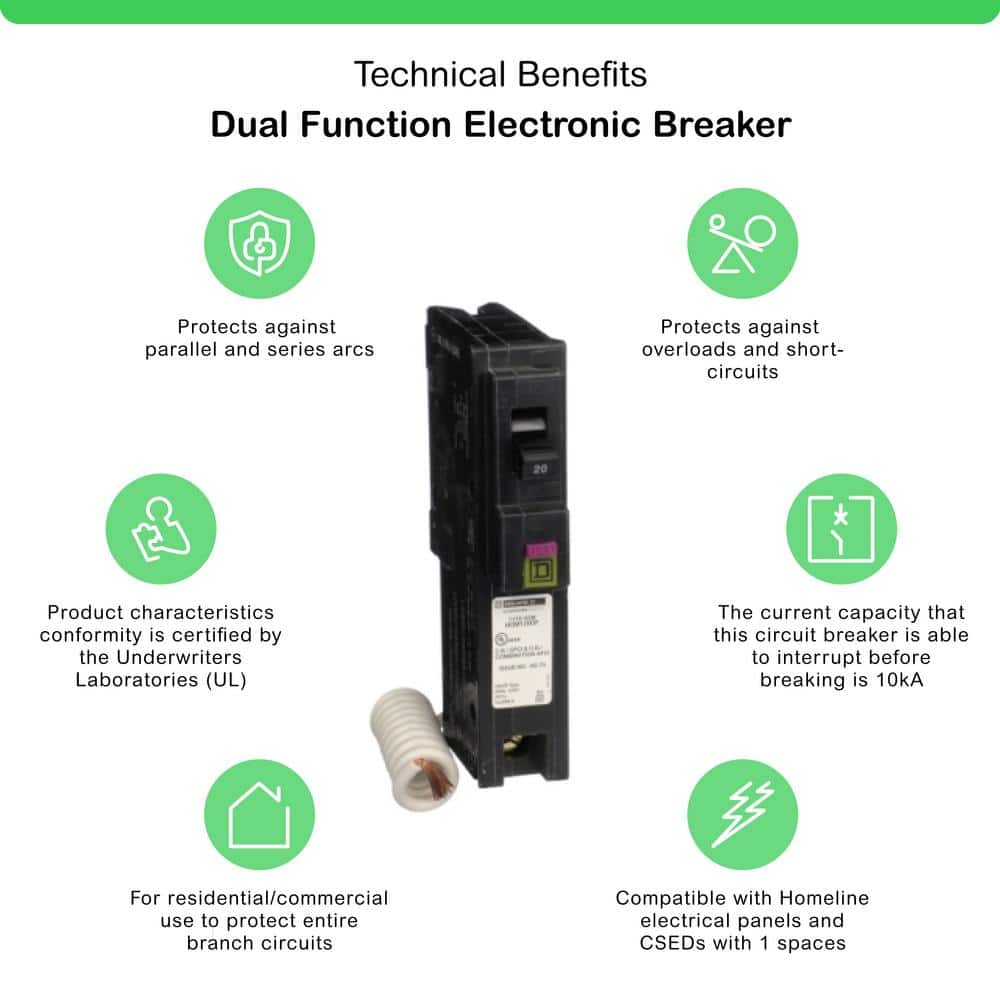

Key Features:

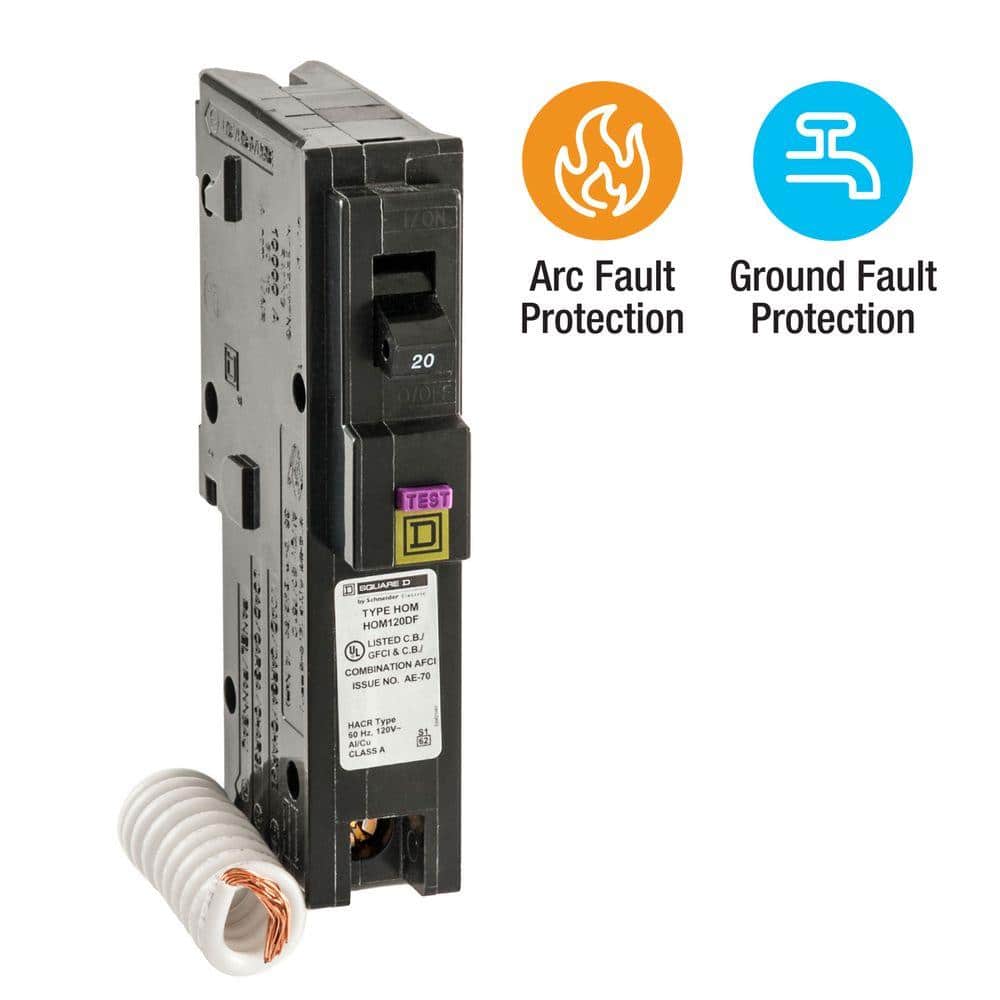

• Dual Protection: Integrates CAFCI and GFCI Class A to guard against arc faults and ground faults
• Time Saver Diagnostics: Built-in diagnostics streamline troubleshooting at the touch of a button
• Homeline Compatibility: Designed for Square D Homeline panels and CSEDs; requires 1 space

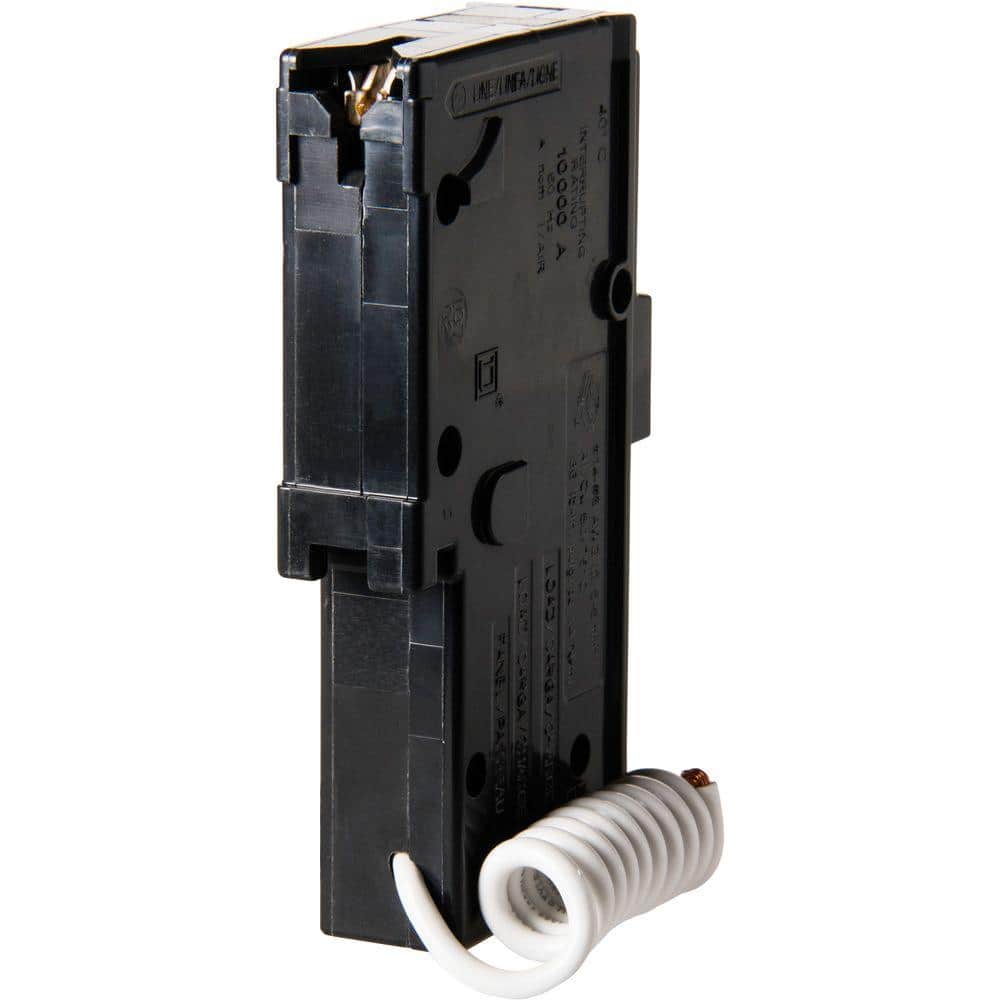

• Compact, Plug-On Design: Easy installation with included pigtail neutral lead
• UL Listed Reliability: 10kA interrupt rating with electronic trip unit for dependable performance

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Series	Homeline
Maximum Amperage	20A
Number of Poles	Single
Mounting Type	Plug-On
Interruption Type	CAFCI/GFCI
Trip Unit	Electronic
AIC Rating	10,000 AIR
Voltage	120/240 VAC
Connection Type	Non-Neutral (with pigtail neutral lead)
Number of Spaces	1
Pack Size	1
Certifications	UL Listed; ANSI certified

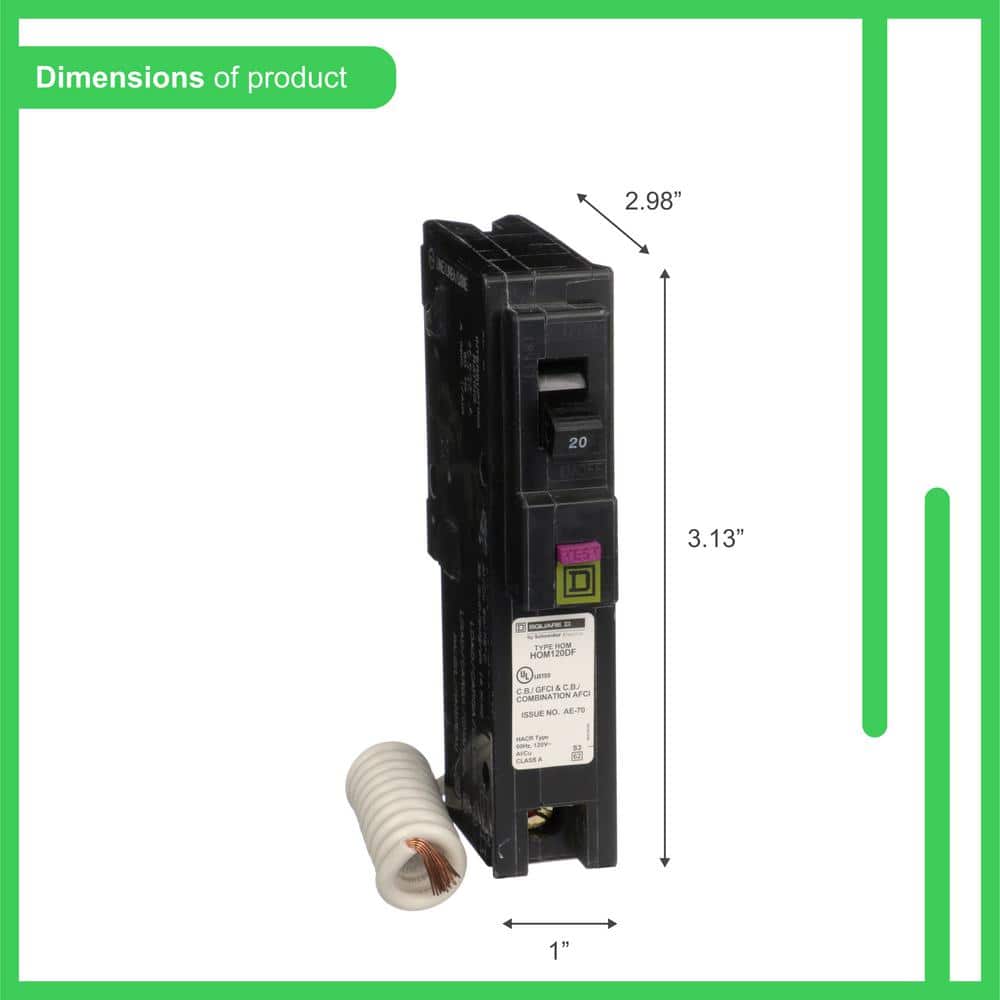

Product Height	3.13 in
Product Depth	2.98 in
Product Width	1 in
Product Weight	0.28 lb
Manufacturer Warranty	Lifetime of the Homeline load center in which it is installed

---

Frequently Asked Questions (FAQ):

Q: Does this breaker fit my panel?
A: It is compatible with Square D Homeline load centers and CSEDs that accept single-pole breakers and have one available space.

---

Q: What type of protection does it provide?
A: It provides Combination Arc Fault (CAFCI) and Ground Fault (GFCI Class A) protection in one breaker.

---

Q: What is the interrupt rating?
A: 10,000 AIR (10kA).

---

Q: What voltage and amperage is it rated for?
A: 20 amps, 120/240 VAC single-pole application.

---

Q: Is there a warranty?
A: Square D warrants Homeline branch circuit breakers for the lifetime of the Homeline load center in which they are installed.

---

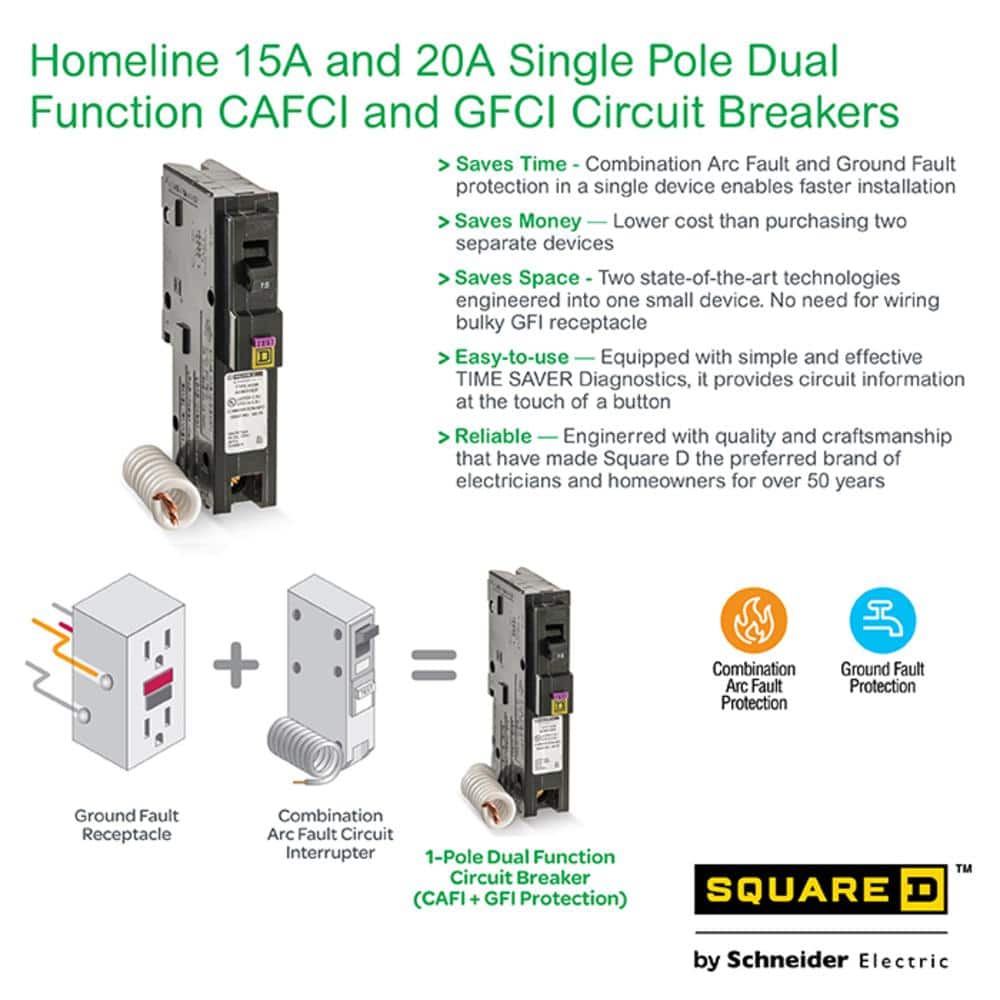

Smart Safety, Minimal Footprint

This streamlined breaker brings advanced protection into the home with elegant simplicity. Its dual-function technology eliminates clutter, replacing multiple devices with one refined component. Pair it with a clean Homeline panel layout to keep mechanical rooms neat and efficient. A discreet powerhouse, it’s an essential detail in creating a home that feels secure and luxuriously well appointed.

---

Upgrade your panel with dual CAFCI/GFCI protection—choose the HOM120DFC for safer, simpler installations today.
