200A Homeline Indoor Main Breaker Load Center, 30-Space/60-Circuit

This Square D Homeline plug-on neutral load center delivers 200A service with 30 spaces and up to 60 circuits for indoor installations. The value pack includes a cover and Homeline breakers, featuring a fully distributed neutral bar for faster, cleaner wiring and simplified upgrades.

---

Key Features:

• Plug-On Neutral Technology: Fully distributed neutral bar speeds installs and reduces wiring clutter
• Ample Capacity: 30 spaces/60 circuits with 200A main breaker for residential power distribution
• Indoor, Versatile Mounting: NEMA 1 enclosure supports flush or surface installation

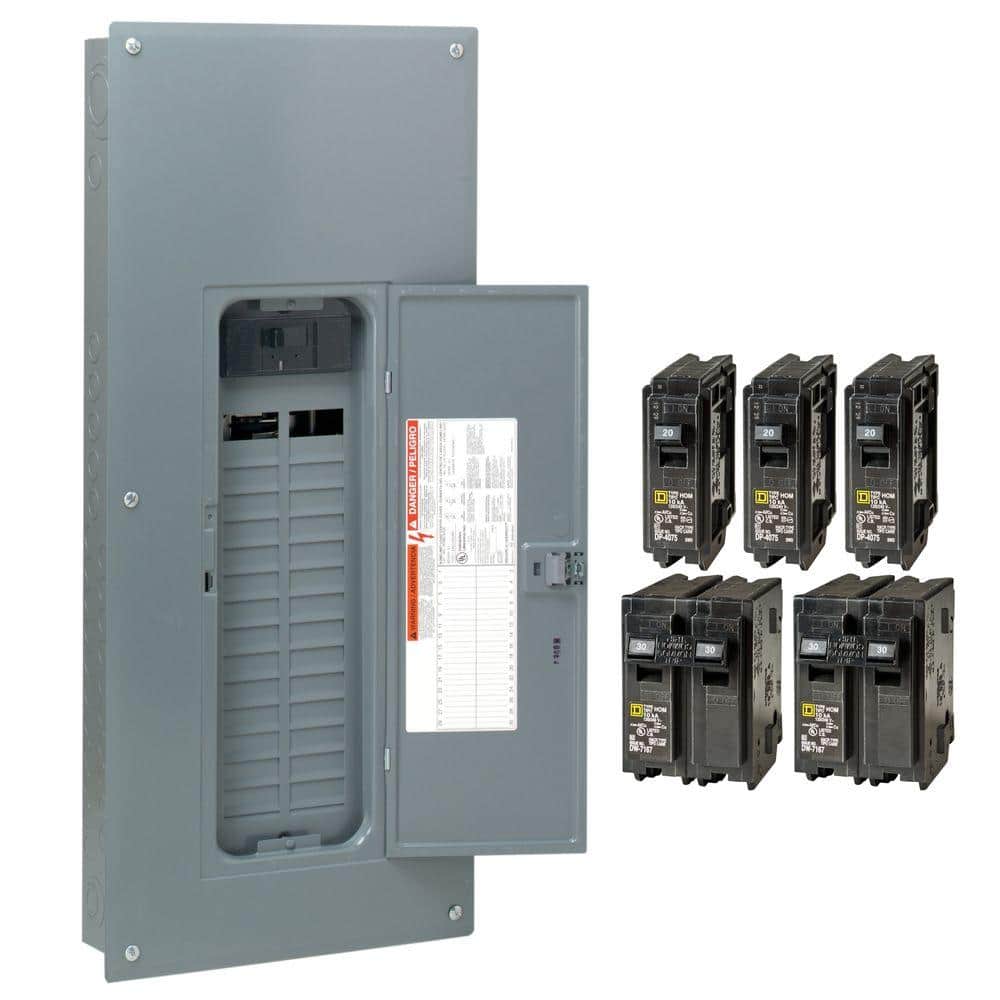

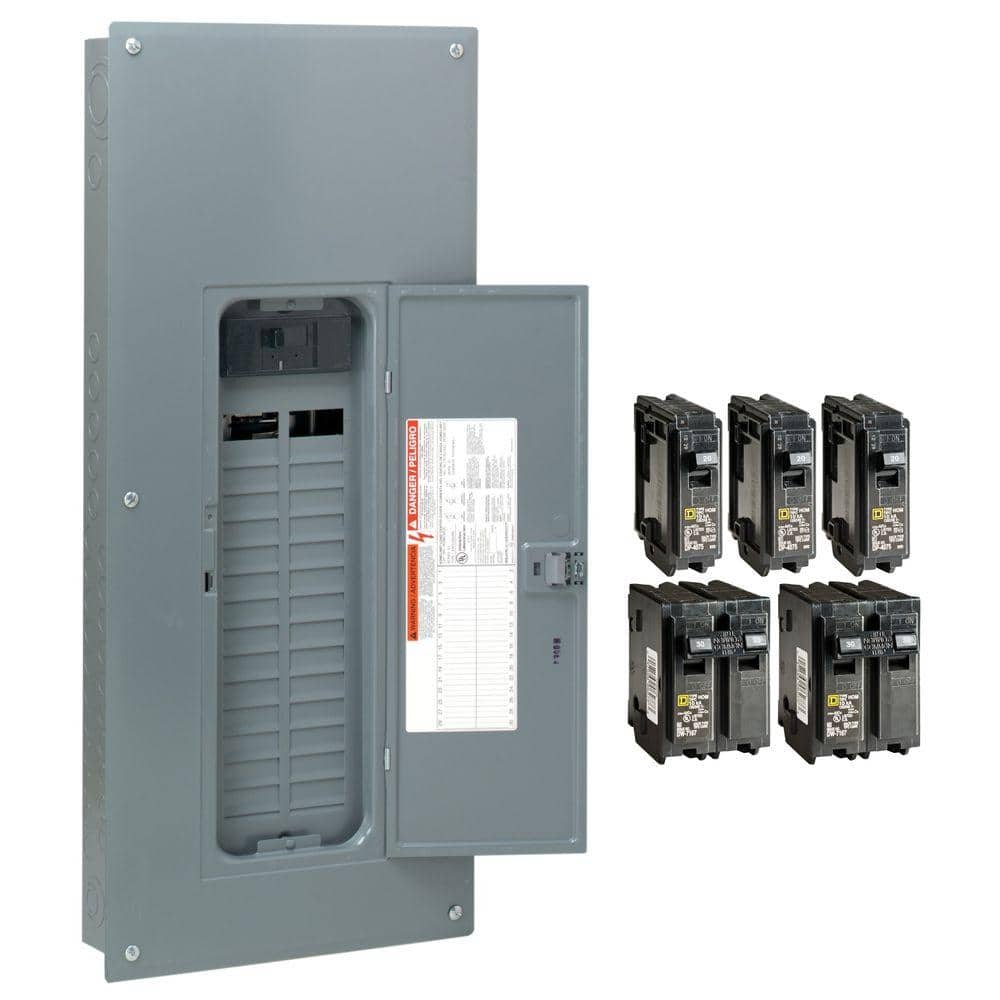

• Value Pack Included: Comes with cover, (3) HOM120 20A single-pole and (2) HOM230 30A double-pole breakers
• Durable Build: Plated aluminum bus and rugged thermoplastic interior; UL Listed

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Brand	Square D (by Schneider Electric)
Series	Homeline
Breaker Box Type	Main Breaker Panel
Electrical Product Type	Load Center and Breaker Kit
Indoor/Outdoor	Indoor
Enclosure Rating	NEMA 1
Maximum Amperage	200 A
Voltage	120/240 VAC
Phase Type	Single Phase (1Ø)
Number of Spaces	30
Number of Circuits	60
Mounting Type	Flush or Surface
Bus Bar Material	Aluminum (plated)
Short Circuit Current Rating	22,000 AIR
Included	Cover; (3) HOM120 20A 1‑Pole breakers; (2) HOM230 30A 2‑Pole breakers

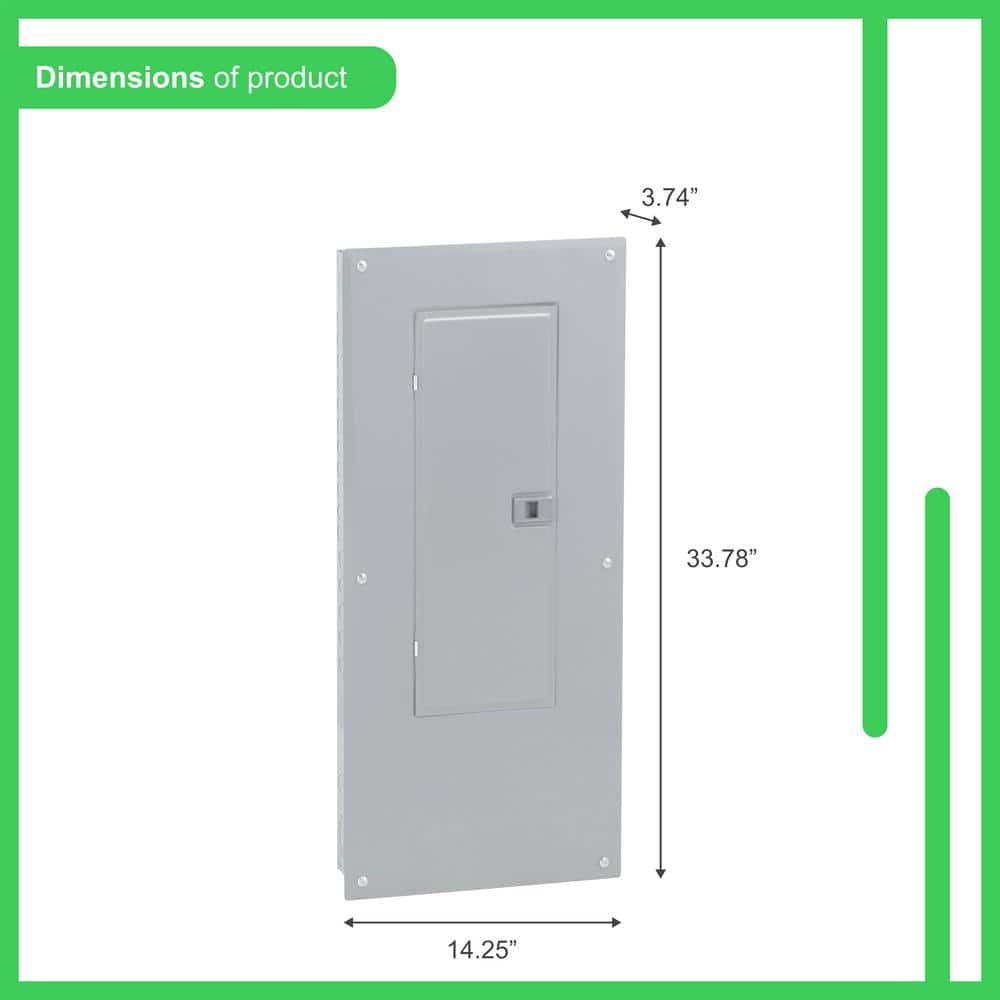

Dimensions (H x W x D)	33.78 in x 14.25 in x 3.75 in
Product Weight	34.83 lb
Certifications	UL Listed
Connection Type	Plug-On Neutral; Neutral
Ground/Neutral Bar Capacity	Accepts up to (3) #10–14 equipment grounds per terminal
Surge Protection Compatibility	Accepts plug-on secondary surge arrestor (sold separately)

---

Frequently Asked Questions (FAQ):

Q: What breakers are compatible?
A: This panel is compatible only with Square D Homeline breakers, including plug-on neutral, full-size, tandem and quad types.

---

Q: Is it indoor or outdoor rated?
A: It is NEMA 1 rated for indoor use only.

---

Q: What are the panel dimensions?
A: Approx. 33.78 in H x 14.25 in W x 3.75 in D.

---

Q: Does it include breakers?
A: Yes, the value pack includes (3) HOM120 20A single-pole and (2) HOM230 30A double-pole breakers plus the cover.

---

Q: What system voltage is supported?
A: 120/240 VAC single-phase with a 22,000 AIR short-circuit current rating.

---

Quiet Power, Clean Lines

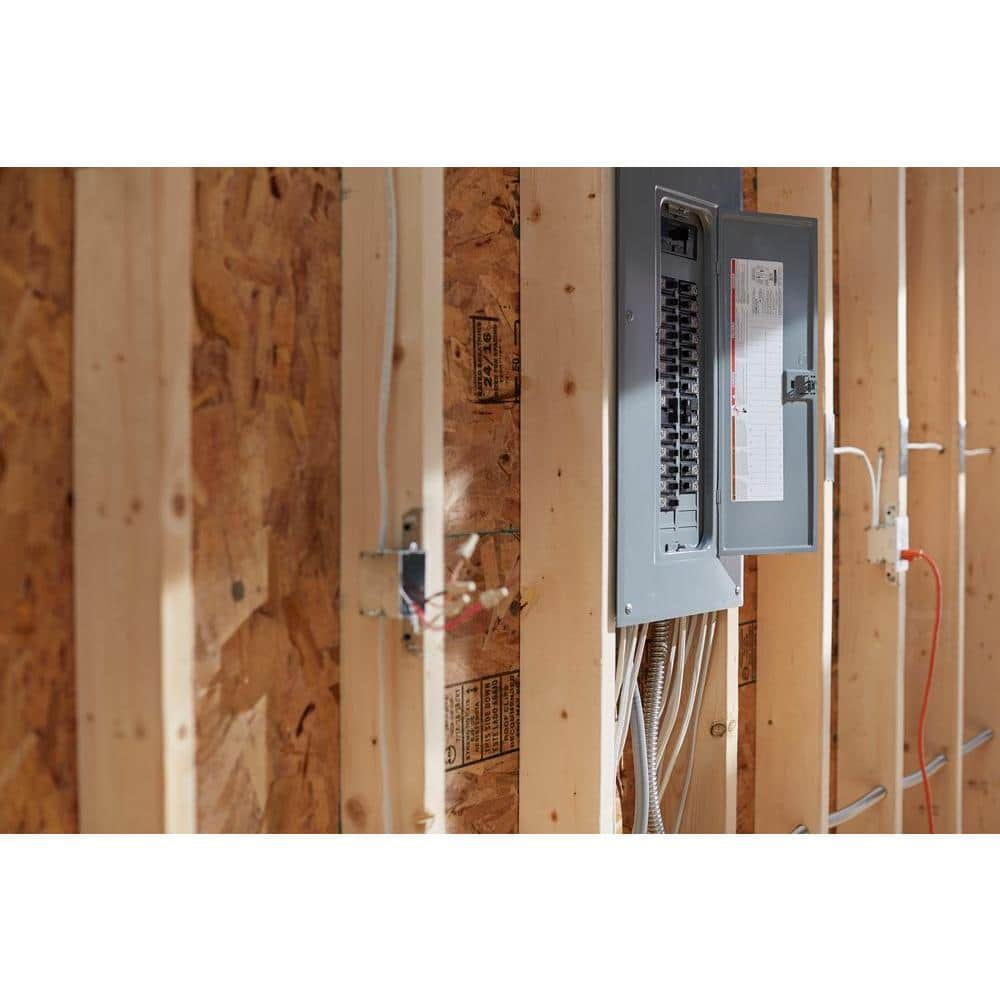

This Homeline panel tucks neatly into the wall, bringing order and intention to the heart of your home’s electrical design. The streamlined door and subtle gray finish feel calm and considered, while the plug-on neutral interior keeps wiring crisp and uncluttered. Pair it with a painted backer board and labeled circuits for a utility space that feels as curated as your kitchen. Seamless performance and refined function—an essential foundation for modern, luxurious living.

---

Choose this Homeline value pack for a cleaner, faster install and reliable 200A service—upgrade your panel today.
