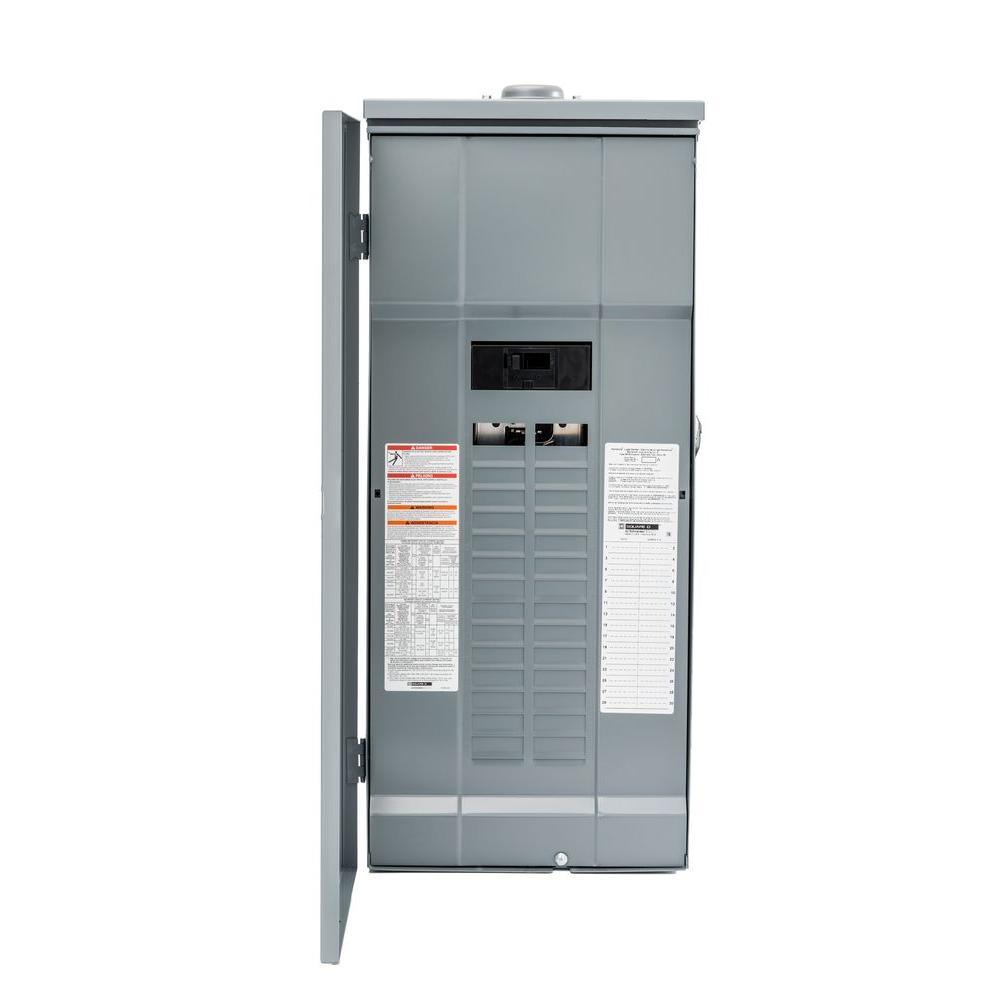

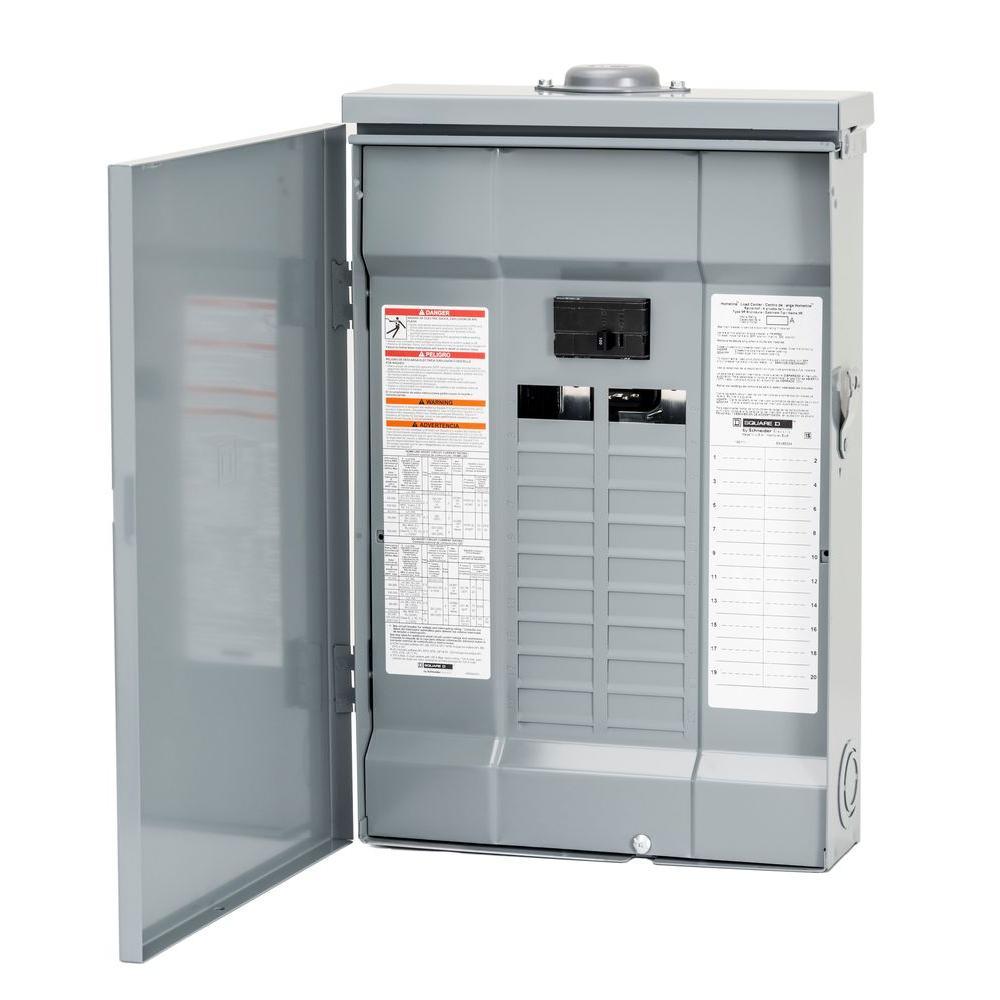

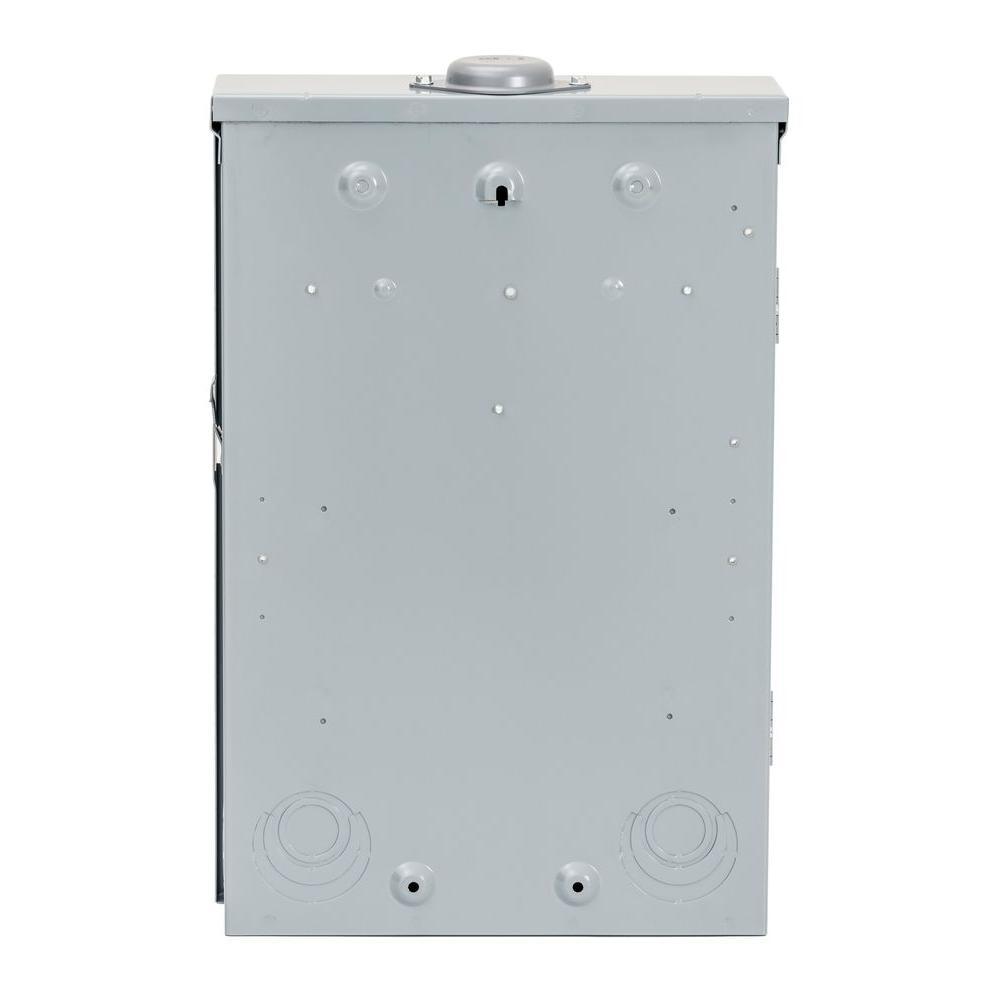

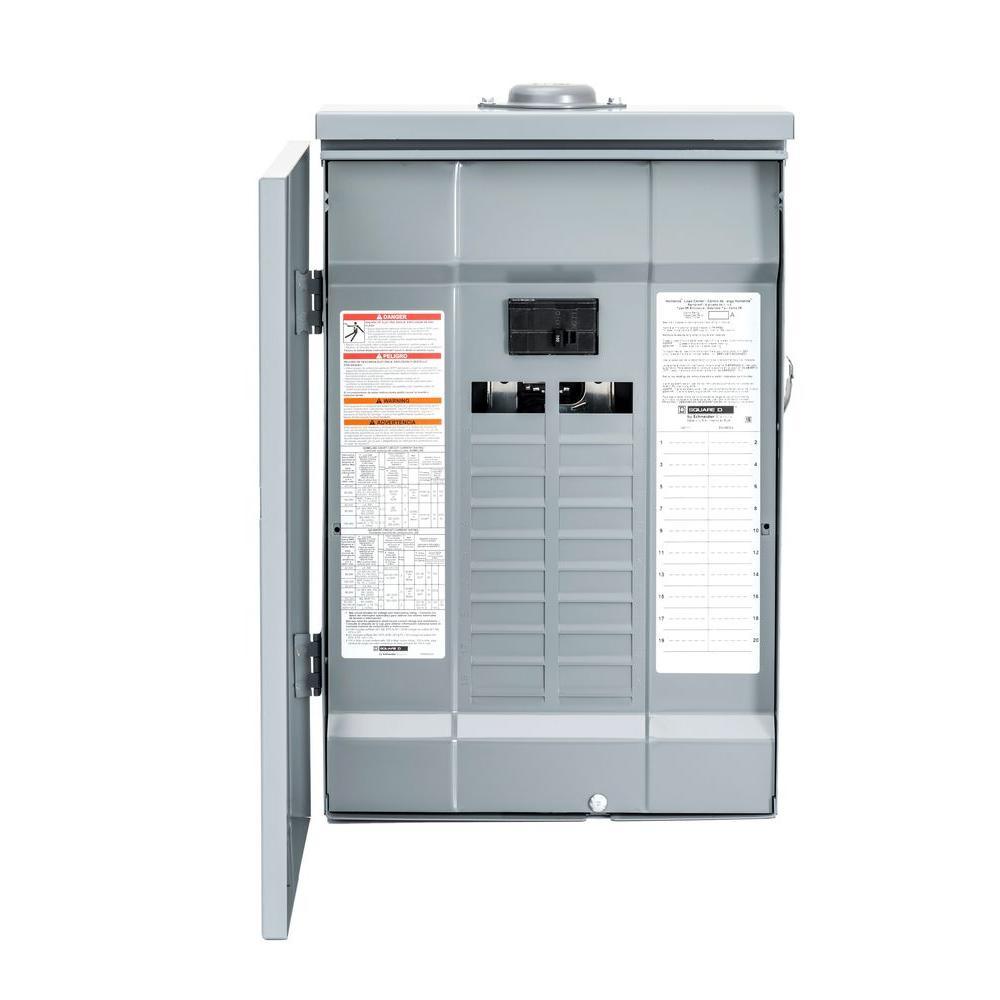

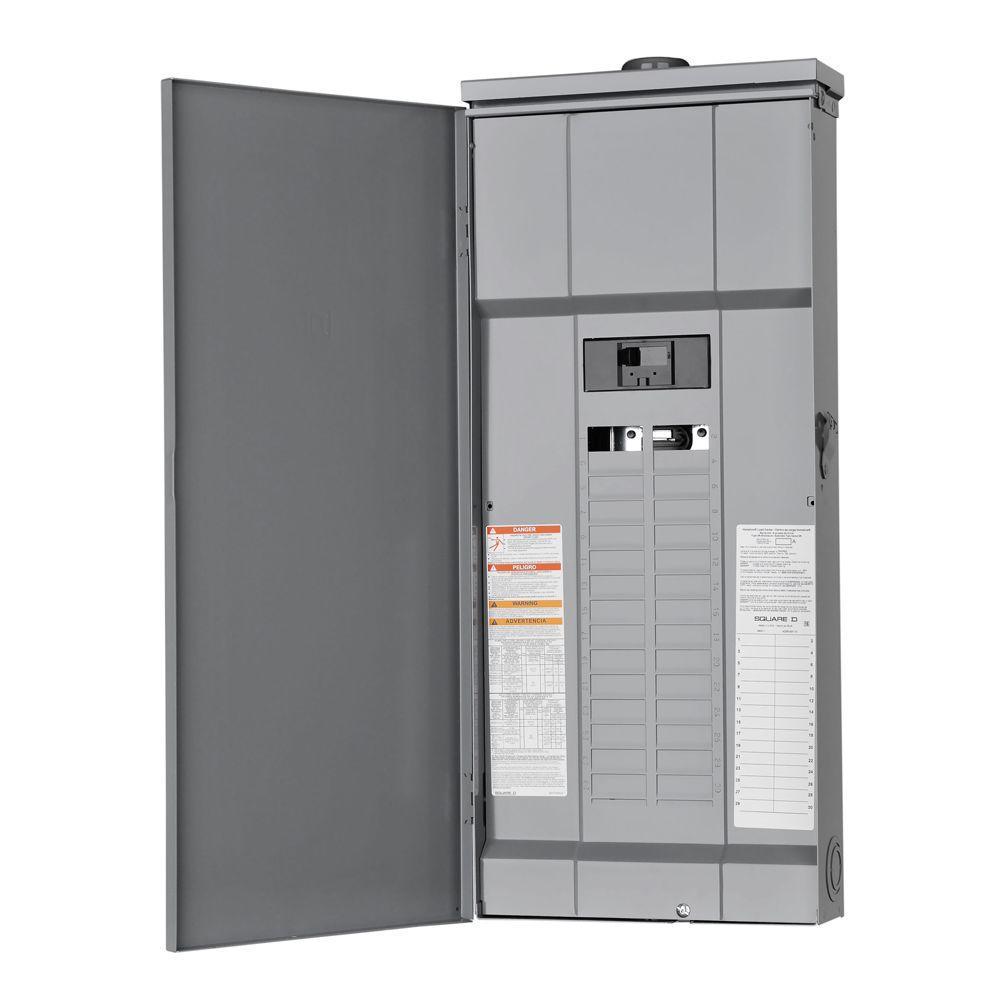

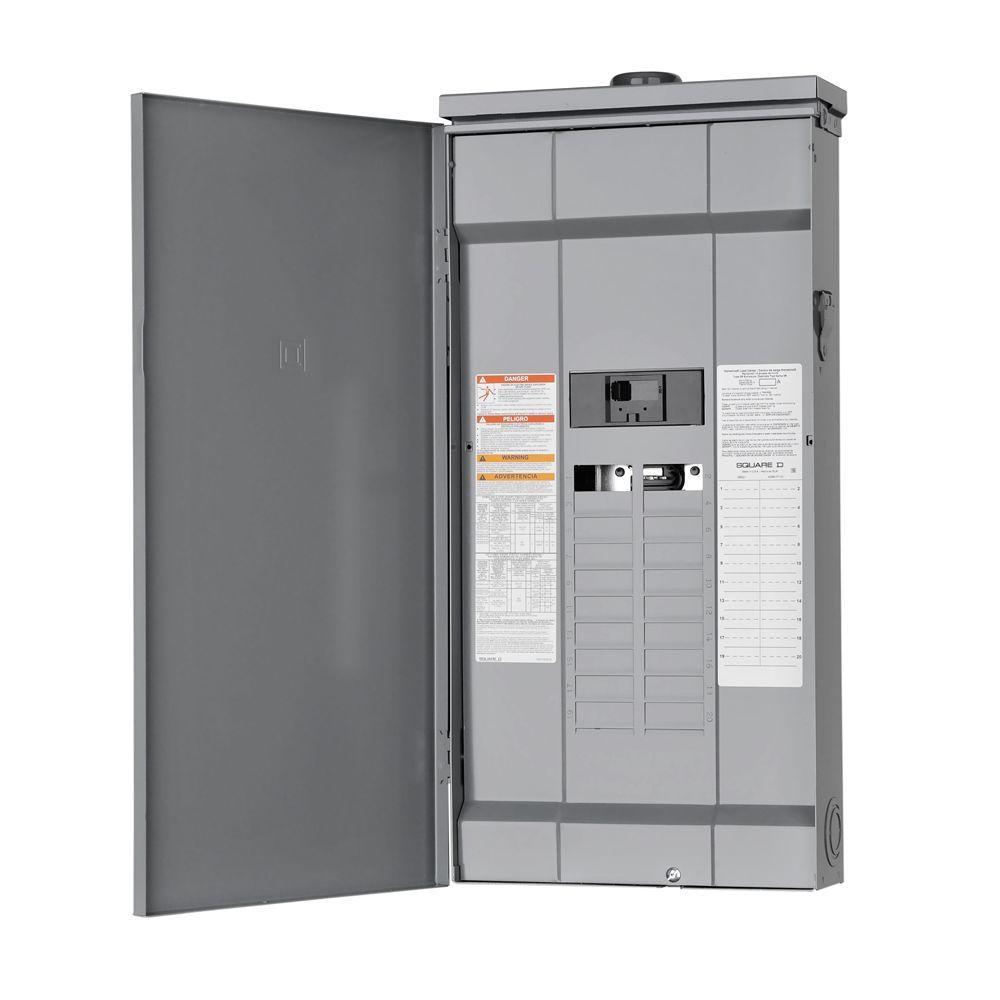

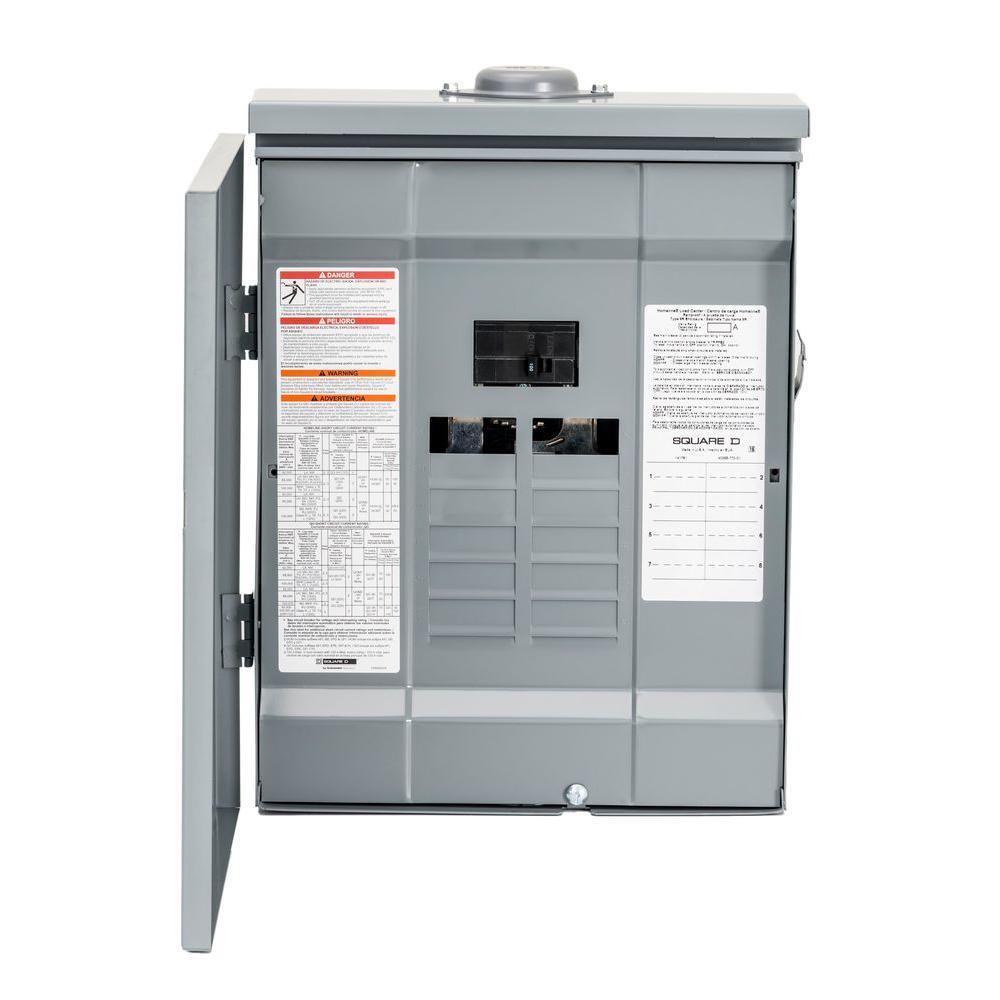

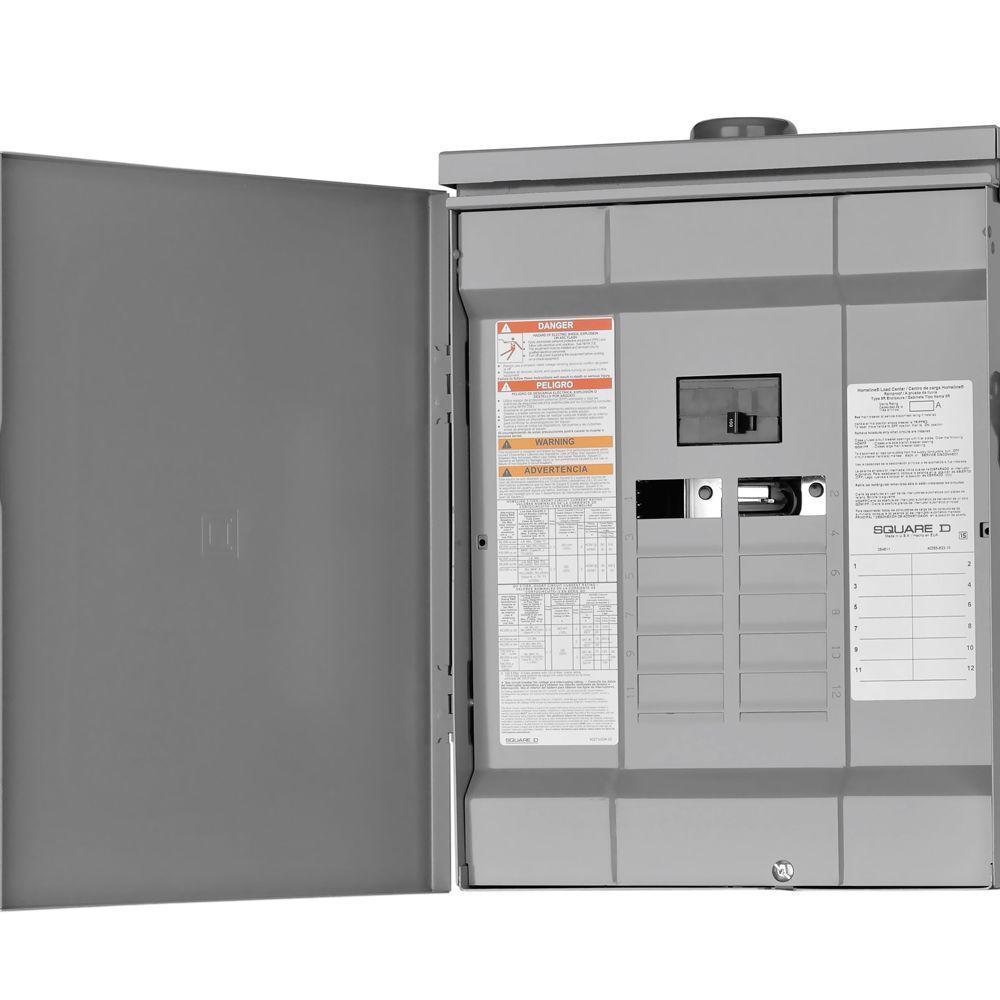

Homeline 100 Amp 20-Space 40-Circuit Outdoor Main Breaker Plug-On Neutral Load Center

20 spaces

$154.22 each

Orders start at $399. Combine any items to reach it.

Quantity
1 item
$154.22
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Electrical

Details & specifications.

From the maker · the maker’s description

The Homeline 100 Amp 20-Space 40-Circuit Outdoor Convertible Main Breaker Load Center for Plug-on Neutral breakers by Square D is UL listed for residential and commercial power distribution. It features a plated, aluminum bus bar that is tested and listed specifically for Homeline circuit breakers. Designed for contractors, remodelers, builders, and homeowners who value affordability, this load center allows for fast installation and wire savings. Make sure to consult with your local building inspector for adoption and details. Equipped with a fully distributed neutral bar, this load center can accommodate Homeline plug-on neutral combination arc fault breakers in any space. Each pole space has the ability to accept full-size, tandem, or quad breakers, while the ground and neutral bars can take up to (3) #10-14 equipment grounds. The included rainproof outdoor cover has a stainless steel hasp for easy locking and is compatible with a plug-on secondary surge arrestor (sold separately).

Spaces
20
Mounting
Plug-On Neutral
Location
Outdoor
Circuits
40
Item Weight
24.61
Maximum Amperage (amps)
100
Voltage (volts)
120/240
Load Center Type
Main Breaker
Load Center Mounting Type
Surface
Electrical Product Type
Load Center
Indoor/Outdoor
Outdoor
Phase Type
1 Phase
Product Weight (lb.)
24.61

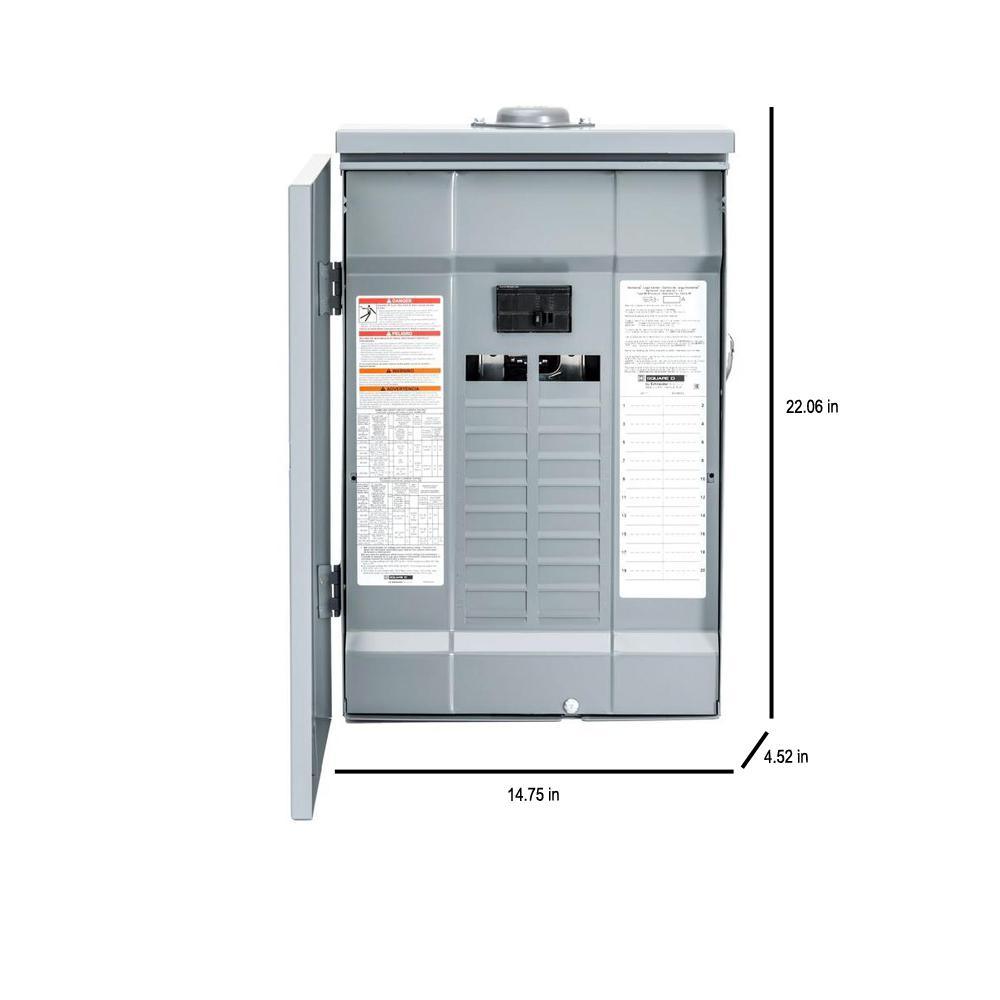

Load center depth (in.)
4.52
Load center height (in.)
22.06
Load center width (in.)
14.75
Certifications and Listings
UL Listed

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Before you buy a breaker

  1. 1

    Match the panel

    Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.

  2. 2

    Match the wire

    The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.

  3. 3

    Protection

    Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.

  4. 4

    Tandem and quad

    Two circuits in one space, only in the slots the panel label allows.
