SlimLine 60x30 Shower Base & Back Wall Kit, RH Drain

DreamLine’s SlimLine kit pairs a low-profile, single-threshold shower base with matching Q-Wall backwall panels for a fast, polished upgrade. The durable acrylic/ABS base features a slip-resistant textured floor and integrated tile flanges, while the trim-to-fit wall panels offer six integrated shelves and easy glue-up installation.

---

Key Features:

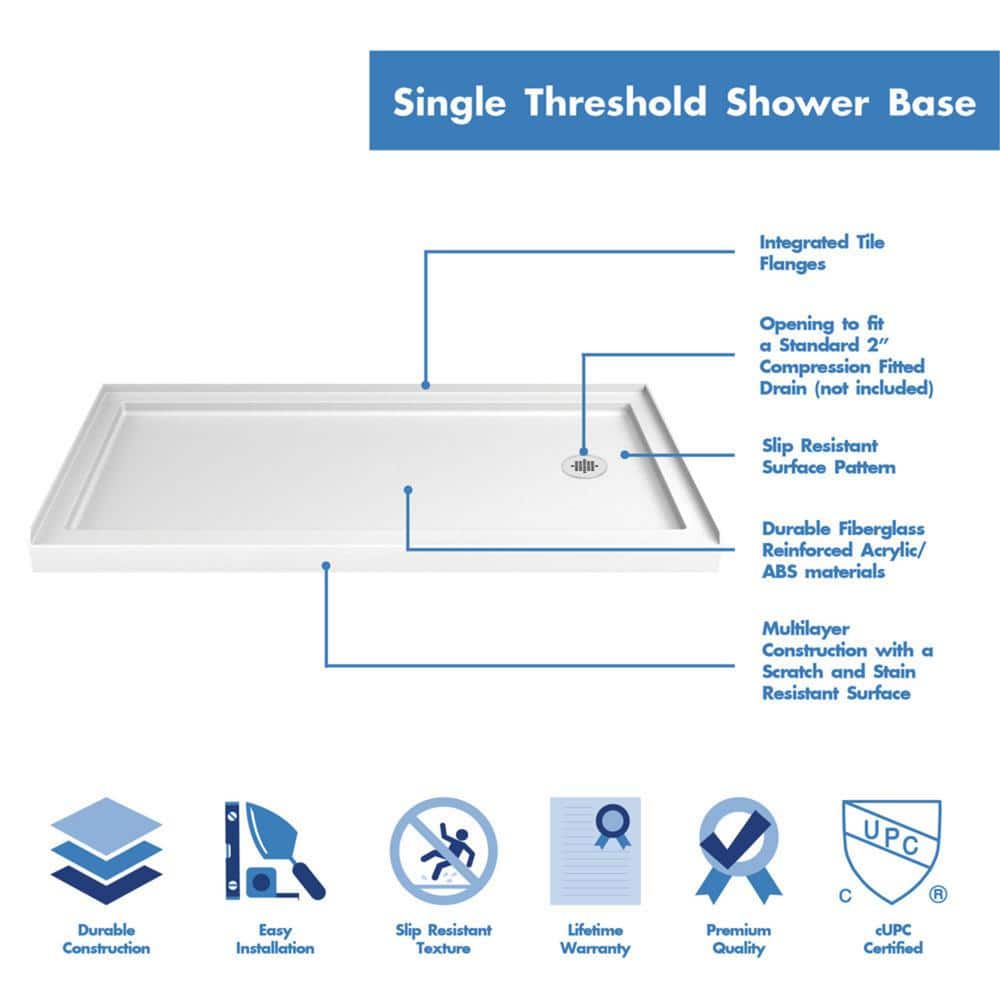

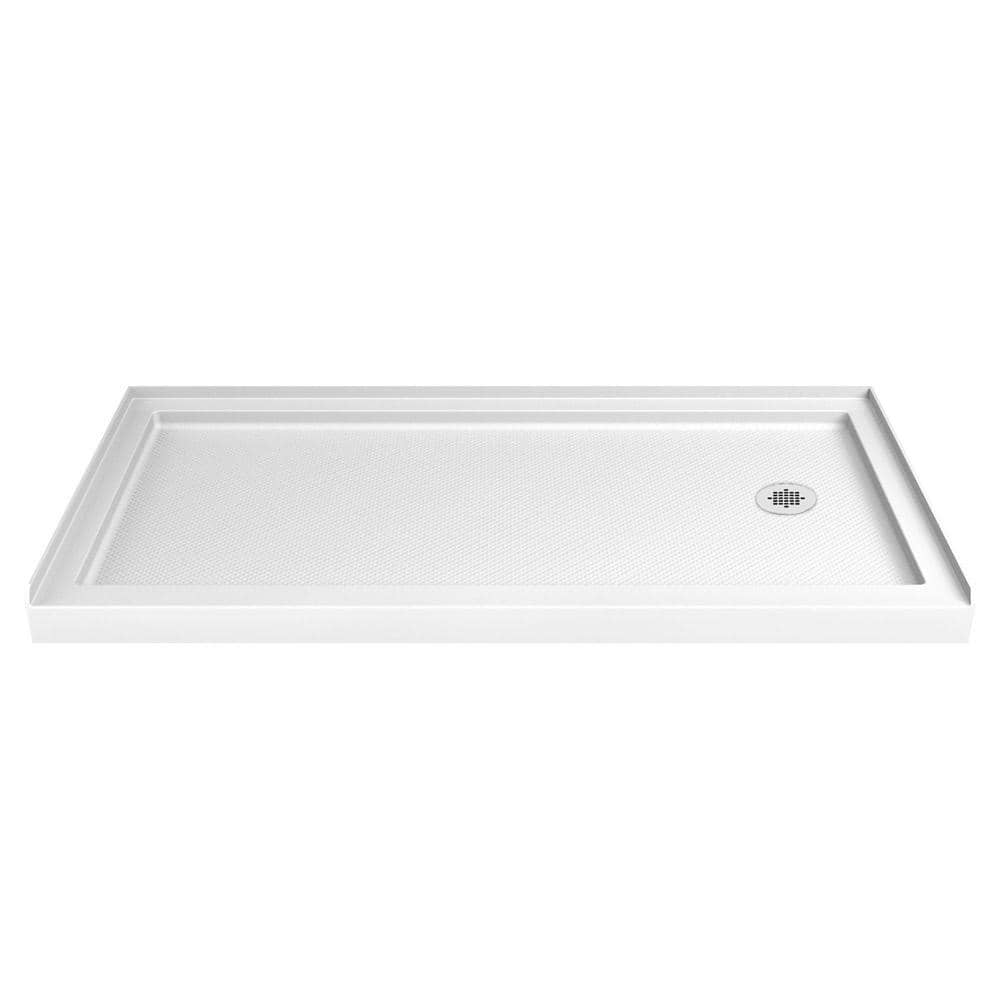

• Low-Profile Entry: 1-3/4 in. threshold for easy access and a sleek, modern look
• Durable Build: High-gloss acrylic/ABS reinforced with fiberglass resists scratches and stains

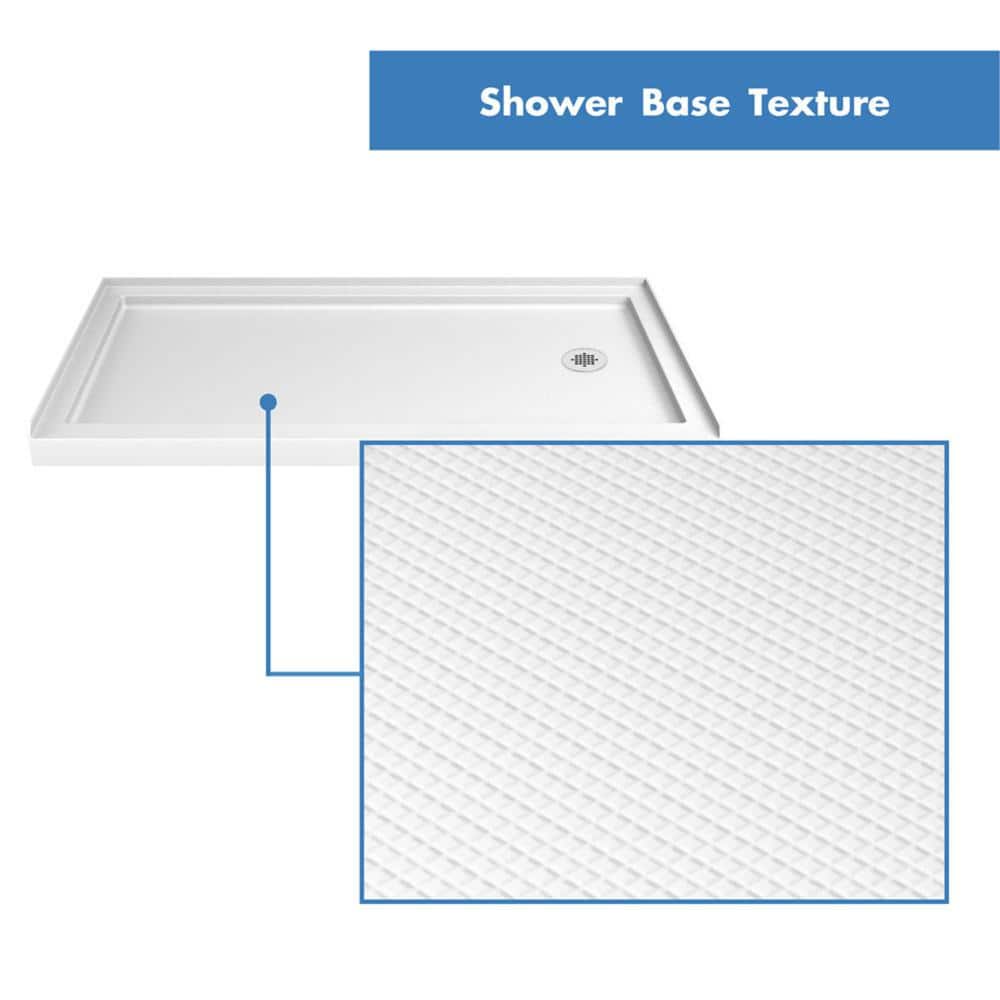

• Secure Footing: Slip-resistant textured base surface for safer showering
• Water-Tight Design: Integrated tile flanges help prevent leaks; fits standard 2 in. compression drain (not included)

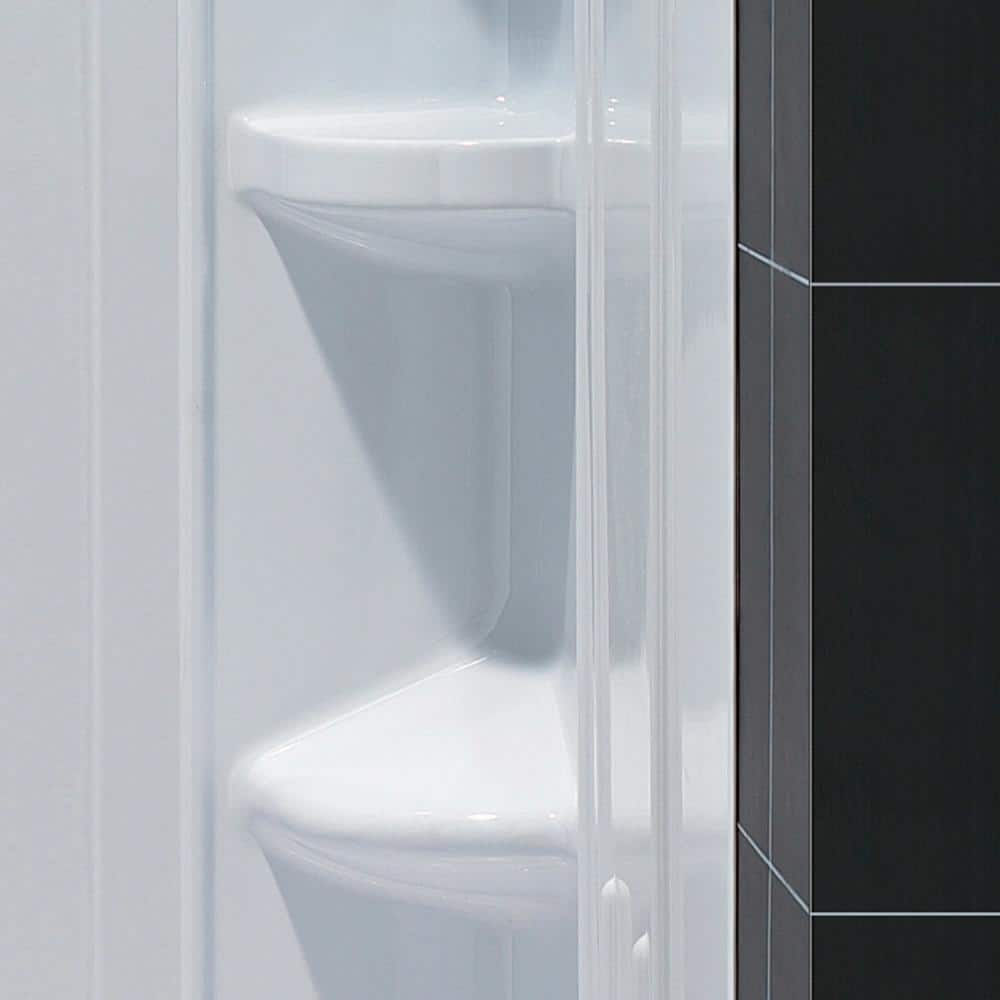

• Easy-to-Install Walls: Q-Wall panels trim-to-size, glue up over solid surface or existing tile; six integrated shelves

---

Specifications Table:

Specification	Details
Model/Kit Type	SlimLine single-threshold shower base with Q-Wall backwalls
Kit Contents	Shower base and shower wall panels (backwalls)
Color/Finish	White
Drain Location	Right
Shower Type	Alcove
Shower Kit Type	Base & Wall
Material	Acrylic/ABS, fiberglass reinforced
Surface Type	Textured, slip-resistant floor
Style	Modern
Installation Type	Alcove; base installs direct-to-studs; walls glue-up to solid surface or existing tile
Wall Installation Type	Glue Up
Integrated Features	Integrated tile flange; six shelves and corner footrests on backwalls
Dimensions	30 in. D x 60 in. W x 75-5/8 in. H (model size)
Base Length (in.)	60
Base Width (in.)	30
Base Height (in.)	2.75
Threshold Height (in.)	1.75
Wall Height (in.)	75.625
Number of Finished Sides	3
Number of Shower Pieces	3 Pieces
Product Weight (lb.)	82
Certifications	cUPC certified
Drain Opening	Fits standard 2 in. compression fitted drain (not included)
Warranty	Base: Limited lifetime; Backwalls: Limited 1-year

---

Frequently Asked Questions (FAQ):

Q: What are the overall dimensions?
A: 30 in. D x 60 in. W x 75-5/8 in. H (base height approx. 2-3/4 in.).

---

Q: Is the drain included?

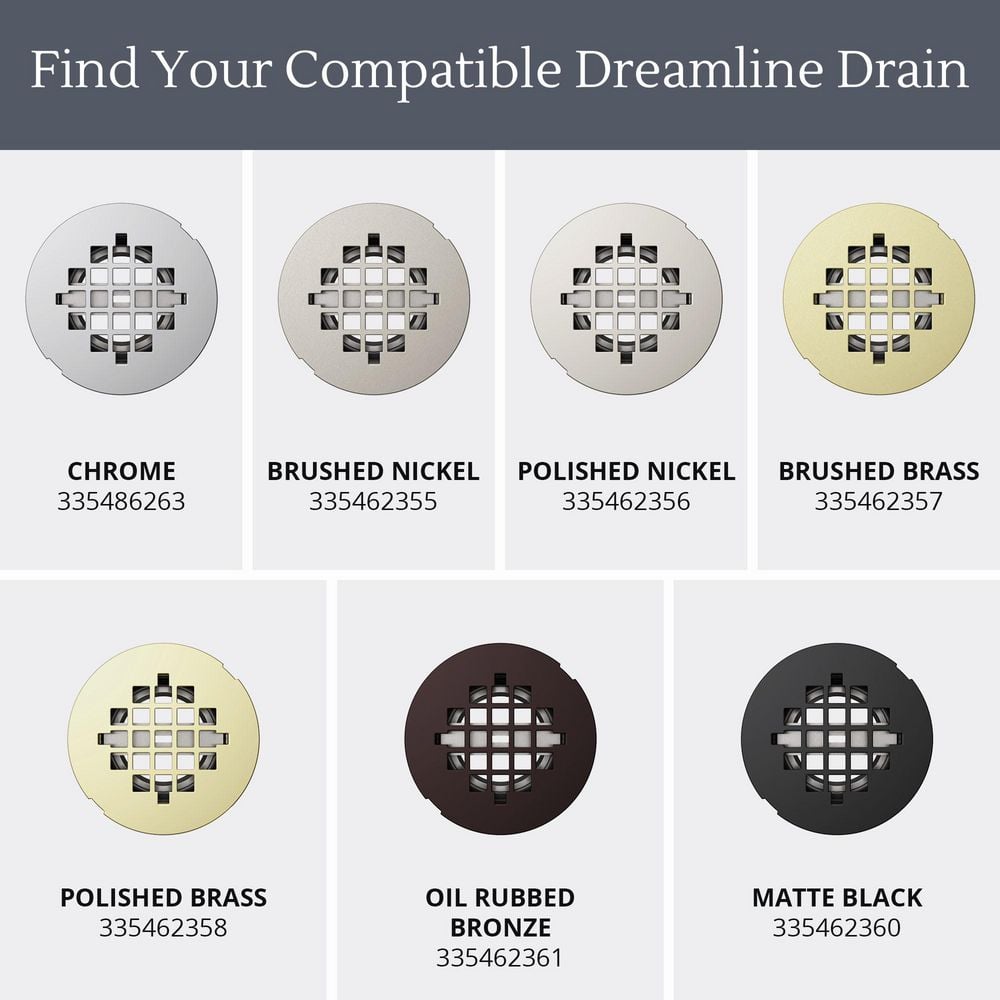

A: No. The base accepts a standard 2 in. compression-fitted drain; compatible DreamLine drains are sold separately.

---

Q: How are the wall panels installed?
A: Q-Wall panels are trim-to-size and glue up to a solid surface such as backer board or existing tile—do not install directly to studs.

---

Q: Is professional installation required?
A: Professional installation is required/recommended for best results and code compliance.

---

Q: What warranties are included?
A: Shower base: limited lifetime warranty; backwalls: limited 1-year warranty.

---

Streamlined Serenity for the Modern Bath

This SlimLine ensemble sculpts a clean, architectural frame that instantly refines an alcove into a spa-like retreat. The crisp, glossy walls with integrated shelving punctuate the space with purposeful symmetry, while the low-profile base keeps the look effortlessly light. Style it with matte black fixtures and soft, stone-toned linens to heighten the contemporary calm. It’s a quietly luxurious foundation that makes everyday rituals feel beautifully considered.

---

Transform your alcove with this sleek, safety-forward DreamLine SlimLine kit—order now to create a polished, leak-tight shower in less time.
