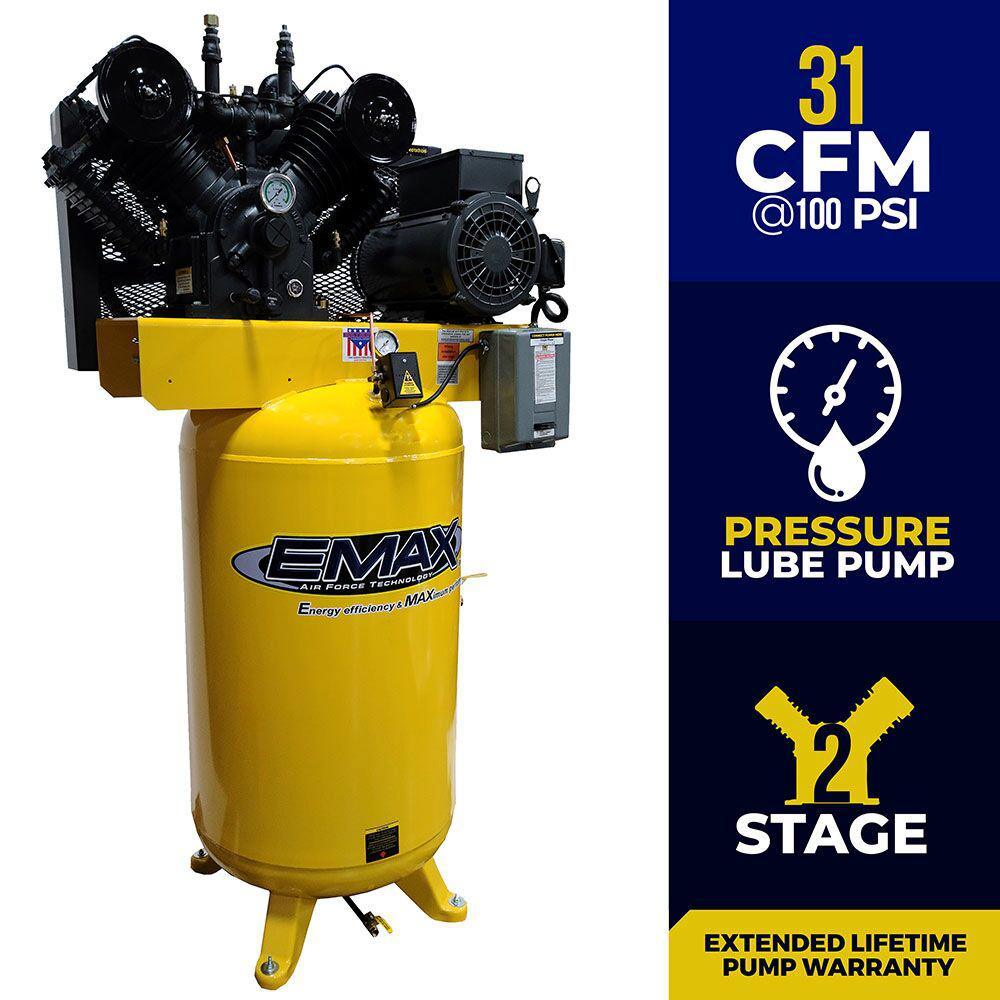

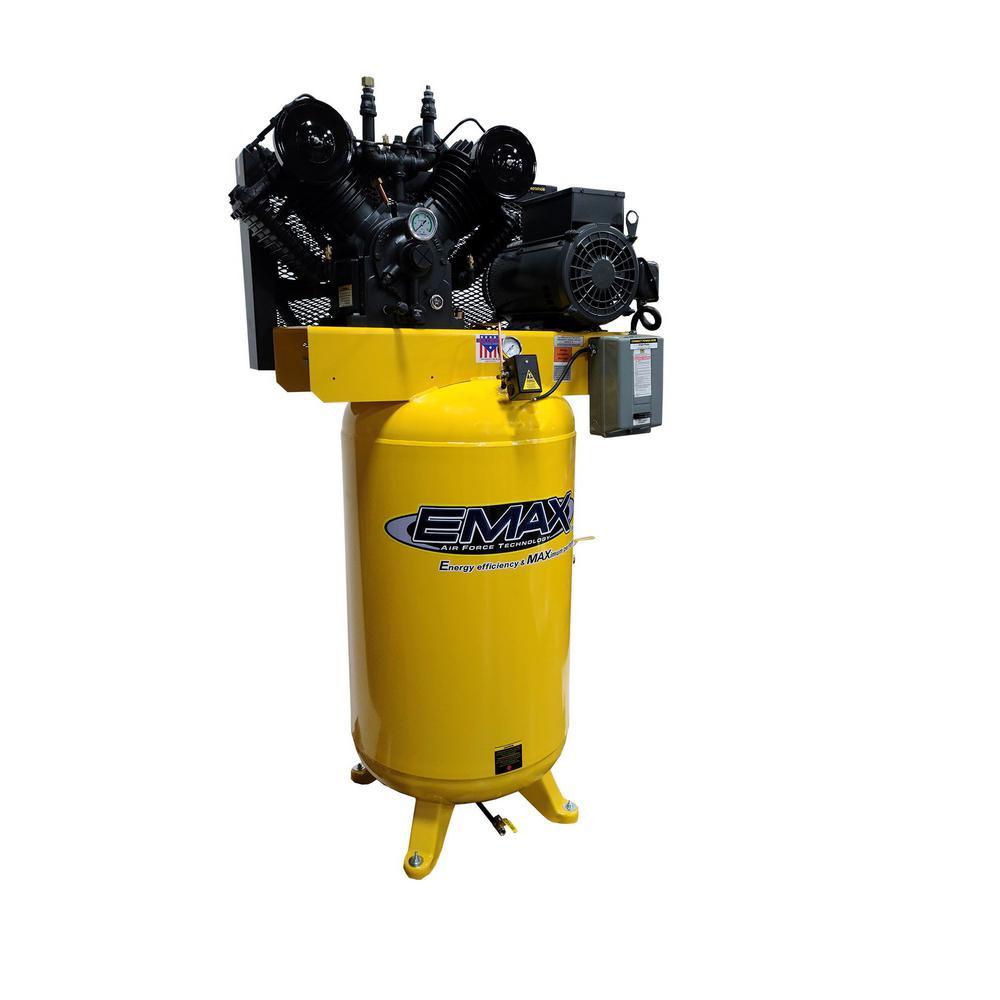

Industrial Series 80 Gal. 7.5 HP 1-Phase Electric Air Compressor with pressure lubricated pump
Regular price $2,999.00/
Shipping calculated at checkout.

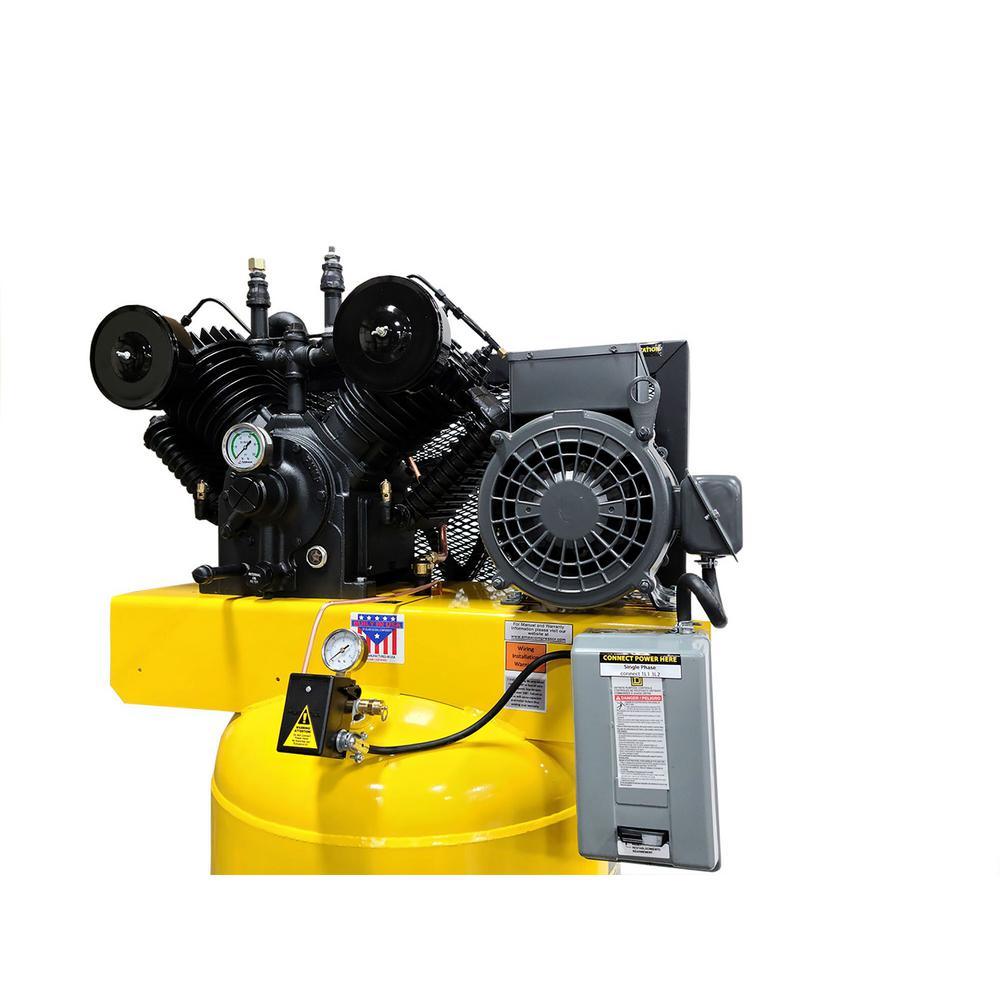

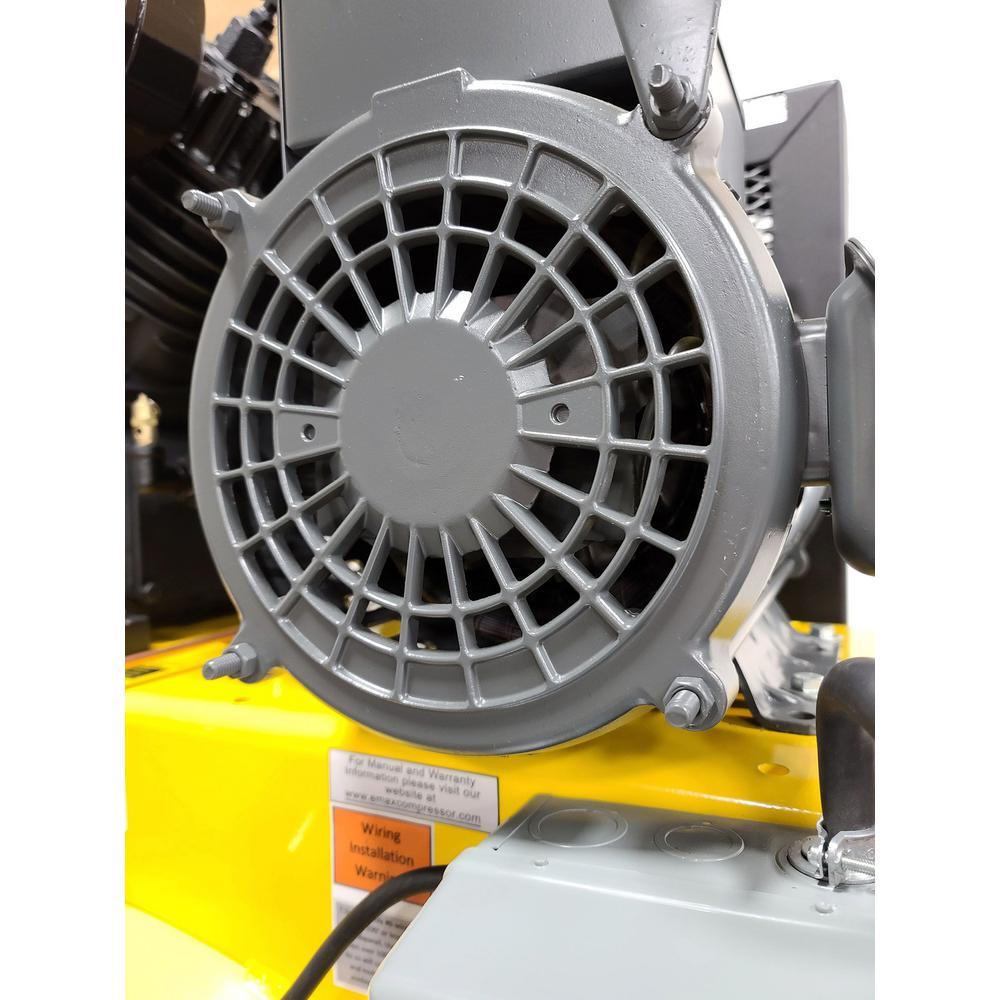

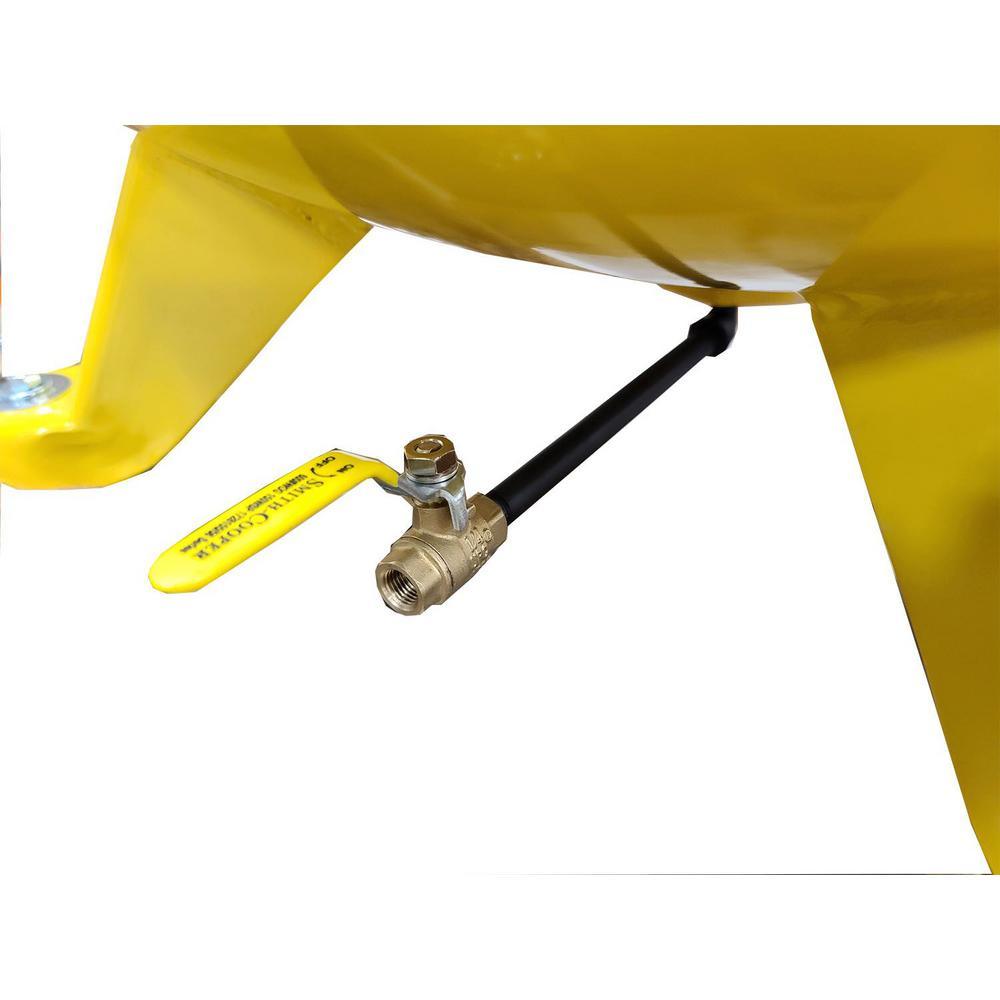

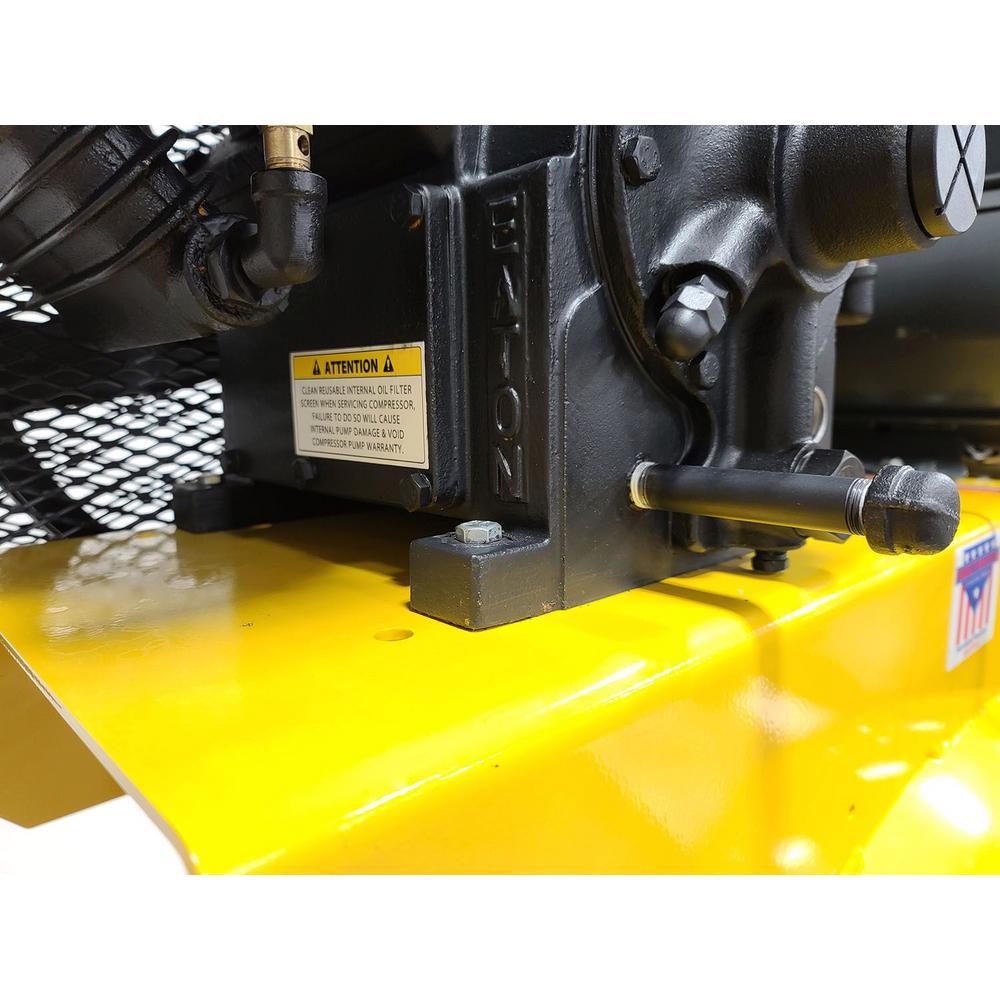

EMAX is the brand tradesman and industrial users look for achieve professional results. EMAX Tools and Equipment deliver overwhelming performance to ensure that they meet the needs of the most demanding environments. The EMAX line of Air Compressors requires less maintenance, service and downtime than any other compressors in the Air Industry. This EMAX Industrial 7.5 HP 2 Stage V4 1 Phase vertical 80 Gal. Piston Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers 34 SCFM @ 100 PSI, top PSI of 175. Our unit features industrial ODP electric motors, magnetic starters, manual ball valve tank drain, powder coated ASME tank 200PSI rating, all paired with all cast iron 70,000 Hr. rated patented pressure lubricated reciprocating pump.
Features
- California residents
- Piston series 2-stage cast iron Pressure Lubricated Pump, rated at up to 50000 hours based on B-10 bearing life rating
- Ram-tek solid steel, heavy gauge rods are built for maximum performance and durability
- Flow-Tek concentric disc valves deliver maximum performance and longevity
- Cool-Tek - the coolest running compressors in the industry with air stream technology provides 35 percent lower operating temperature reducing moisture build up and extends pump life
- 3/4 in. ball valve outlet on receiver tank
- Oil Pressure Gauge
- 31 SCFM at 100 PSI
- 26 SCFM at 175 PSI
- Magnetic starter
- ETL Certified
- <>Need help? CLICK HERE to view our Air Compressor Buying Guide
Features
| Item Weight | 938 |
| Air Delivery SCFM @ 40PSI | 35.0 |
| Compressor/Air Tool Features | No Additional Features |
| Power Type | Corded Electric |
| Amperage (amps) | 32 |
| Voltage (v) | 208/230v |
| Number of Total Batteries Included | 0 |
| Horsepower (hp) | 7.5 hp |
| Product Weight (lb.) | 735 |
| Compressor Tank Capacity (Gallons) | 80 |
| Included | No additional components or accessories are included |
| Condition | New |
| Air Delivery SCFM @ 90PSI | 33.0 |
| Application Use | Air Brushing,Blow Cleaning,Bolting/Wrenching,Brad Nailing/Stapling,Cutting,Drilling,Finish Nailing,Framing Nailing,Grinding,HVLP Painting,Hobby Nailing,Hobby Painting,Inflation,Roof Nailing,Sanding,Spraying,Surface Prep |
| Tank Style | Vertical |
| Maximum Pressure (psi) | 175 |
| Voltage (volts) | 208/230 |
| Portable | No |
| Compressor Volume Rating | Quiet |
| Compressor Tank Capacity (Gal.) | 80 Gal. |
| Lubrication Type | Oil-Lubricated |
| Returnable | 180-Day |
| Tools Product Type | Air Compressor |
| Compressor Type | Garage & Industrial |
| Charger Included | Charger Not Included |
| Reconditioned | No |
| Decibel Rating (Outdoor) | 74 dBA |
| Battery Amp Hours | No Battery |
| Battery/Charger | Tool Only |
| Tank Material | Steel |
| Stage Count | Two Stage |
| Power Source | Electric |

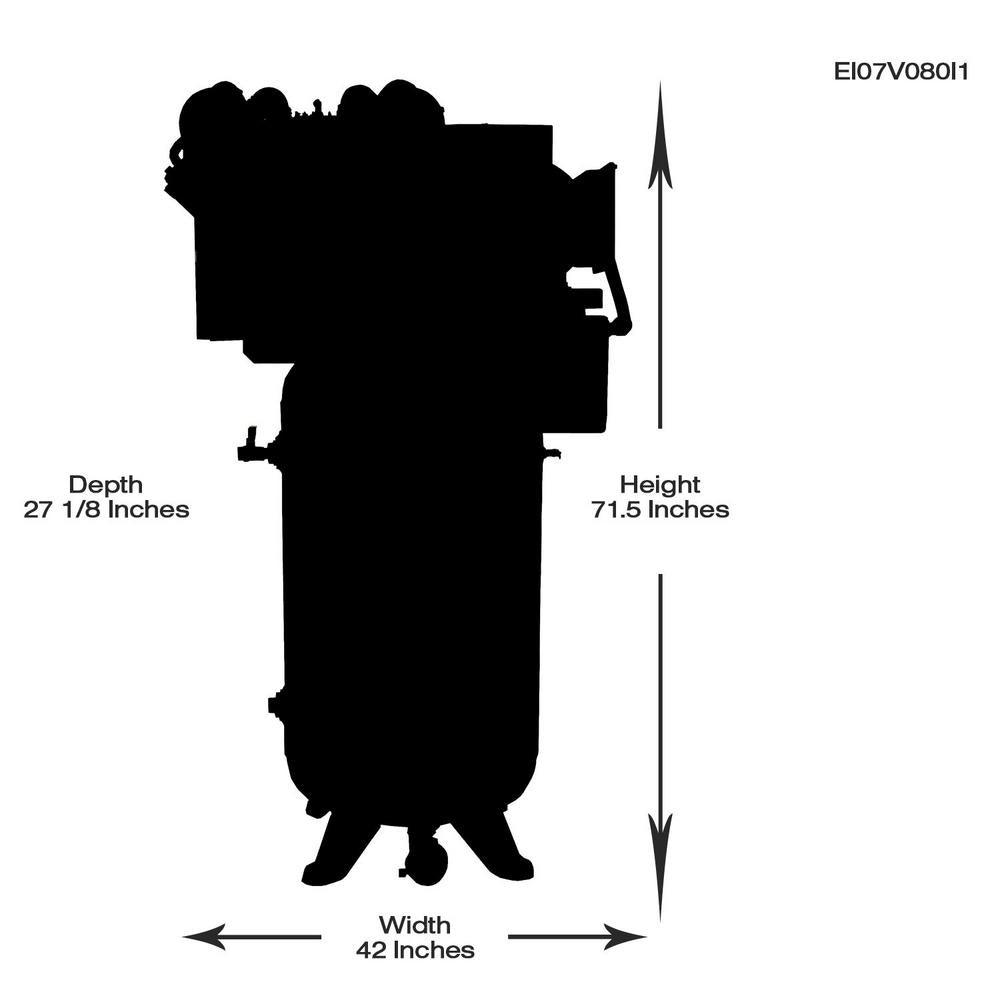

| Product Height (in.) | 72 |
| Product Width (in.) | 42 |
| Product Depth (in.) | 28 |
| Manufacturer Warranty | 5 Year Limited Warranty on oil-lubricated air compressor pumps and tanks |
| Certifications and Listings | No Certifications or Listings |
