Electrical

200 Amp 32-Space 40-Circuit Main Breaker Indoor Load Center Combination Arc Fault Kit with CAFCI Breakers Included

32 spaces

$313.41 each

Orders start at $399. Combine any items to reach it.

Quantity
1 item
$313.41
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Electrical

Details & specifications.

From the maker · the maker’s description

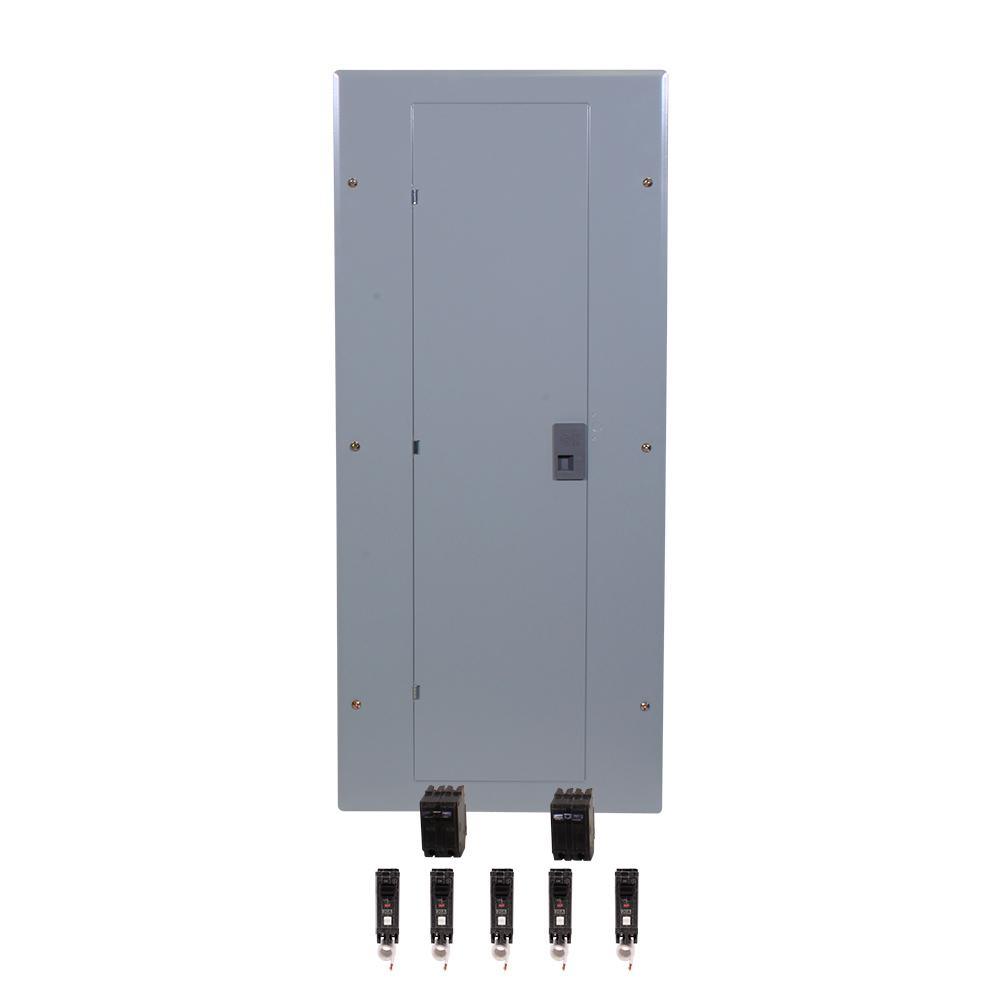

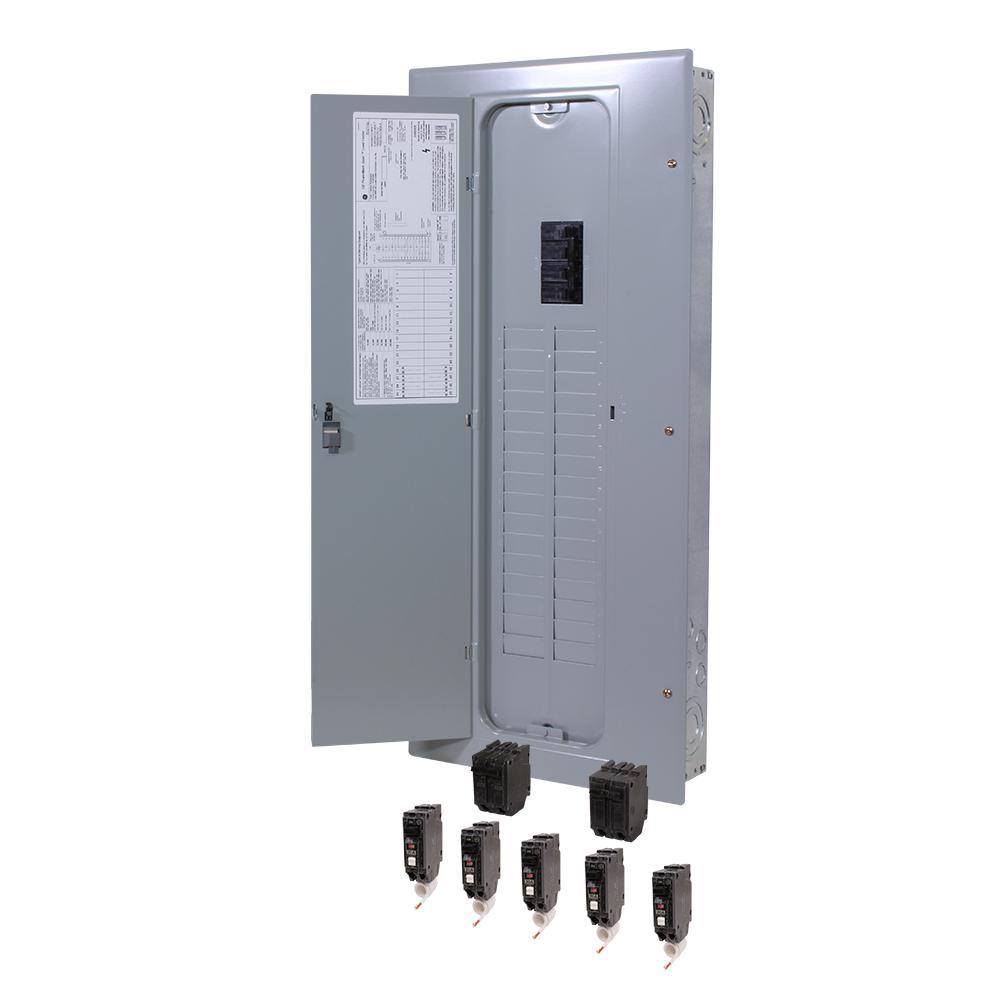

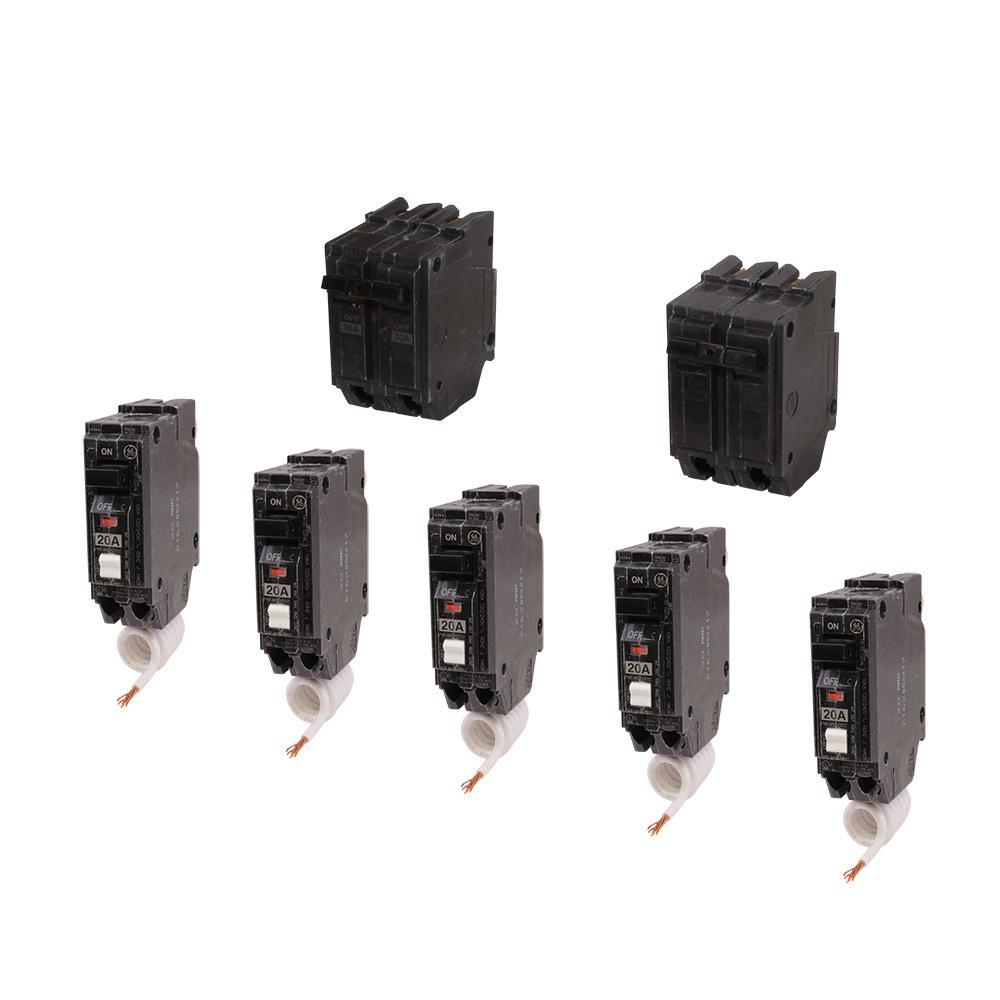

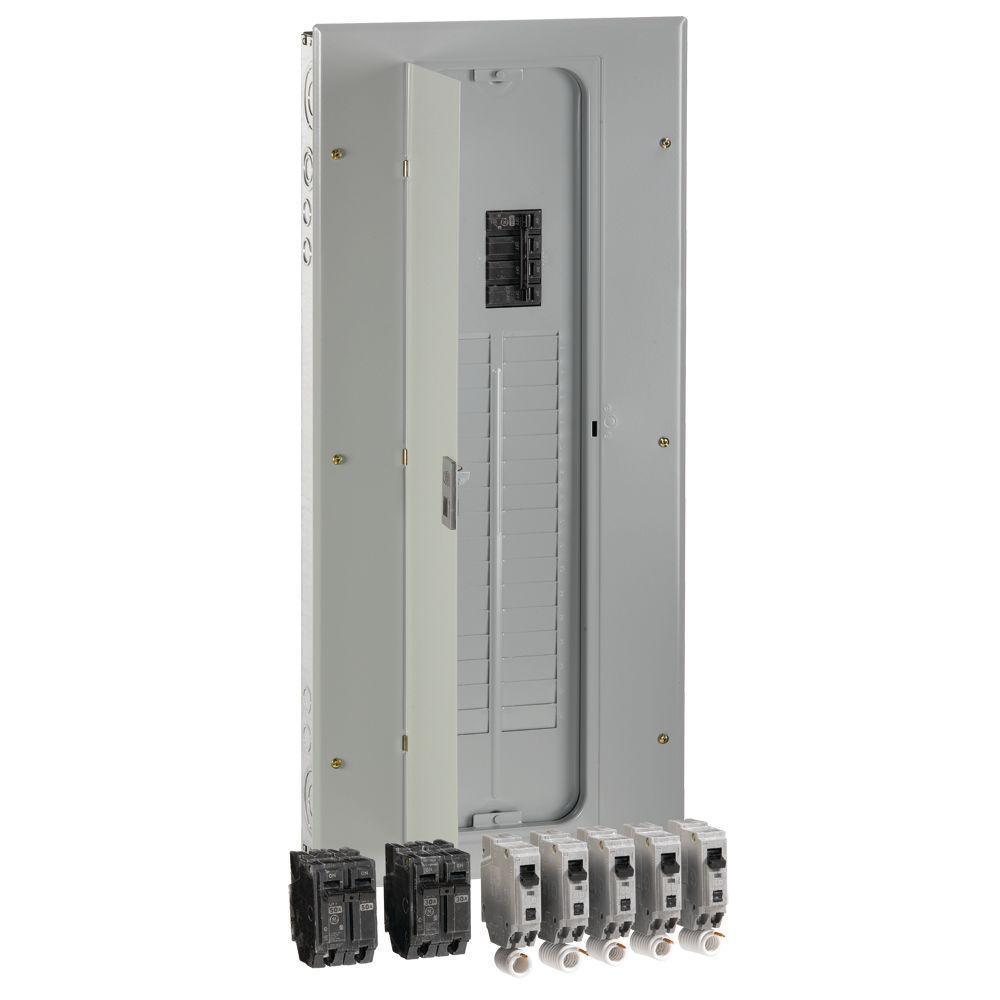

This GE PowerMark Gold 200 Amp 32-Space 40-Circuit Main Breaker Indoor Load Center Contractor Kit with CAFCIs is a great choice for convenience and savings. It features a factory-installed main breaker, full-length neutral bars and is pre-packaged with an assortment of breakers. The kit includes 5 single-pole 15 Amp combination arc fault breakers (CAFCIs), one 2-pole 30 Amp circuit breaker and one 2-pole 50 Amp circuit breaker.

  • Features a rust-resistant galvanized box for indoor use
  • Product has a highly conductive copper bus bar
  • Product comes with a factory-installed main breaker, full-length neutral bars, top or bottom feed and self-adjusting, dead-front cover
  • Contains a 100% rated split neutral on each side
  • Rated a single phase, 3-wire, 120/240 VAC
  • All neutral holes are rated for 14 - 4 wire
  • Load center accepts 1/2 in. THQP and 1 in. THQL frame GE circuit breakers
SKU
2072154786
Spaces
32
Mounting
Plug-On
Location
Indoor
Circuits
40
Item Weight
35
Voltage (volts)
240
Product Weight (lb.)
35
Load Center Mounting Type
Flush, Surface
Electrical Product Type
Load Center and Breaker Kit
Load Center Type
Main Breaker
Indoor/Outdoor
Indoor
Phase Type
1 Phase
Maximum Amperage (amps)
200

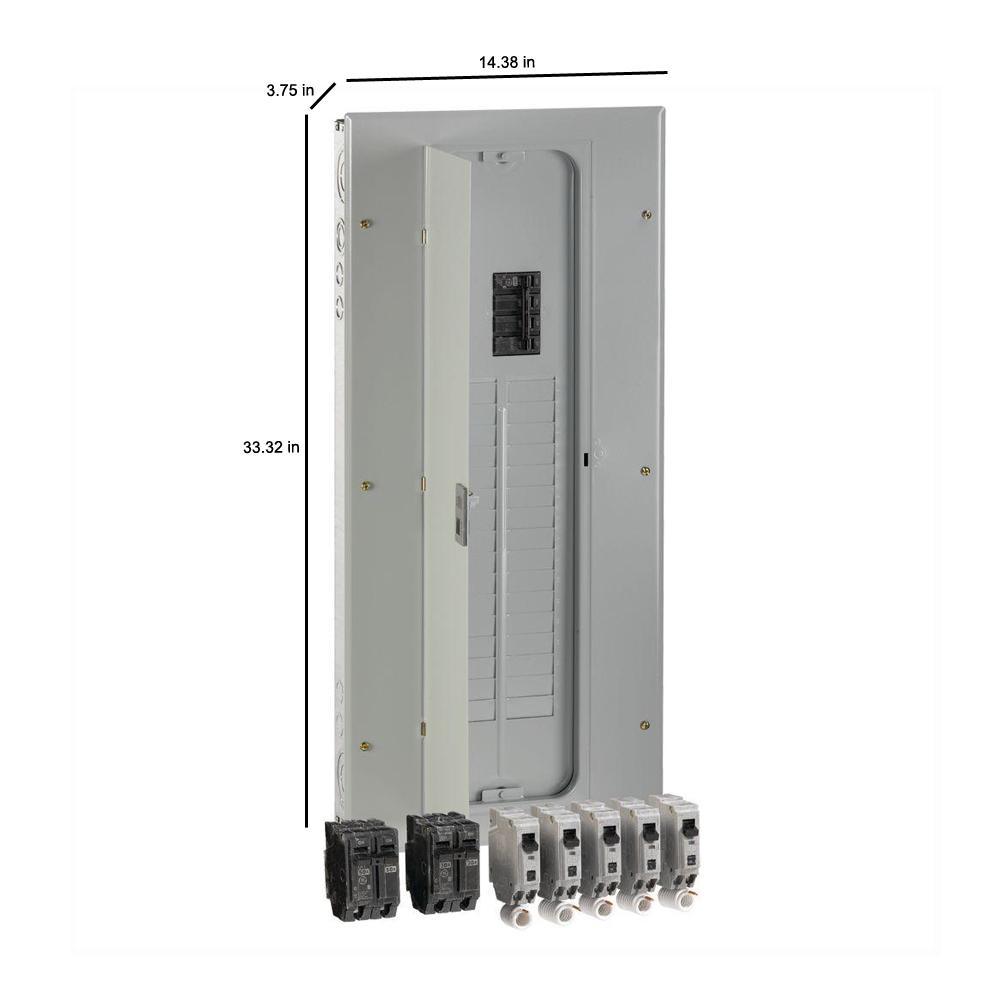

Load center depth (in.)
3.75
Load center height (in.)
33.32
Load center width (in.)
14.38
Certifications and Listings
UL Listed
Manufacturer Warranty
One year warranty from first use

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Before you buy a breaker

  1. 1

    Match the panel

    Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.

  2. 2

    Match the wire

    The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.

  3. 3

    Protection

    Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.

  4. 4

    Tandem and quad

    Two circuits in one space, only in the slots the panel label allows.
