2 in. Lead-Free Reduced Pressure Principle Assembly with Strainer and Air Gap
Regular price $836.52/
Shipping calculated at checkout.

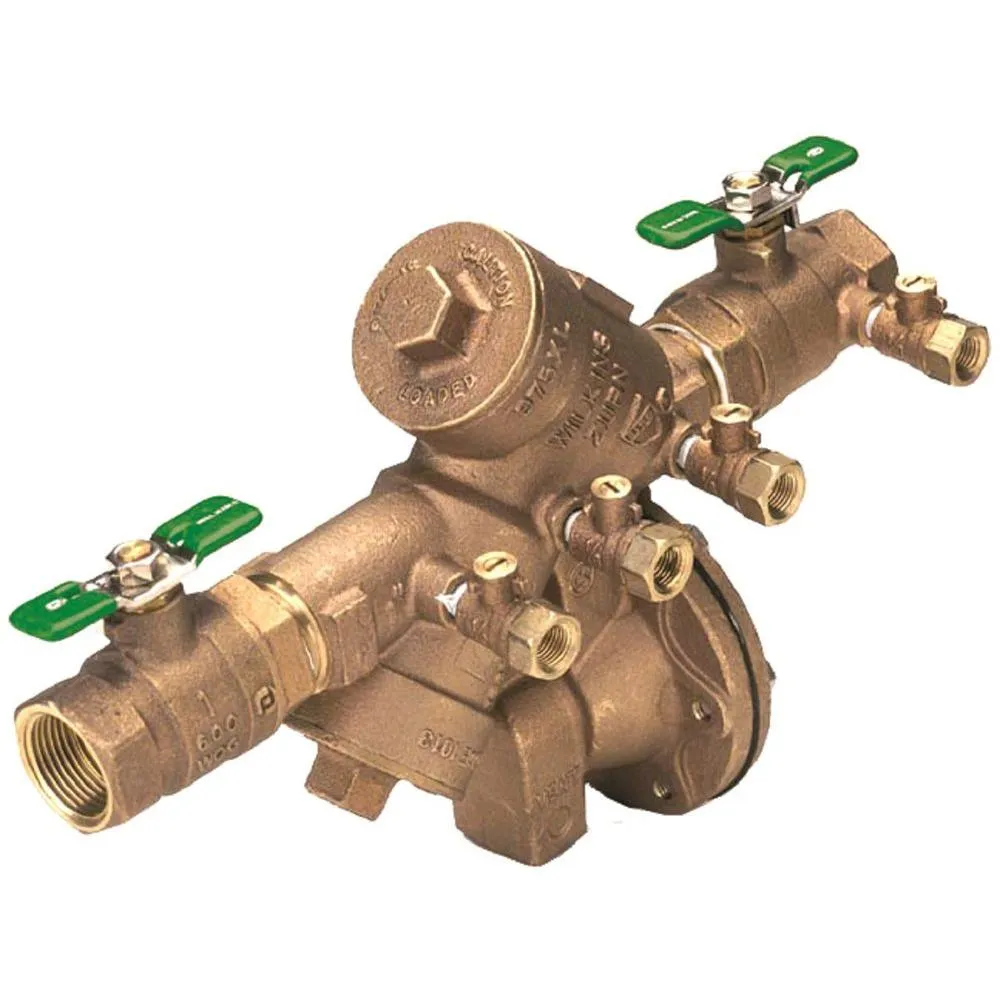

The Zurn Wilkins Model 975XL2SAG Backflow Preventer features a bronze body for durability and is ideal for use where lead free valves are required. Additional lead-free bronze wye strainer and air gap accessories help sustain long life. The valve is designed for installation on potable water lines to protect against both back-siphonage and backpressure of contaminated water into the potable water supply. The tried and true design is favored by installers and delivers superior protection that demanding professionals expect.
Features
- California residents
- 2 in. reduced principle assembly consists of a pressure differential relief valve located between two independently operated spring-loaded wye tape center guided check valves
- Backflow preventer comes complete with 2 full port resilient seated ball valves for shut-off along with 4 resilient seated ball valve test cocks
- Entire unit is serviceable in line, wye pattern design allows for short lay length that eases replacement labor costs
- Zurn Wilkins model SXL lead-free bronze Y type strainer is included with this valve, the strainer adds protection for the backflow preventer by filtering sediment which could cause premature failure
- Zurn Wilkins AG-5 is included with this valve, this device is necessary when installing a drain line and can be mounted to the body, the air gap prevents a cross connection between the drain and potable supply
- Noryl replaceable seats and silicone rubber check discs
- IAPMO listed, ASSE listed 1013, CSA certified, NSF listed, AWWA compliant C511, and approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California
Features
| Item Weight | 43 |
| Installation | Above Ground |
| Thread Type | FIP |
| Returnable | 180-Day |
| Compatible Pipe Material | Multi-Purpose |
| Maximum Pressure (psi) | 140 |
| Number of Outlets | 0 |
| Material | Brass |
| Valve Type | Reduce Pressure Zone |
| Pressure Rating | 175 |
| Product Weight (lb.) | 45 lb |
| Irrigation System Component | Valve |
| Maximum Working Temperature (F) | 170 |
| Pack Size | 1 |
| Connection | FIP x FIP |
| Operation | Automatic |
| Package Quantity | 1 |
| Product Length (in.) | 11.75 |
| Product Width (in.) | 26.5 |
| Product Height (in.) | 6.25 |
| Outlet Size (in.) | 2 or less |
| Inlet Size (in.) | 2 |
| Manufacturer Warranty | All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period on one year from date of purchase. |
