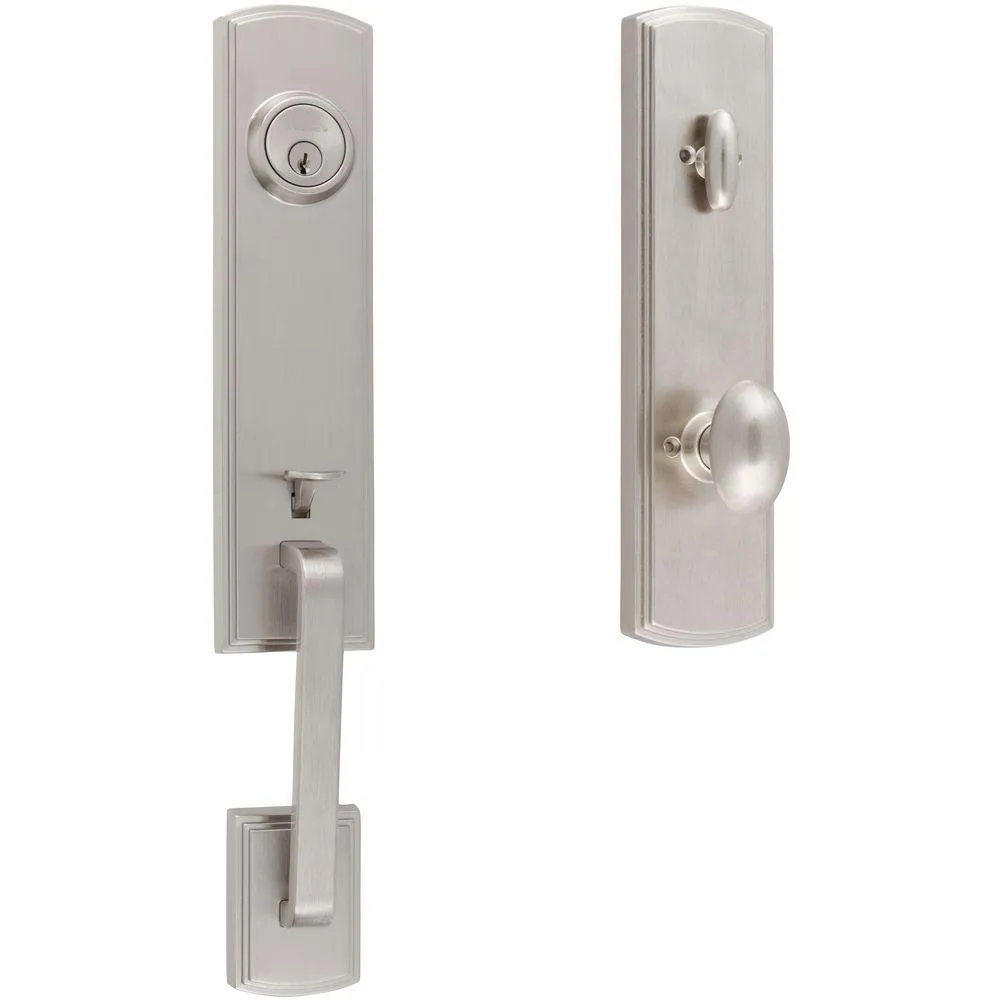

Italian Collection Briona Single Cylinder Satin Nickel Door Handleset with Canova Interior for Right-Hand Door
Regular price $137.13/
Shipping calculated at checkout.
The Delaney Designer Series Italian Collection was inspired by the simple elegance of Venice and the timeless appearance found in Tuscany. The Briona with exquisite straight lines and enlarged back plate adds style and value to any home. The satin nickel finish complements a wide selection of interior design options. The upper trim is a single cylinder deadbolt which is operated with a key on the outside and a thumb turn on the inside. The inside lower trim is a Canova egg shaped knob for a right hand door. Handing is determined by standing on the outside of the door noting on which side the hinges are located – hinges on the right side is a RH door, hinges on the left side is a LH door.
Features
- Universal installation feature with adjustable latch and interlocking guides make it easy to install requiring only a screwdriver
- All parts and installation instructions included
- Reinforced spring assembly provides long lasting smooth operation
- Internal protective collar provides added security
- Fits on both wood and metal doors 1 3/8” – 1-3/4 in. thick
- Mounting hardware included
- All products with a key on the same order will be keyed alike
Features
| Item Weight | 8 |
| Included | Drilling Template,Hardware,Installation Instructions |
| Door Handing | Universal |
| Product Weight (lb.) | 8 |
| Lock Type | Keyed |
| Door Lock Style | Classic |
| Commercial/Residential | Residential |
| Handleset Product Type | 1 Piece Front & Back |
| Total Number of Keys Included | 2 |
| Finish | Satin Nickel |
| Deadbolt Type | Single Cylinder Deadbolt |
| Knob style | Egg |
| Security/ANSI Grade | ANSI Grade 3 (Good) |
| Knob/lever strike | Round corner |
| Keying Type | Keyed Alike |
| Application Type | Entry |
| Features | Adjustable Backset,Easy Installation |
| Lock Type2 | Keyed Entry |
| Backset size (in.) | Adjustable |
| Hardware Finish Family | Nickel |
| Material | Metal |
| Deadbolt strike | Round corner |
| Returnable | 180-Day |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Minimum door thickness (in.) | 1.375 |
| Interior/Exterior | Interior/Exterior |
| Electronic/Mechanical | Mechanical |
| Knob/lever housing width (in.) | 3 |
| Deadbolt cross bore diameter (in.) | 2.125 |
| Deadbolt bore hole diameter (in.) | 1 |
| Inside plate width (in.) | 3 |
| Knob/lever strike height (in.) | 2.25 |
| Knob/lever strike width (in.) | 1 |
| Handle grip length (in.) | 18.375 |
| Knob/lever housing height (in.) | 3 |
| Assembled Width (in.) | 6 in |
| Outside handle and key plate width (in.) | 3 |
| Deadbolt trim ring diameter (in.) | 3 |
| Outside handle plate on-center measurement (in.) | 5.5 |
| Knob Diameter (in.) | 3 |
| Deadbolt strike height (in.) | 2.25 |
| Projection (in.) | 1 |
| Maximum door thickness (in.) | 1.75 |
| Deadbolt strike width (in.) | 1 |
| Assembled Height (in.) | 6 in |
| Deadbolt throw length (in.) | 1 |
| Outside handle and key plate length (in.) | 18.375 |
| Inside plate length (in.) | 12 |
| Assembled Depth (in.) | 4 in |
| Knob/lever throw length (in.) | .5 |
| Knob/lever bore hole diameter (in.) | 1 |
| Knob/lever cross bore diameter (in.) | 2.125 |
| Certifications and Listings | ANSI Certified |
| Manufacturer Warranty | Limited Lifetime Mechanical Warranty |
