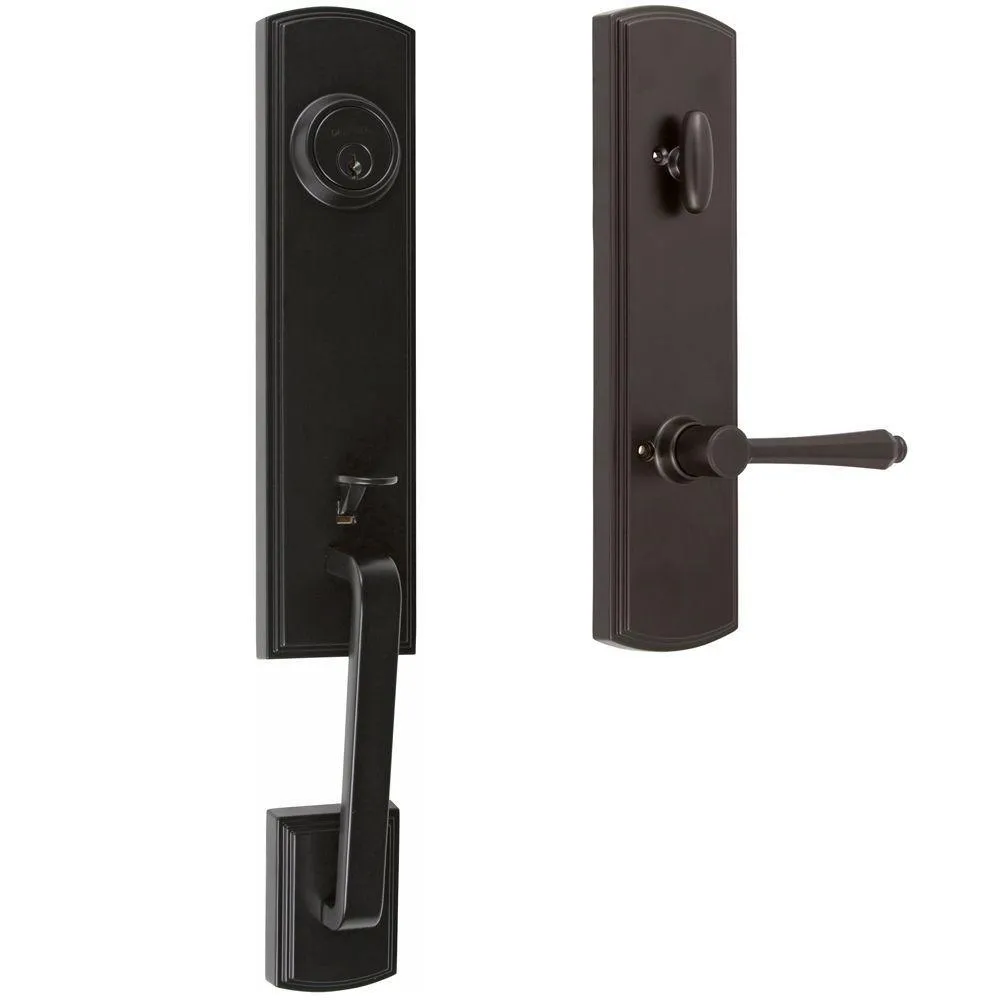

Italian Collection Briona Single Cylinder Black Door Handleset with Florini Interior Left-Hand
Regular price $137.13/
Shipping calculated at checkout.
The Delaney Designer Series Italian Collection was inspired by the simple elegance of Venice and the timeless appearance found in Tuscany. The Briona with exquisite straight lines and enlarged back plate adds style and value to any home. The black finish complements a wide selection of interior design options. The upper trim is a single cylinder deadbolt which is operated with a key on the outside and a thumb turn on the inside. The inside lower trim is a Florini lever for a left hand door (LH). Handing is determined by standing on the outside of the door noting on which side the hinges are located hinges on the right side is a RH door, hinges on the left side is a LH door.
Features
- Universal installation feature with adjustable latch and interlocking guides make it easy to install requiring only a screwdriver
- All parts and installation instructions included
- Reinforced spring assembly provides long lasting smooth operation
- Internal protective collar provides added security
- Single cylinder deadbolt - key opens and locks the deadbolt from the outside and a thumb turn locks and unlocks the deadbolt from the inside
- Fits on both wood and metal doors 1-3/8 in. 1-3/4 in. thick
- All products with a key on the same order will be keyed alike
Features
| Item Weight | 8 |
| Product Weight (lb.) | 8 |
| Lock Type | Keyed |
| Commercial/Residential | Residential |
| Handleset Product Type | 1 Piece Front & Back |
| Total Number of Keys Included | 2 |
| Deadbolt Type | Single Cylinder Deadbolt |
| Security/ANSI Grade | ANSI Grade 3 (Good) |
| Knob/lever strike | Round corner |
| Keying Type | Keyed Alike |
| Application Type | Entry |
| Features | Adjustable Backset,Easy Installation |
| Lock Type2 | Keyed Entry |
| Finish | Black |
| Backset size (in.) | Adjustable |
| Material | Metal |
| Door Handing | Left-Handed |
| Deadbolt strike | Round corner |
| Returnable | 180-Day |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Minimum door thickness (in.) | 1.375 |
| Hardware Finish Family | Black |
| Lever style | Straight |
| Interior/Exterior | Interior/Exterior |
| Keyway | SC1 |
| Door Lock Style | Rustic |
| Electronic/Mechanical | Mechanical |
| Included | Hardware,Installation Instructions |
| Lever grip length (in.) | 4 |
| Deadbolt cross bore diameter (in.) | 2.125 |
| Deadbolt bore hole diameter (in.) | 1 |
| Assembled Width (in.) | 4 in |
| Inside plate width (in.) | 3 |
| Knob/lever strike height (in.) | 2.25 |
| Knob/lever strike width (in.) | 1 |
| Handle grip length (in.) | 18.375 |
| Assembled Depth (in.) | 7.25 in |
| Assembled Height (in.) | 18.375 in |
| Outside handle and key plate width (in.) | 3 |
| Deadbolt trim ring diameter (in.) | 3 |
| Outside handle plate on-center measurement (in.) | 5.5 |
| Deadbolt strike height (in.) | 2.25 |
| Projection (in.) | 1 |
| Knob/lever housing height (in.) | 4 |
| Maximum door thickness (in.) | 1.75 |
| Deadbolt strike width (in.) | 1 |
| Deadbolt throw length (in.) | 1 |
| Knob/lever housing width (in.) | 4 |
| Outside handle and key plate length (in.) | 18.375 |
| Inside plate length (in.) | 12 |
| Knob/lever throw length (in.) | .5 |
| Knob/lever bore hole diameter (in.) | 1 |
| Knob/lever cross bore diameter (in.) | 2.125 |
| Certifications and Listings | ANSI Certified |
| Manufacturer Warranty | Limited Lifetime Mechanical Warranty |
