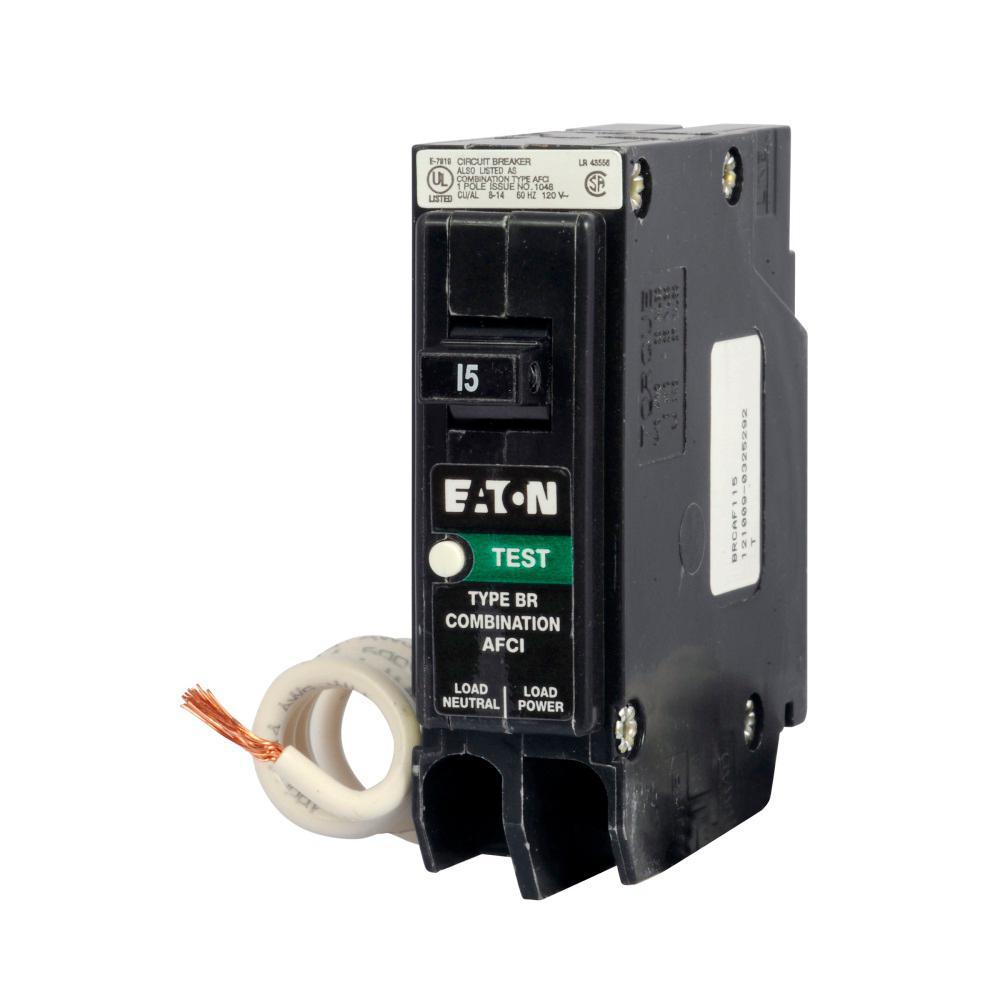

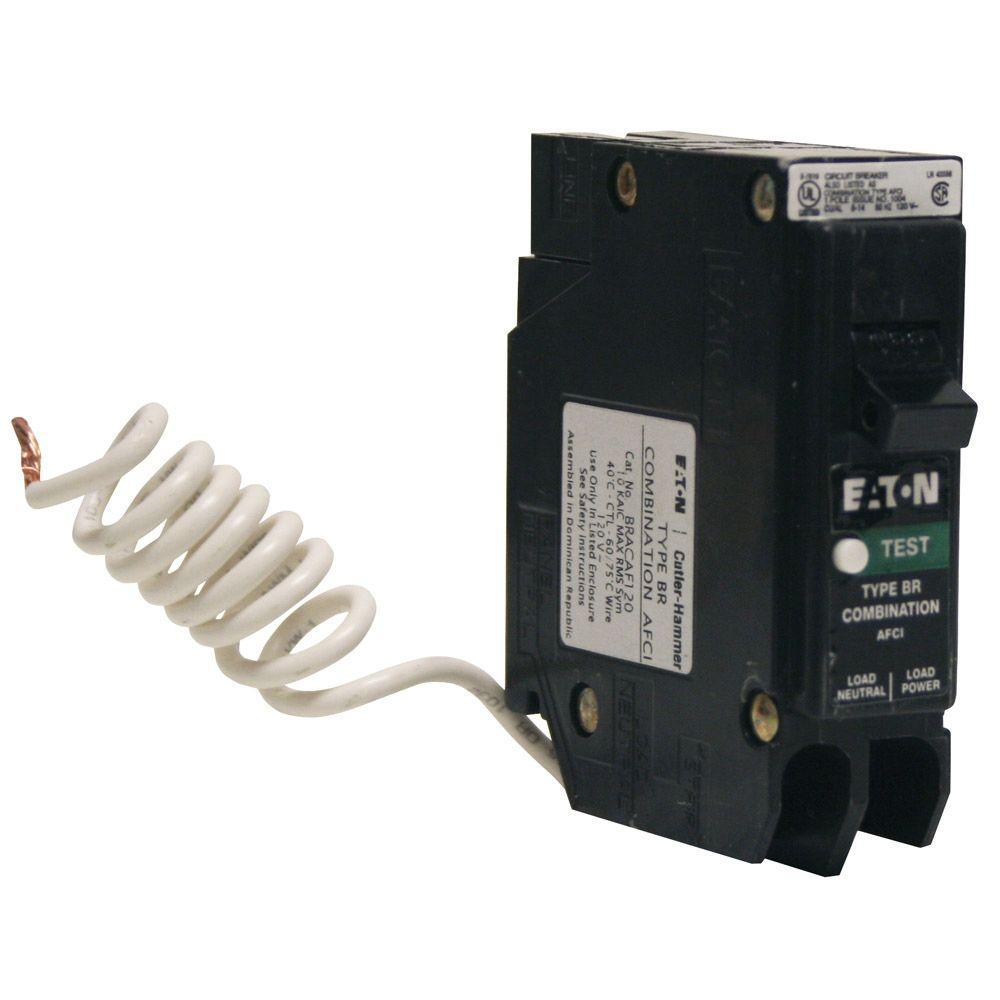

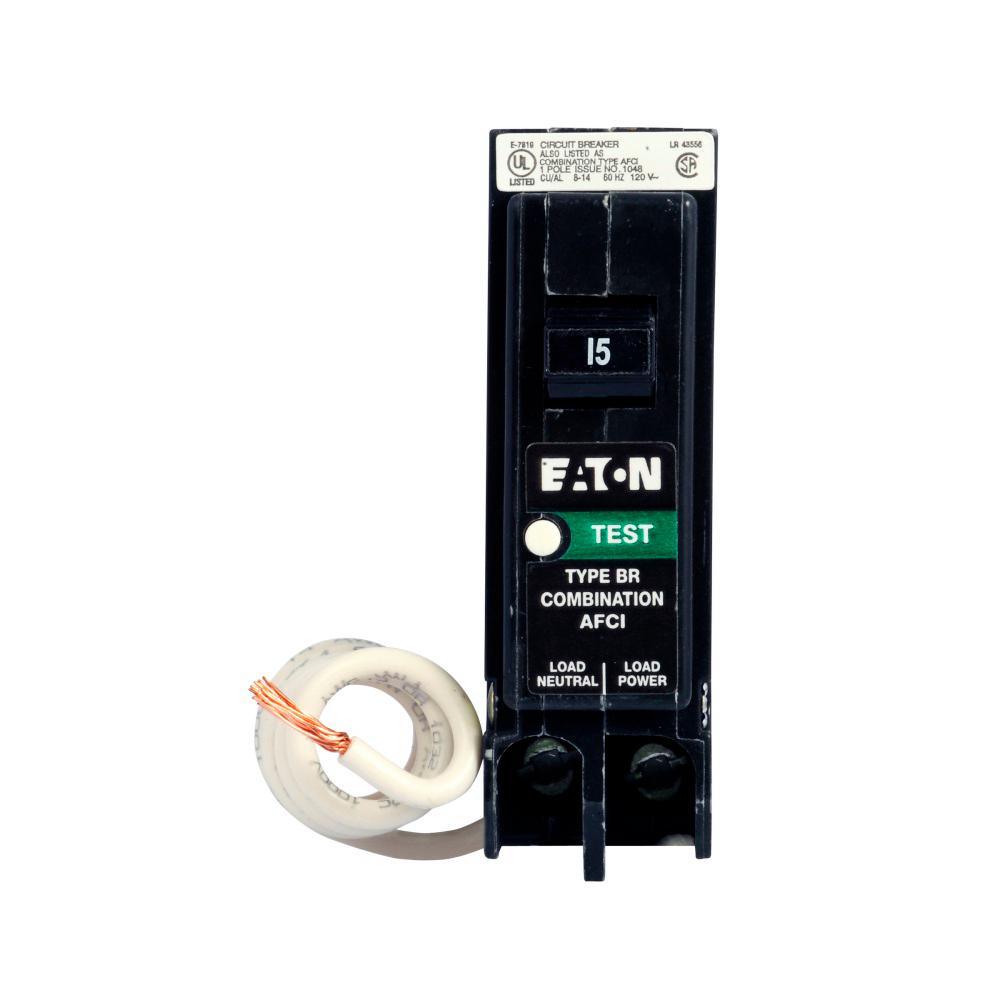

BR 15 Amp Single-Pole Combination Arc Fault Circuit Breaker
15 A1-poleAFCI
$41.51 each
Orders start at $399. Combine any items to reach it.
- 1 breaker
- $41.51
- Standard delivery
- $49.99 per order
- Sales tax
- Added at checkout
All orders are subject to approval.
You're not charged until your order is approved and ready to ship. Cancel free before then.
Standard delivery$49.99
Per order, added in your cart. We deliver to the 48 contiguous states.
Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns
Complete the panel
Eaton · Electrical
Details & specifications.
From the maker · Eaton’s description
Eaton's Arc Fault Circuit Interrupters (AFCIs) use advanced electronic technology to reduce fire hazards in electrical circuits, including connected cords. They meet the requirements of the UL Standard for Safety, UL 1699 for devices that reduce the effects of persistent arcing faults that may pose a risk of fire under certain conditions. Arcing creates high intensity heating at the point of the arc resulting in burning particles that may over time ignite surrounding material, such as wood framing or insulation. The BRCAF15 is a 15 amp combination type breaker that includes all of the protection of the branch feeder, plus it directly detects persistent low current arcing faults down to 5 amps to efficiently protect against fire hazards in the cords connected to outlets.
- Combination type includes all of the protection of the branch feeder, plus it directly detects persistent low current arcing faults down to 5 amps to efficiently protect against fire hazards in the cords connected to outlets
- FIRE-GUARD model AFCI recognizes the unique current and/or voltage signatures associated with arcing faults and efficiently interrupts the circuit to reduce fire hazards
- Branch feeder mitigates parallel arcing faults, which produce the most energy of all arcing faults, in the complete circuit including connected cords for enhanced safety
- For use in type BR load centers
- Amperage: 15 Amp
- Mounting: standard pigtail
- Interrupt rating - 10 kAIC
- Voltage rating is 120
- Wire size - #14-4 AWG Cu/Al at 60°C or 75°C
- SKU
- 1657465276
- Amps
- 15 A
- Poles
- 1-pole
- Protection
- AFCI
- Type
- Single Pole
- Mounting
- Plug In
- Brand
- Eaton
- Item Weight
- .38
- Interruption Type
- AFCI
- Voltage (volts)
- 124/240
- Product Weight (lb.)
- .45
- Power Distribution Features
- No Additional Features
- Pack Size
- 1
- Electrical Product Type
- Breaker
- Product Height (in.)
- 8.0
- Product Depth (in.)
- 1.13
- Product Width (in.)
- 4.0
- Certifications and Listings
- ANSI Certified, UL Listed
- Manufacturer Warranty
- 5 Year Per the Warranty Statement
Specifications are provided by the manufacturer. Brand names are trademarks of their owners.
Guide
Before you buy a breaker
- 1
Match the panel
Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.
- 2
Match the wire
The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.
- 3
Protection
Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.
- 4
Tandem and quad
Two circuits in one space, only in the slots the panel label allows.
