Part Circle Rotor

$15.49

/
Shipping calculated at checkout.

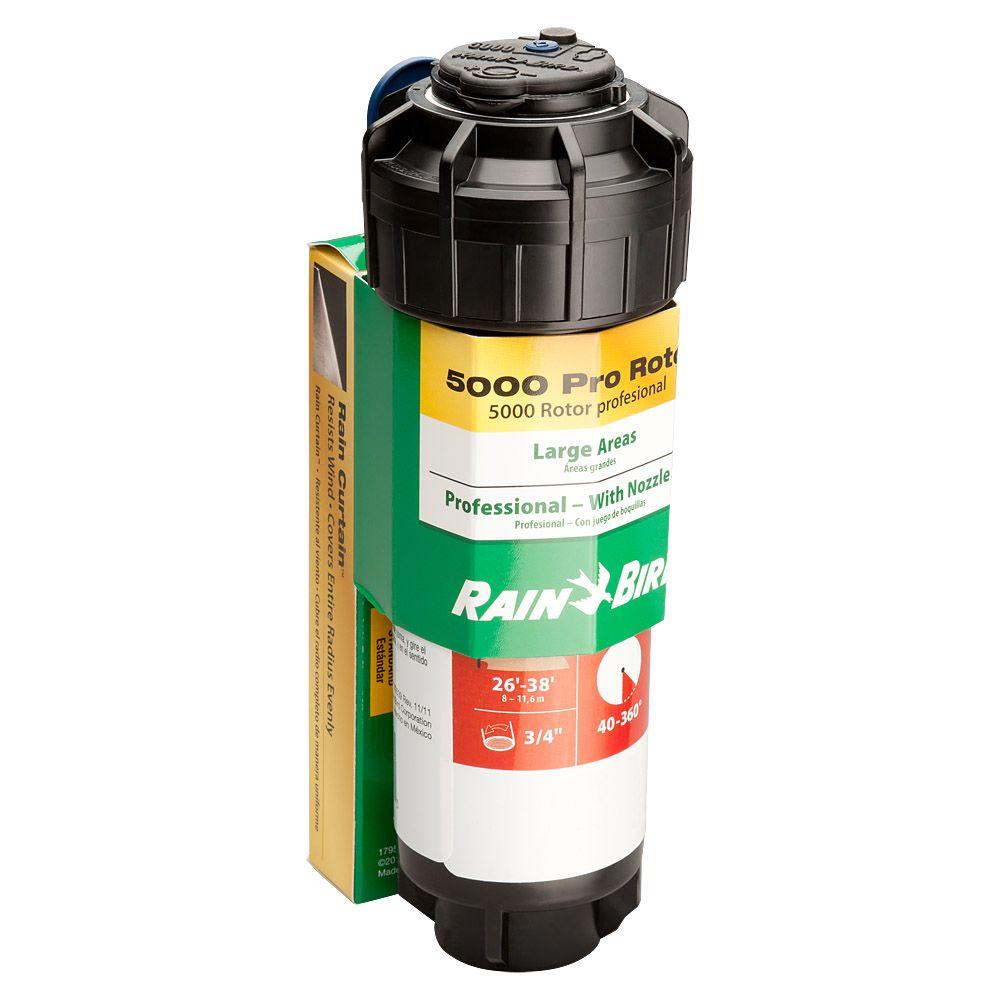

The Rain Bird 5004 professional grade rotor offers rugged durability and performance along with the added precision of 12 extra nozzles in this Pro Pack to enable balancing precipitation rates with other rotors on the zone or adjusting trajectory to clear low tree branches or to water windy areas. Patented Rain Curtainnozzle technology provides even watering distribution over the entire radius, including close to the head, resulting in a greener lawn with less water.
  • Professional grade rotor offers rugged durability and performance
  • 26 - 38 ft. watering distance with pre-installed 3.0 GPM nozzle
  • Up to 50 ft. watering distance by changing nozzles (supplied)
  • 4 in. pop-up clears taller grass
  • 3/4 in. female threaded bottom inlet
  • Simple arc and radius adjustment from the top requiring only a flat-bladed screwdriver
  • Water-lubricated gear-drive design for durable, reliable operation
  • Dual-action, positive stop wiper seal protects internals from debris and, together with a heavy duty stainless steel spring, assures positive pop-up and retraction for water savings
  • Gentle close-in watering eliminates dry spots around the rotor, also avoiding seed wash-out

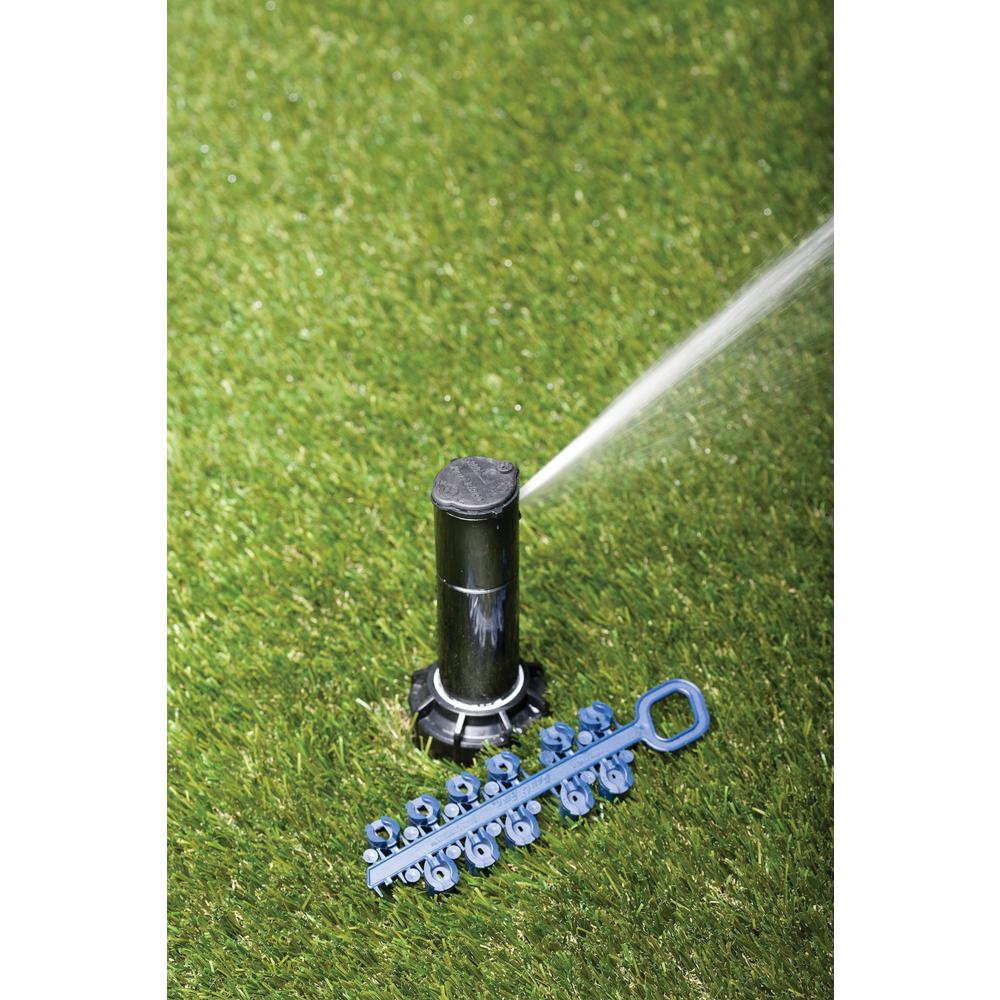

  • Includes 12 extra nozzles: (3 low trajectory 1.0 to 3.0 GPM and 8 Rain Curtain nozzles 1.5 to 8.0 GPM)
  • Durable rubber cover
  • Operating pressure: 25 - 65 psi
  • Flow rate: 0.73 to 9.6 gpm


Features
Item Weight 0.725
Sprinkler Head Material ABS Plastic
Sprinkler Location Below ground
Irrigation System Component Sprinkler
Color Family Blacks
Features Adjustable,Retraction Spring,Rotating
Sprinkler Angle Maximum (Degrees) 25
Sprinkler Angle Minimum (Degrees) 10
Pack Size 1
Maximum Rotation (Degrees) 360
Mounting In-Ground Install
Maximum Spray Distance (ft.) 50
Pressure Rating 25 - 65PSI
Sprinkler Head Type Rotating
Inlet Type Female
Sprinkler Head Spray Pattern Adjustable
Sprinkler Type Rotary
Material ABS Plastic
Riser Riser Not Required
Returnable 180-Day
Nozzle Material ABS Plastic
Maximum Gallons Per Minute 3
Head Material Plastic
Thread Type 3/4" Female Pipe Thread
Minimum Spray Distance (ft.) 25
Maximum Coverage Area (sq ft.) 7854
Package Quantity 1
Product Height (in.) 9.25 in
Product Diameter (in.) 2.5 in
Product Width (in.) 2.75 in
Retracted Height (in.) 7.4
Product Depth (in.) 2.75 in
Manufacturer Warranty If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full refund.
