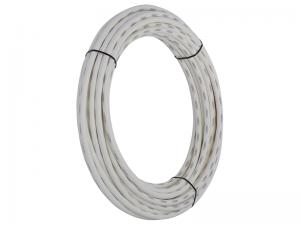

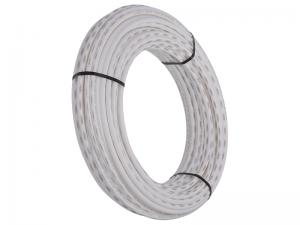

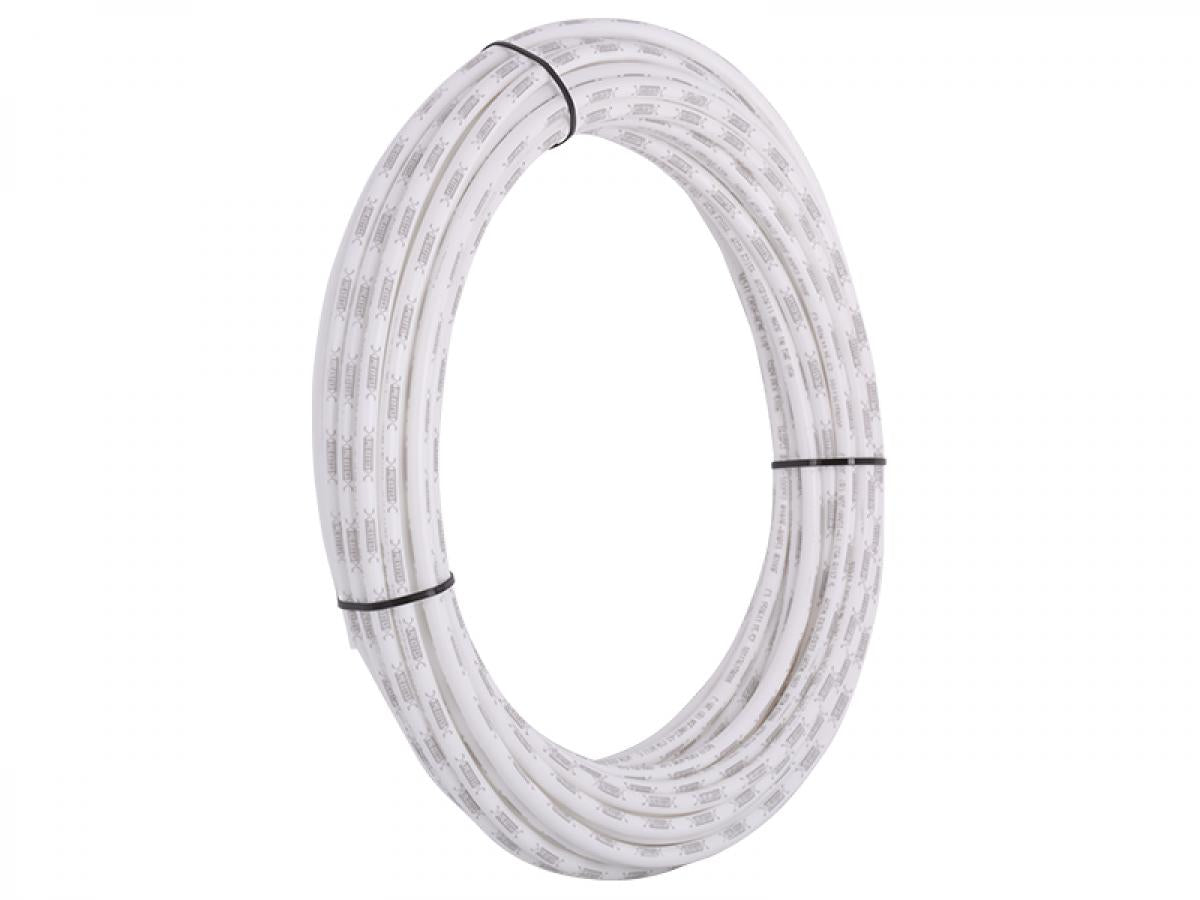

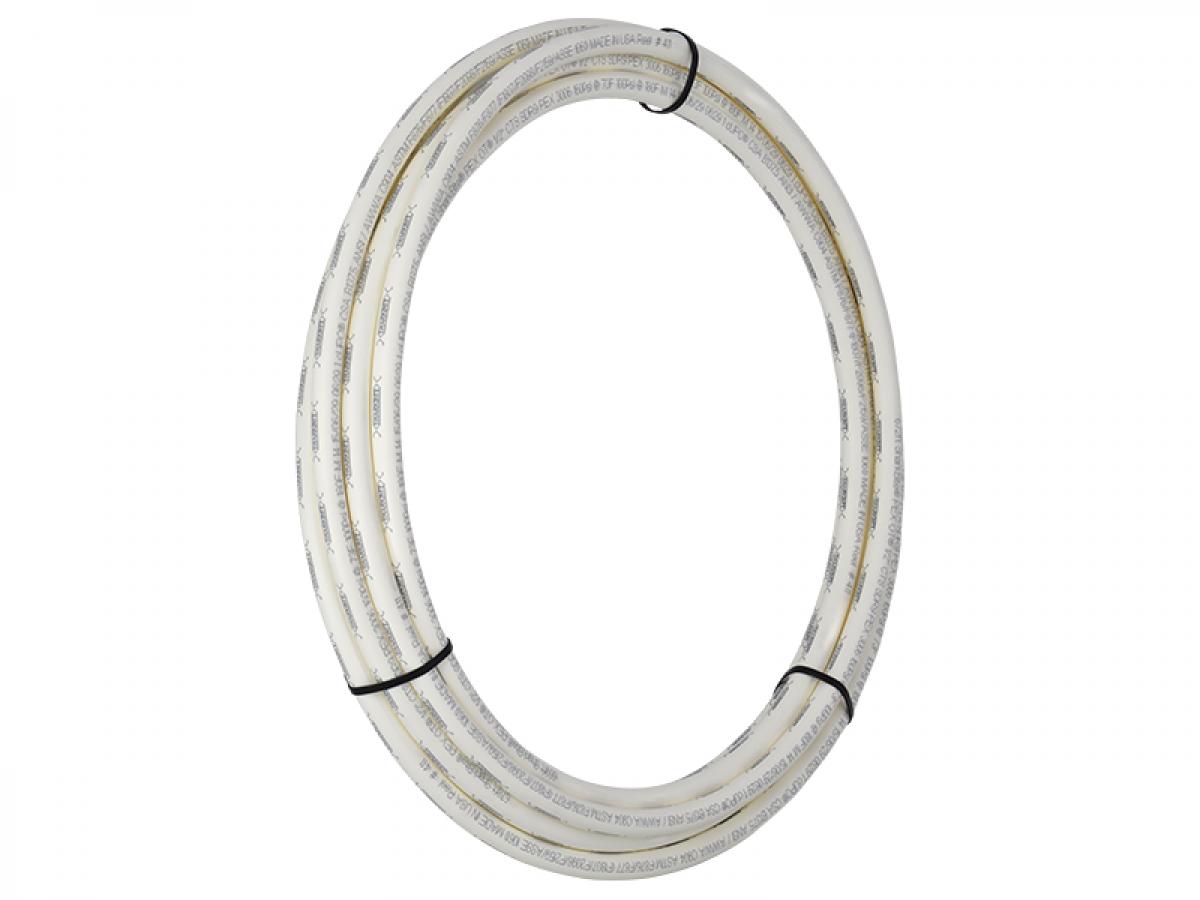

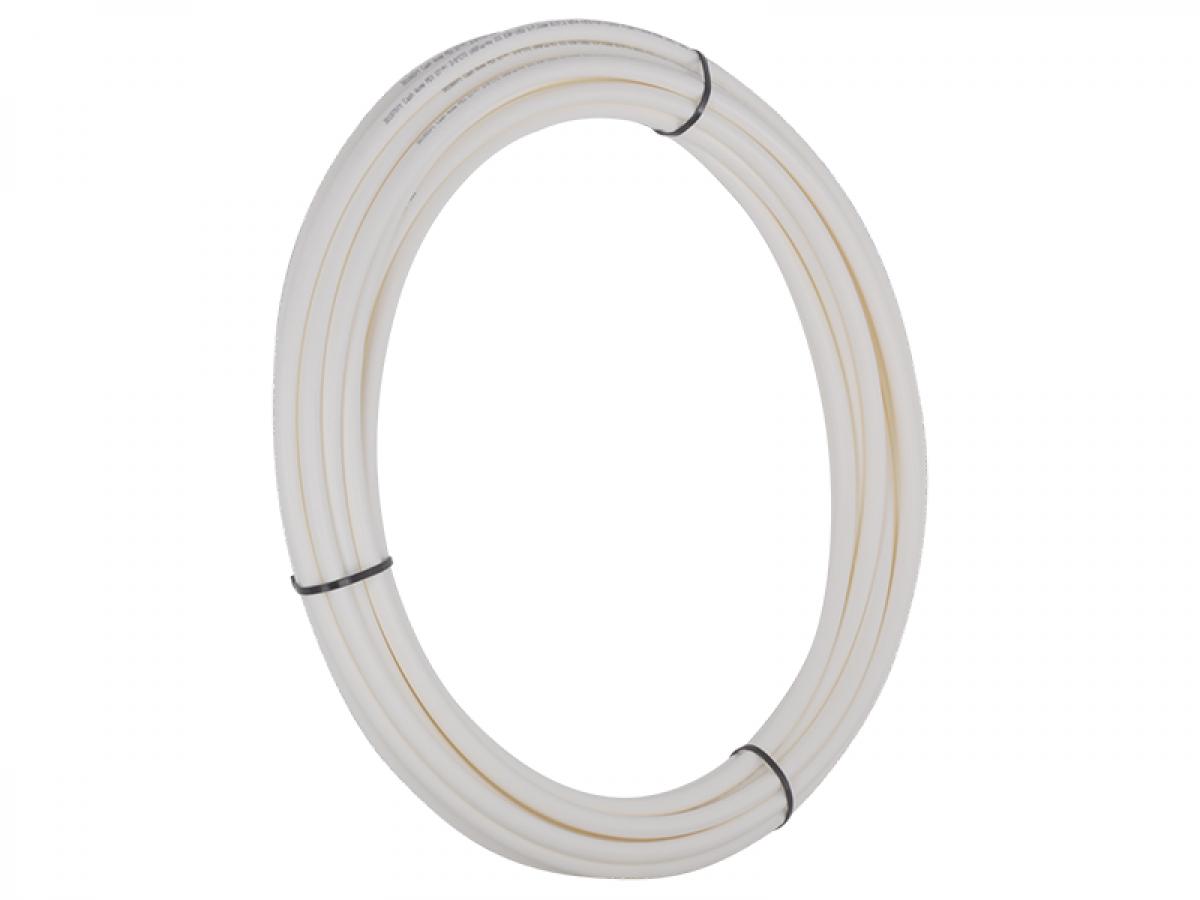

SharkBite PEX tubing is cross-linked polyethylene tubing for a wide range of residential and commercial plumbing applications. PEX Pipe is durable, flexible and corrosion resistant. Manufactured without an oxygen barrier for potable water systems (available in white, blue, and red). A repeating SharkBite imprint patterns provides a visual aid to determine if the tube has been inserted all the way into the SharkBite Push-to-Connect Fitting. This feature only works if the tubing is cut between the SharkBite imprint patterns. In addition to Potable Water Supply SharkBite PEX meets UL Standard for Plastic Piping in Fire Systems.
Strong, flexible, corrosion-resistant pipe
Flexibility reduces number of fittings needed to complete a job; reducing cost and leak points
Can be installed wet or dry for immediate pressure testing
SharkBite imprint pattern provides a visual aid to ensure pipe is fully inserted when using SharkBite push-to-connect fittings
SharkBite system provides a variety of connection options, SharkBite PEX can be connected with SharkBite push-to-connect fittings or barbed fittings
Listed to NSF 14 and CSA B137.5 for use in potable water systems
Meets UL1821 standard for plastic piping for fire systems (3/4 in. and 1 in. only)
Manufactured and tested to meet or exceed the requirements of the ASTM F-876/877/2023 and CSA B137.5
Features
Item Weight
50
Application
Potable Water
Connectivity
Push Fit
Product Weight (lb.)
50
Maximum Flow Rate (gallons per minute)
14.6
PEX Type
B
Color/Finish
White
Pipe Features
Flexible
Returnable
180-Day
Pipe or Fitting Product Type
Pipe & Tubing
Material
Cross-Linked Polyethylene (PEX)
Maximum working pressure (psi)
160
Minimum working temperature (F)
32.0
Pack Size
1
Color Family
White
Maximum Working Temperature (F)
200
Actual outside diameter (in.)
1
Nominal Inside Pipe Diameter (In.)
1"
Pipe Wall Thickness (In.)
.125
Product Length (ft.)
300 ft
Actual inside diameter (in.)
0.885
Certifications and Listings
IAPMO Certified
Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-800-435-4654.
