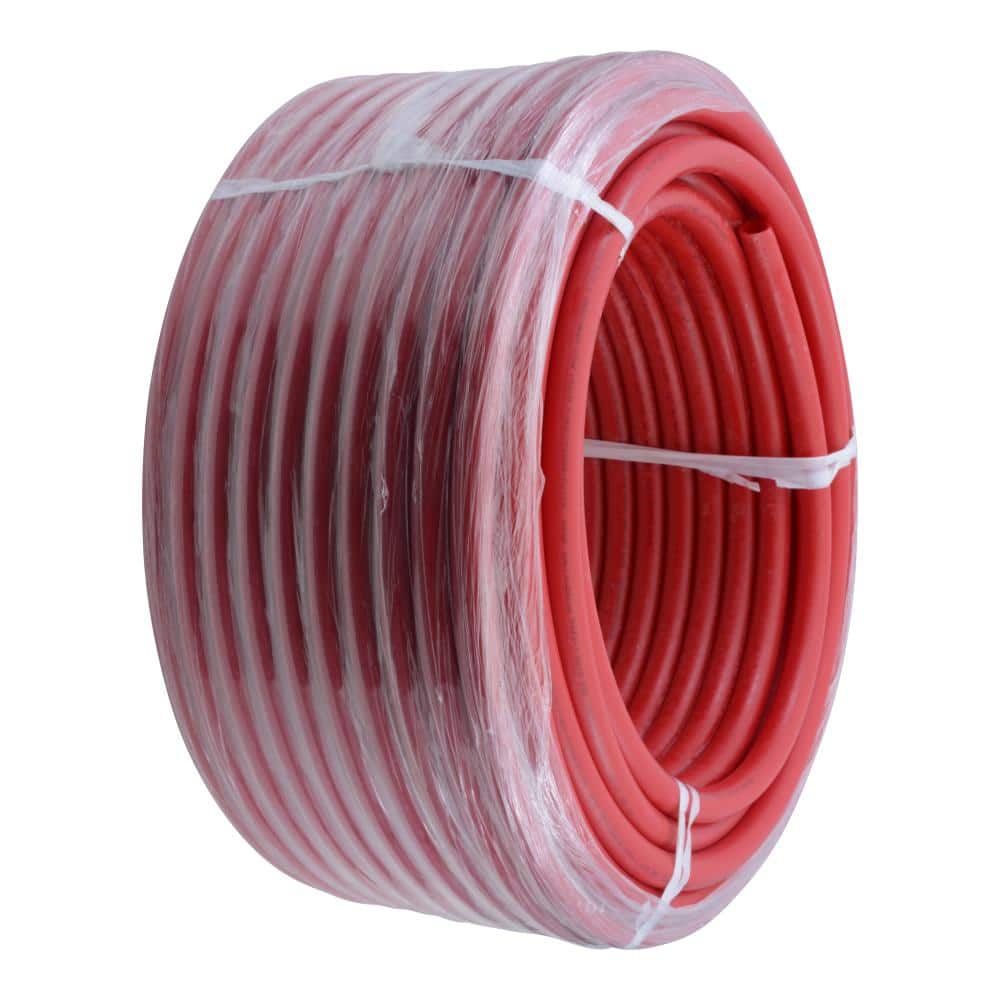

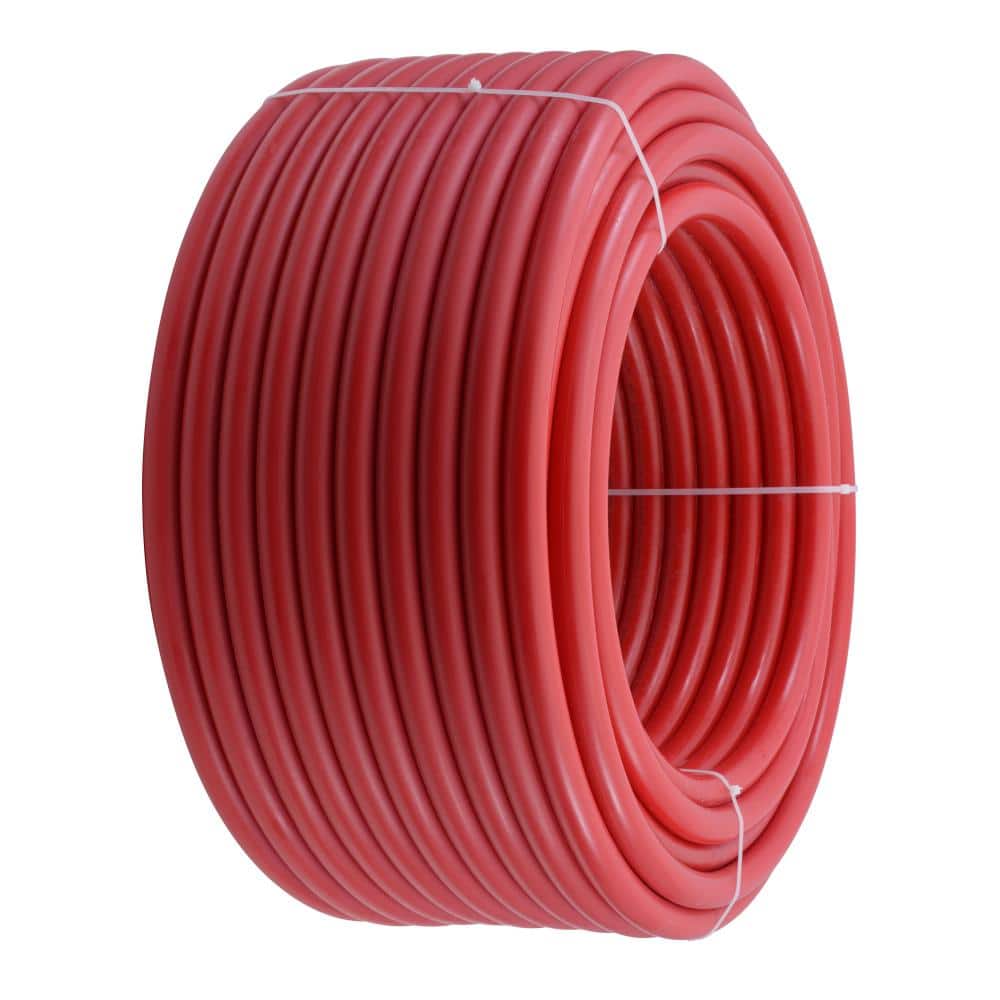

1 in. x 300 ft. Red PEX-B Coil Pipe

Durable, flexible SharkBite PEX-B pipe for hot and cold potable water lines. Rated to 200°F and 160 PSI with high chlorine and 6-month UV resistance, it installs fast with push-to-connect or crimp fittings and reduces the number of fittings needed.

---

Key Features:

• Potable Water Ready: NSF 14/CSA B137.5 listed, corrosion-resistant PEX-B for hot and cold lines
• High Performance Ratings: 200°F max temperature and 160 PSI working pressure; 14.6 GPM flow
• Flexible Installation: Bends around corners to limit fittings; compatible with PEX crimp/clamp and SharkBite push-to-connect
• Chlorine & UV Resistance: Highest chlorine rating with 6-month UV resistance for jobsite durability
• Clear Size & Length: 1 in. nominal, 300 ft coil; inside diameter 0.885 in., 0.131 in. wall

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Pipe Material	Cross-Linked Polyethylene (PEX)

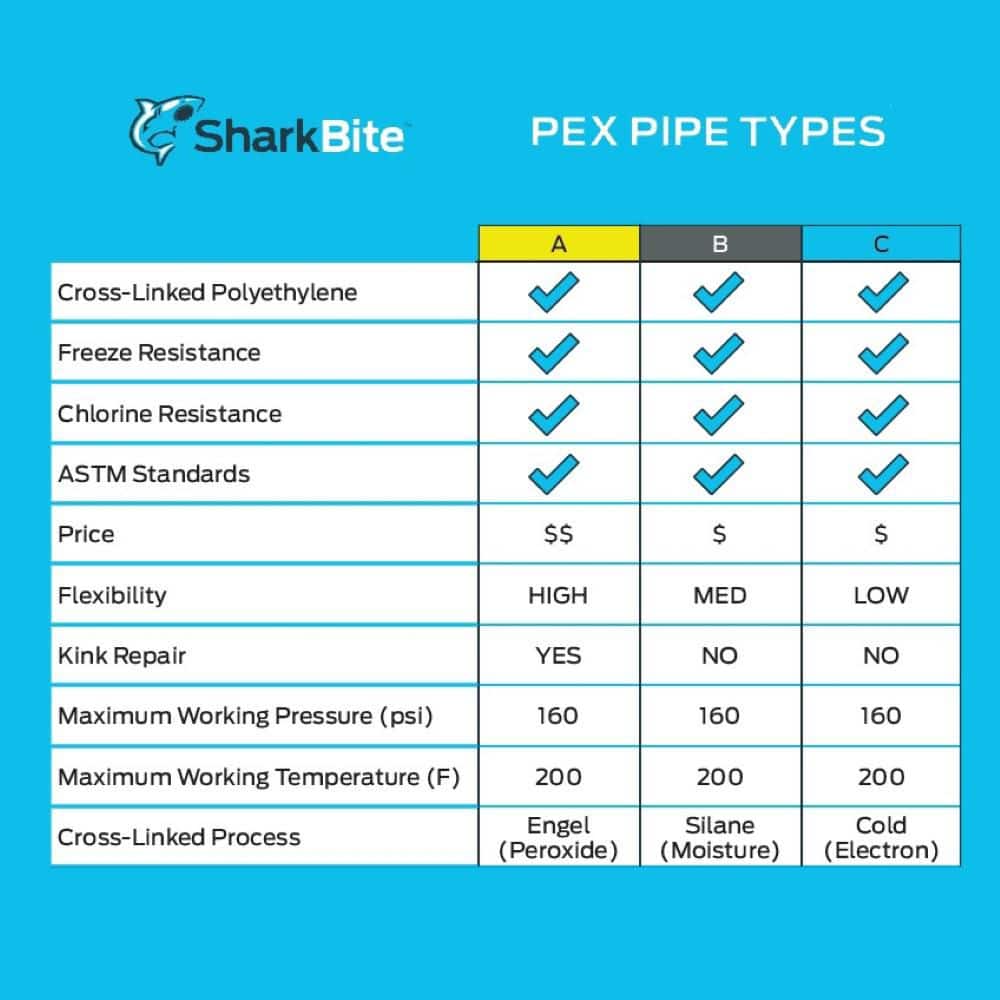

PEX Type	B
Color	Red
Application	Potable Water
Connectivity	Push Fit; Crimp/Clamp compatible
Maximum Working Temperature (F)	200
Minimum Working Temperature (F)	32
Maximum Working Pressure (psi)	160
Maximum Flow Rate (GPM)	14.6
Actual Outside Diameter (in.)	1
Actual Inside Diameter (in.)	0.885
Pipe Wall Thickness (in.)	0.131
Nominal Inside Pipe Diameter (in.)	1
Product Length	300 ft coil
Pack Size	1
Pipe Features	Flexible; Corrosion-resistant; 6-month UV resistance; High chlorine resistance
Certifications and Listings	IAPMO Certified; Listed to NSF 14 and CSA B137.5; Meets UL1821 (3/4 in. and 1 in. only); Manufactured to ASTM F876/F877/F2023 and CSA B137.5
Made In	USA

---

Frequently Asked Questions (FAQ):

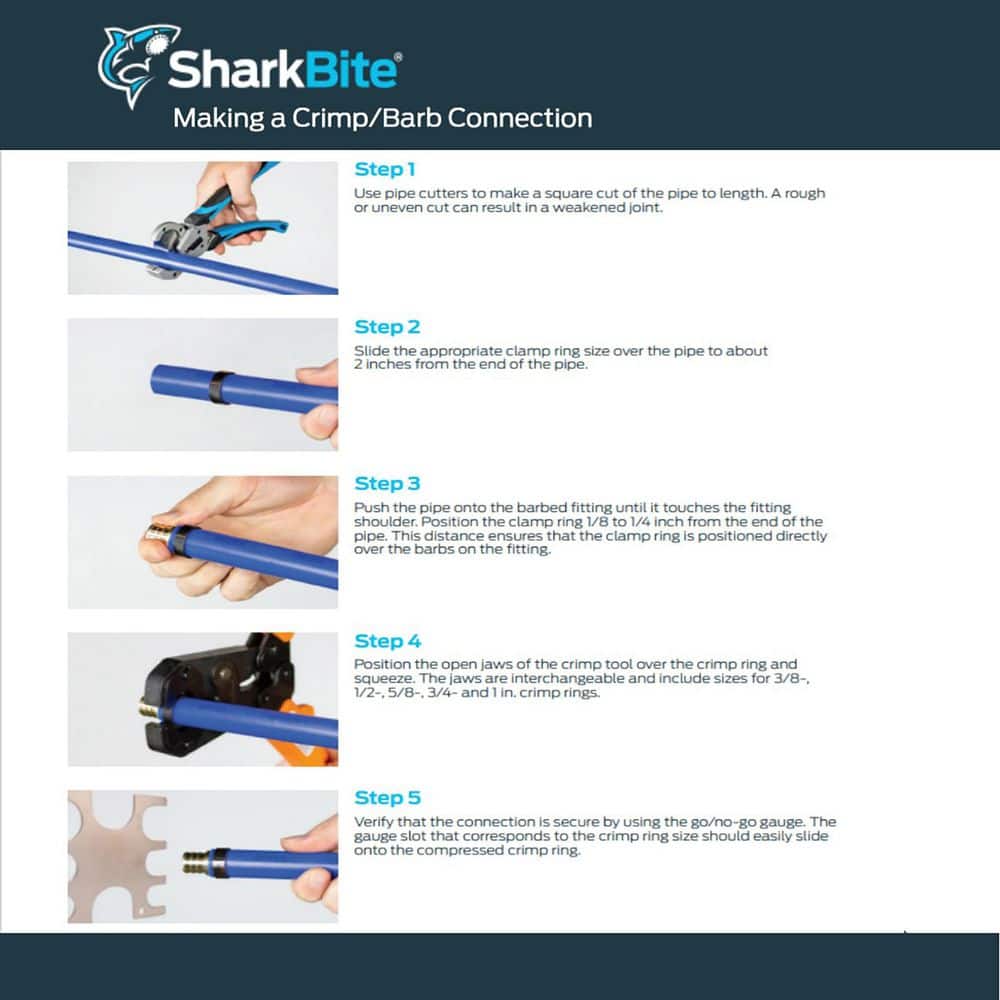

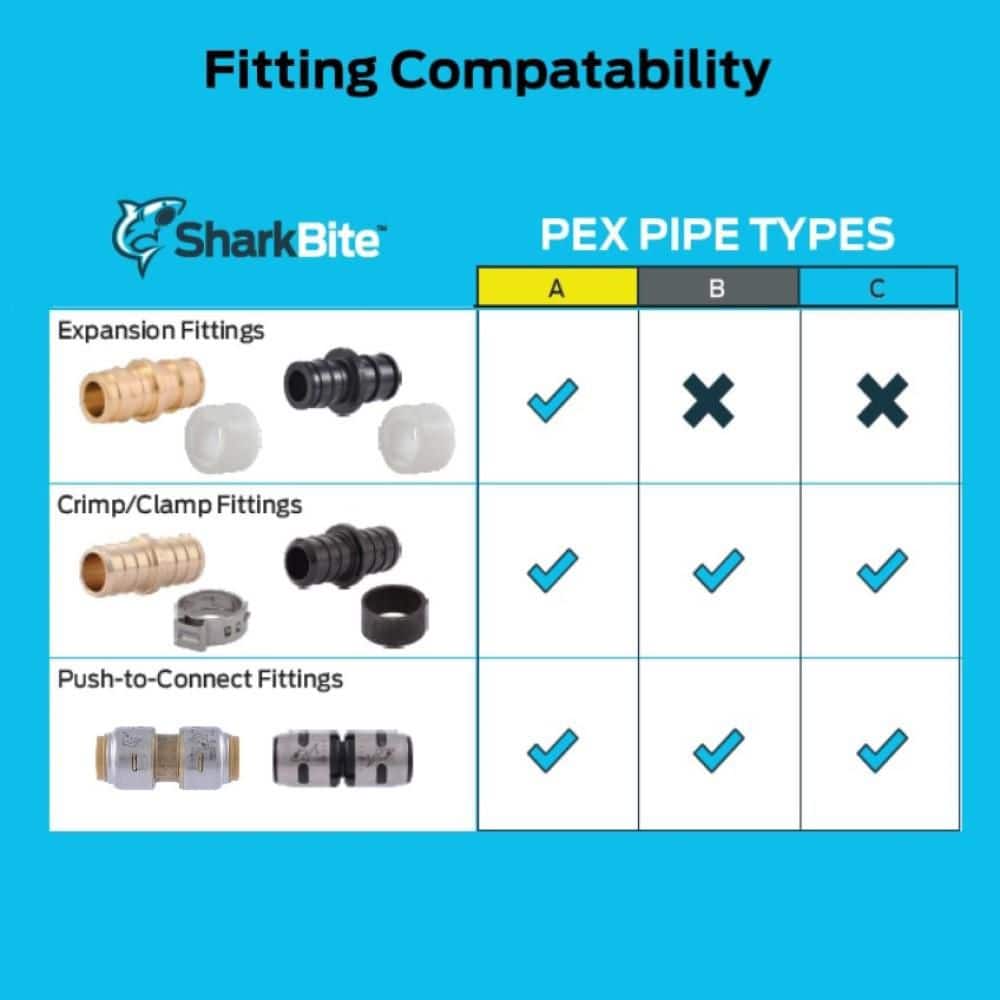

Q: What fittings work with this PEX-B pipe?
A: Use SharkBite push-to-connect or barbed crimp/clamp fittings; expansion fittings are not compatible with PEX-B.

---

Q: Is it rated for hot water?
A: Yes. It’s suitable for hot and cold potable water and rated to 200°F at 160 PSI.

---

Q: Can it be used outdoors?
A: It offers 6-month UV resistance for temporary exposure. For long-term outdoor installs, protect from sunlight.

---

Q: What is the inside diameter?
A: Approximately 0.885 in. with a wall thickness of 0.131 in.

---

Q: Can I pressure test immediately after installation?
A: Yes, it can be installed wet or dry and pressure tested immediately.

---

Streamlined Utility, Bold Red Precision

This vibrant red PEX coil brings a crisp, architectural line to utility spaces, turning functional runs into a deliberate design gesture. Its supple bend radius glides around framing, minimizing clutter while maximizing performance. Pair with matte-black brackets for a tidy, intentional look that celebrates the craft behind the walls. It’s an elevated essential for modern, efficient living.

---

Upgrade your plumbing runs with flexible, high‑performance SharkBite PEX-B—order your 300 ft coil today.

Warranty

Installation
