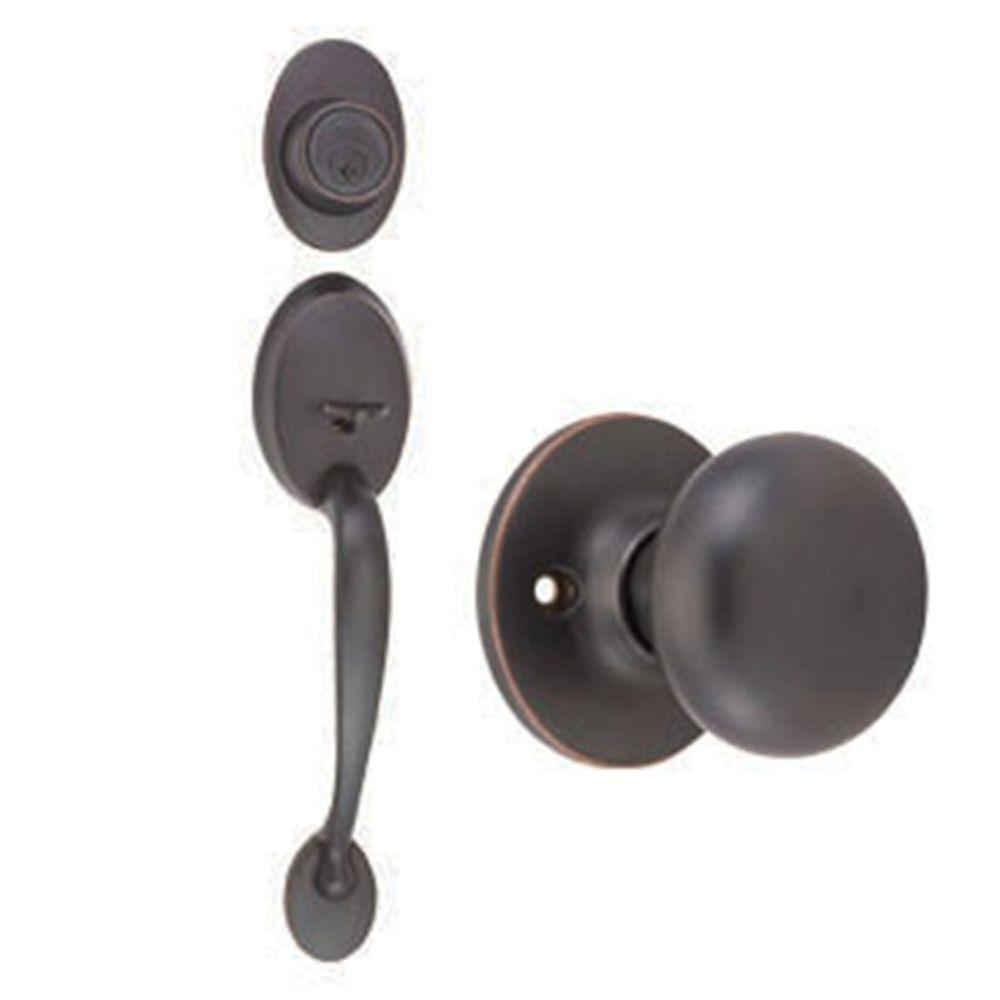

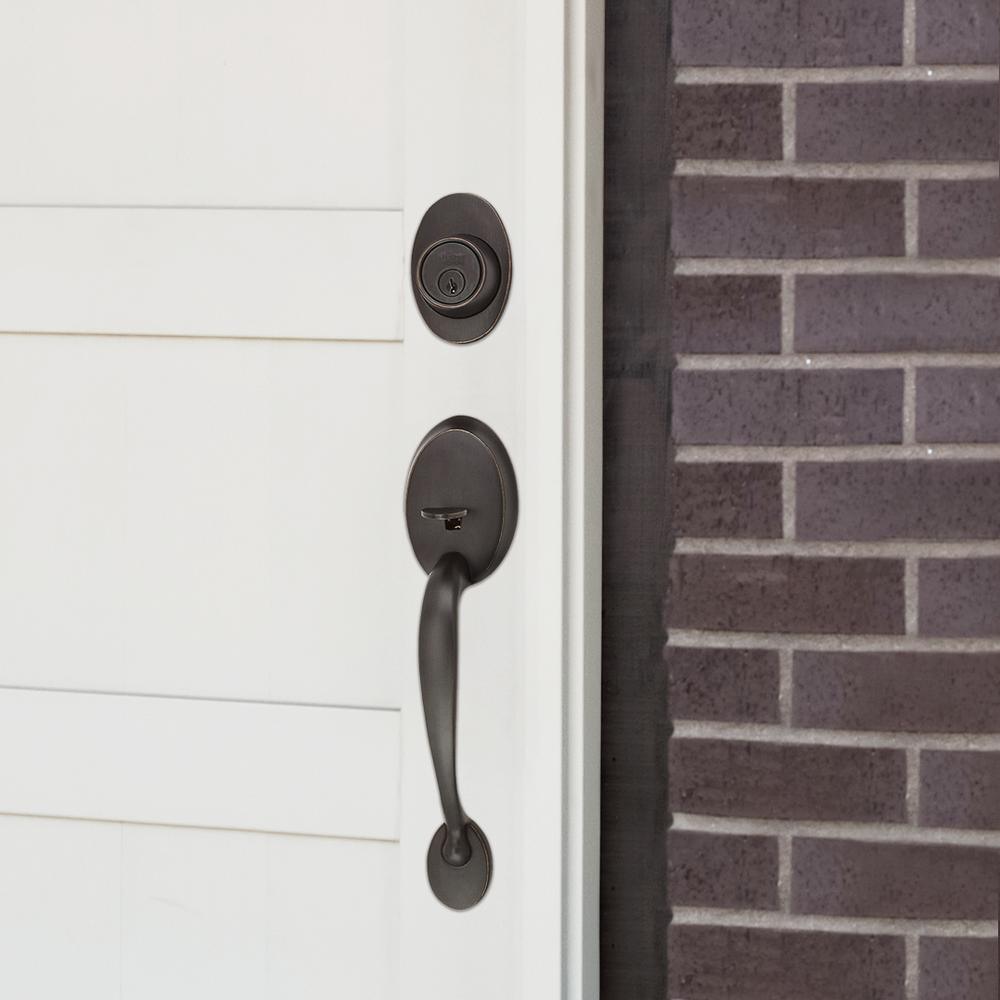

Coventry Oil-Rubbed Bronze Door Handleset with Cambridge Knob Interior and Single Cylinder Deadbolt
Regular price $82.96/
Shipping calculated at checkout.
The Coventry Entry Handleset with Cambridge series knob interior features a single cylinder deadbolt for security. This entry set has a great look with its oil-rubbed bronze finish. Complete a home improvement project with this handle set. Fits most standard doors and is easy to install. Remember to pair exterior handlesets with the matching dummy, passage and privacy knobs.
Features
- Fits doors 1-3/8 in. up to 1-3/4 in. thick
- Ideal for exterior doors where a keyed entryway is needed and security is required
- Reversible for right/left hand doors and features a thumb turn lock mechanism on inside of deadbolt
- Simple installation with basic tools, all mounting hardware included
- Grade 3 ANSI/BHMA certified
- 2-way latch that is adjustable from 2-3/8 in. up to a 2-3/4 in. backset
- KW1 keyway, 5-pin high security
- Utilizes anti-bump technology for higher security
- Full 1/2 in. throw on entry and full 1 in. throw on deadbolt, both nickel plated
Features
| Item Weight | 3.02 |
| Included | Drilling Template,Hardware,Installation Instructions |
| Door Handing | Universal |
| Hardware Finish Family | Bronze |
| Material | Steel |
| Lock Type | Keyed |
| Door Lock Style | Classic |
| Commercial/Residential | Residential |
| Total Number of Keys Included | 2 |
| Deadbolt Type | Single Cylinder Deadbolt |
| Security/ANSI Grade | ANSI Grade 3 (Good) |
| Knob/lever strike | Round corner |
| Handleset Product Type | 2 Piece Front & Back |
| Keying Type | Keyed Alike |
| Application Type | Entry |
| Features | Adjustable Backset,Easy Installation |
| Finish | oil rubbed bronze |
| Lock Type2 | Keyed Entry |
| Backset size (in.) | Adjustable |
| Product Weight (lb.) | 3.02 |
| Deadbolt strike | Round corner |
| Returnable | 180-Day |
| Knob style | Flat ball |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Minimum door thickness (in.) | 1.375 |
| Interior/Exterior | Interior/Exterior |
| Electronic/Mechanical | Mechanical |
| Single or Double Cylinder Deadbolt | Single |

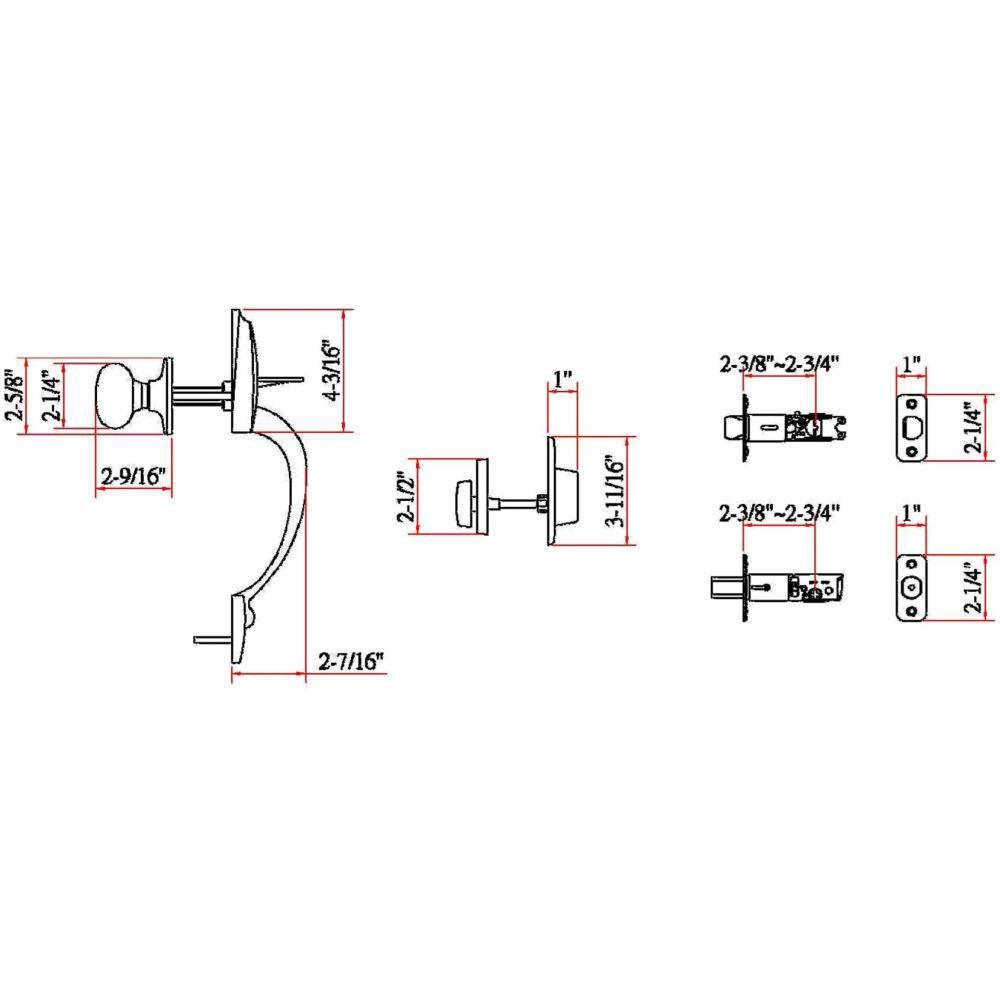

| Inside top plate length (in.) | 4.125 |
| Inside top plate width (in.) | 2.875 |
| Assembled Height (in.) | 16.25 in |
| Outside handle plate on-center measurement (in.) | 2.5 |
| Outside handle and key plate width (in.) | 2.5 |
| Knob/lever strike height (in.) | 2.25 |
| Knob/lever strike width (in.) | 1 |
| Deadbolt cross bore diameter (in.) | 0.94 |
| Deadbolt trim ring diameter (in.) | 3.688 |
| Knob/lever housing width (in.) | 2.625 |
| Handle grip length (in.) | 12.5 |
| Outside bottom handle plate width (in.) | 1.625 |
| Assembled Width (in.) | 6.5 in |
| Knob/lever cross bore diameter (in.) | .94 |
| Deadbolt strike height (in.) | 2.25 |
| Assembled Depth (in.) | 2.38 in |
| Maximum door thickness (in.) | 1.75 |
| Deadbolt strike width (in.) | 1 |
| Deadbolt bore hole diameter (in.) | 2.09 |
| Knob Diameter (in.) | 2.25 |
| Deadbolt throw length (in.) | 1 |
| Knob/lever bore hole diameter (in.) | 2.09 |
| Knob/lever housing height (in.) | 2.625 |
| Outside bottom handle plate length (in.) | 2.313 |
| Knob/lever throw length (in.) | .5 |
| Outside handle and key plate length (in.) | 3.625 |
| Projection (in.) | 2.438 |
| Manufacturer Warranty | 5yrs on finish / limited lifetime on mechanics |
| Certifications and Listings | No Certifications or Listings |
