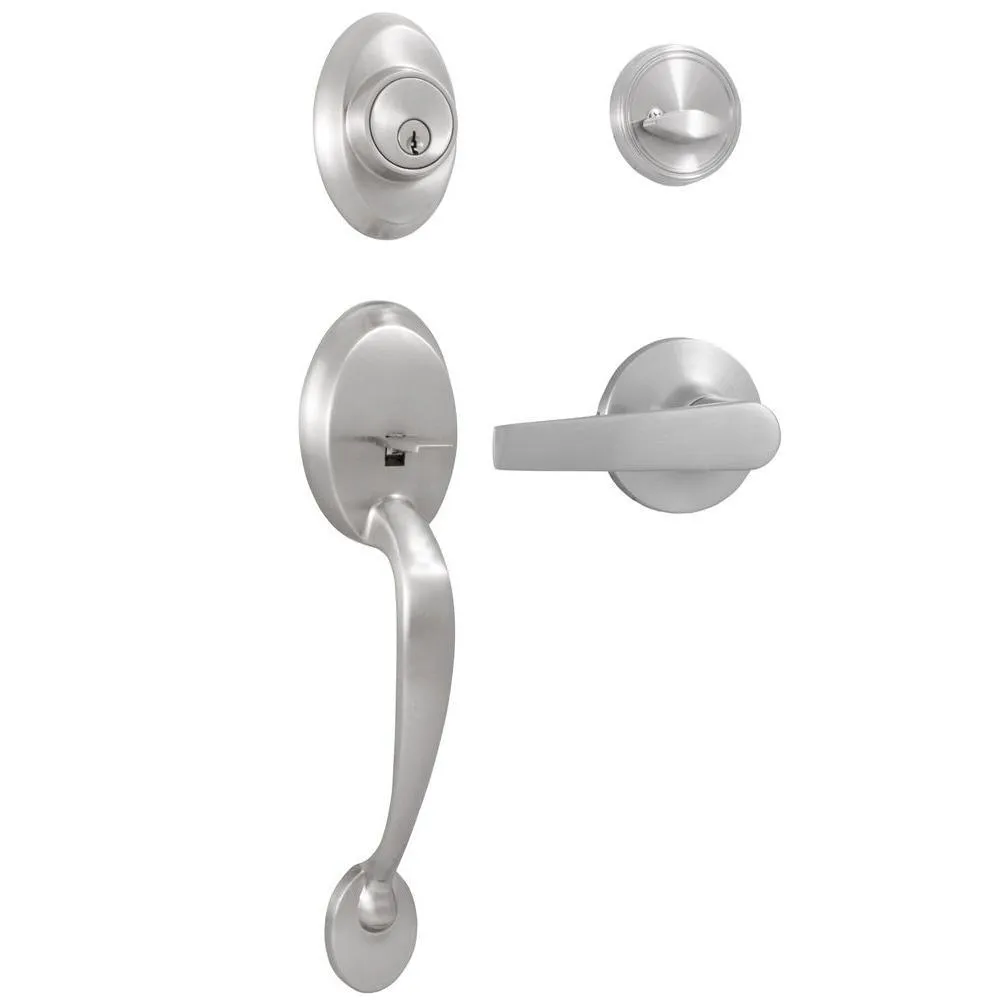

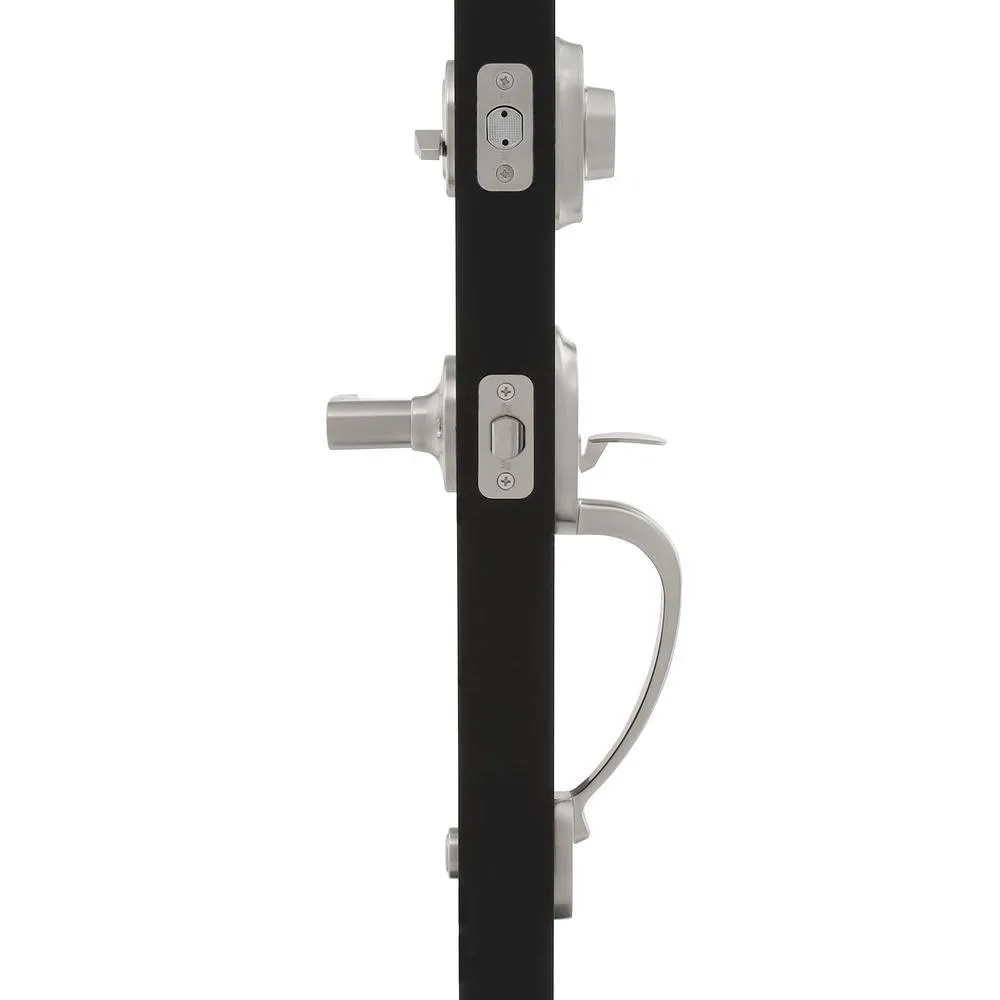

Premiere Essentials Hillcrest Single Cylinder Satin Nickel Door Handleset with Bristol Lever
Regular price $85.83/
Shipping calculated at checkout.
Keep your home secure day and night with this Premiere Essentials single cylinder handleset with lever. It includes a Grade 3 adjustable latch for 2-3/8 in. and 2-3/4 in. backsets and the split spindles make for easy installation. The entry handle fits doors prepared with 2-1/8 in. top and 2-1/8 in. bottom. This handleset exceeds ANSI Grade 3 lock standards.
Features
- Exceeds ANSI Grade 3 lock standards
- Weslock keyway
- 5 pin cylinder
- Turn button locking in knob/lever
- Half-moon spindle tubular design
- Adjustable latches 2-3/8 in. to 2-3/4 in. with radius faceplates and strikes
- Adjusts to door thickness from 1-3/8 in. to 2 in.
Features
| Item Weight | 2.95 |
| Door Handing | Universal |
| Knob/lever strike | Full round |
| Keyway | Wk2 |
| Lock Type | Keyed |
| Door Lock Style | Classic |
| Commercial/Residential | Residential |
| Total Number of Keys Included | 2 |
| Deadbolt Type | Single Cylinder Deadbolt |
| Security/ANSI Grade | ANSI Grade 3 (Good) |
| Handleset Product Type | 2 Piece Front & Back |
| Keying Type | Keyed Alike |
| Application Type | Entry |
| Features | Adjustable Backset,Easy Installation |
| Lock Type2 | Keyed Entry |
| Backset size (in.) | Adjustable |
| Finish | Satin Nickel |
| Hardware Finish Family | Nickel |
| Material | Metal |
| Returnable | 180-Day |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Interior/Exterior | Exterior |
| Deadbolt strike | Full round |
| Product Weight (lb.) | 2.95 |
| Minimum door thickness (in.) | 1.375 |
| Lever style | Straight |
| Electronic/Mechanical | Mechanical |
| Included | Hardware,Installation Instructions |
| Outside key plate width (in.) | 2.5 |
| Knob/lever housing width (in.) | 2.875 |
| Deadbolt cross bore diameter (in.) | 2.125 |
| Projection (in.) | 2.5 |
| Assembled Height (in.) | 16.5 in |
| Knob/lever housing height (in.) | 2.75 |
| Deadbolt bore hole diameter (in.) | 1.0 |
| Knob/lever strike height (in.) | 2.25 |
| Inside top plate length (in.) | 2.5 |
| Knob/lever strike width (in.) | 1.75 |
| Knob/lever throw length (in.) | 0.5 |
| Assembled Depth (in.) | 2.5 in |
| Assembled Width (in.) | 2.875 in |
| Deadbolt strike width (in.) | 1.0 |
| Outside bottom handle plate length (in.) | 4.1875 |
| Deadbolt trim ring diameter (in.) | 2.5 |
| Deadbolt strike height (in.) | 2.25 |
| Outside key plate length (in.) | 3.625 |
| Deadbolt throw length (in.) | 1.0 |
| Inside top plate width (in.) | 2.5 |
| Handle grip length (in.) | 8.625 |
| Outside top handle plate length (in.) | 4.1875 |
| Outside top handle plate width (in.) | 2.875 |
| Knob/lever bore hole diameter (in.) | 1.0 |
| Lever grip length (in.) | 4.5 |
| Maximum door thickness (in.) | 2.0 |
| Knob/lever cross bore diameter (in.) | 2.125 |
| Outside bottom handle plate width (in.) | 4.1875 |
| Manufacturer Warranty | Limited 10 Year Mechanical and Limited 5 Year Finish Warranty |
| Certifications and Listings | No Certifications or Listings |
