Homeline 2-15 Amp Single-Pole Tandem Circuit Breaker
15 A1-poleStandard
$13.78 each
Orders start at $399. Combine any items to reach it.
- 1 breaker
- $13.78
- Standard delivery
- $49.99 per order
- Sales tax
- Added at checkout
All orders are subject to approval.
You're not charged until your order is approved and ready to ship. Cancel free before then.
Standard delivery$49.99
Per order, added in your cart. We deliver to the 48 contiguous states.
Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns
Complete the panel
Electrical
Details & specifications.
From the maker · the maker’s description

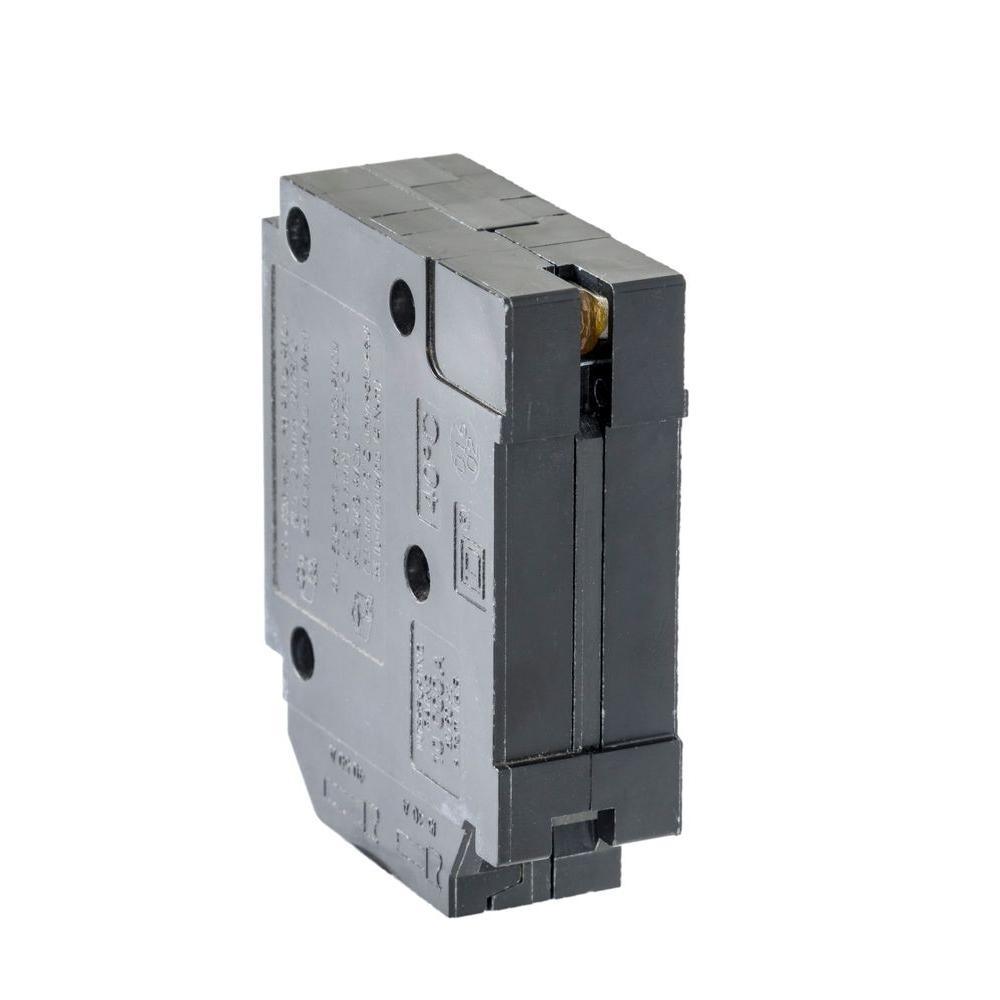

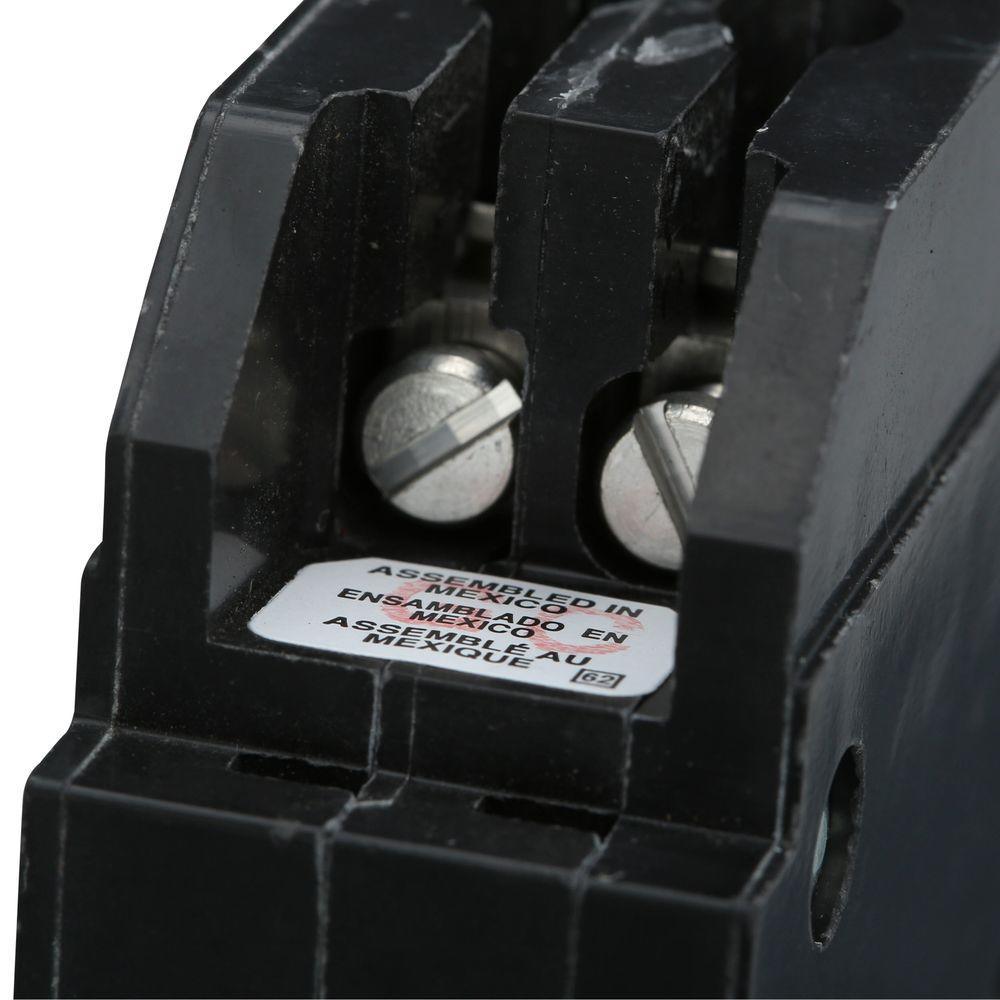

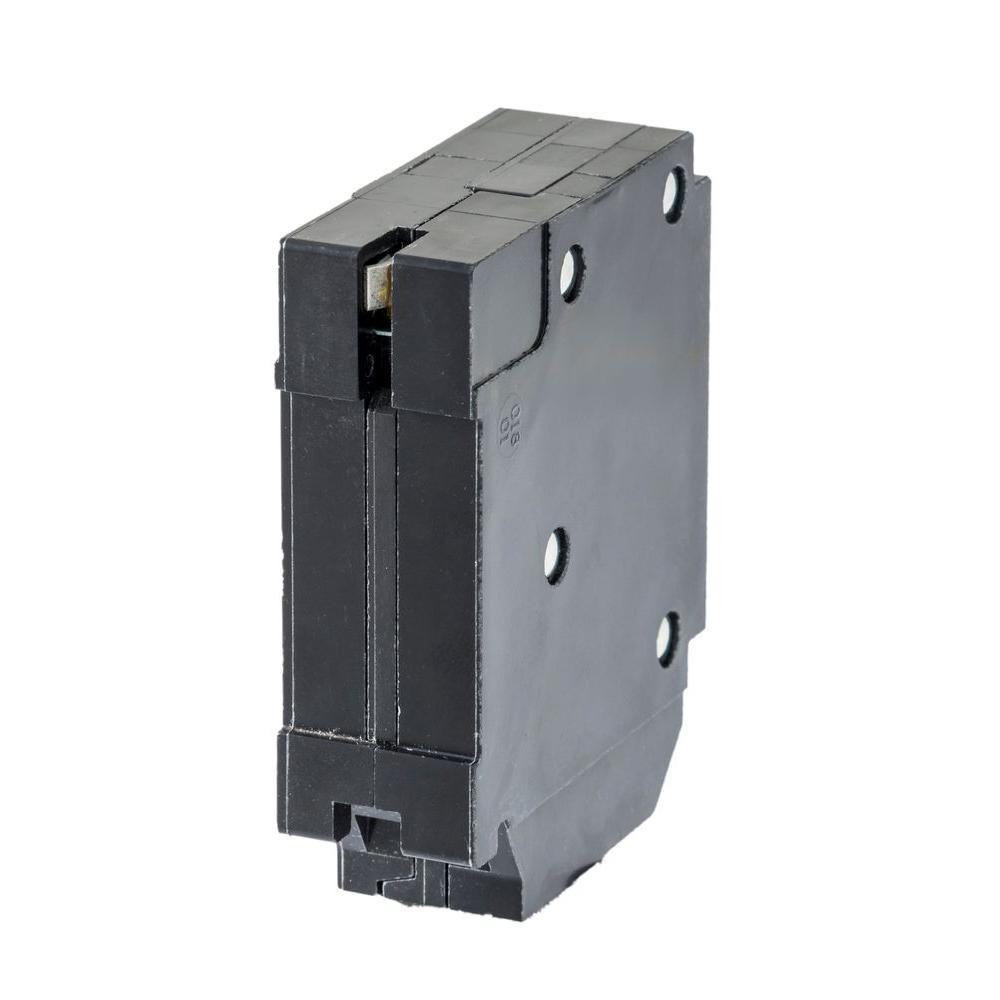

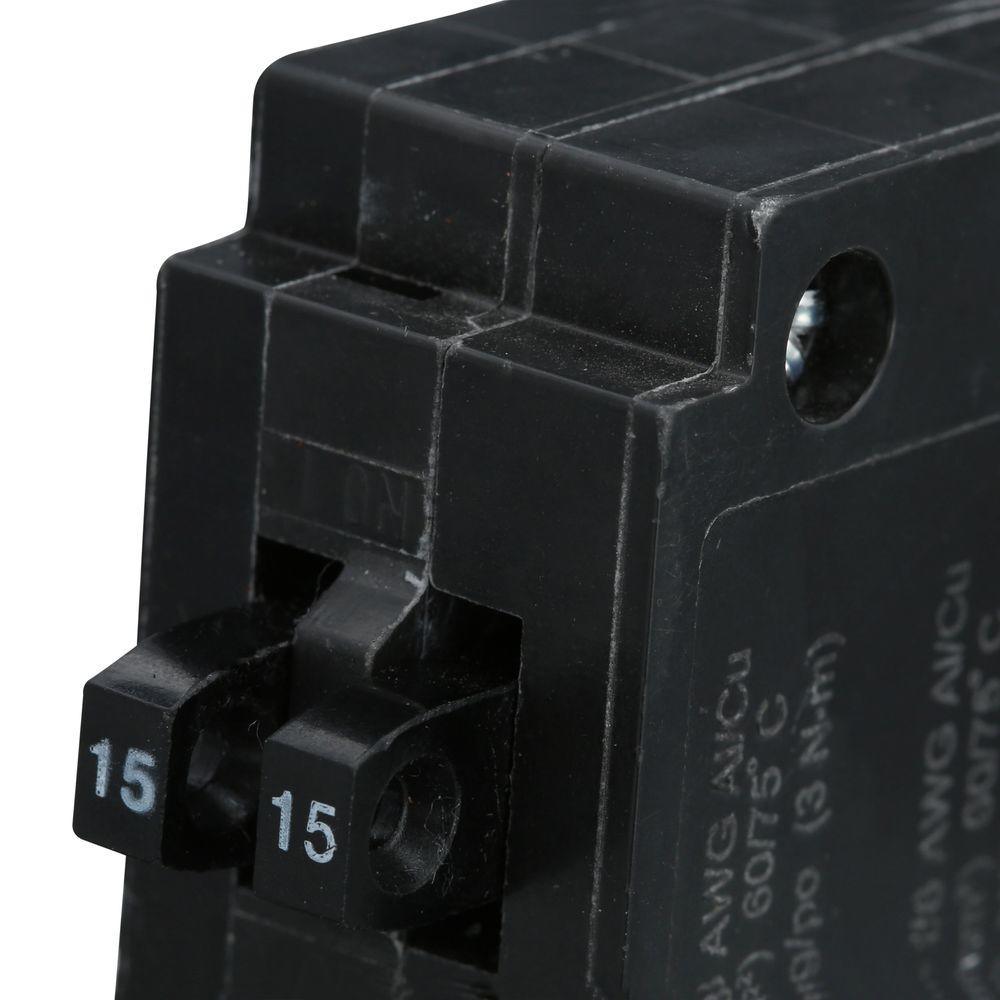

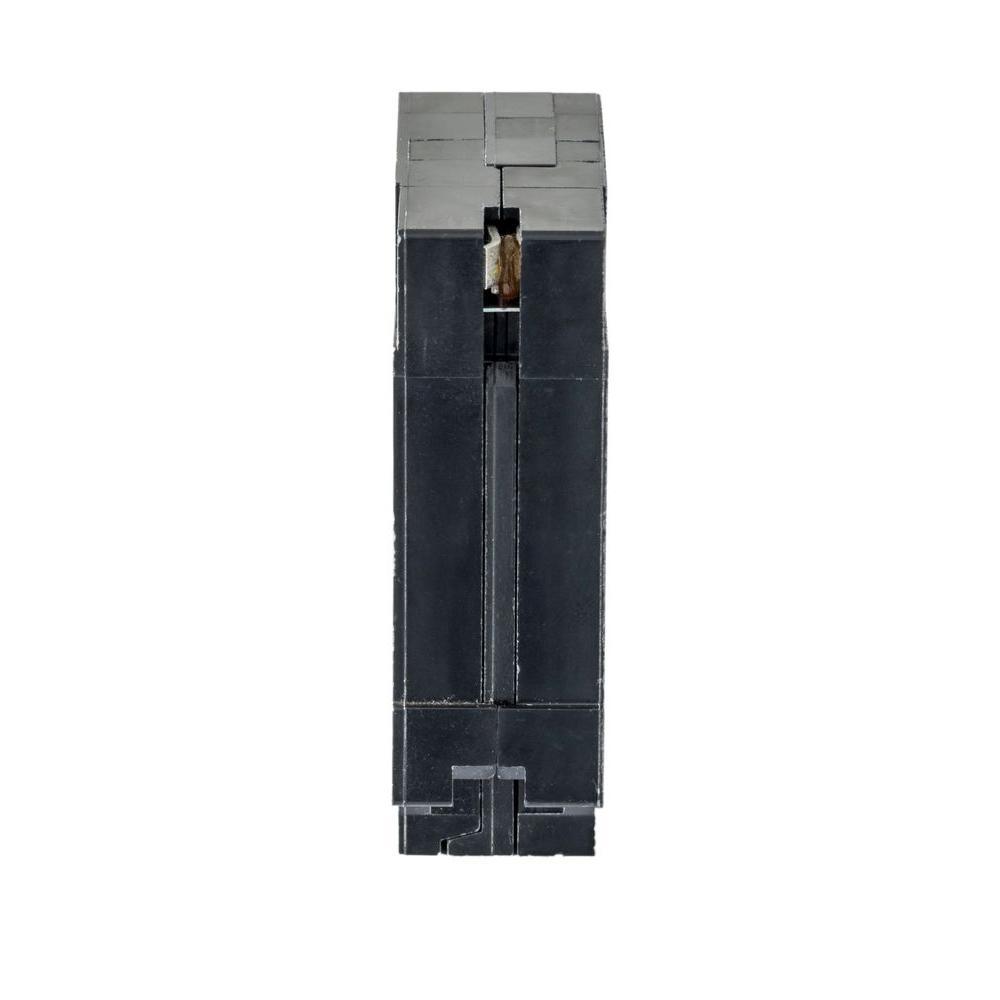

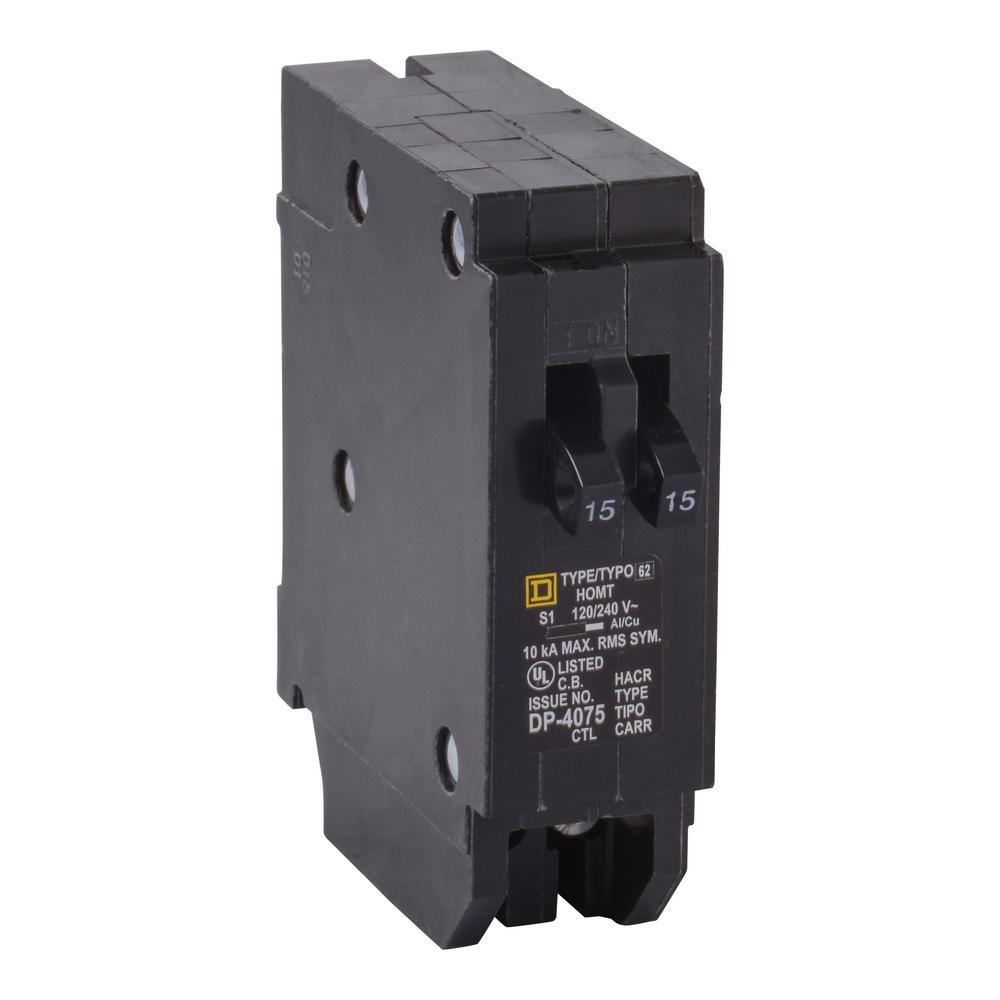

The Homeline Single-Pole Tandem Circuit Breaker by Square D, designed exclusively for the residential market, offers (2) single-pole, 15 Amp breakers in just 1 pole space. This ANSI-certified and UL-listed unit provides overload and short-circuit protection for your electrical system, and is specifically designed for use with Homeline load centers and CSED devices. With a 120/240 VAC rating and 10,000 AIR, this circuit breaker boasts the same quality as the trusted Square D brand at a competitive price. For installation, this breaker requires only 1 space in a breaker box. Contact your local building inspector for code adoptions and details, and rest assured with the limited lifetime warranty.
- Amps
- 15 A
- Poles
- 1-pole
- Protection
- Standard
- Type
- Tandem
- Mounting
- Plug-On
- Item Weight
- 0.38
- Voltage (volts)
- 120/240
- Power Distribution Features
- No Additional Features
- Pack Size
- 1
- Interruption Type
- Standard Trip
- Electrical Product Type
- Breaker
- Product Weight (lb.)
- 0.38
- Product Width (in.)
- 1
- Product Height (in.)
- 3.24
- Product Depth (in.)
- 2.98
- Certifications and Listings
- UL Listed
- Manufacturer Warranty
- Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed.
Specifications are provided by the manufacturer. Brand names are trademarks of their owners.
Guide
Before you buy a breaker
- 1
Match the panel
Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.
- 2
Match the wire
The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.
- 3
Protection
Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.
- 4
Tandem and quad
Two circuits in one space, only in the slots the panel label allows.
