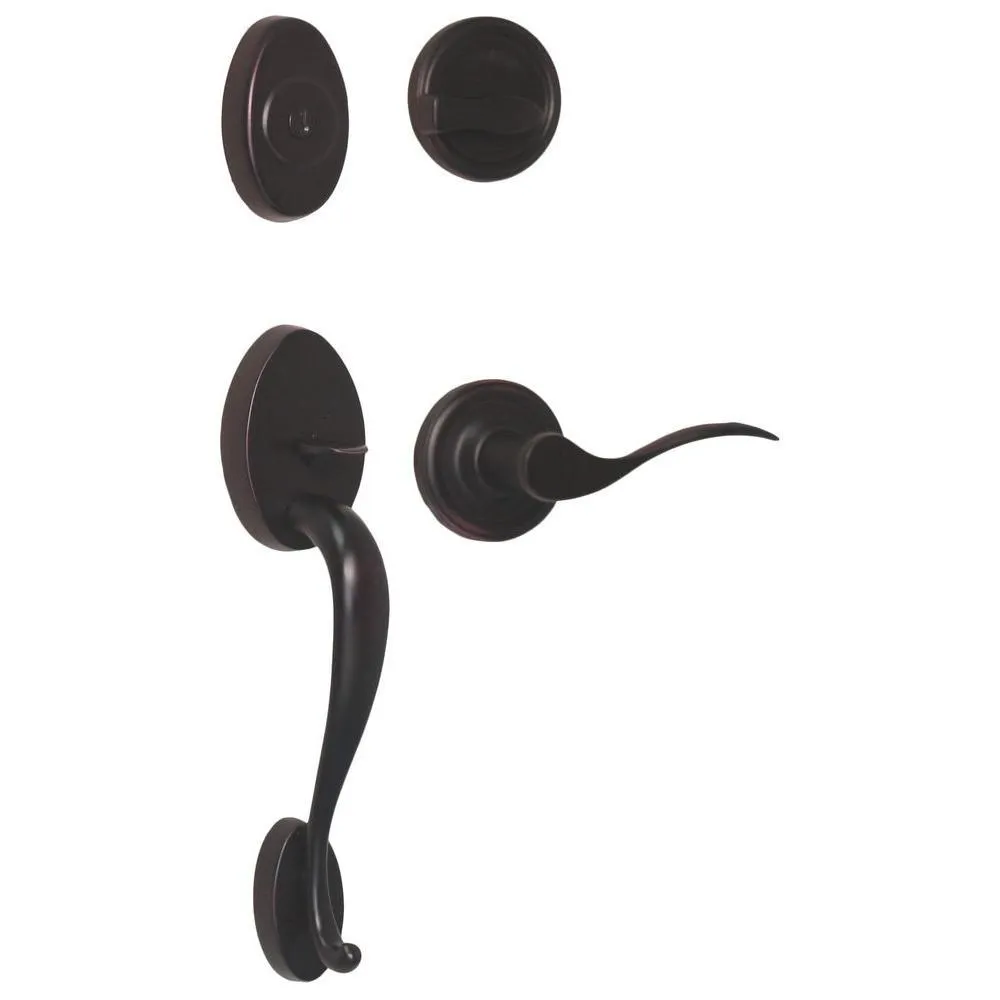

Traditionale Single Cylinder Oil-Rubbed Bronze Left-Hand Lexington Door Handleset with Bordeau Lever
Regular price $172.15/
Shipping calculated at checkout.
For over 60 years, Weslock has been providing homeowners with quality ANSI Grade 2 door hardware utilizing our unique push-button safety feature. Weslock also features all metal parts, ease of installation, panic-proof privacy/keyed entry locking, concealed installation screws, removable knobs and levers, dual spindles and removable rosettes. The snap on rosettes and removable levers/knobs have an oil rubbed finish that reveals a deep red hue. The entry lock functions with a key from the outside or the panic proof push button on the inside.
Features
- Exceeds ANSI A 156.2 grade II lock standards
- 5 pin cylinder
- Solid brass
- 1 in. throw deadbolt with two hardened steel rollers - prevents sawing
- Removable knobs/levers prevents scratching during installation
- Adjustable latches 2-3/8 in. or 2-3/4 in. with faceplates matching lock finish
- Heavy duty security strikes with 3 in. screws
- Fits doors prepared with 2-1/8 in. top (1-5/8 in. optional) and 2-1/8 ft. bottom cross holes and 1 in. edge hole
- Adjusts to door thickness from 1-3/4 in. to 2 in.
- 5-1/2 in. center to center cross hole spacing (minimum 5-1/4 in.)
- Limited lifetime mechanical warranty
- Limited lifetime finish warranty
Features
| Item Weight | 4.75 |
| Keyway | Wk2 |
| Hardware Finish Family | Bronze |
| Lock Type | Keyed |
| Finish | Oil Rubbed Bronze |
| Door Lock Style | Classic |
| Commercial/Residential | Residential |
| Total Number of Keys Included | 2 |
| Deadbolt Type | Single Cylinder Deadbolt |
| Minimum door thickness (in.) | 1.75 |
| Knob/lever strike | Round corner |
| Handleset Product Type | 2 Piece Front & Back |
| Product Weight (lb.) | 4.75 lb |
| Keying Type | Keyed Alike |
| Application Type | Entry |
| Features | Adjustable Backset,Easy Installation |
| Lock Type2 | Keyed Entry |
| Backset size (in.) | Adjustable |
| Material | Metal |
| Door Handing | Left-Handed |
| Deadbolt strike | Round corner |
| Returnable | 180-Day |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Interior/Exterior | Exterior |
| Lever style | Wave |
| Electronic/Mechanical | Mechanical |
| Security/ANSI Grade | ANSI Grade 2 (Better) |
| Included | Hardware,Installation Instructions |
| Outside key plate width (in.) | 2.5 |
| Deadbolt cross bore diameter (in.) | 2.13 |
| Outside bottom handle plate width (in.) | 1.75 |
| Assembled Height (in.) | 18 in |
| Deadbolt trim ring diameter (in.) | 2.06 |
| Knob/lever housing width (in.) | 1.38 |
| Assembled Depth (in.) | 2.88 in |
| Deadbolt bore hole diameter (in.) | 1.0 |
| Inside top plate length (in.) | 2.5 |
| Knob/lever strike width (in.) | 1.88 |
| Projection (in.) | 2.88 |
| Knob/lever throw length (in.) | 0.5 |
| Outside key plate length (in.) | 3.75 |
| Outside top handle plate length (in.) | 4.25 |
| Outside top handle plate width (in.) | 2.75 |
| Assembled Width (in.) | 2.75 in |
| Deadbolt strike width (in.) | 1.88 |
| Outside bottom handle plate length (in.) | 3.13 |
| Knob/lever cross bore diameter (in.) | 2.13 |
| Maximum door thickness (in.) | 2.25 |
| Deadbolt strike height (in.) | 2.25 |
| Knob/lever housing height (in.) | 2.0 |
| Deadbolt throw length (in.) | 1.0 |
| Inside top plate width (in.) | 2.5 |
| Handle grip length (in.) | 8.75 |
| Knob/lever bore hole diameter (in.) | 1.0 |
| Lever grip length (in.) | 4.5 |
| Knob/lever strike height (in.) | 2.13 |
| Manufacturer Warranty | Limited Lifetime Mechanical Warranty and Limited Lifetime Finish Warranty |
| Certifications and Listings | ANSI Compliant |
