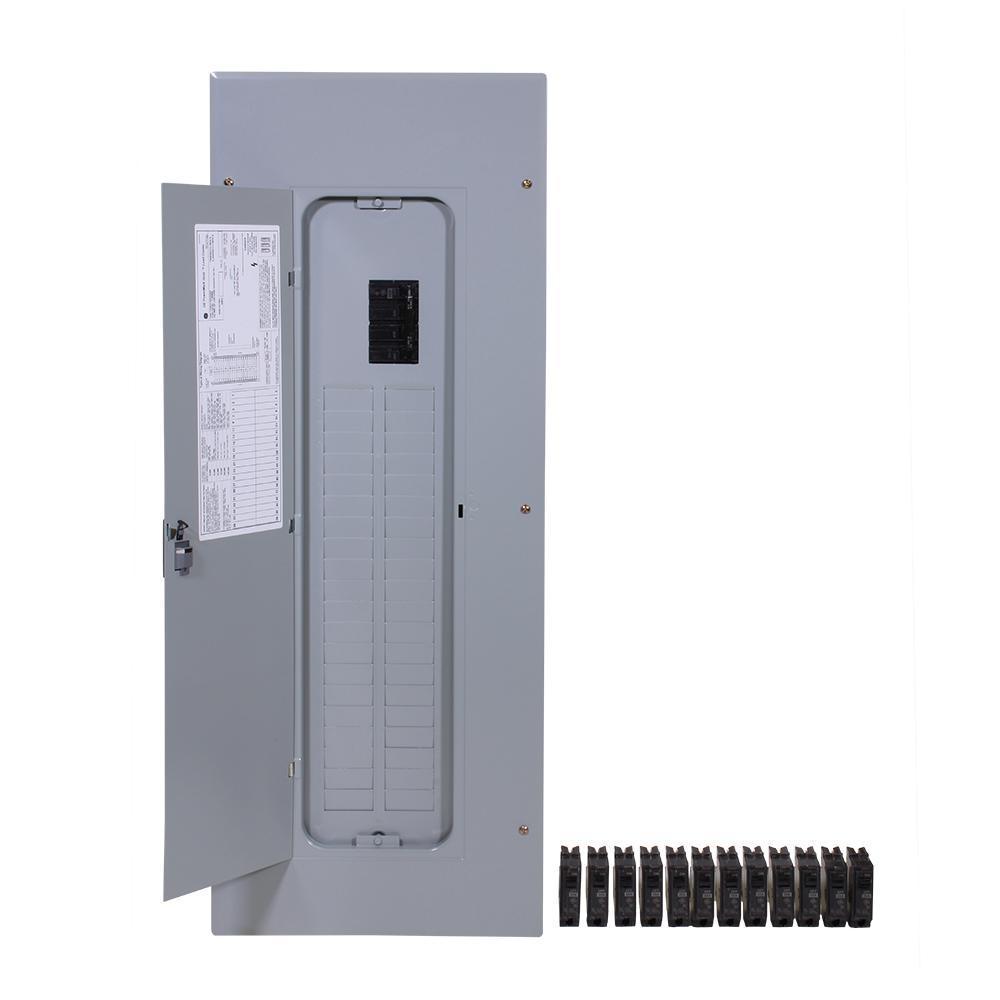

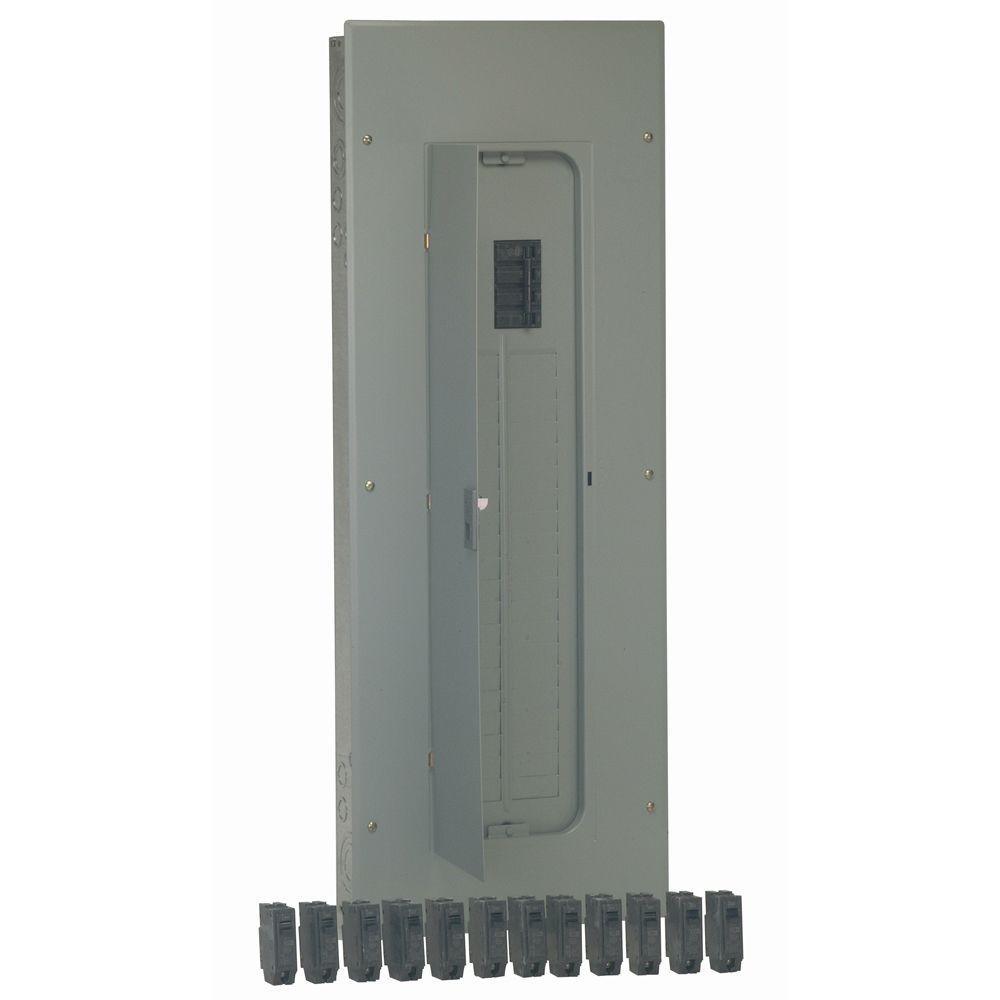

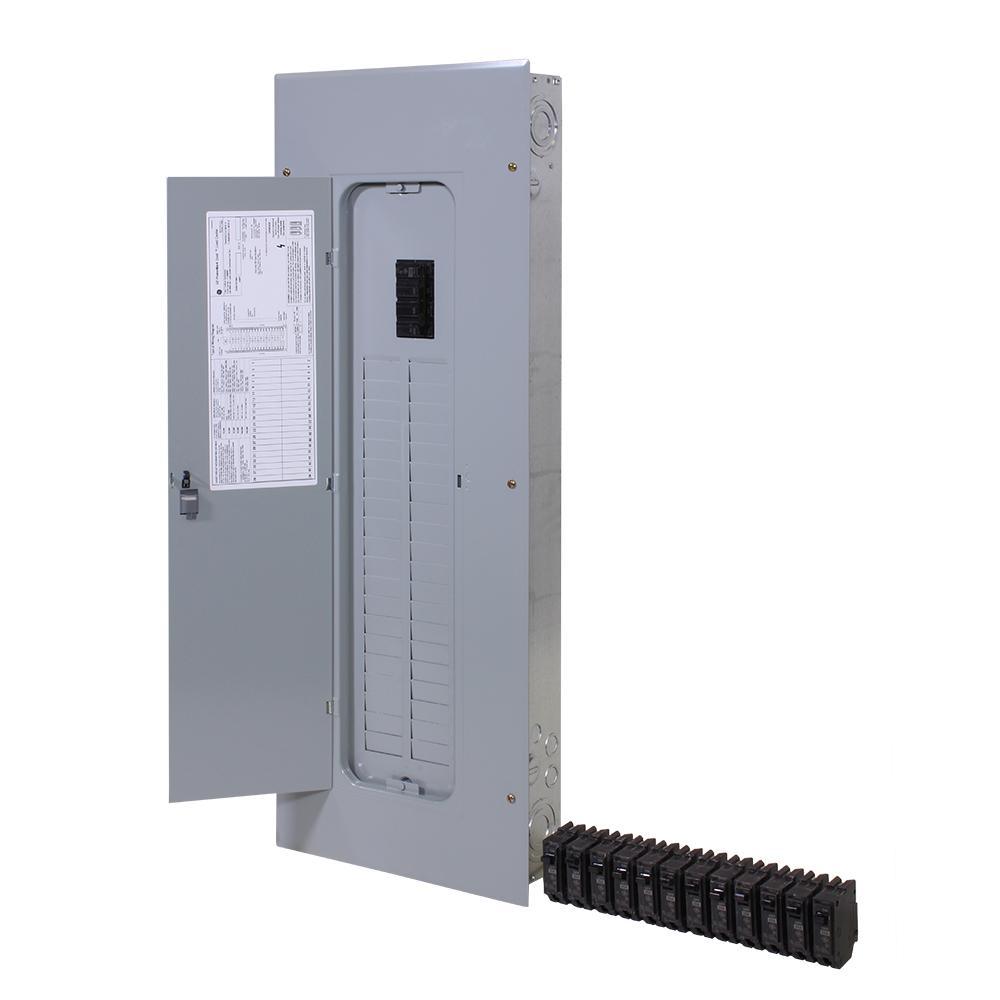

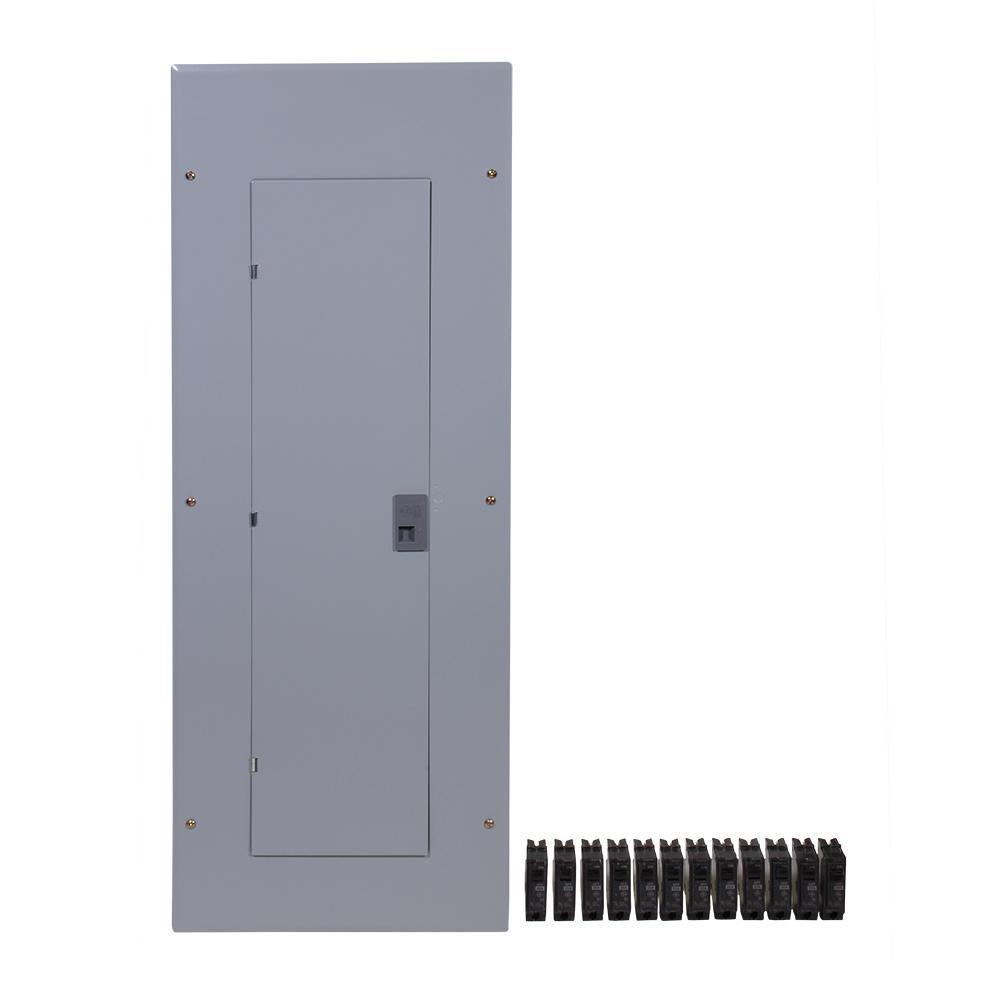

PowerMark Gold 200 Amp 40-Space 40-Circuit Indoor Main Breaker Value Kit Includes Select Circuit Breaker

200 A

$181.28 each

Orders start at $399. Combine any items to reach it.

Breakers
1 breaker
$181.28
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Electrical

Details & specifications.

From the maker · the maker’s description

This value kit includes 12 20 Amp Single-Pole THQL 1 in. Circuit Breakers. The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with combination surface/flush front. This load center is UL listed and ANSI Certified.

  • Rust-resistant galvanized steel box
  • Copper buss bar supports high conductivity
  • Factory-installed main breaker, full-length neutral bars and self-adjusting dead-front cover
  • 100% rated split neutral on each side
  • Single phase, 3-wire, 120/240 VAC, 200 Amp and 22K AIC rating
  • All neutral holes are rated for 14-4 wire
  • Accepts standard GFCI, CAFCI and THQL 1 in. circuit breakers
  • Meets UL and ANSI requirements
  • Can be installed as a surface or flush mount
  • For top- or bottom-feed applications

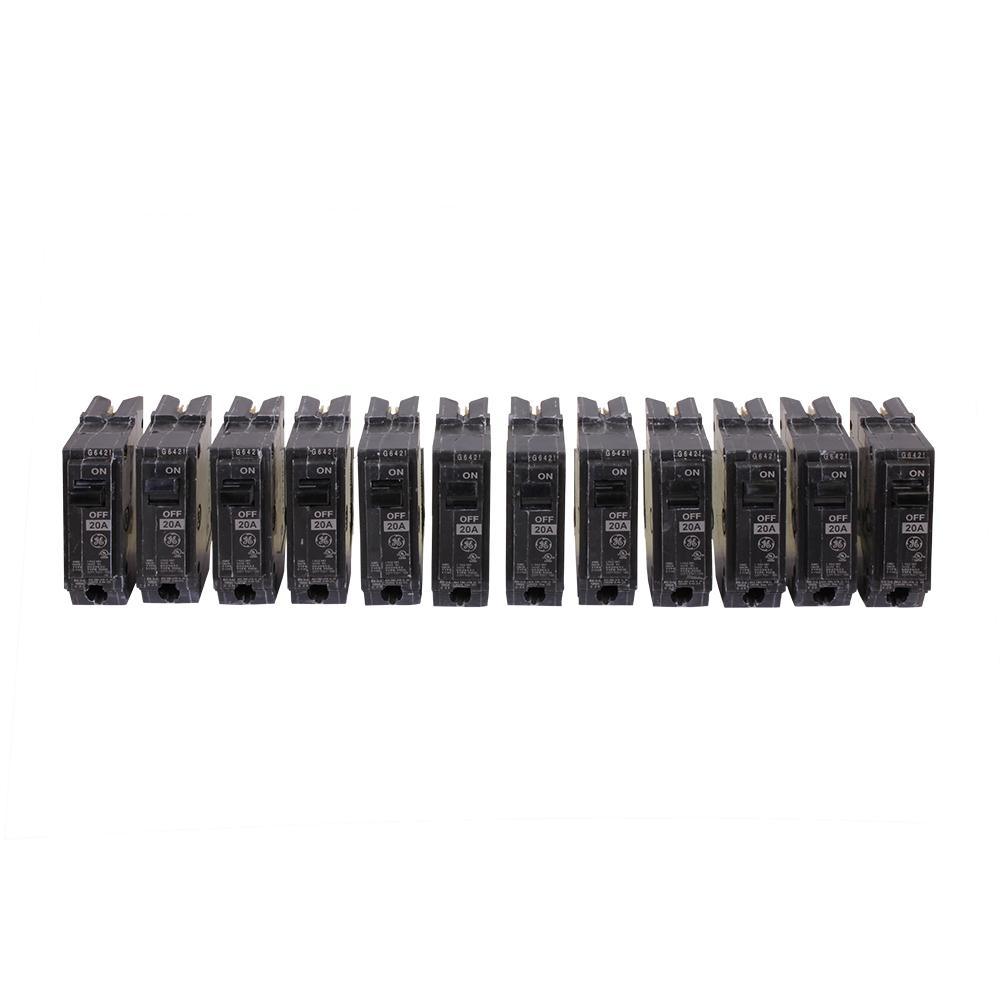

  • Includes 12 THQL1120 single-pole 20 Amp circuit breakers
SKU
1040181493
Amps
200 A
Mounting
Plug-On
Item Weight
39.0
Voltage (volts)
240
Load Center Mounting Type
Flush, Surface
Electrical Product Type
Load Center and Breaker Kit
Load Center Type
Main Breaker
Product Weight (lb.)
39
Indoor/Outdoor
Indoor
Number of Spaces
40
Phase Type
1 Phase
Number of Circuits
40

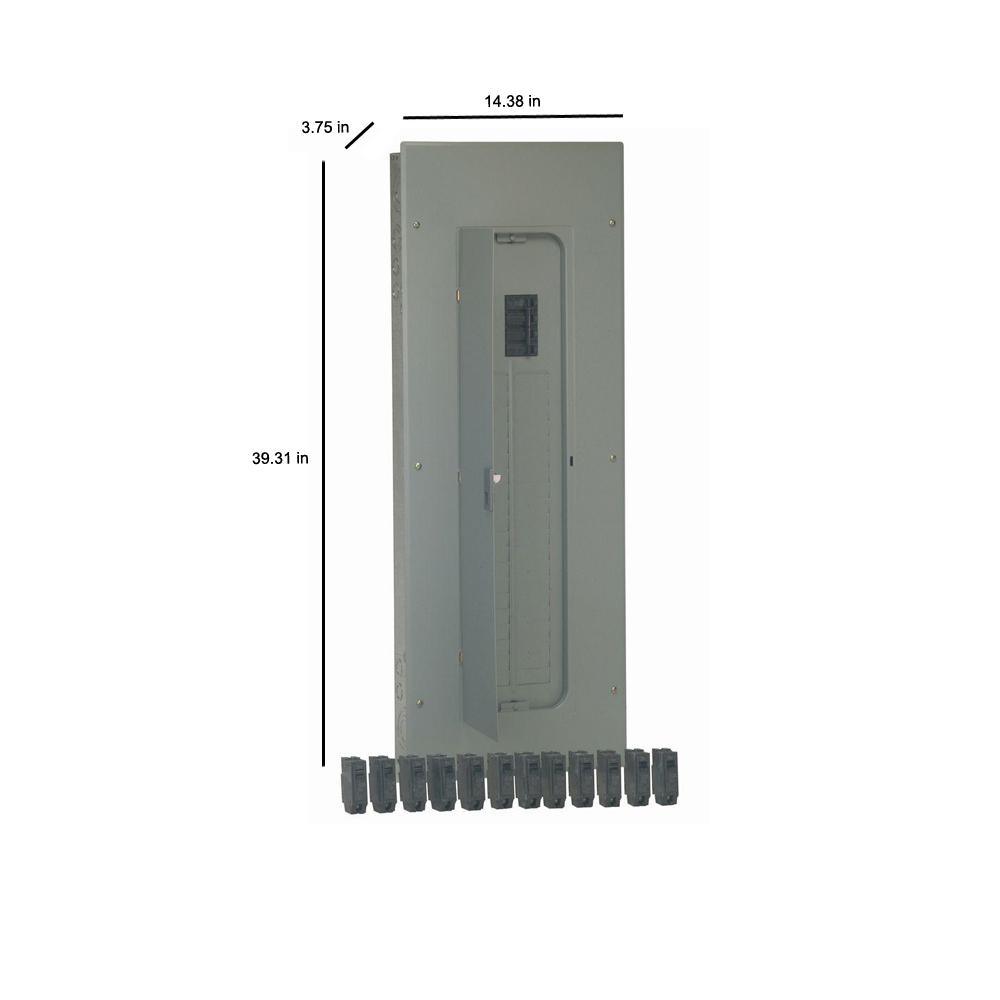

Load center depth (in.)
3.75
Load center height (in.)
39.31
Load center width (in.)
14.38
Certifications and Listings
UL Listed
Manufacturer Warranty
One year warranty from first use

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Before you buy a breaker

  1. 1

    Match the panel

    Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.

  2. 2

    Match the wire

    The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.

  3. 3

    Protection

    Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.

  4. 4

    Tandem and quad

    Two circuits in one space, only in the slots the panel label allows.
