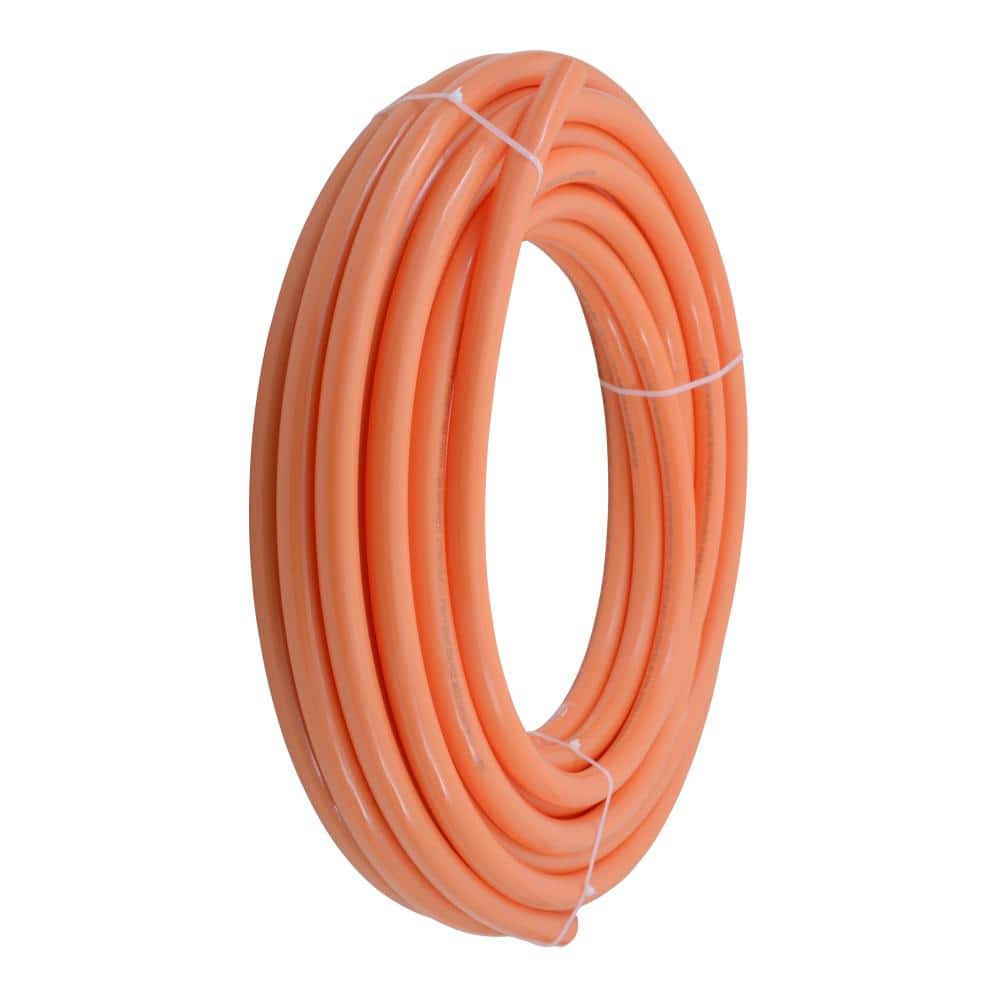

SharkBite 1 in. x 100 ft. Oxygen Barrier Radiant Heating PEX-C Pipe Coil
Regular price $130.531 in. x 100 ft. Oxygen Barrier PEX-C Heating Pipe
Flexible, cross-linked polyethylene (PEX-C) pipe designed for radiant floor and hydronic heating systems. The integrated oxygen barrier helps prevent corrosion of ferrous components, while the orange coil offers easy handling and long runs with fewer fittings.
Key Features:
- Oxygen Barrier Protection: Limits oxygen diffusion to help prevent corrosion in hydronic systems
- High Performance Ratings: 200°F maximum temperature and 160 psi working pressure for demanding heating applications
- Flexible Installation: Coil format reduces fittings and is approved for burial in concrete; can be pressure tested immediately
- Versatile Connections: Compatible with SharkBite push-to-connect and PEX crimp/clamp barb fittings
- Durable PEX-C Construction: Cross-linked polyethylene resists kinks and delivers reliable, long-lasting service
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Nominal Pipe Size | 1 in. |
| Length | 100 ft |
| Material | Cross-Linked Polyethylene (PEX-C) |
| Color | Orange |
| Oxygen Barrier | Yes |
| Maximum Working Pressure | 160 psi |
| Maximum Working Temperature | 200°F |
| Minimum Working Temperature | 32°F |
| Maximum Flow Rate | 14.6 GPM |
| Inside Diameter | 0.885 in. |
| Outside Diameter | 1.125 in. |
| Wall Thickness | 0.131 in. |
| Pack Size | 1 |
| Connectivity Compatibility | Push-to-connect; PEX crimp/clamp barb |
| Pipe Features | Flexible; Approved for burial in concrete; Can be installed wet or dry for immediate pressure testing |
| Certifications | ANSI Certified; CSA Listed; IAPMO Certified |
| Standards Compliance | ASTM F876/F877/2023; CSA B137.5 |
| Application | Radiant floor and hydronic heating |
| Product Weight | 17 lb |
Frequently Asked Questions (FAQ):
Q: What type of systems is this pipe intended for?
A: Radiant in-floor and hydronic heating systems; it is not intended for potable water when using the oxygen barrier variant.
Q: What fittings work with this pipe?
A: SharkBite push-to-connect fittings and PEX barb fittings using crimp or clamp rings.
Q: What are the max operating conditions?
A: Up to 200°F and 160 psi.
Q: Can it be embedded in concrete?
A: Yes, it is approved to be buried in concrete for radiant floor installations.
Q: What size is the coil and inner/outer diameters?
A: 1 in. nominal, 100 ft length; approximately 0.885 in. ID and 1.125 in. OD.
Warmth Engineered With Sleek, Effortless Lines
This vivid orange PEX coil tucks neatly beneath floors, quietly delivering luxurious, even warmth that elevates everyday living. Its oxygen-barrier sheen and graceful flexibility create clean, uninterrupted runs that keep mechanical rooms refined. Pair it with wide-plank wood or polished concrete to craft spa-level comfort underfoot. A concealed essential, it’s the modern foundation for comfortable, high-design spaces.
Bring silent, even warmth to your project—choose this SharkBite oxygen barrier PEX-C coil for reliable, efficient radiant heating.
