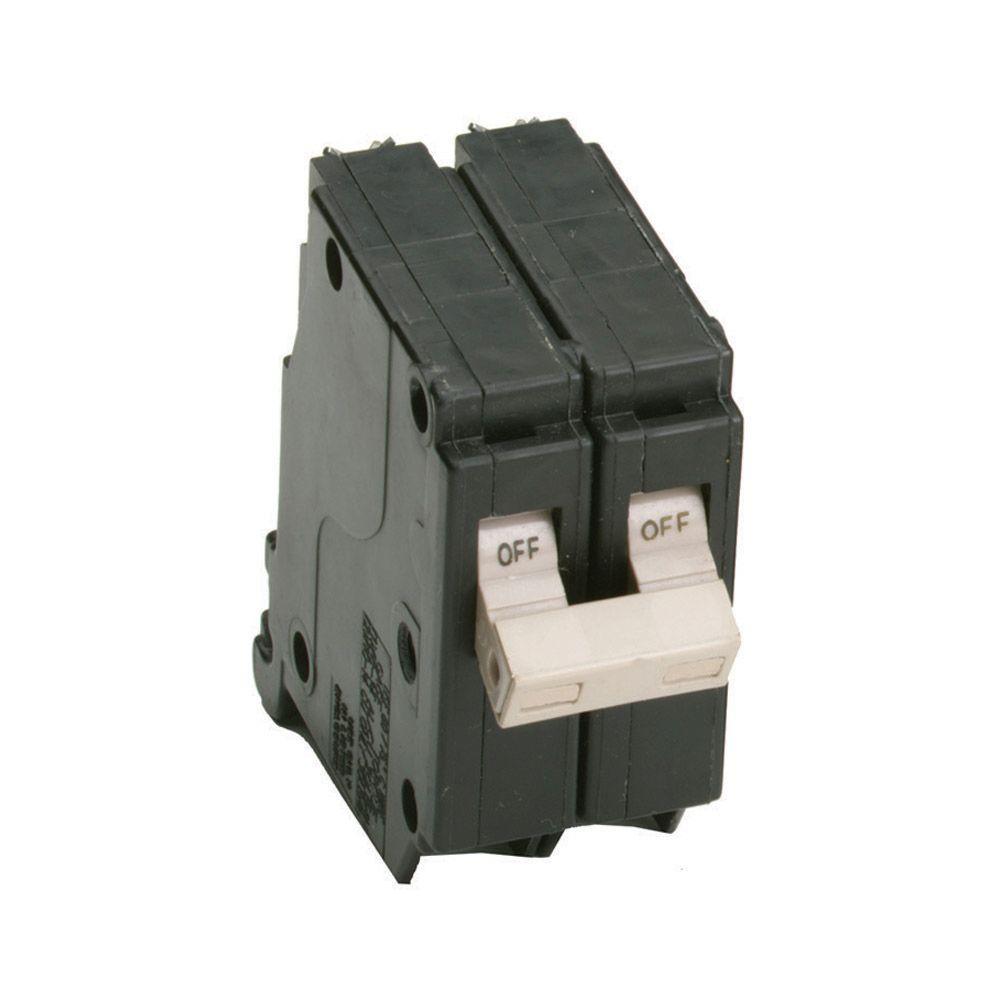

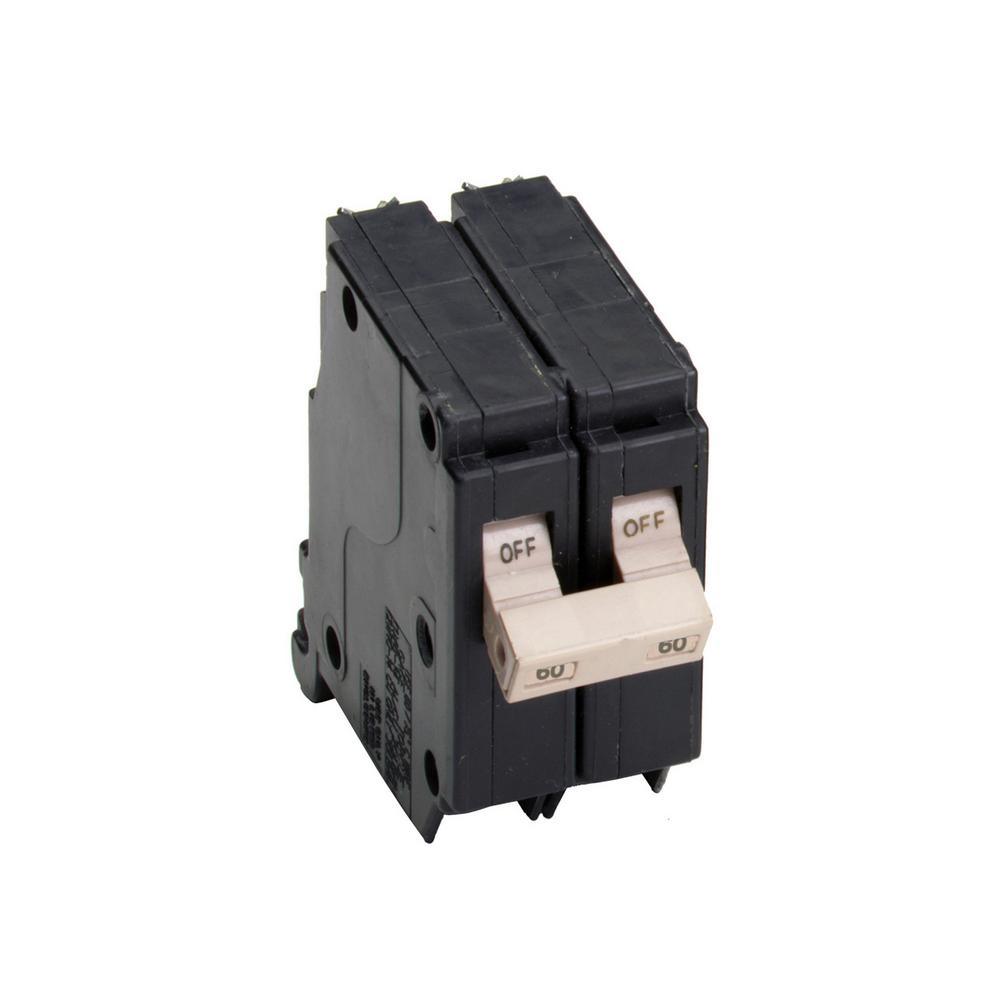

CH 60 Amp 2-Pole Circuit Breaker
60 AStandard
$29.97 each
Orders start at $399. Combine any items to reach it.
- 1 breaker
- $29.97
- Standard delivery
- $49.99 per order
- Sales tax
- Added at checkout
All orders are subject to approval.
You're not charged until your order is approved and ready to ship. Cancel free before then.
Standard delivery$49.99
Per order, added in your cart. We deliver to the 48 contiguous states.
Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

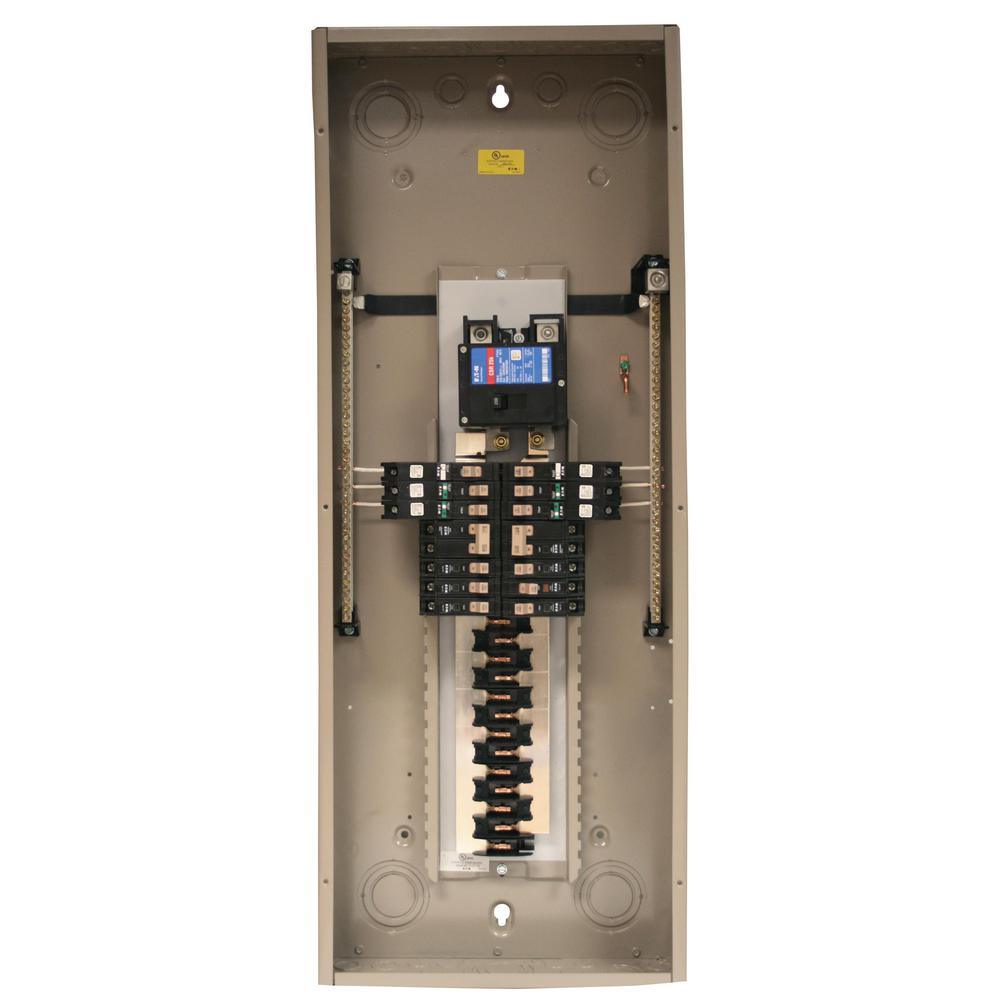

Complete the panel
Eaton · Electrical
Details & specifications.
From the maker · Eaton’s description
- Primary function of a circuit breaker is to protect the wire from overheating (overload) and fault currents (short circuit)
- Amperage rating: 60 Amp
- Double pole breaker
- Trips to off position
- For use in type CH load centers only
- Interrupt rating - 10 kAIC
- Voltage rating is 120/240-Volt
- #14-2 AWG Cu/Al 60°C or 75°C
- HACR rated
- Requires two 3/4 in. spaces
- Amps
- 60 A
- Poles
- 2-pole
- Protection
- Standard
- Type
- Double Pole
- Mounting
- Plug In
- Brand
- Eaton
- Item Weight
- 1
- Product Weight (lb.)
- 0.45
- Voltage (volts)
- 120/240
- Pack Size
- 1
- Power Distribution Features
- No Additional Features
- Interruption Type
- Standard Trip
- Electrical Product Type
- Breaker
- Product Height (in.)
- 3 in
- Product Width (in.)
- 1.48
- Product Depth (in.)
- 3.5 in
- Certifications and Listings
- ANSI Certified, CSA Listed, UL Listed
- Manufacturer Warranty
- Limited Lifetime Warranty according to the Warranty Policy
Specifications are provided by the manufacturer. Brand names are trademarks of their owners.
Guide
Before you buy a breaker
- 1
Match the panel
Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.
- 2
Match the wire
The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.
- 3
Protection
Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.
- 4
Tandem and quad
Two circuits in one space, only in the slots the panel label allows.
