Eaton · Electrical

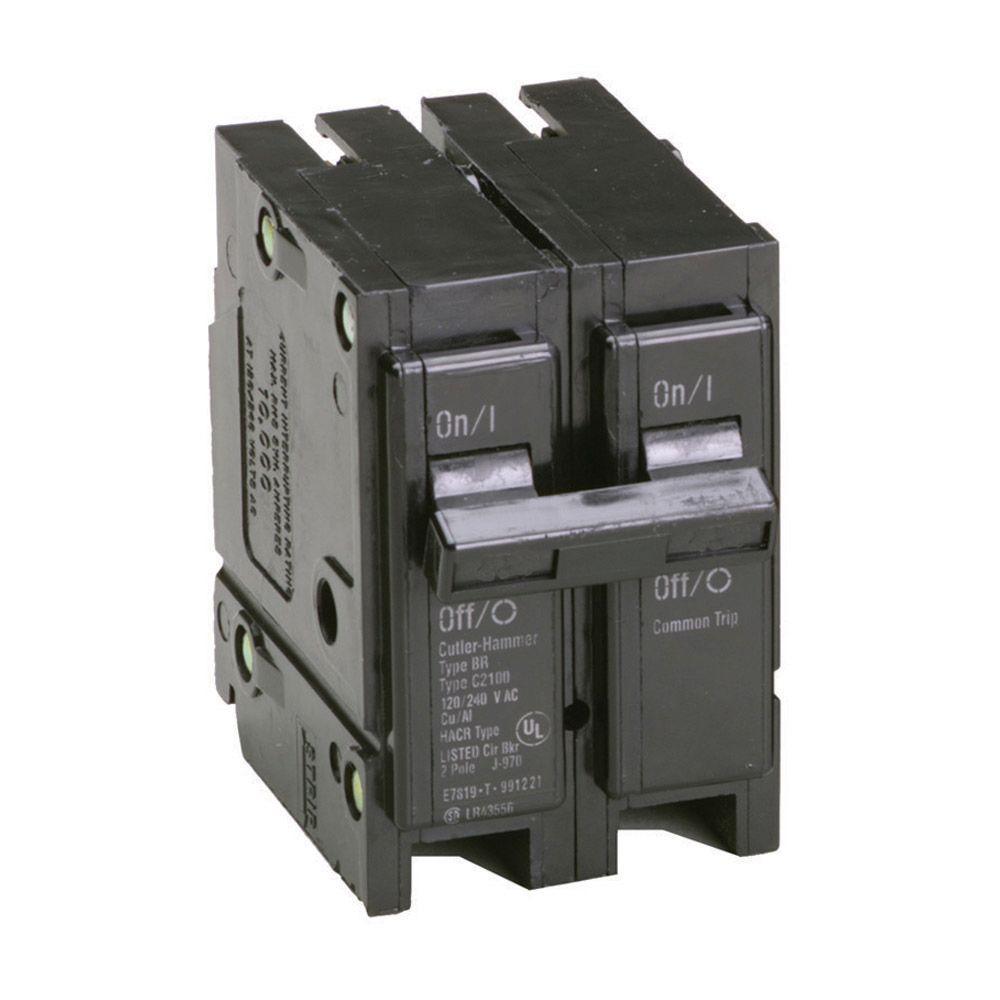

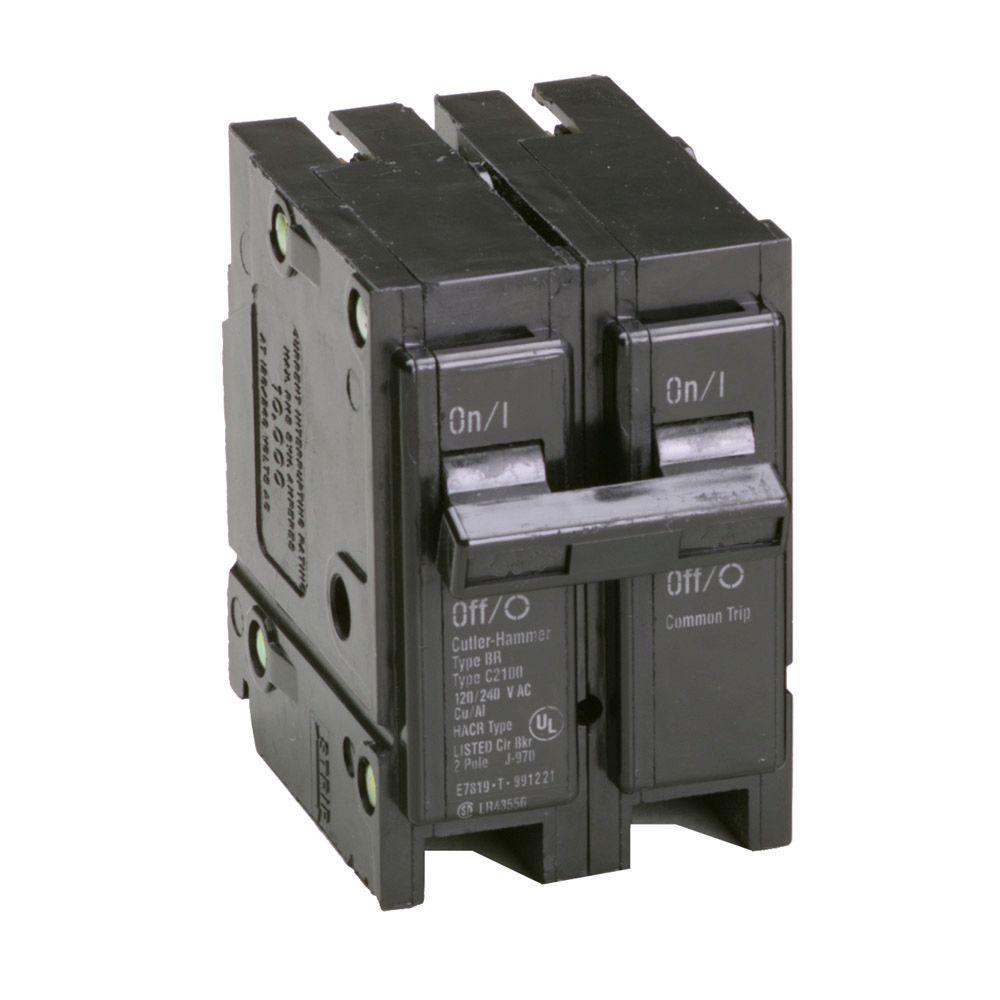

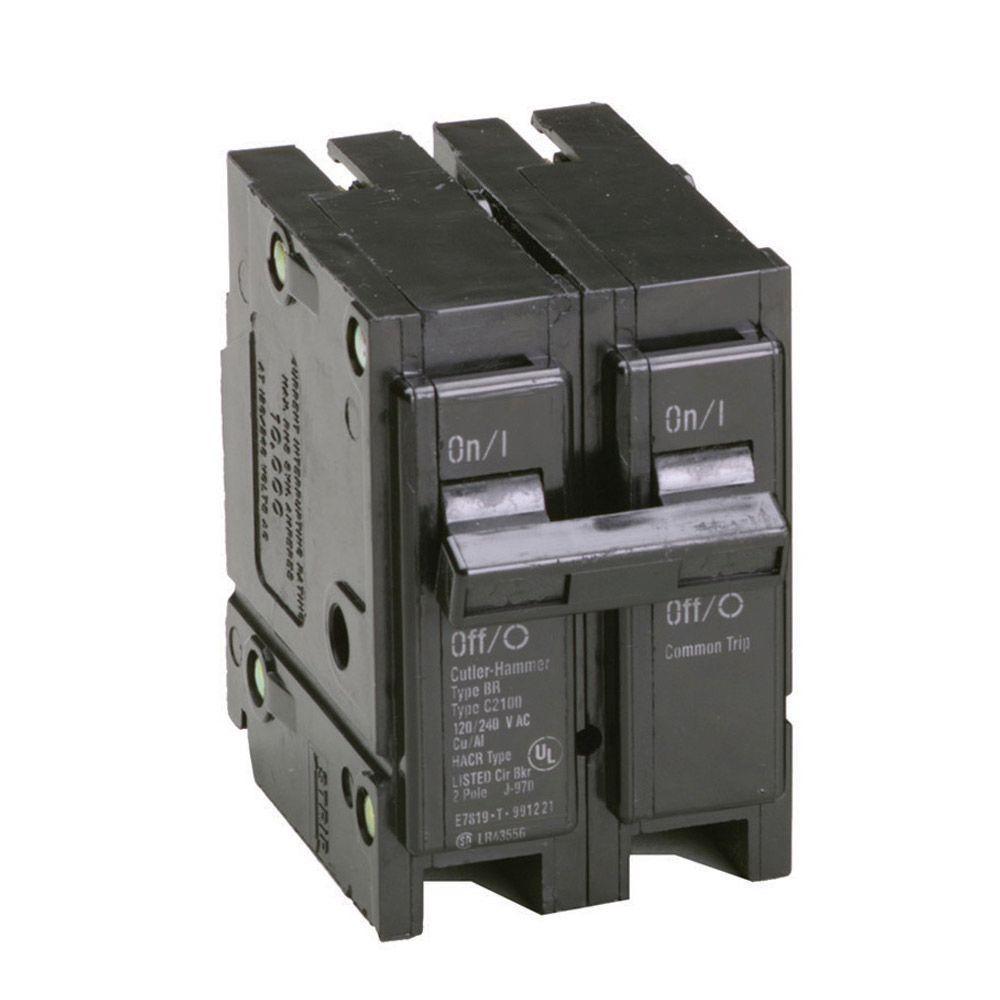

BR 30 Amp 2 Pole Circuit Breaker

30 AStandard

$15.98 each

Orders start at $399. Combine any items to reach it.

Breakers
1 breaker
$15.98
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Eaton · Electrical

Details & specifications.

From the maker · Eaton’s description
  • Primary function of a circuit breaker is to protect the wire from overheating (overload) and fault currents (short circuit)
  • Amperage rating: 30 Amp
  • Double pole 2 in. wide breaker
  • Trips to center position - must turn off then turn back on
  • For use in type BR load centers
  • Type BR breakers are UL approved genuine replacement breakers for load centers made by Westinghouse, Challenger and Bryant
  • Interrupt rating - 10 kAIC
  • Voltage rating is 120/240-Volt
  • Wire size - #14-4 AWG Cu/Al at 60°C or 75°C
  • Gauge/number of wires with ground - 10/3
Amps
30 A
Poles
2-pole
Protection
Standard
Type
Double Pole
Mounting
Plug In
Brand
Eaton
Item Weight
.5
Product Weight (lb.)
0.52
Voltage (volts)
120/240
Pack Size
1
Power Distribution Features
No Additional Features
Interruption Type
Standard Trip
Electrical Product Type
Breaker
Product Width (in.)
1.96
Product Depth (in.)
3 in
Product Height (in.)
3 in
Certifications and Listings
ANSI Certified, CSA Listed, UL Listed
Manufacturer Warranty
5 Year Per the Warranty Statement

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Before you buy a breaker

  1. 1

    Match the panel

    Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.

  2. 2

    Match the wire

    The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.

  3. 3

    Protection

    Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.

  4. 4

    Tandem and quad

    Two circuits in one space, only in the slots the panel label allows.
