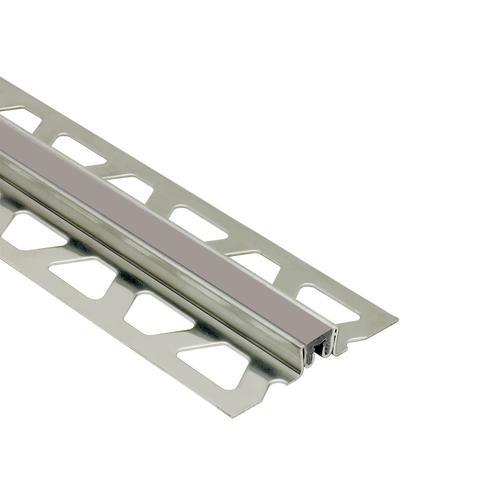

Schluter Systems DILEX-KSN 0.438-in W x 98.5-in L Grout Grey Steel Tile Edge Trim
Regular price $90.45DILEX-KSN Grout Grey Steel Tile Movement Joint Trim, 0.438-in x 98.5-in

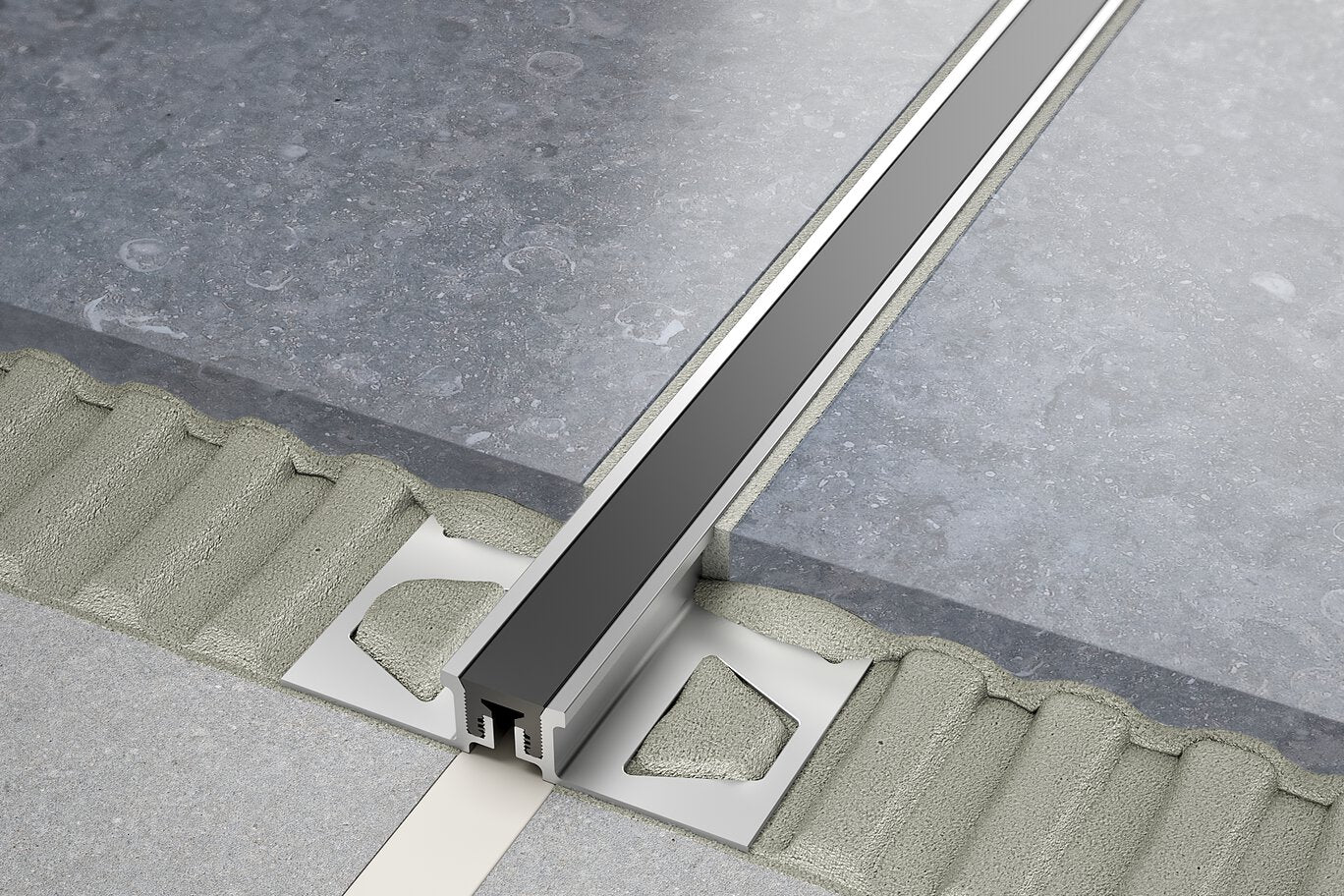

A heavy-duty movement joint profile for large tiled areas, Schluter DILEX-KSN features steel anchoring legs and a soft thermoplastic rubber movement zone to protect tile edges and absorb stress. Ideal for commercial traffic, it reduces cracking and eliminates caulking while offering a clean, grout-matched finish.
Key Features:
- Movement Absorption: 7/16 in soft thermoplastic rubber zone accommodates expansion and contraction
- Heavy-Duty Edge Protection: Steel anchoring legs safeguard tile in high-traffic commercial spaces
- Maintenance-Free Design: Eliminates the need for caulking and resists cracking and delamination
- Grout-Matching Colors: Available in colors to coordinate with common grout shades
- Easy Integration: Trapezoid-perforated legs embed into mortar for secure, durable installation
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Profile name | Schluter DILEX-KSN |

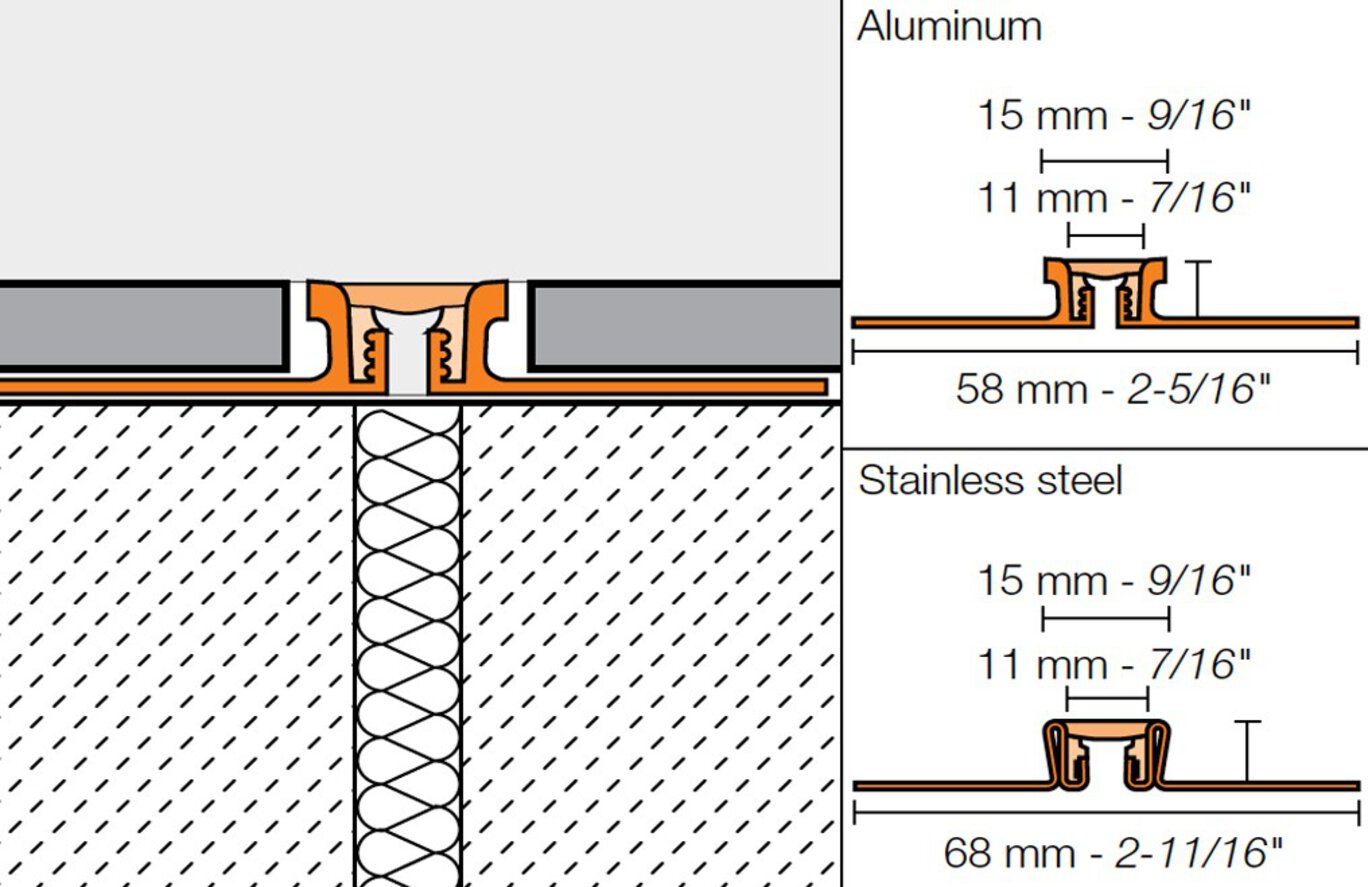

| Visible movement zone width | 7/16 in (11 mm) |
| Overall visible width (stainless steel version) | 2-11/16 in (68 mm) |
| Overall visible width (aluminum version) | 2-5/16 in (58 mm) |
| Anchoring legs material options | Stainless steel or aluminum |
| Insert material | Soft thermoplastic rubber |
| Color | Grout Grey |
| Length | 98.5 in |
| Profile width | 0.438 in |
| Design features | Trapezoid-perforated anchoring legs secured in mortar bond coat; replaceable movement zone |
| Use case | Separates fields in tile coverings; accommodates movement; provides edge protection in heavy-duty commercial traffic |
Frequently Asked Questions (FAQ):
Q: What tile thicknesses are compatible?
A: The profile integrates into standard mortar bed installations; the visible movement zone is 7/16 in wide and sits flush with tile surfaces.
Q: Is the movement zone replaceable?
A: Yes, the soft thermoplastic rubber insert can be replaced if damaged.
Q: Where is DILEX-KSN best used?
A: In large tiled areas subject to movement and heavy commercial traffic, such as warehouses, production facilities, and shopping malls.
Q: Does it require caulking?
A: No, the built-in movement zone eliminates the need for caulking along joints.
Q: What materials are available?
A: DILEX-KSN is offered with stainless steel or aluminum anchoring legs; this variant is steel with grout grey insert.
A Sleek, Structural Line That Elevates the Field
DILEX-KSN draws a refined horizon across expansive tilework, creating rhythm while quietly managing movement beneath the surface. Its grout-grey band reads as a tailored detail, framing floors with a modern, architectural edge. Pair it with large-format stone or porcelain to emphasize scale and continuity. This is a discreet luxury—performance-driven design that keeps spaces pristine and polished.
Protect your tile installation with DILEX-KSN—choose this grout-grey steel profile for durable, maintenance-free movement control.
