Schluter Systems DILEX-KSN 0.438-in W x 98.5-in L Dark Anthracite PVC Tile Edge Trim
Regular price $13.70DILEX-KSN Dark Anthracite PVC Tile Movement/Edge Trim

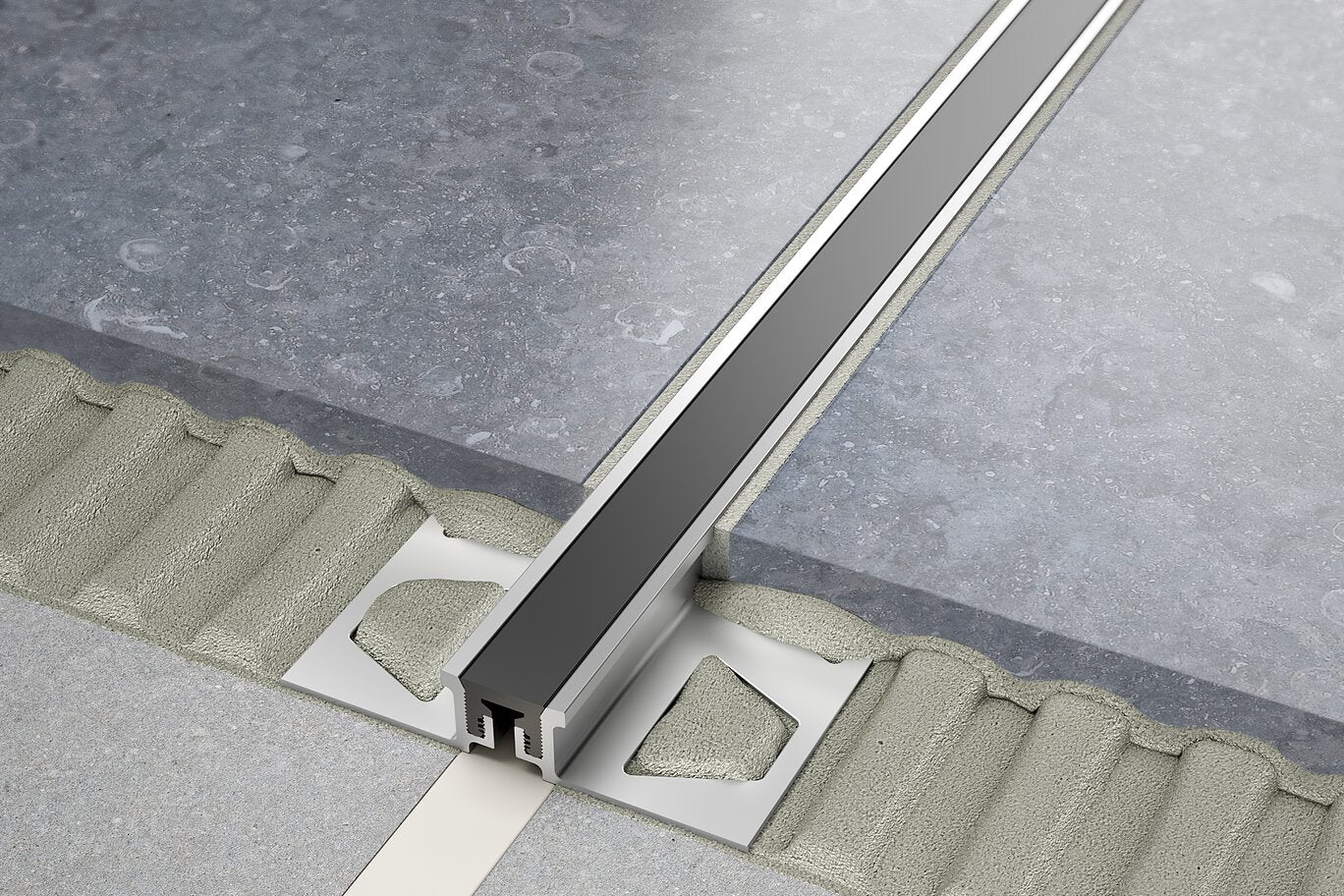

Schluter DILEX-KSN is a movement joint profile with trapezoid-perforated anchoring legs that protect tile edges and absorb stress across large tiled fields. It features a 7/16 in soft thermoplastic rubber movement zone that is visible on the surface and can be replaced if damaged, helping prevent cracking and eliminating caulking in heavy-traffic installations.
Key Features:
- Movement Absorption: 7/16 in thermoplastic rubber zone accommodates expansion and contraction in tile fields
- Edge Protection: Anchoring legs in stainless steel or aluminum safeguard adjacent tiles in demanding areas
- Maintenance-Free: Eliminates the need for caulking and resists cracking and delamination

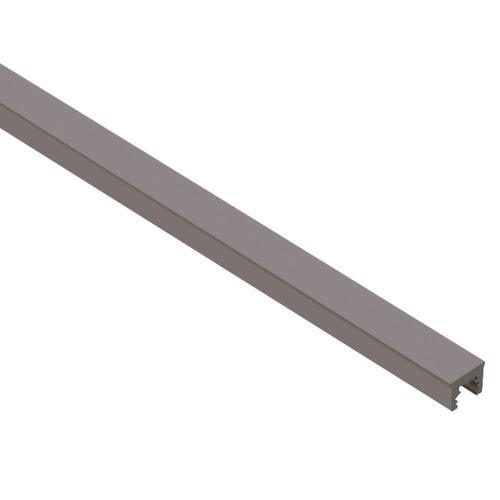

- Replaceable Insert: Surface movement strip can be replaced if worn or damaged
- Commercial-Grade Use: Suitable for heavy-duty traffic areas like warehouses and shopping malls
Specifications Table:
| Specification | Details |
|---|---|
| Profile name | Schluter DILEX-KSN |

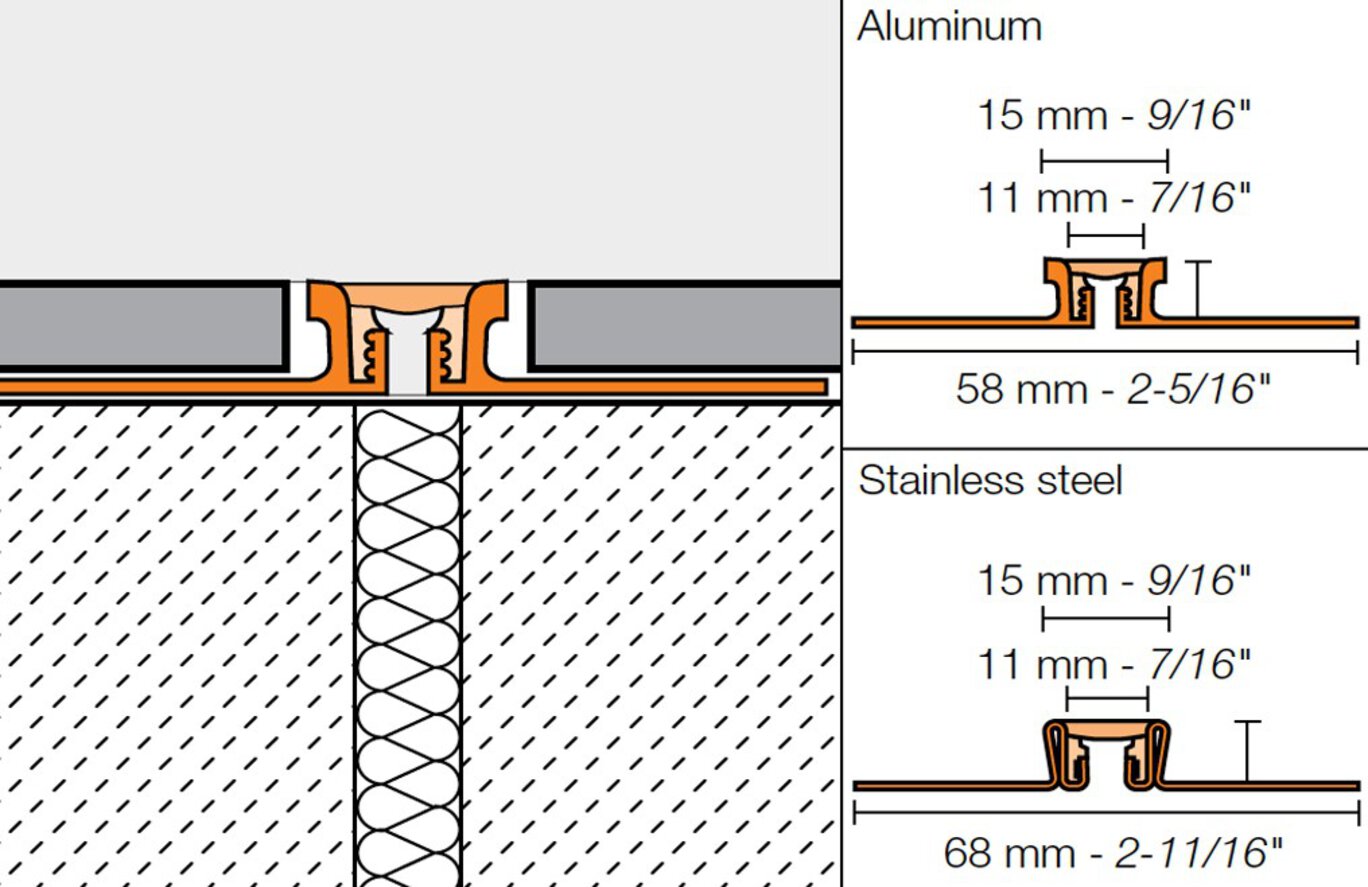

| Visible movement zone width | 7/16 in (11 mm) |
| Overall top width (aluminum version) | 2-5/16 in (58 mm) |
| Overall top width (stainless steel version) | 2-11/16 in (68 mm) |
| Anchoring legs material | Stainless steel or Aluminum (trapezoid-perforated) |
| Movement zone material | Soft thermoplastic rubber; replaceable |
| Primary function | Surface and expansion joint; edge protection and movement accommodation in tiled coverings |
| Color (insert) | Dark Anthracite (variant) |
Frequently Asked Questions (FAQ):
Q: What is the visible movement zone width?
A: 7/16 in (11 mm).
Q: Is the movement insert replaceable?
A: Yes, the soft thermoplastic rubber movement zone can be replaced if damaged.
Q: What materials are the anchoring legs made from?
A: Stainless steel or aluminum, depending on the variant.
Q: Where is this profile typically used?
A: Large tiled areas and commercial spaces to accommodate movement while protecting tile edges.
Q: Does it require caulking?
A: No—DILEX-KSN eliminates the need for caulking.
Seamless Strength with a Refined Line
This profile draws a crisp graphite line through your tile field, quietly orchestrating expansion while keeping edges immaculate. The replaceable movement insert is a smart, subtle detail that maintains a polished surface in high-traffic settings. Pair the dark anthracite with cool stone or concrete-look porcelain for a sophisticated, architectural gesture. It’s a hardworking essential that elevates performance and luxury in one stroke.
Protect your tile installation and achieve a sleek, professional finish—choose DILEX-KSN today.
