Schluter Systems DILEX-KSN 0.5-in W x 98.5-in L Grout Grey Aluminum Tile Edge Trim

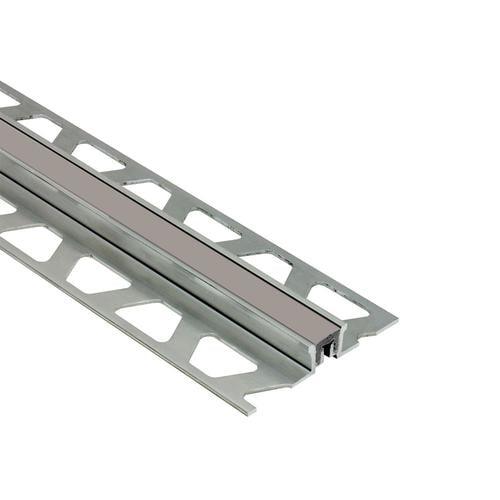

Regular price $39.48DILEX-KSN Aluminum Tile Movement Joint Trim, Grout Grey

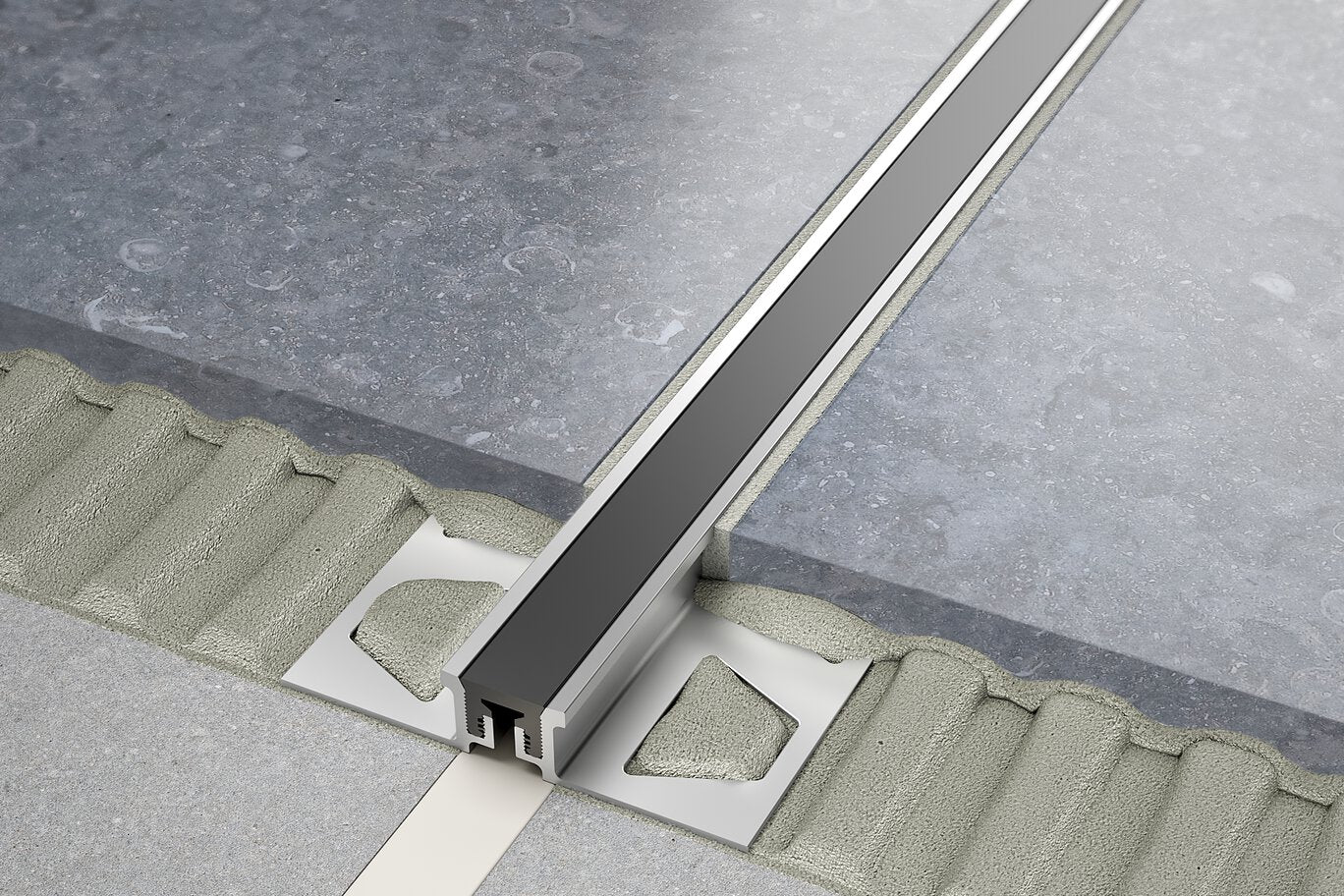

The Schluter DILEX-KSN is a surface and expansion joint profile with aluminum anchoring legs and a replaceable soft thermoplastic rubber movement zone. It protects tile edges while accommodating movement in large tiled areas, reducing stress, cracking, and the need for caulking.
Key Features:
- Movement Accommodation: 7/16 in (11 mm) soft thermoplastic rubber zone absorbs movement and forms the visible surface
- Edge Protection: Trapezoid-perforated aluminum anchoring legs secure in the mortar bond coat to protect adjacent tiles
- Durable & Low Maintenance: Designed for heavy-duty applications and is maintenance-free
- Caulk-Free Joint: Eliminates the need for caulking while helping prevent cracking and delamination
- Color-Matched Aesthetics: Available in colors to coordinate with common grout shades; shown in Grout Grey
Specifications Table:
| Specification | Details |
|---|---|
| Profile name | Schluter-DILEX-KSN |
| Anchoring legs material | Aluminum (also available in stainless steel) |
| Movement zone material | Soft thermoplastic rubber (replaceable) |

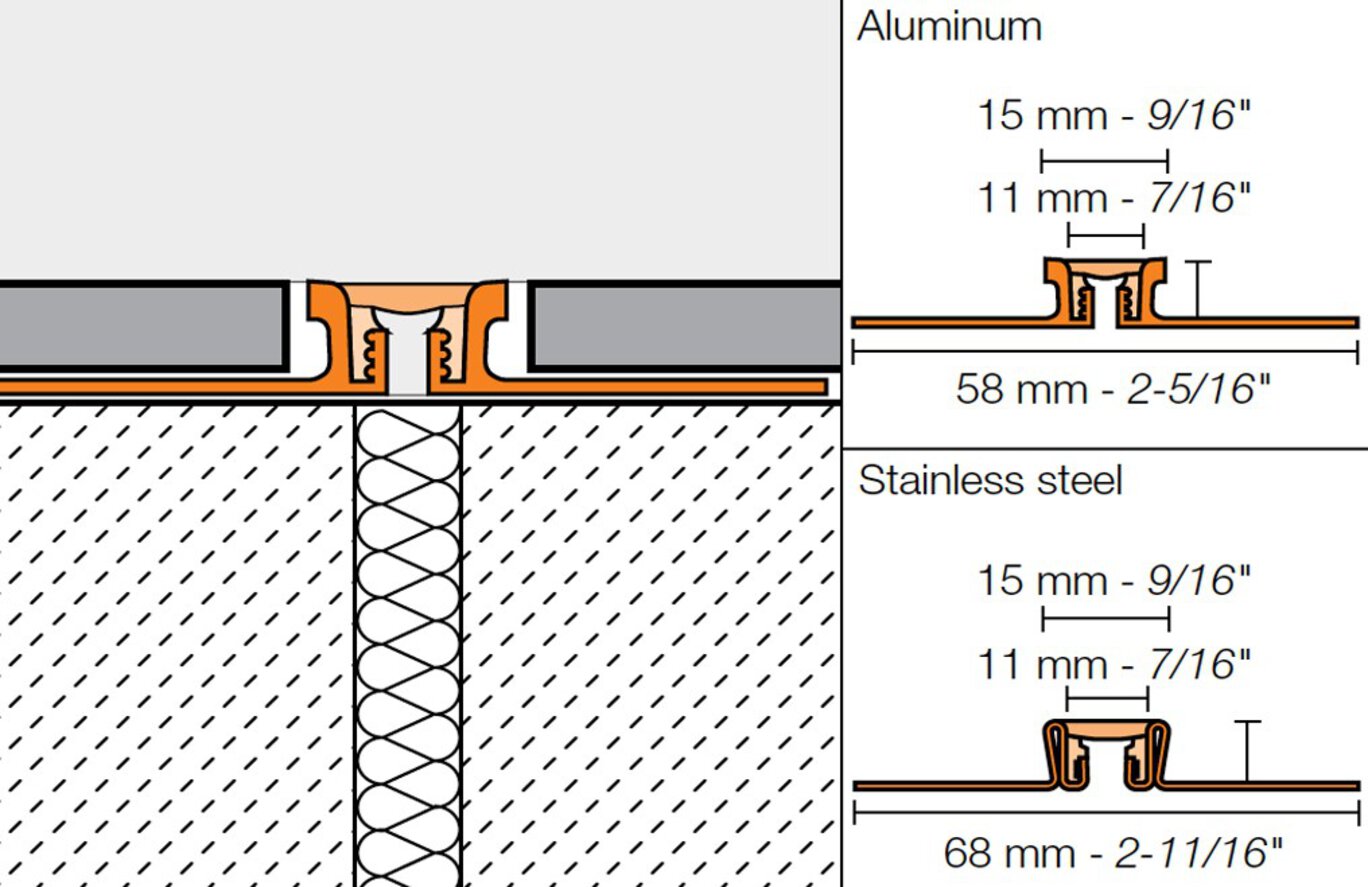

| Visible movement zone width | 7/16 in (11 mm) |
| Overall top width (aluminum version) | 2-5/16 in (58 mm) |
| Overall top width (stainless steel version) | 2-11/16 in (68 mm) |
| Tile protection | Provides edge protection and separates individual tile fields |
| Color | Grout Grey (insert) |
| Length | 98.5 in |
| Width (profile size) | 0.5 in |
| Maintenance | Maintenance-free |
| Typical applications | Large tiled areas; suitable for heavy-duty traffic areas when using stainless steel legs |
Frequently Asked Questions (FAQ):
Q: What is the visible joint width?
A: The movement zone is 7/16 in (11 mm) wide and forms the visible surface.
Q: Is the movement insert replaceable?
A: Yes, the thermoplastic rubber movement zone can be replaced if damaged.
Q: Where is this profile typically used?
A: It separates tile fields and provides edge protection in large tiled areas, including commercial spaces subject to heavy traffic.
Q: What materials are the anchoring legs made from?
A: This model uses aluminum anchoring legs; DILEX-KSN is also available with stainless steel legs for heavy-duty applications.
Q: Does it require ongoing maintenance?
A: No. It is designed to be maintenance-free.
Sleek Expansion Detail, Elevated Finish
DILEX-KSN introduces a refined line that elegantly defines expansive tile fields while quietly managing movement beneath the surface. The graphite-like Grout Grey insert offers a sophisticated contrast against aluminum edges, reading as a deliberate design gesture rather than a necessity. Use it to create rhythm across grand entries or open-plan floors, aligning joints with architectural sightlines. It’s a discreet luxury that keeps surfaces pristine and performance-driven.
Upgrade your tile installation with DILEX-KSN for clean lines, lasting protection, and caulk-free movement control—add it to your project today.
