Electrical

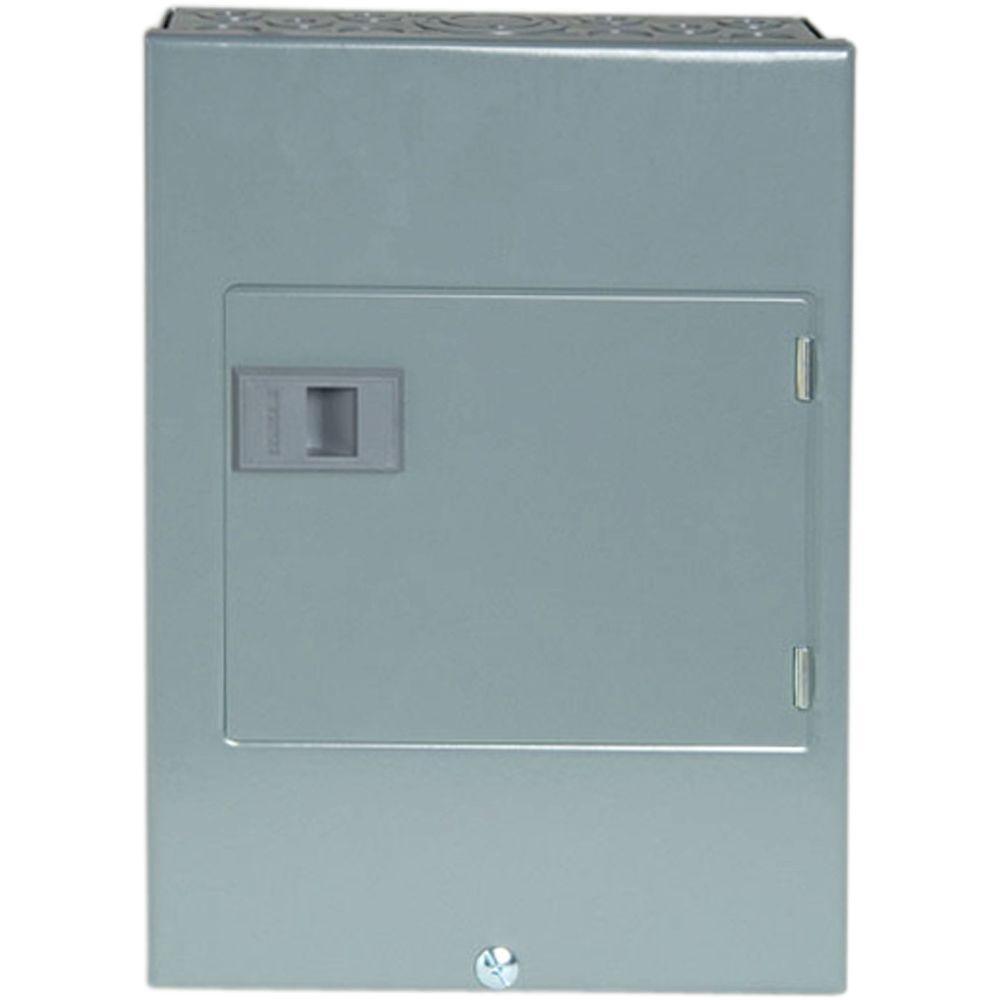

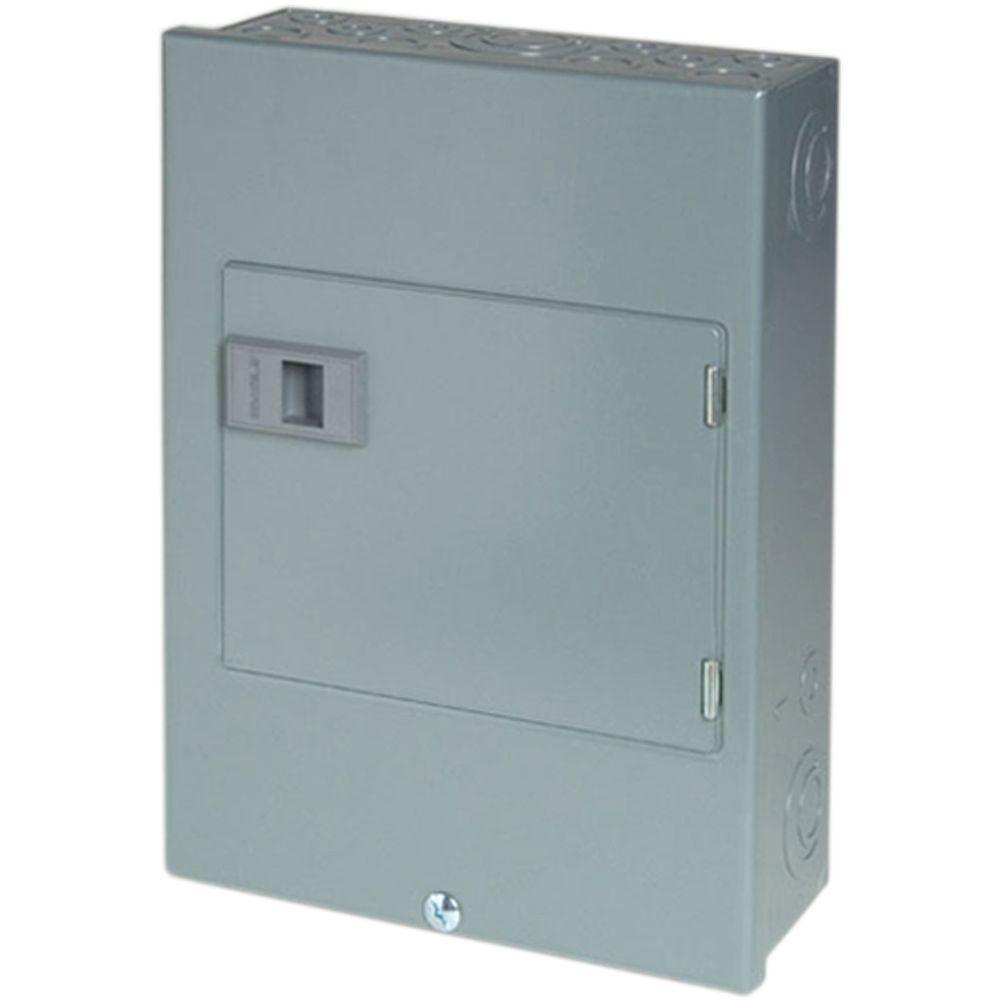

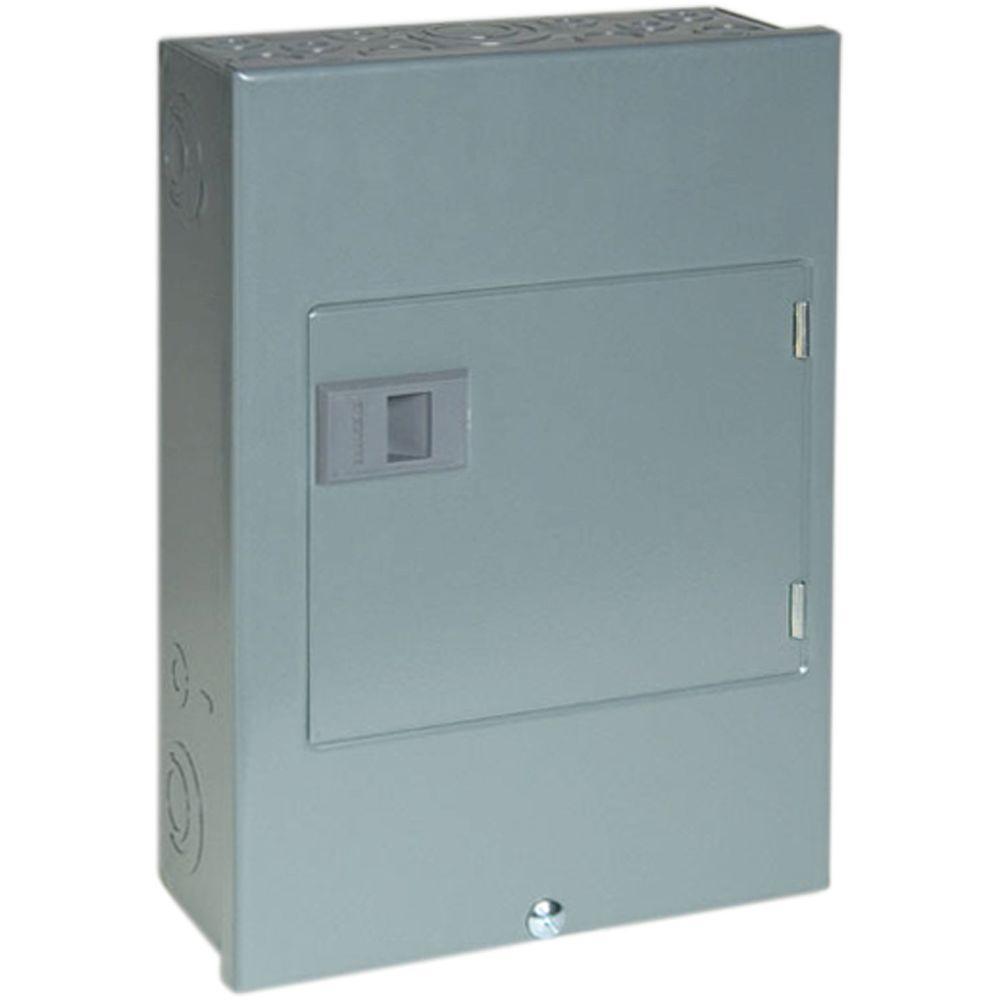

QO 60-Amp 4-Space 8-Circuit Generator Main Breaker Indoor Manual Transfer Switch

60 A

$125.73 each

Orders start at $399. Combine any items to reach it.

Breakers
1 breaker
$125.73
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Electrical

Details & specifications.

From the maker · the maker’s description

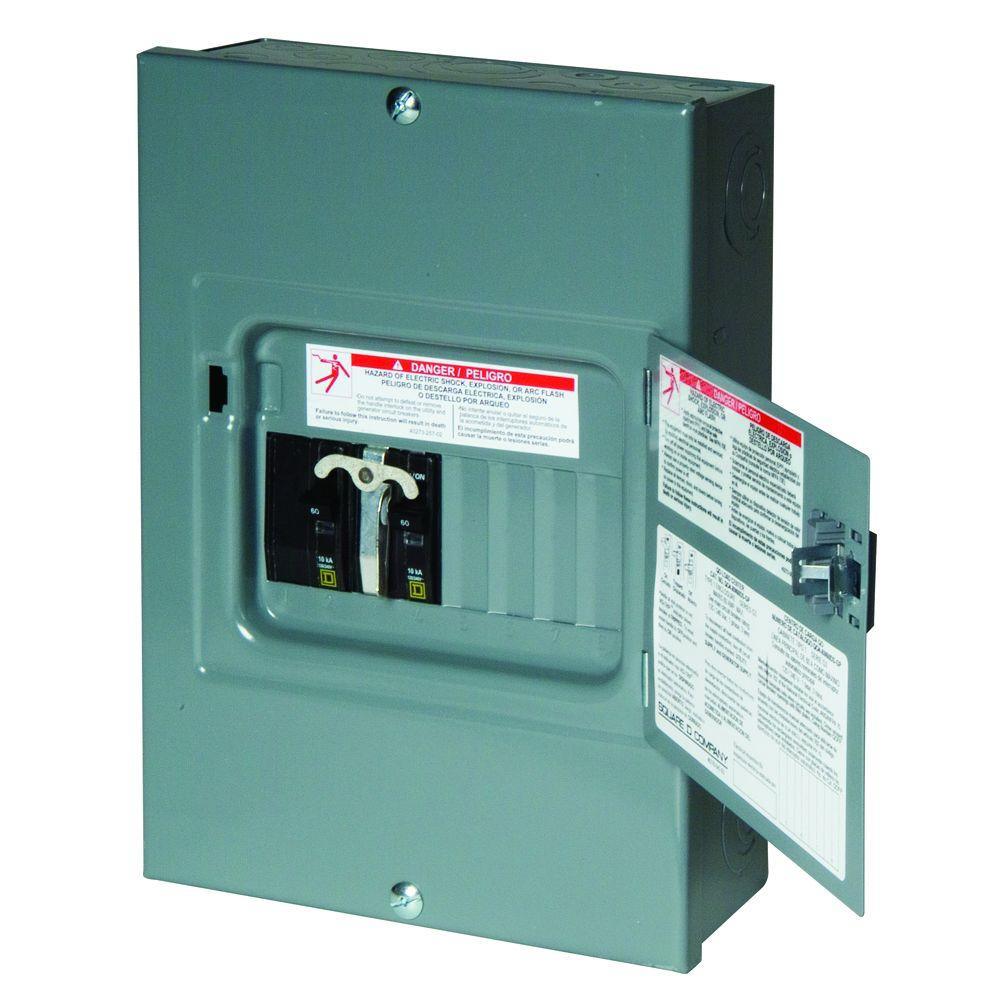

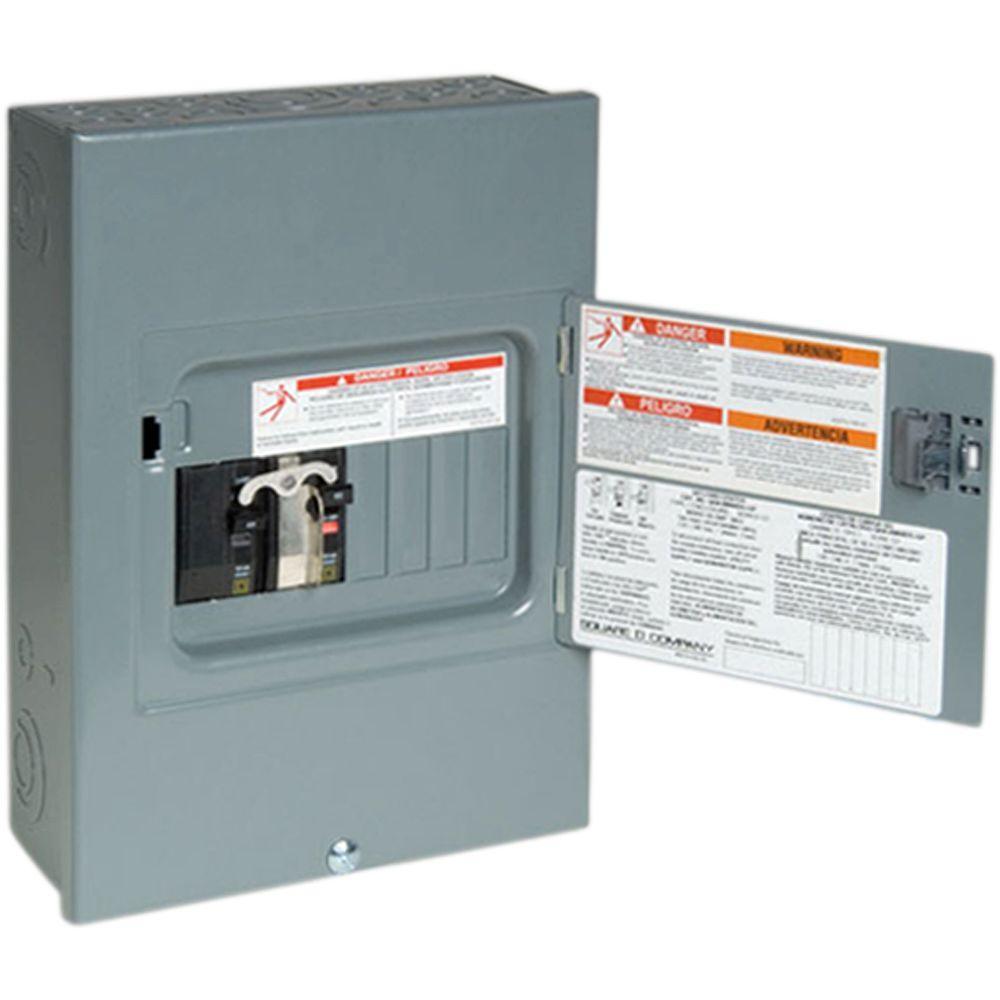

The QO 60-Amp 4-Space 8-Circuit Generator Panel is intended to switch between utility power and a standby power source. The panel can accommodate overhead or underground feed with 1-1/2 in. maximum knockouts in the top and bottom end walls. The generator panel features 2 factory-installed main circuit breakers and a mechanical interlock to help ensure that only 1 main circuit breaker is in the on position at any time. In the event of power outages, the Square D QO Generator Panel is the ideal way to safely connect specific circuits in the home to an alternate power source, allowing for uninterrupted service.

  • California residents
  • Change from the utility power to a standby source with the flip of 2 QO main circuit breakers
  • PK7GTA ground bar kit is sold separately
  • Overhead/underground feed simply by rotating the device before installing
  • Single phase
  • Rated 120/240 VAC and 10,000 AIR short circuit current rating
  • Automatic flush adjusting cover requires less time to complete the job
  • Designed with straight-in mains to save expensive cable and time
  • Split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • Convertible mains allow you to meet changing job site requirements by field converting main breaker load centers to main lugs and vice versa
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • 3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
  • ANSI certified and UL listed
SKU
100096290
UPC
785901824343
Amps
60 A
Mounting
Plug-On
Item Weight
9.45
Number of Spaces
4
Number of Circuits
8
Load Center Mounting Type
Flush, Surface
Voltage (volts)
120/240
Load Center Type
Main Breaker
Electrical Product Type
Load Center
Indoor/Outdoor
Indoor
Product Weight (lb.)
9.56
Phase Type
1 Phase
Load center depth (in.)
3.8
Load center width (in.)
8.88
Load center height (in.)
12.57
Certifications and Listings
ANSI Certified, UL Listed

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Before you buy a breaker

  1. 1

    Match the panel

    Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.

  2. 2

    Match the wire

    The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.

  3. 3

    Protection

    Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.

  4. 4

    Tandem and quad

    Two circuits in one space, only in the slots the panel label allows.
