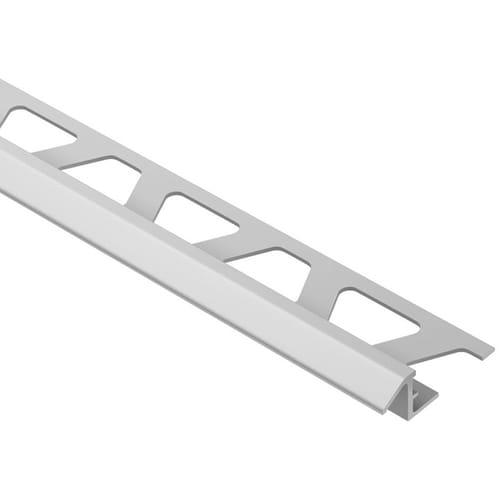

RENO-TK Satin Anodized Aluminum Reducer Tile Edge Trim

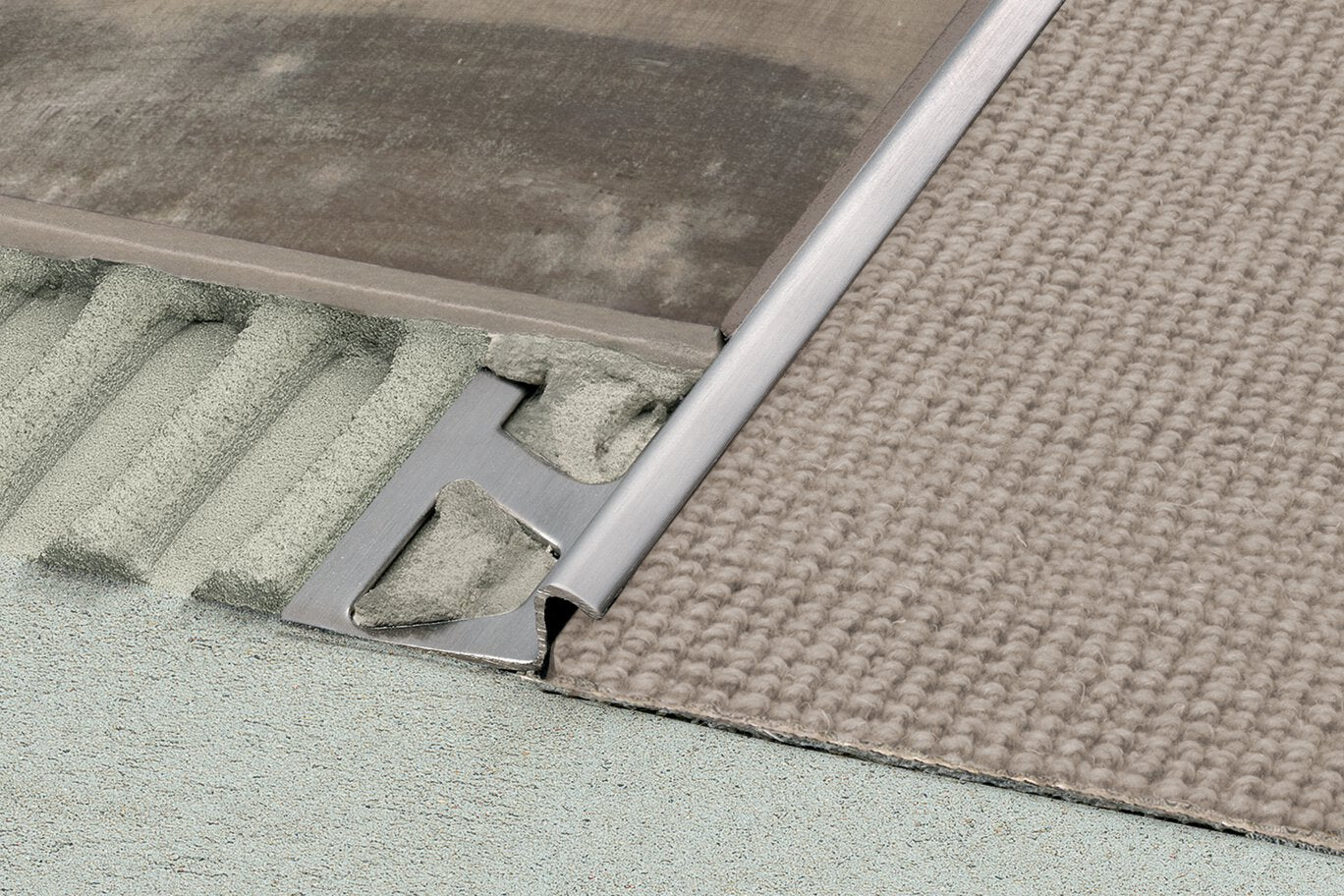

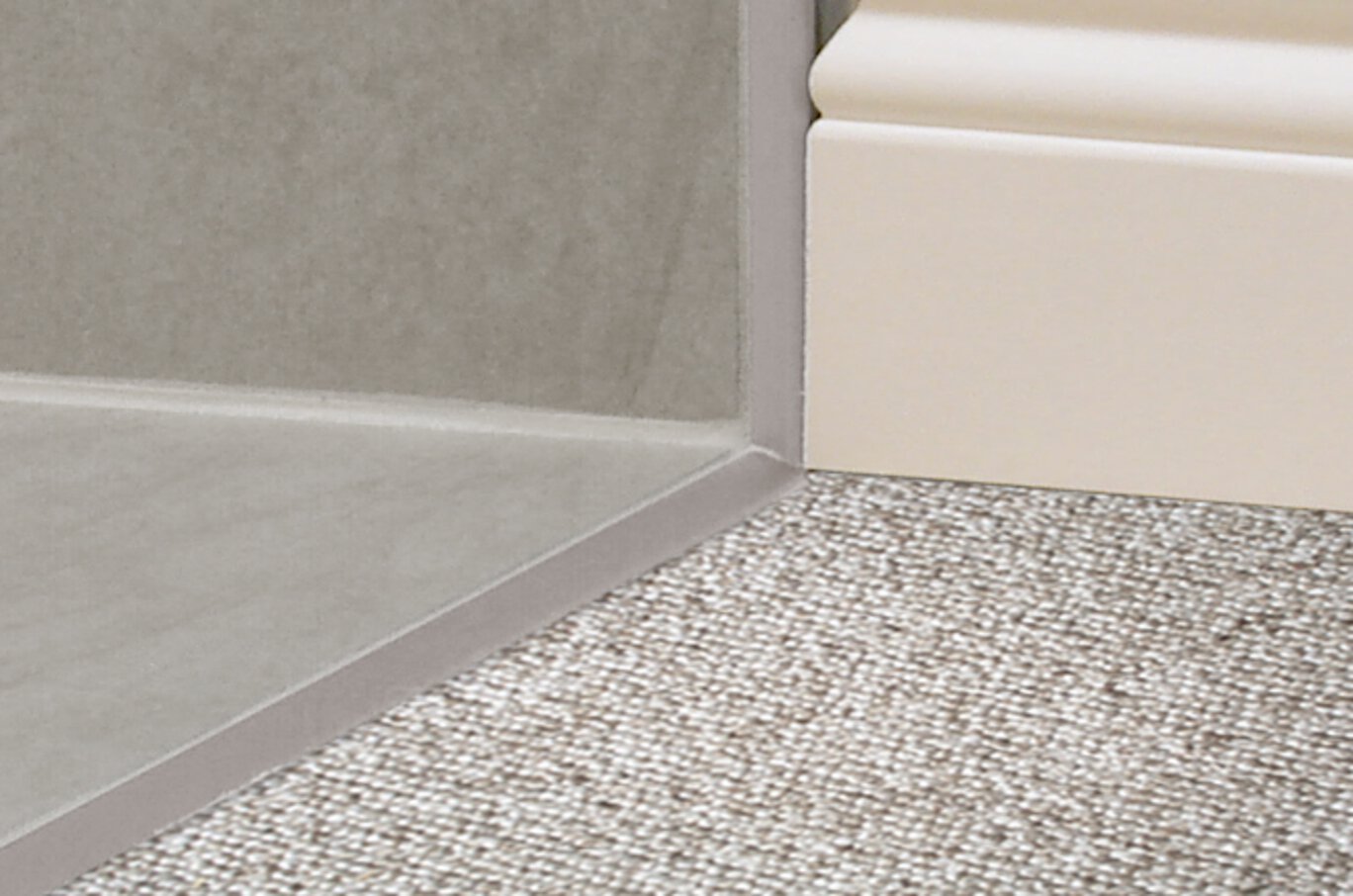

Create a smooth, ADA-compliant transition from tile to lower floor coverings with the Schluter RENO-TK profile. Made from durable anodized aluminum, it protects tile edges and hides carpet cut edges while reducing trip hazards across long runs.

---

Key Features:

• Smooth Transitions: Sloped design bridges tile to lower coverings like carpet to reduce trip hazards

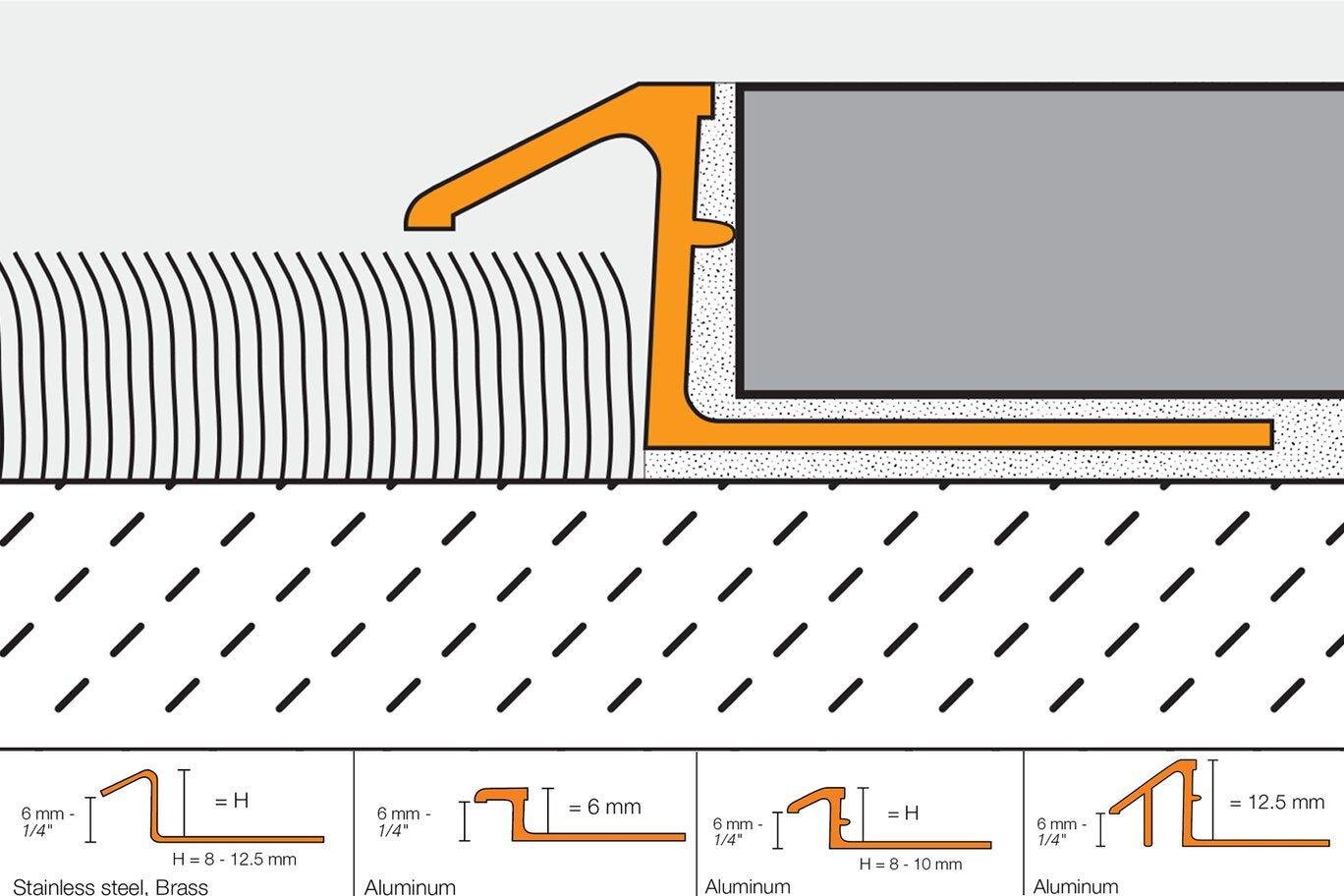

• Edge Protection: Trapezoid-perforated anchoring leg secures in thin-set to prevent tile edge chipping
• Integrated Carpet Channel: 1/4 in (6 mm) channel hides and protects carpet cut edge
• Durable Build: Anodized aluminum construction for long-lasting performance
• ADA-Compliant: All sizes meet ADA requirements for accessible flooring transitions

---

Specifications Table:

Specification	Details
Profile name	Schluter RENO-TK
Material	Anodized aluminum
Finish	Satin
Width	0.375 in
Length	98.5 in
Application	Transition from tile to lower floor coverings (typically carpet)
Edge protection	Trapezoid-perforated anchoring leg secures in mortar to protect tile edges
Carpet channel	1/4 in (6 mm) channel hides and protects carpet edge
Compliance	ADA-compliant
Integrated spacer	Yes (anodized aluminum versions)
Curved installations	Select sizes available with radius perforation (R)

---

Frequently Asked Questions (FAQ):

Q: What materials can RENO-TK transition between?
A: It is designed for transitions from tile to floor coverings at lower elevations, typically carpet.

---

Q: Is this profile ADA compliant?
A: Yes, all RENO-TK sizes are ADA-compliant.

---

Q: How is the profile installed?
A: The trapezoid-perforated anchoring leg is embedded in the mortar bond coat beneath the tile during installation.

---

Q: Does it include a spacer?
A: Yes, anodized aluminum versions feature an integrated joint spacer to establish a defined joint cavity.

---

Q: Can it be used on curves?
A: Certain solid brass and anodized aluminum sizes (60–100) offer a radius-perforated anchoring leg for forming curves.

---

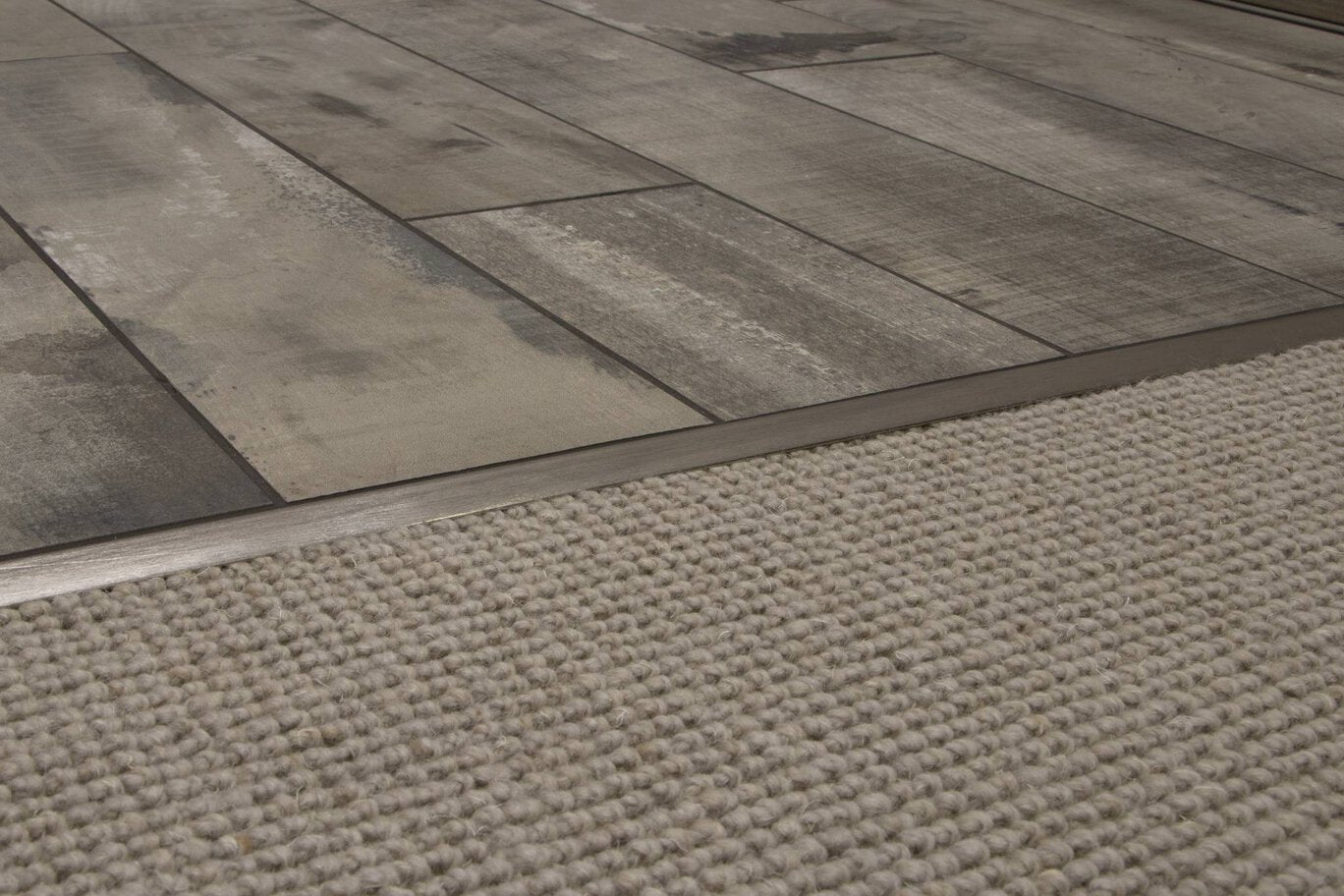

Seamless Transitions, Elevated Spaces

This sleek RENO-TK profile draws a graceful line between materials, bringing harmony to thresholds and entries. The satin anodized finish offers a refined, architectural accent while quietly protecting tile edges. Pair it with soft loop carpet against large-format porcelain for a tailored, gallery-like flow. It’s a discreet detail that signals polished, luxurious living.

---

Elevate your flooring with a clean, ADA-compliant transition—add RENO-TK to your project today.
