ReliaBilt

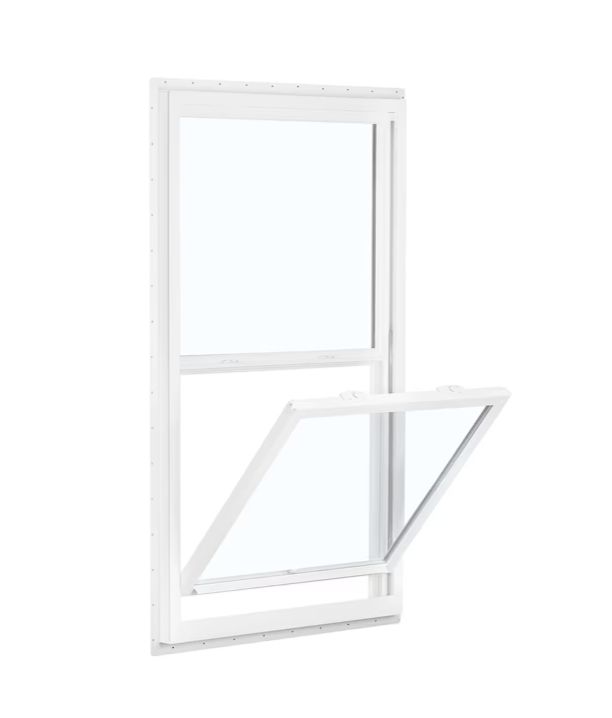

RELIABILT 150 Series New Construction 27-1/2-in x 53-1/2-in x 3-1/4-in Jamb White Vinyl Dual-pane Single Hung Window Half Screen Included
In stock
A human specialist prices every line
Questions on spec, quantity, or freight? Call 1.877.490.7099 or write hello@superarbor.com.
Buying more than one thing? Send the list — however you have itFreight and delivery are confirmed with you by a specialist — no surprise charges.
Details
The RELIABILT 150 Series single hung window is a top choice for new construction projects. Its brick mould exterior adds a touch of style to any home. Designed for both new construction and remodeling, this window comes with a pre-punched nail fin and J-channel for easy installation (J-channel not included in Series 160). The bottom sash tilts in and operates smoothly with its slim-line lift rail and block and tackle balance system. With a DP-50 rating (Design Pressure rating) on windows up to 36-in W x 74-in H, this window is highly durable. It also features energy-efficient Low-E glass that reflects heat in the summer and helps maintain warmth in the winter. The window is available in white with a half screen included, and can be customized with additional sizes, factory mulling, glass, wood jamb extensions, grid, and colors. Speak to your local sales associate for more information on custom options.
| Specification | Details |
|---|---|
| Color/Finish Family | White |
| Interior Color/Finish | White |
| Exterior Color/Finish | White |
| Series Name | 150 Series |
| Hardware Color/Finish | White |
| Dimensions | |
| Actual Height (Inches) | 53.5 |
| Jamb Depth (Inches) | 3.25 |
| Actual Size (W x H) | 27-1/2-in x 53-1/2-in |
| Jamb Depth Measurement | 3-1/4-in |
| Actual Width (Inches) | 27.5 |
| Overfit Flange Size | N/A |
| Clear Opening Height (Inches) | 22.8125 |
| Rough Opening Height (Inches) | 54.0 |
| Clear Opening Size (W x H) | 22-13/16-in x 22-11/16-in |
| Rough Opening Size (W x H) | 28-in x 54-in |
| Clear Opening Width | 22.6875 |
| Rough Opening Width (Inches) | 28.0 |
| Common Size (W x H) | 28-in x 54-in |
| TTT Flange Size | N/A |
| Grid Width | N/A |
| Weight | 37 |
| Features | |
| Argon Gas Insulated | No |
| J Channel | Integrated |
| Balance System | Block and tackle |
| Lock Type | Cam |
| Clear Opening Sq Ft | 3.59 |
| Design Pressure (DP) Rating | 50 |
| Mulling | N/A |
| For Use with Mobile Homes | No |
| Nail Fin | Integrated |
| Frame Material | Vinyl |
| Number of Locks | 2 |
| Frame Profile | Brick mould |
| Obscure Glass | No |
| Glass Insulation | Dual-pane |
| Paintable | No |
| Glass Strength | Single strength |
| Project Type | New construction |
| Glazing Type | Double pane |
| Screen Frame Type | Roll-form |
| Grid Included | No |
| Screen Included | Half |
| Grid Pattern | N/A |
| Screen Type | Fiberglass mesh |
| Grid Profile | N/A |
| Solar Heat Gain Coefficient (SHGC) | 0.29 |
| Grid Type | N/A |
| Tilt Mechanism | Flush |
| High Altitude Rated | No |
| Tilting | Yes |
| Impact Resistant | No |
| Ventilation Latches | N/A |
| Insect Screen Included | Yes |
| Wood Jamb Extension | None |
| Warranty | |
| Warranty | Limited lifetime |
