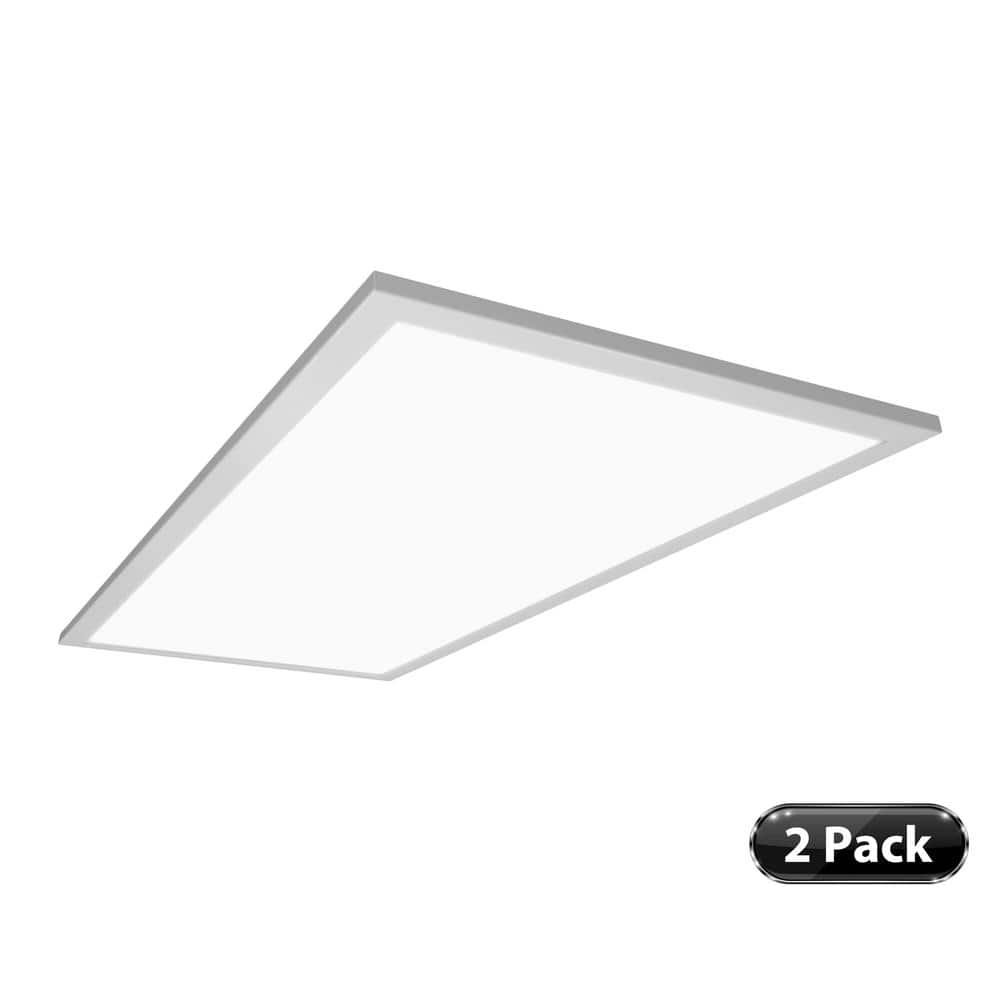

NICOR TGL1 LED Troffer 2-Pack, 4000K

Illuminate commercial spaces with NICOR's TGL1 Troffer, designed to provide high-performing, energy-efficient lighting solutions. This integrated LED fixture combines dual voltage capabilities with smooth, full-range dimming options. Ideal for offices or hospitals, it offers superior brightness with minimal maintenance, ensuring lasting performance and energy savings.

---

Key Features:

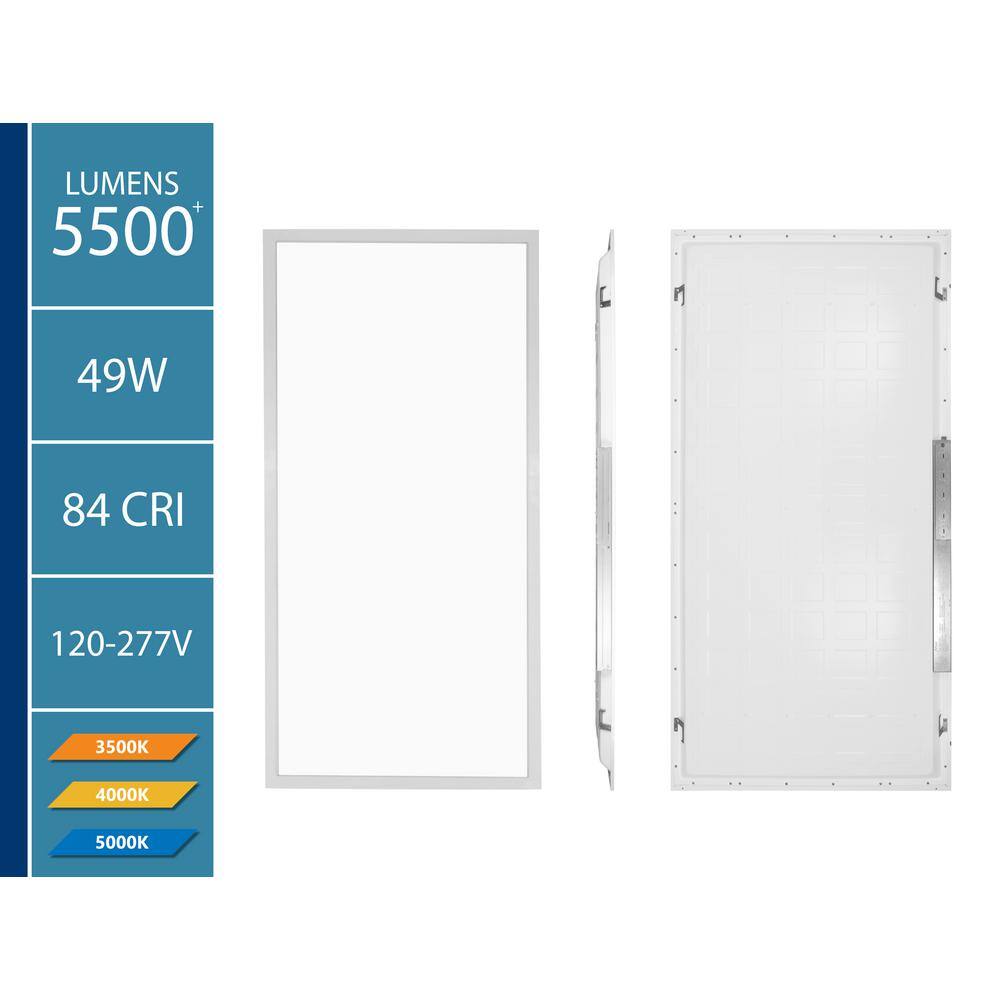

• Integrated LED: Delivers 5643 Lumens at just 49 watts, ensuring high energy efficiency without sacrificing brightness.
• Dual Voltage: Compatible with both 120VAC and 277VAC systems for versatile installation options.
• Dimmable: Offers full-range 0-10V dimming, allowing for customizable lighting atmospheres.
• Robust Construction: Sealed aluminum frame prevents dust and bug intrusion, enhancing long-term durability.
• DLC Listed: Suitable for damp locations and insulation contact (IC) rated, backed by a 5-year limited warranty.

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Actual Color Temperature (K)	4000
Color Rendering Index (CRI)	84
Color Temperature	Bright White
Color/Finish	White Powder Coat
Color/Finish Family	White
Damp/Wet Rating	Damp Rated (Covered Outdoor)
Dimmable Capability	Dimmable
Features	No Additional Features
Hub Required	No hub connection available
Included	Driver,Lens,Mounting Hardware
Light Bulb Type Included	Integrated LED
Location Use	Garage,Office,Warehouse
Lumens	5643
Material	Aluminum
Package Quantity	2
Power Options	Hardwired
Power Source	Hardwired

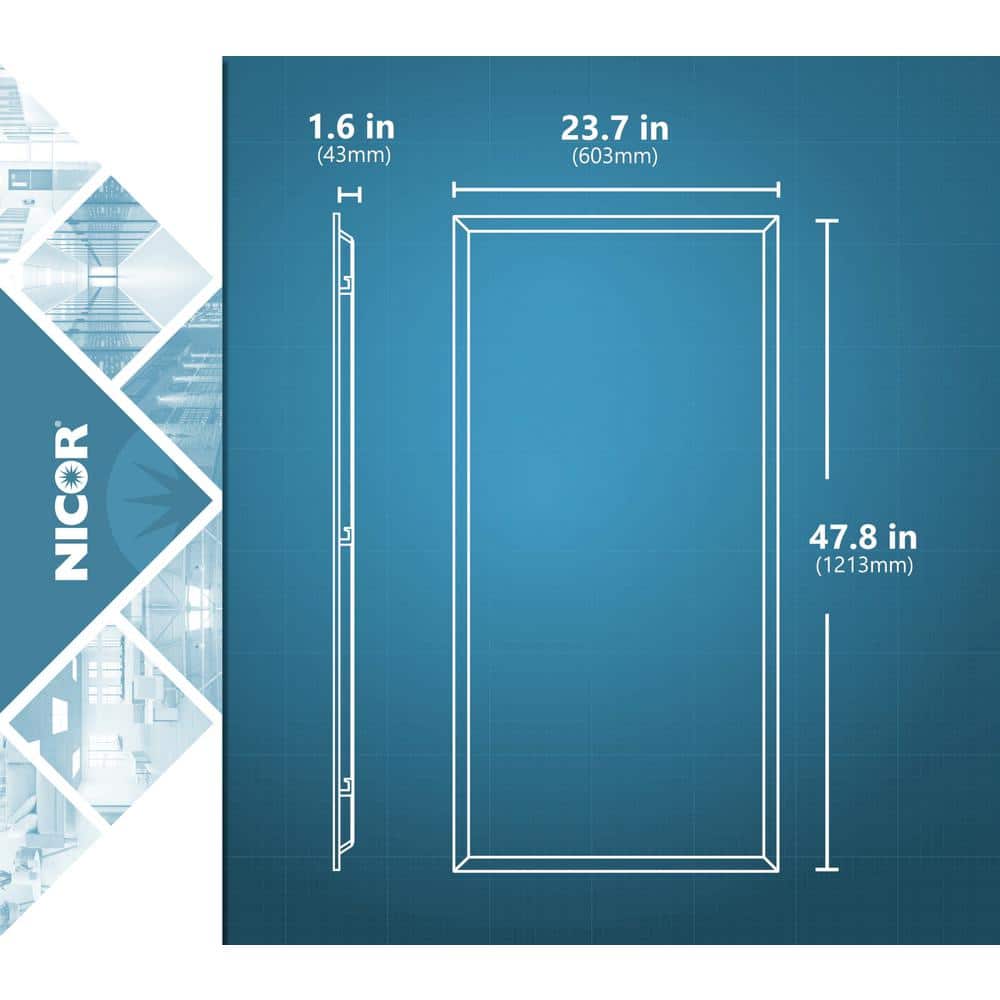

Product Length (ft)	3.98 ft
Product Weight (lb.)	8.1 lb
Product Width (ft)	1.98 ft
Recommended Mounting Height (ft.)	10 ft
Voltage (V)	120 V
Wattage (W)	49 W
Certifications and Listings	FCC Listed,IC Rated,ROHS,UL Listed,cUL Listed
Manufacturer Warranty	5 Year Limited Warranty
Product Height (in)	2.2
Product Length (in)	47.76 in
Product Width (in)	23.74

---

Frequently Asked Questions (FAQ):

Q: Can this troffer be used in damp locations?
A: Yes, the NICOR TGL1 Troffer is damp location rated, making it suitable for covered outdoor and high-humidity indoor environments.

---

Q: What is the warranty on this product?
A: NICOR offers a 5-year limited warranty, providing you peace of mind regarding the product's durability and performance.

---

Q: Is the fixture dimmable?
A: Yes, this fixture offers full-range dimmability using 0-10V dimming controls, allowing precise lighting adjustments.

---

Q: What type of mounting options are available?

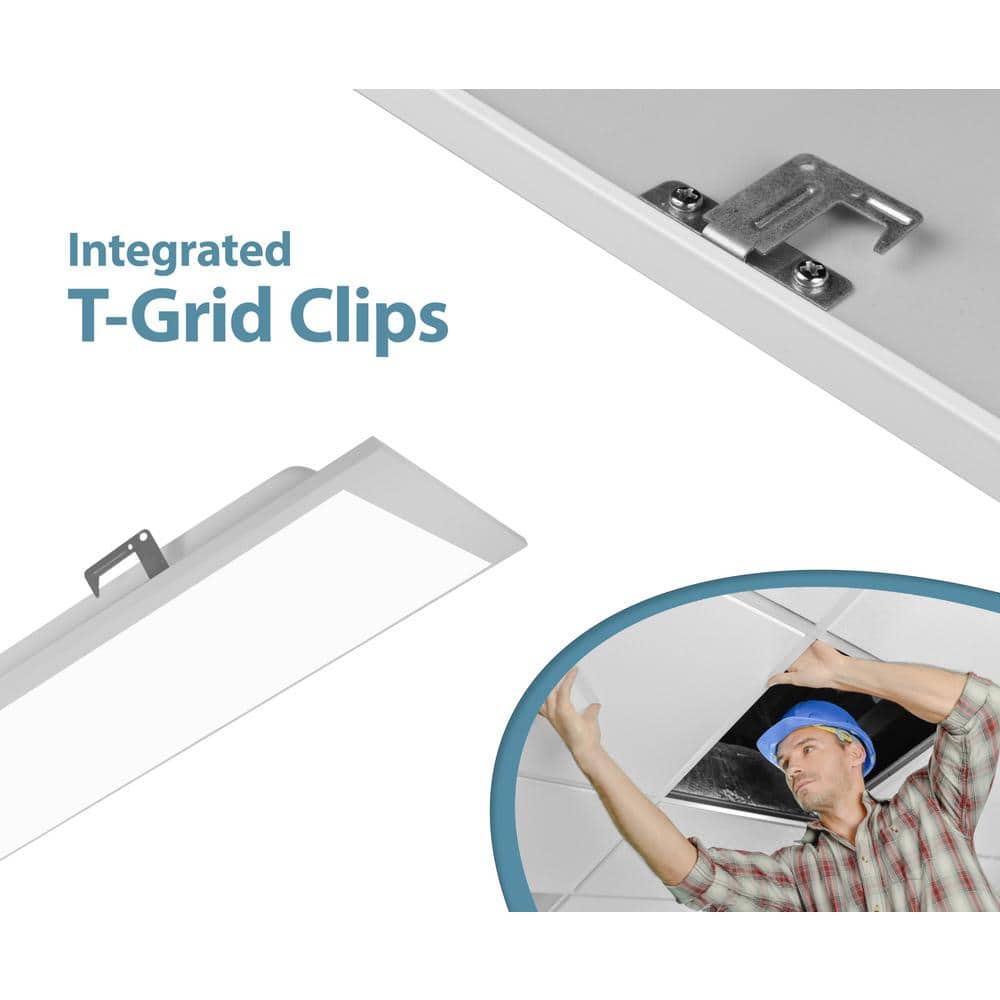

A: The TGL1 Troffer is designed for easy installation in suspended grid ceilings and is compatible with surface mount kits (sold separately).

---

Q: Does the fixture come with emergency backup options?
A: Yes, an emergency battery backup can be purchased separately for additional safety and functionality during power outages.

---

Elevate with Effortless Illumination

Transform any commercial interior with the NICOR LED Troffer—a masterpiece of modern efficiency and style. Its sleek, seamless aluminum construction blends beautifully into ceilings, creating an unobtrusive yet powerful beam of light. The precision-engineered diffuser softens the glow, casting an inviting ambiance over expansive office floors, hospitals, or warehouses. Pair it with minimalistic décor pieces to emphasize its chic simplicity. Envision every space flooded with this luxurious clarity, redefining how light harmonizes with design.

---

Experience the future of illumination with NICOR's TGL1 Troffer—upgrade your commercial space today and see the world in a new light.
