570Z Pro Series 4 in. Adjustable VAN Pop-Up Sprinkler, 15 ft.

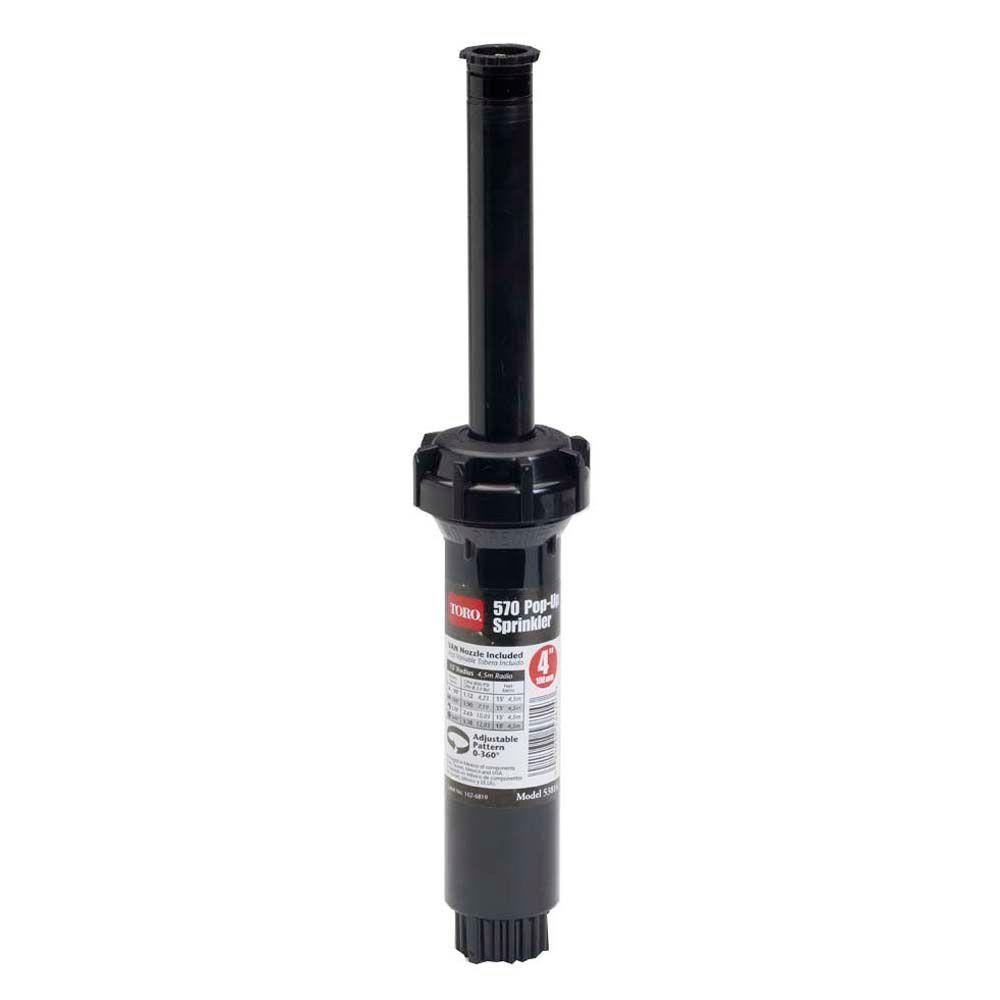

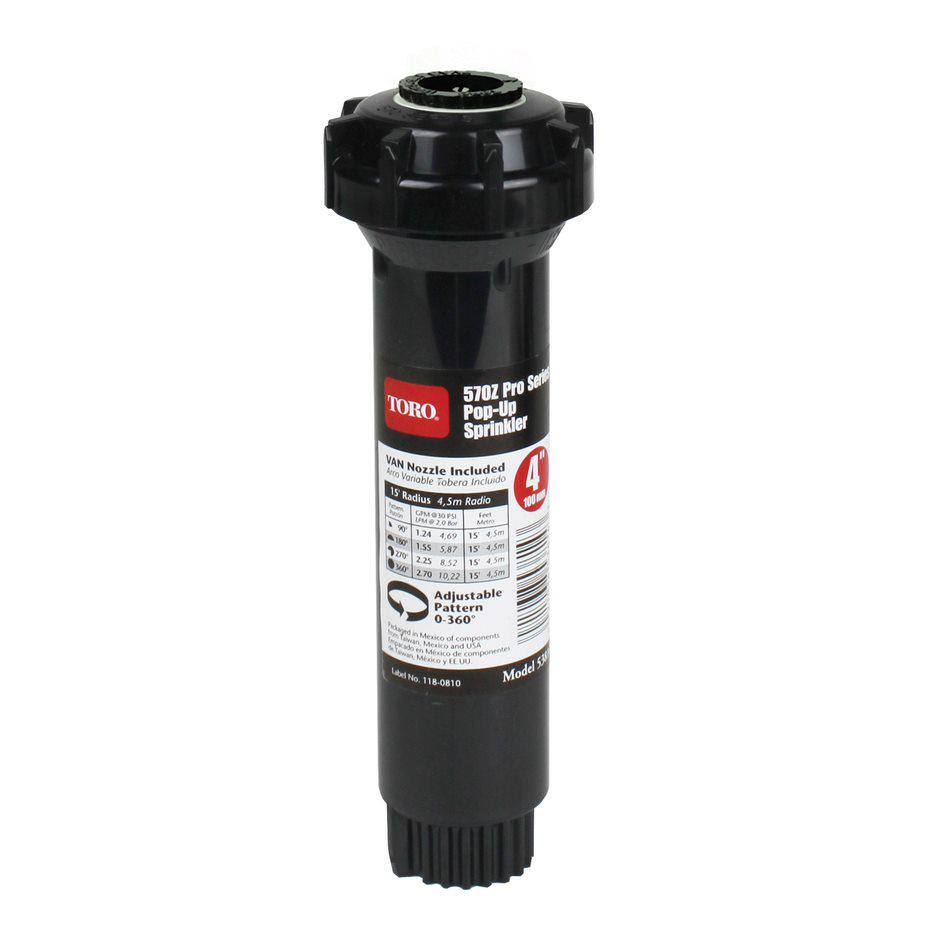

Toro’s 570Z Pro Series pop-up sprinkler delivers uniform coverage for small to medium lawns. The 4 in. pop-up with a pre-installed 15 ft. Variable Arc Nozzle adjusts from 0–360° and features a stainless-steel retraction spring and zero-flush seal to reduce water waste.

---

Key Features:

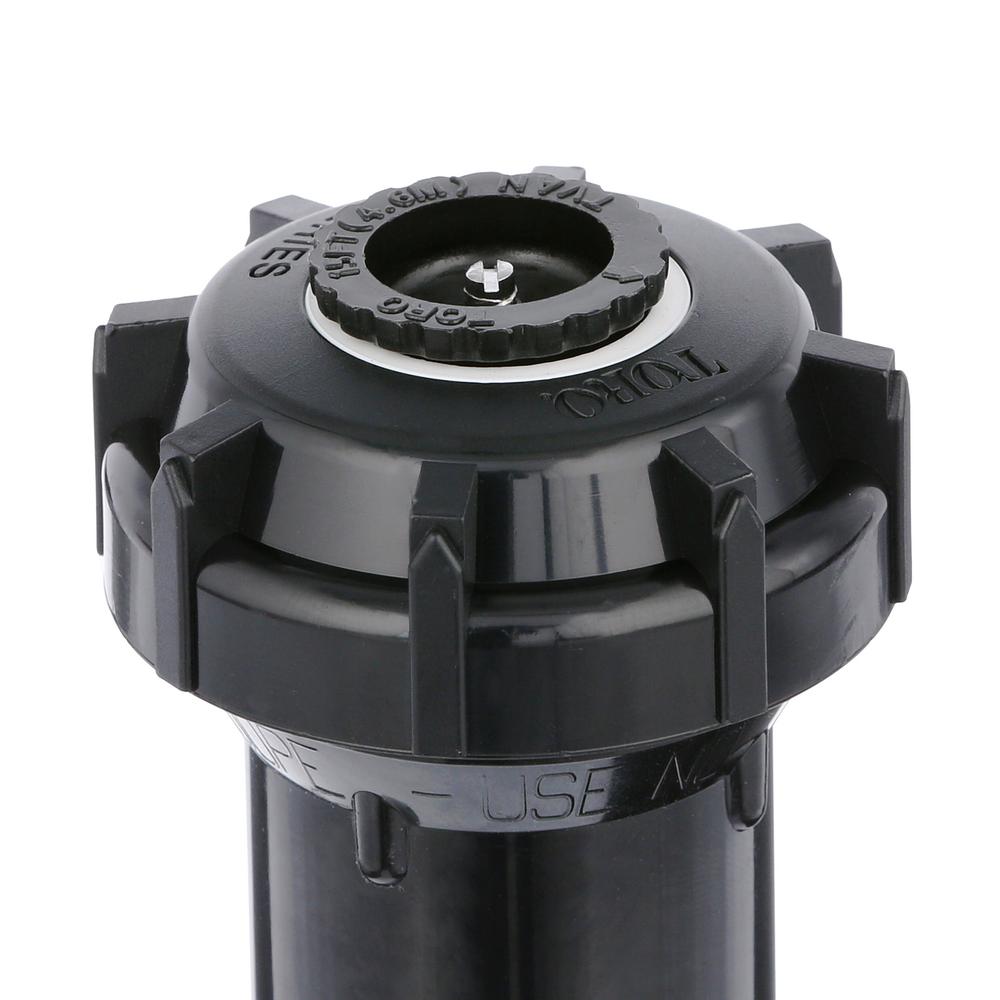

• Adjustable Coverage: Variable Arc Nozzle sets from 0–360° for custom watering patterns.
• Efficient Operation: Zero-flush seal and corrosion-resistant seal minimize water loss at start-up.
• Durable Build: Stainless-steel retraction spring with ABS body and nozzle for longevity.
• Easy Integration: 1/2 in. female-threaded inlet fits standard in-ground systems.
• Reliable Range: 15 ft. spray radius; matched precipitation rate for even distribution.

---

Specifications Table:

Specification	Details
Sprinkler Type	Pop-Up
Series	570Z Pro Series
Nozzle Type	Variable Arc Nozzle (VAN)
Spray Pattern	Adjustable 0–360°
Maximum Spray Distance (ft.)	15
Minimum Spray Distance (ft.)	11.25
Maximum Coverage Area (sq ft)	706.5
Maximum Gallons Per Minute	4.33
Pressure Rating (psi)	75
Sprinkler Angle	27°
Inlet Size	1/2 in.
Thread Type	Female NPT
Inlet Type	Female
Mounting	In-Ground Install
Location	Below ground
Head/Body Material	ABS Plastic
Nozzle Material	ABS Plastic
Features	Adjustable; Retraction Spring; Riser Not Required
Retraction Spring	Stainless steel
Seal	Zero-flush, corrosion-resistant
Pack Size	1
Product Height (in.)	6.3125
Product Width (in.)	2.0625
Product Depth (in.)	2.0625
Manufacturer Warranty	1 year
Pre-installed Nozzle	15 ft. nozzle, replaceable with any Toro nozzle
Matched Precipitation Rate	Yes

---

Frequently Asked Questions (FAQ):

Q: What spray distance and pattern does this head provide?
A: It includes a 15 ft. VAN nozzle that adjusts from 0–360° for full-circle or partial arcs.

---

Q: What inlet size does it use?
A: Standard 1/2 in. female-threaded inlet (Female NPT).

---

Q: Is it suitable for small lawn areas?
A: Yes—designed for small to medium lawn and shrub zones with even coverage.

---

Q: How does it reduce water waste?
A: A patented zero-flush seal and superior retraction spring help prevent water loss at start-up and ensure proper retraction.

---

Q: What materials is it made from?
A: ABS plastic body and nozzle with a stainless-steel retraction spring.

---

Precision Watering, Seamlessly Discreet

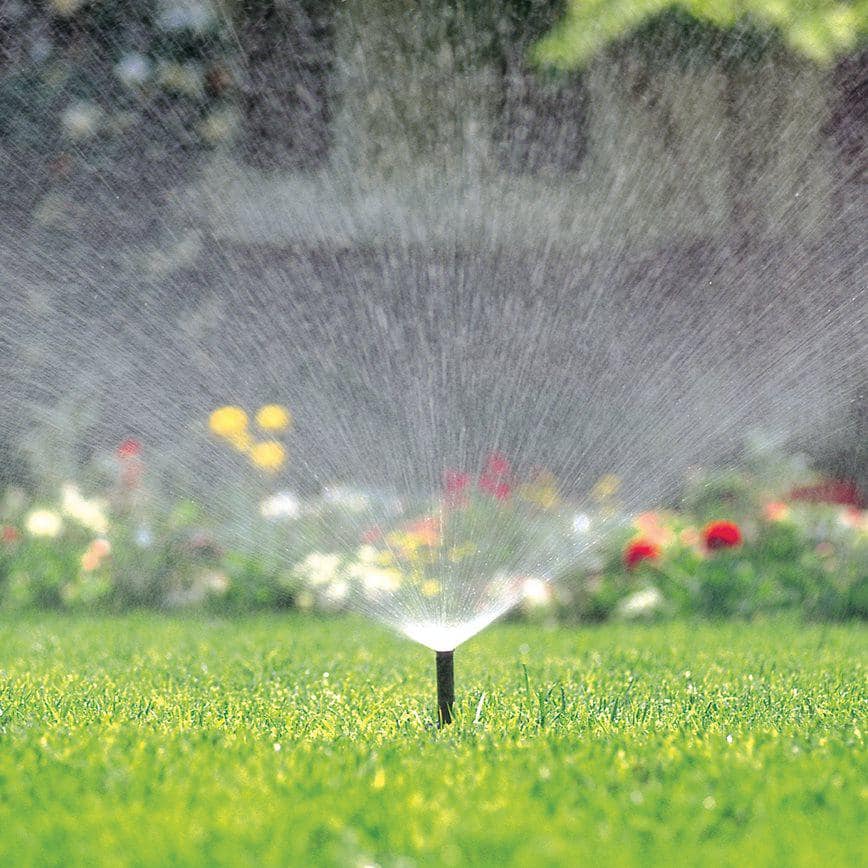

This compact pop-up sprinkler tucks into the landscape, delivering a perfect veil of water that keeps lawns lush without visual clutter. The adjustable 0–360° arc is the star—tailor the throw to garden beds and crisp edges for a groomed, resort-quality look. Pair several along pathways or borders to shape soft, even green vistas. It’s a quiet essential that elevates outdoor living with effortless polish.

---

Upgrade your irrigation with Toro’s 570Z Pro Series for adjustable, water-smart coverage that keeps your lawn pristine.
