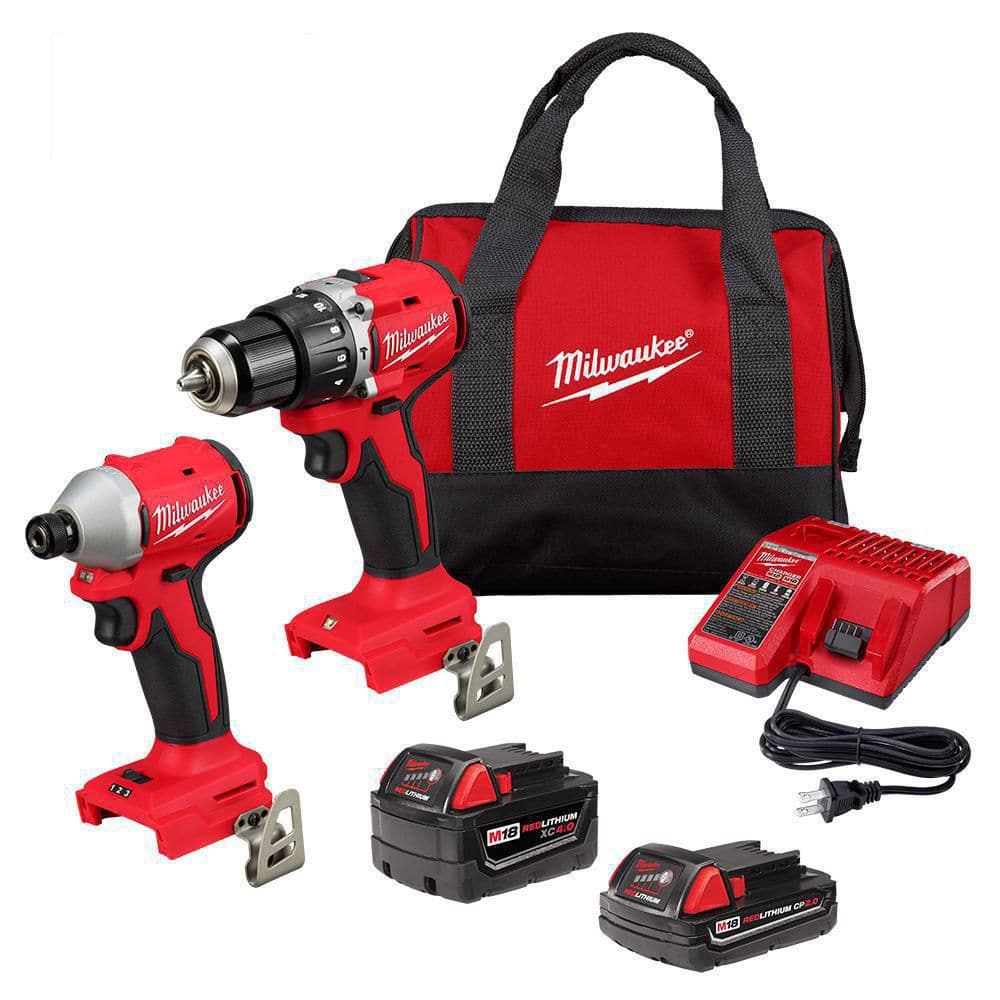

M18 Brushless Compact Drill/Impact Combo Kit with Batteries
Professional-grade compact drilling and driving power in one kit. Brushless motors with REDLINK Intelligence deliver efficient performance, long life, and compatibility across the M18 system, ideal for tight spaces and heavy-duty tasks.
Key Features:
-
Compact Performance: 5.8 in. hammer drill and 4.4 in. impact driver fit tight spaces without sacrificing power
-
Brushless Motors: Efficient power with up to 600 in-lbs (hammer drill) and 1,700 in-lbs (impact) of torque
-
Durable Build: All-metal gearcase and 1/2 in. metal chuck for long-lasting reliability
-
Faster Work: Impact driver up to 3,600 RPM with 3-mode DRIVE CONTROL for precision
-

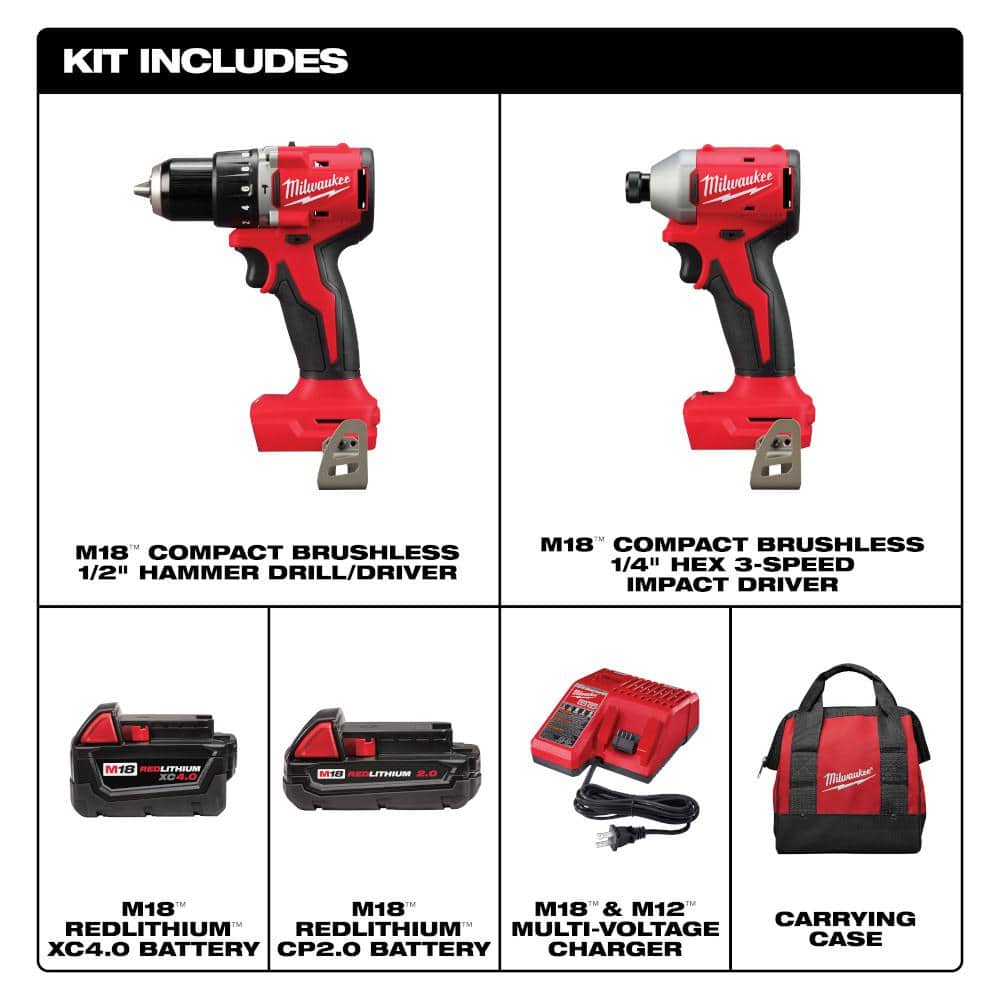

Complete Kit: Includes XC4.0 and CP2.0 REDLITHIUM batteries, M18/M12 multi-voltage charger, and contractor bag
Specifications Table:
| Specification |
Details |
| Battery Power Type |
Lithium Ion |
| Battery Voltage (V) |
18V |
| Voltage (V) |
18 V |
| Charger Included |
Charger Included |
| Color Family |
Red |
| Cordless Tool Type |
Combo Kit |
| Cordless/Corded |
Cordless |
| Included |
Tool Bag; Battery Included; Charger |
| Motor Type |
Brushless |
| Number of Tools (Bonus Tool Not Included) |
2 |
| Number of Total Batteries Included |
2 |
| Power Tool Features |
Variable Speed |
| Tools Included |
Hammer Driver Drill; Impact Driver |
| Tools Product Type |
Power Tool |
| Certifications and Listings |
UL Listed |
| Manufacturer Warranty |
5 Year Tool, 3 Year XC Battery, 2 Year CP Battery |

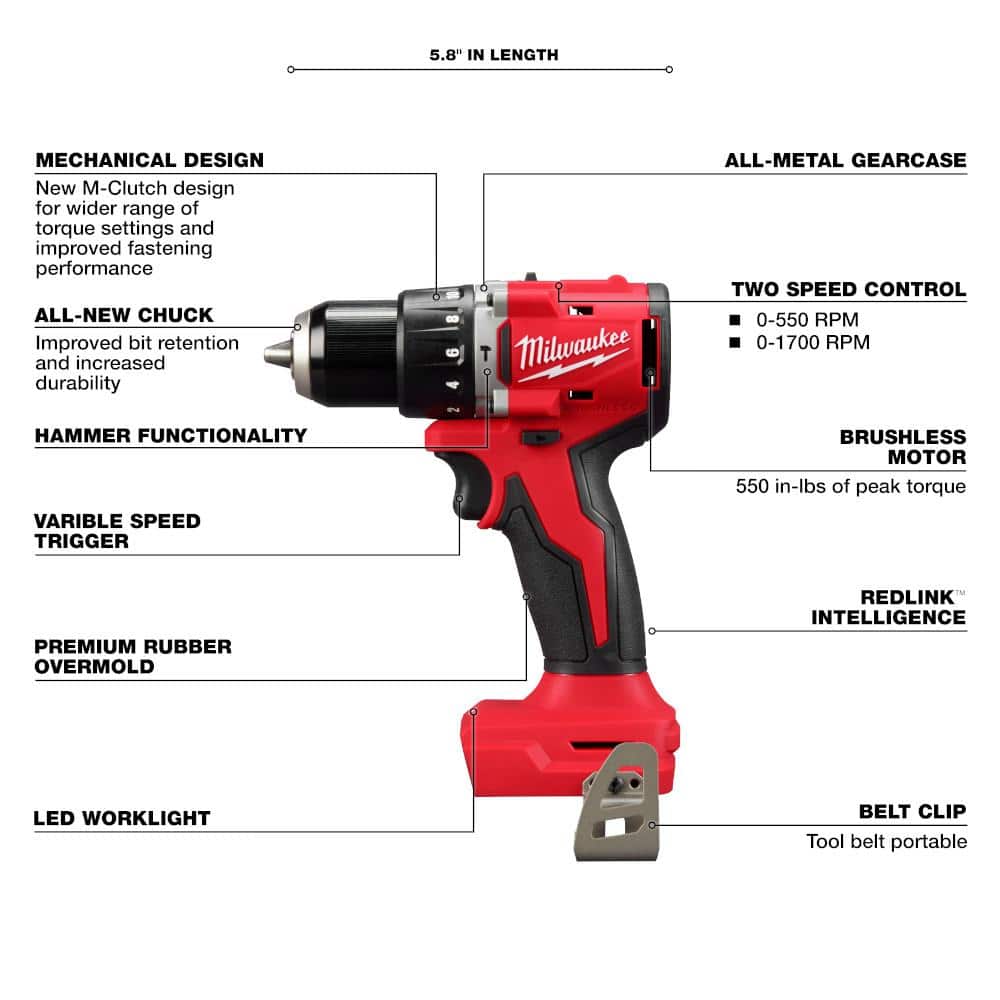

| Hammer Drill Length |
5.8 in |

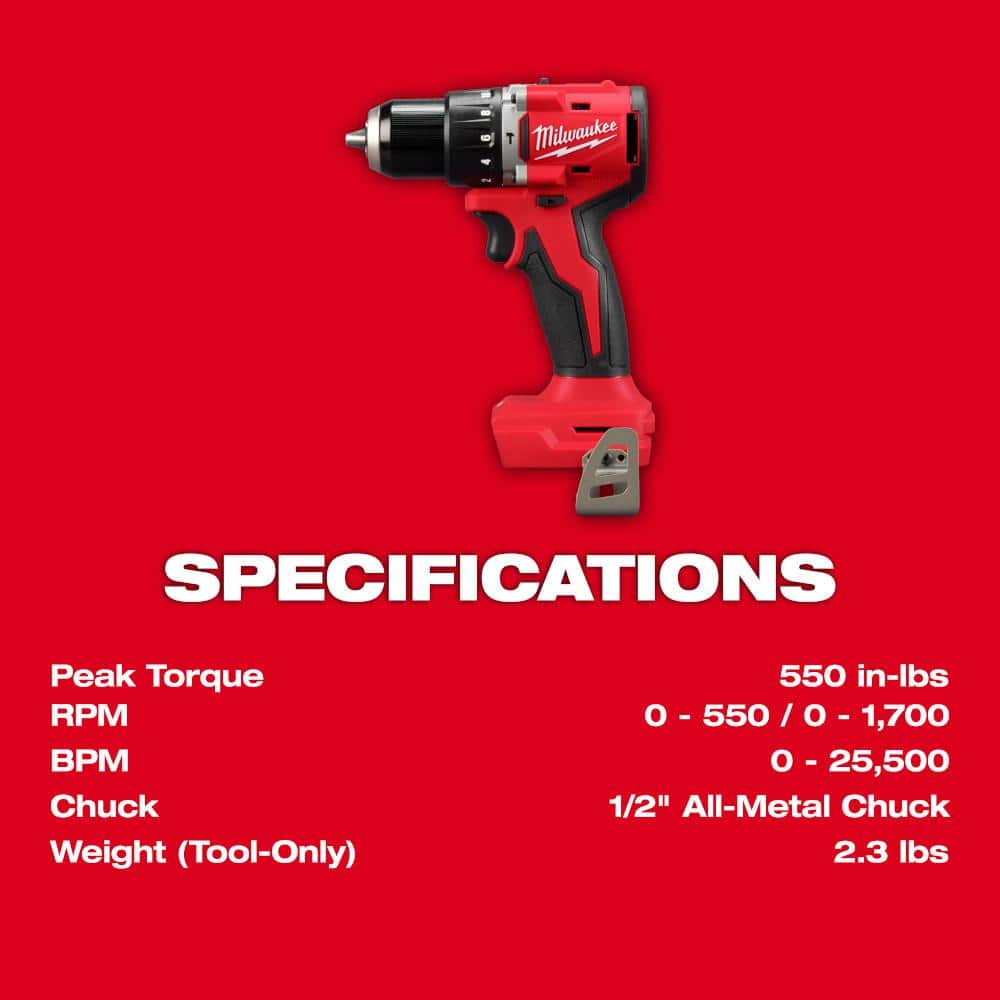

| Hammer Drill RPM |
0–550 / 0–1,700 RPM |
| Hammer Drill Peak Torque |
600 in-lbs (image copy shows 550 in-lbs; see review note) |

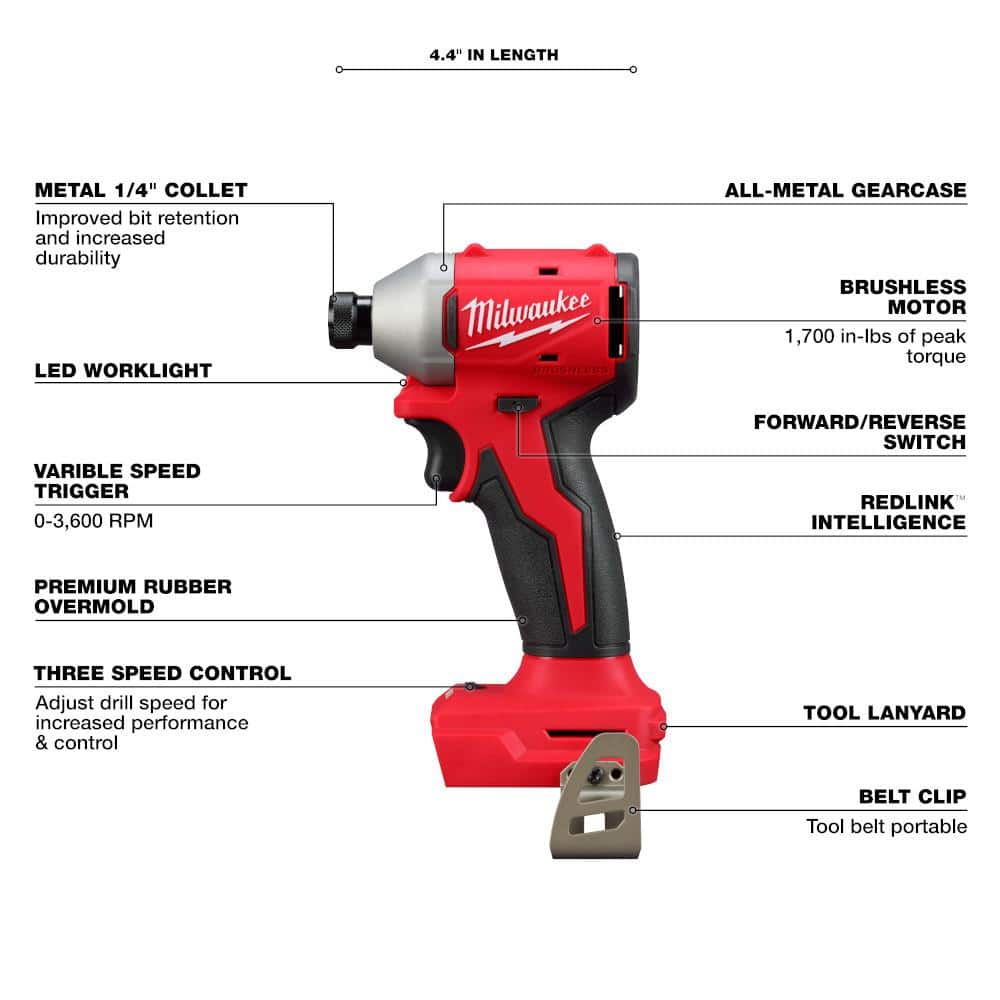

| Impact Driver Length |
4.4 in |
| Impact Driver Width |
2.1 in |

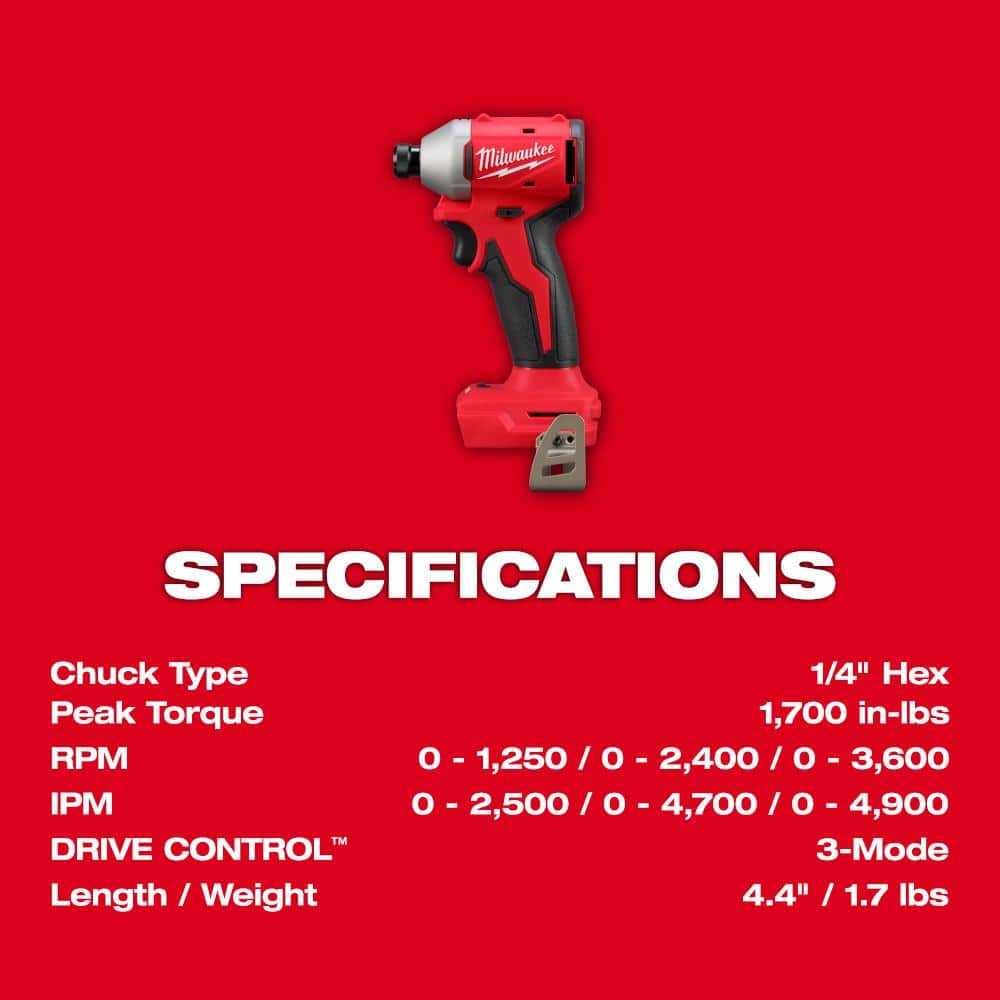

| Impact Driver Peak Torque |
1,700 in-lbs |
| Impact Driver RPM |
0–1,250 / 0–2,400 / 0–3,600 RPM |
| Impact Driver DRIVE CONTROL |
3-Mode |
| Impact Driver Collet |
1/4 in Hex |
| Hammer Drill Chuck |
1/2 in All-Metal Chuck |
| Platform Compatibility |
M18 System |
Frequently Asked Questions (FAQ):
Q: What tools are included?
A: An M18 Compact Brushless 1/2" Hammer Drill, an M18 Compact Brushless 1/4" 3-Speed Impact Driver, two REDLITHIUM batteries (XC4.0 and CP2.0), an M18/M12 multi-voltage charger, and a contractor bag.
Q: Are these tools compatible with other Milwaukee batteries?
A: Yes, they are part of the M18 system and work with all M18 REDLITHIUM batteries.
Q: What are the main speed/torque specs?
A: Hammer drill: 0–550/0–1,700 RPM, up to 600 in-lbs torque; Impact driver: 0–1,250/0–2,400/0–3,600 RPM, 1,700 in-lbs torque.
Q: Is a charger included?
A: Yes, an M18/M12 multi-voltage charger is included.
Q: What warranty is provided?
A: 5-Year tool warranty, 3-Year XC battery warranty, 2-Year CP battery warranty.
Compact Power, Red Signature Style
This kit brings a refined, purpose-driven aesthetic to the workshop—sleek, compact, and undeniably powerful. The bold Milwaukee red punctuates its streamlined silhouette, while the all-metal chuck and gearcase speak to quality and longevity. Style it on a wall-mounted tool rail for easy access and a clean, professional look. For the discerning builder, it’s a quintessential blend of performance and polish—an everyday luxury in your craft.
Equip your workspace with Milwaukee’s compact brushless power and tackle every project with speed, control, and durability.
