Makita 6-1/2 in. Plunge Circular Saw + Guide Rail Connector Kit

Precise plunge-cutting power with a 12-amp motor and variable speed delivers smooth, splinter-free results. Includes the 55 in. guide rail and P-45777 connector kit for extended, dead-straight cuts on wood panels and cabinetry.

---

Key Features:

• Powerful Motor & Control: 12-amp motor with variable speed dial (2,000–5,200 RPM) maintains constant speed under load

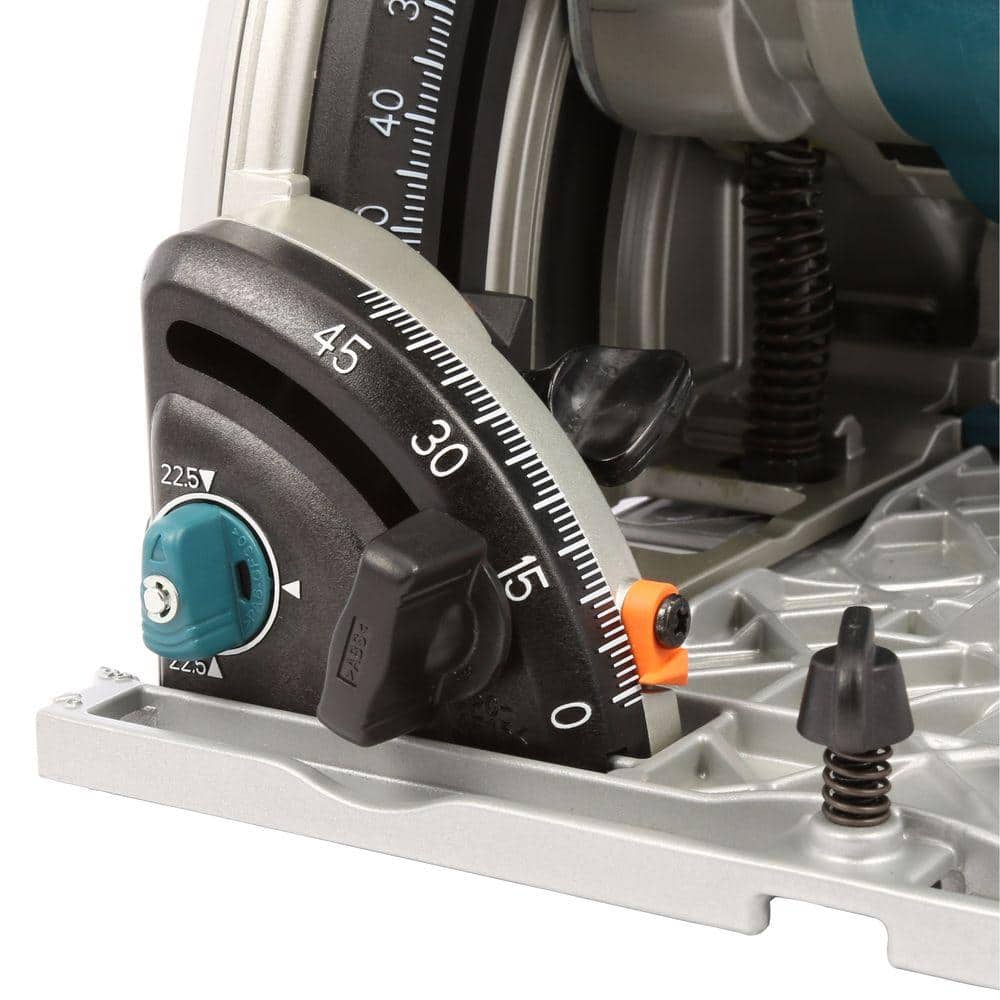

• Large Cutting Capacity: Cuts up to 2-3/16 in. at 90° and 1-9/16 in. at 45° with -1° to 48° bevel and positive stops at 22.5° and 45°

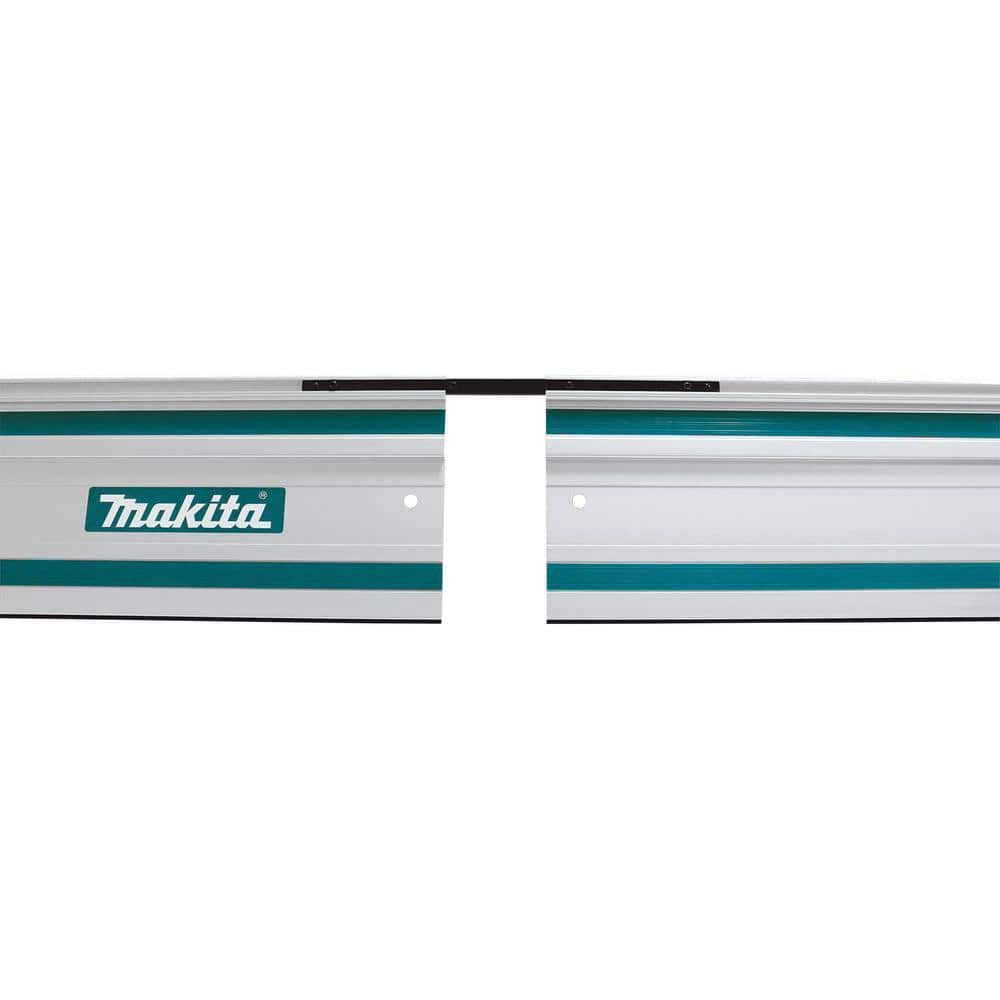

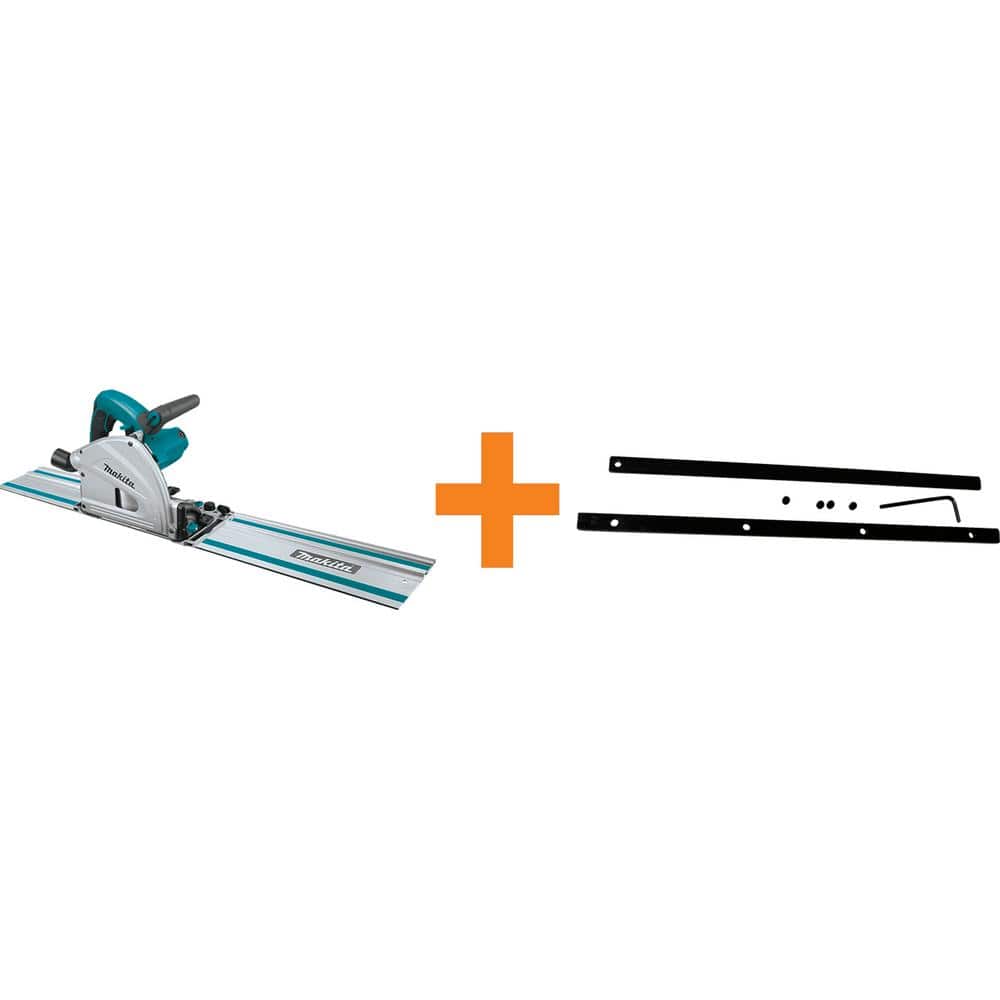

• Precision Track Cutting: 55 in. guide rail plus connector kit joins rails for longer straight or bevel cuts; compatible with select competitor rails
• Clean Work Area: 1-1/2 in. dust port connects to vacuums to direct debris away for better visibility

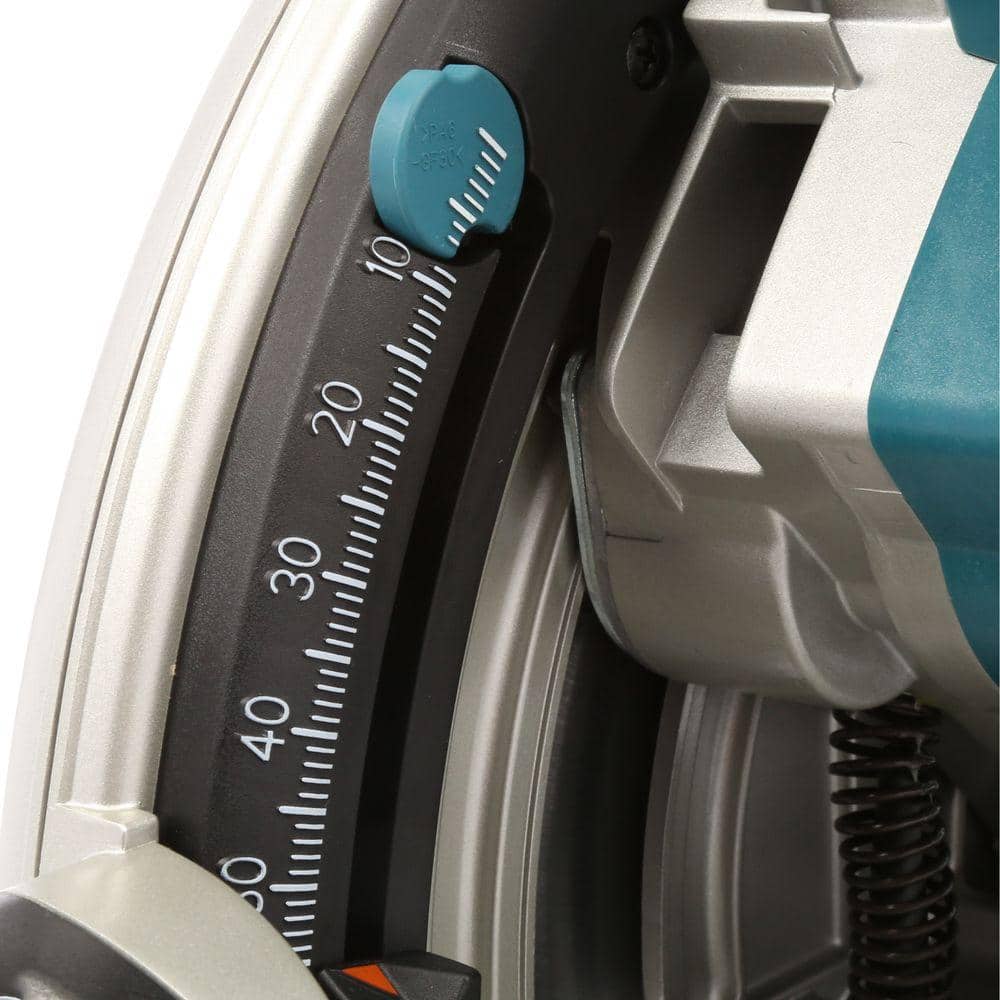

• User-Friendly Features: Soft start, easy depth adjustment, dual bevel supports, and locking lever for quick blade changes

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Amperage	12 A
Maximum Speed	5200 RPM
Variable Speed Range	2000–5200 RPM
Blade Diameter	6-1/2 in
Bevel Capacity	-1° to 48°; positive stops at 22.5° and 45°
Maximum Cut Depth at 90°	2-3/16 in (2.188 in)
Maximum Cut Depth at 45°	1-9/16 in (1.563 in)
Blade Location	Right
Cord Length	7.9 ft
Corded/Cordless	Corded
Tool Type	Circular Saw
Cuts Through	Wood
Included Accessories	6-1/2 in 48T carbide blade, hex wrench, 55 in guide rail, guide rail connector kit (P-45777), stackable tool case
Power Tool Features	Depth adjustment, keyed blade change, spindle lock, soft start, built-in current limiter
Dust Port	1-1/2 in O.D.
Close-to-Wall Cutting	11/16 in
Bevel Support	Dual front and rear supports
Product Dimensions (W x H x D)	11.7 in x 12.4 in x 15.5 in
Color Family	Teal
Construction Material	Magnesium components; plastic housing
Saw Drive Type	Sidewinder
Certifications and Listings	UL Listed
Manufacturer Warranty	1 Year
Compatibility (Connector Kit)	For Makita 118 in (194367-7), 55 in (194368-5), 39 in (199140-0) rails; compatible with Festool, Bosch, DEWALT rails

---

Frequently Asked Questions (FAQ):

Q: What’s included in the kit?
A: Circular saw, 6-1/2 in. 48T carbide blade, hex wrench, 55 in. guide rail, guide rail connector kit (P-45777), and stackable tool case.

---

Q: Can the saw connect to a vacuum?
A: Yes, it has a 1-1/2 in. dust port that connects to most vacuum systems.

---

Q: What materials can it cut?
A: Designed primarily for wood and wood-based panels; use appropriate blades for specific materials.

---

Q: What are the bevel capabilities?
A: Bevel from -1° to 48° with positive stops at 22.5° and 45° for repeatable cuts.

---

Q: Is there a warranty?
A: Yes, it carries a 1-year manufacturer warranty.

---

Architectural lines, flawless cuts

This plunge saw glides with couture precision, turning raw panels into tailored planes. The magnesium build and track system deliver crisp, splinter-free edges that feel bespoke. Pair it with extended rails to choreograph long, uninterrupted cuts across cabinetry or wall paneling. It’s the essential instrument for elevated, modern craft.

---

Elevate your finish—add this Makita plunge saw kit to your cart for precision, clean cuts, and pro-level control.
