Bosch PL1632 3-1/4-in (3.25-in) 6.5-Amp Handheld Planer
Regular price $0.00Bosch 6.5-Amp 3-1/4-in Handheld Planer
The Bosch PL1632 handheld planer delivers fast, even stock removal with a durable 6.5-amp motor spinning at 16,500 RPM. Precision-machined aluminum shoes, a ratcheting depth knob to 1/16 in., and a dual-mount fence with no-mar overshoe help achieve smooth, accurate results on doors, edges, and panels.

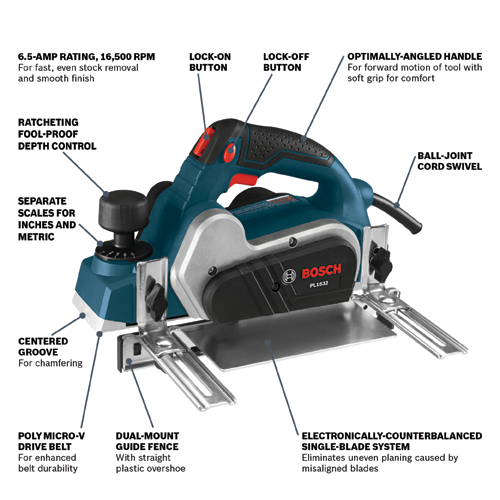

Key Features:
- Powerful Performance: 6.5-amp motor at 16,500 RPM for quick stock removal and smooth finishes

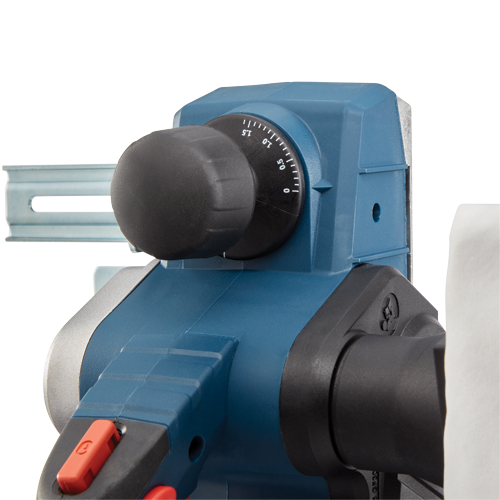

- Precision Control: Ratcheting depth knob sets 0–1/16 in. increments with separate inch/metric scales
- Guided Accuracy: Dual-mount guide fence with protective shield and no-mar overshoe for consistent planing
- Clean, Convenient Use: Dust port with large shavings bag compatibility and ball-joint cord swivel for maneuverability
- Durable Cutting System: Reversible Bosch Woodrazor micrograin carbide blade with electronically counterbalanced single-blade design
Specifications Table:
| Specification | Details |
|---|---|
| Model | PL1632 |
| Amperage | 6.5 A |
| No Load RPM | 16,500 RPM |
| Planing Width | 0" - 3.25" (3-1/4 in.) |
| Planing Depth | 0" - 0.0625" (0–1/16 in.) |
| Rabbet Depth | 5/16" |
| Rabbet Width | 3-1/4" |
| Voltage/Rating | 120V AC |
| Variable Speed | No |
| Height | 6.5 in |
| Length | 11.4 in |
| Width | 6 in |
| Weight | 6.7 lb |
| Case Type | No Case Included |
| Works With | Bosch Anti-Static Vacuum Hoses (VH1635A via included adapter), VAC008 and most 35 mm anti-static hoses; VH1035/VH1635 via VX120 adapter; VAC005/VAC006 and most 35 mm hoses; VAC002 or VAC024 (1-1/4 in. and 1-1/2 in. adapters); VAC020 (2-1/2 in. adapter); PA1009 3-Degree Fence Overshoe |
| Includes | PL1632 Planer; PA1202 Reversible Woodrazor Blade; Dual-Mount Guide Fence; No-Mar Plastic Overshoe; Shavings Bag; Blade Wrench |
| Special Features | Ambidextrous lock-off/lock-on buttons; Electronically counterbalanced single-blade system; Aluminum front and rear shoes; Ratcheting depth knob; Chamfer groove; Poly micro-V drive belt; Ball-joint cord swivel |
Frequently Asked Questions (FAQ):
Q: What is the maximum planing width and depth?
A: Planing width is up to 3-1/4 in. and depth is 0 to 1/16 in. per pass.
Q: Does it have variable speed?
A: No, the PL1632 operates at a fixed no-load speed of 16,500 RPM.
Q: What accessories are included?
A: Included: PL1632 planer, PA1202 reversible Woodrazor blade, dual-mount guide fence, no-mar plastic overshoe, shavings bag, and blade wrench.
Q: What dust hose sizes will it connect to?
A: Works with Bosch VAC005/VAC006, VH1035/VH1635 (via adapters), VAC002/VAC024 for 1-1/4 in. and 1-1/2 in. hoses, and VAC020 for 2-1/2 in. hoses; also fits many 35 mm hoses.
Q: How much does the tool weigh?
A: Approximately 6.7 lb.
Sculpt Wood with Sleek Precision
This compact Bosch planer glides with a tailored confidence, turning rugged edges into refined planes in a single, silken pass. The precision-machined aluminum shoes and elegant chamfer groove bring couture-like detailing to cabinetry and doors. Style it with a dust bag for pristine workshops and use the dual-mount fence to trace impeccably straight, architectural lines. It’s a discreet powerhouse—an essential instrument for a polished, luxurious finish.
Elevate your finish—add the Bosch PL1632 to your toolkit for fast, precise planing on every project.
