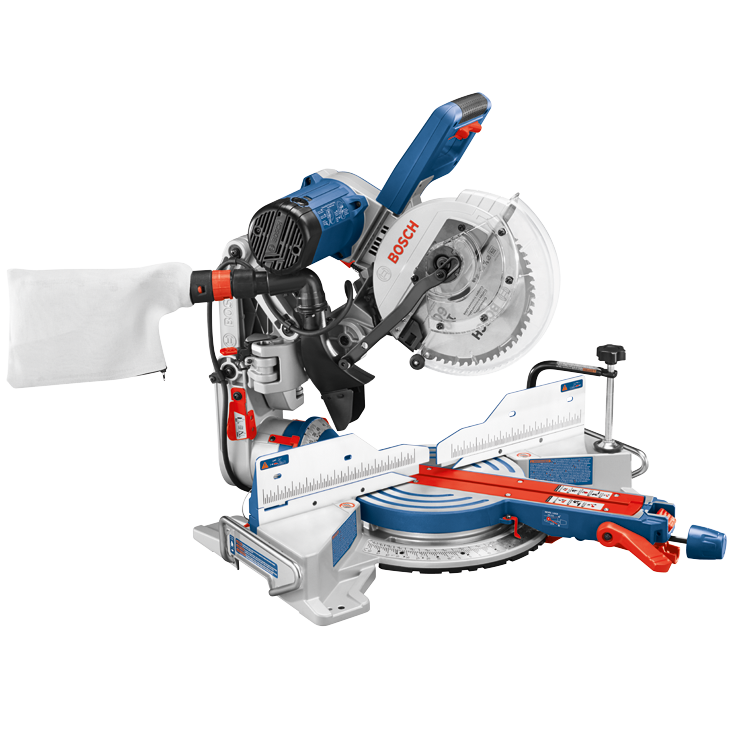

Bosch 10" Dual‑Bevel Glide Miter Saw, 15A

The Bosch CM10GD delivers precise, compact cutting with its Axial‑Glide System and powerful 15‑amp motor. A 10-inch blade, upfront bevel controls, and tall sliding fences provide wide cut capacities for crown and base molding while maintaining a reduced front-to-back footprint.

---

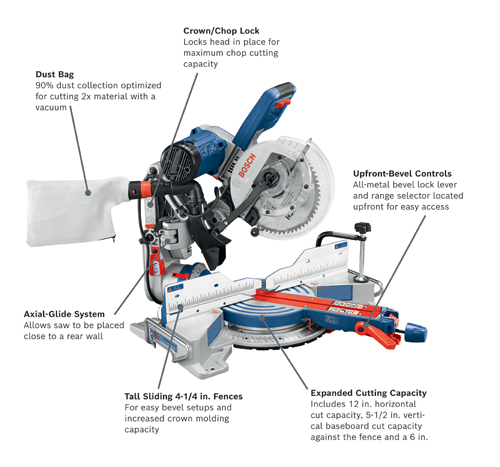

Key Features:

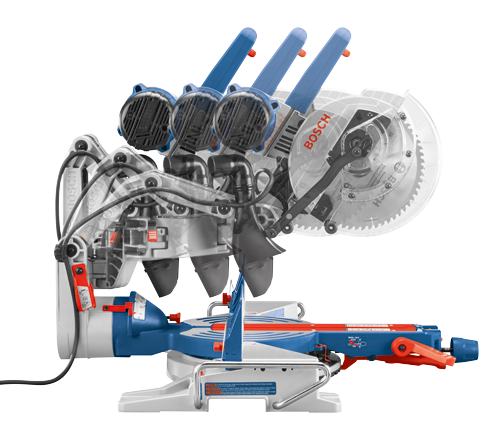

• Axial‑Glide System: Compact, smooth glide reduces front‑to‑back footprint versus rail slide saws
• Powerful Motor: 15‑amp, 4,800 no‑load RPM for professional‑grade cutting
• Wide Cut Capacities: 12 in. horizontal, 5-1/2 in. vertical baseboard, and up to 6 in. crown nested

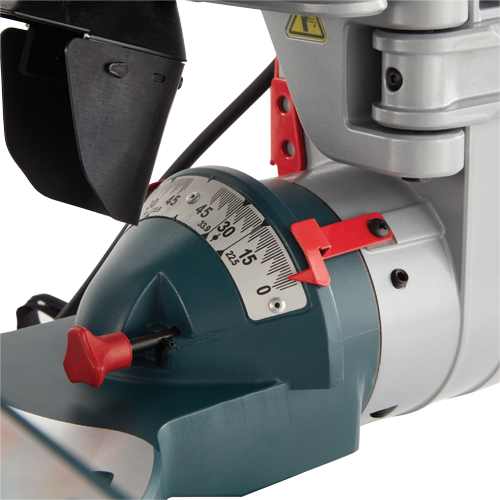

• Upfront Controls: Bevel lock lever and range selector positioned upfront for quick adjustments
• Dust Collection: Category‑best up to 90% when connected to a vacuum

---

Specifications Table:

Specification	Details
Model	CM10GD
Amperage	15 A
Blade Diameter	10 in
Blade Size	10"
No‑Load RPM	4,800
Voltage	120V
Bevel Angle Range	47° left and 47° right
Bevel Stops	0°, 33.9°, 45°, 47° (L/R)
Miter Angle Range	52° left, 60° right
Miter Detents	0°, 15°, 22.5°, 31.6°, 45° (L/R), 60° (Right)
Miter Positive Stops	0°, 15°, 22.5°, 31.6°, 45° (L/R), 60° (Right)
Dust Collection	Yes; optimized up to 90% with vacuum
Electric Motor Brake	Yes
Height	20.5 in
Length	32 in
Width	26.5 in
Depth Front‑to‑Back (not including arm)	30 in
Table Height from Base	4 in
Max Cut Capacity (0° miter, 0° bevel)	3‑1/8 in x 12 in (4x12 with adjustable depth stop)
Max Cut Capacity (0° miter, 45° left bevel)	1‑1/2 in x 12 in (2x12)
Max Cut Capacity (0° miter, 45° right bevel)	1 in x 12 in (1x12)
Max Cut Capacity (45° miter, 0° bevel)	3‑1/8 in x 8 in (4x8 with adjustable depth stop)
Max Cut Capacity (45° miter, 45° left bevel)	1‑1/2 in x 8 in (2x8)
Max Cut Capacity (45° miter, 45° right bevel)	1 in x 8 in (1x8)
Max Base Molding Against Fence	3‑1/4 in (5‑1/2 in from 0° to 47° left)
Max Crown Molding (38° spring)	5‑1/4 in angled against fence
Max Crown Molding (45° spring)	6 in angled against fence
Works With	Bosch miter saw stands T1B, T4B, GTA3800; side-support extension bars MS1238; crown molding stops MS1233; Bosch vacuum hoses and adapters (see list)
Includes	10 in 60‑Tooth carbide‑tipped blade, wrench, work clamp, dust bag, vacuum adapter/elbow

---

Frequently Asked Questions (FAQ):

Q: Does this saw include a blade?
A: Yes. It includes one 10 in. 60‑tooth carbide‑tipped saw blade.

---

Q: What is the bevel range?
A: 47° left and 47° right, with detents at 0°, 33.9°, 45° and 47° (L/R).

---

Q: What are the miter angles and detents?
A: Miter range is 52° left and 60° right with detents at 0°, 15°, 22.5°, 31.6°, 45°, and 60° (right).

---

Q: Does it have an electric brake?
A: Yes, it includes an electric motor brake.

---

Q: What accessories are included?
A: Blade, wrench, work clamp, dust bag, and vacuum adapter/elbow.

---

Precision cuts meet sculptural form

With its axial‑glide arms, this miter saw feels like a piece of engineered sculpture, bringing smooth, exacting movement to every cut. The tall fences and upfront controls are standout details that make complex angles effortless. Style it on a sturdy stand with clean shop lighting to showcase its streamlined blue-and-silver palette. For the refined workshop, it’s a cornerstone tool that elevates craftsmanship to luxe precision.

---

Upgrade your workstation with the Bosch CM10GD for compact, precision cutting power—order now to transform your projects.
