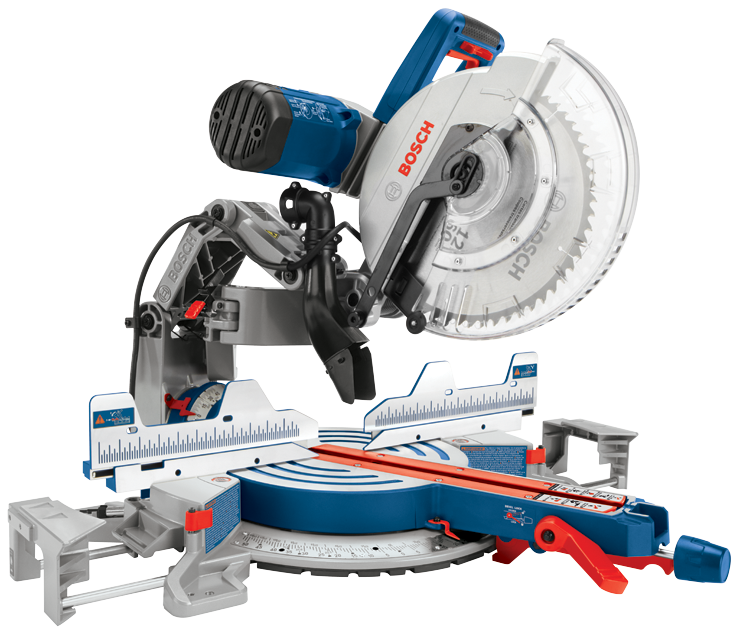

12 in. Dual-Bevel Glide Miter Saw with Stand

Power through precise cuts with Bosch’s GCM12SD 12 in. Dual-Bevel Glide Miter Saw. The Axial-Glide system delivers smooth, space-saving motion with upfront controls and clear cut-line visibility. Includes a 60-tooth carbide blade and a portable stand for jobsite-ready setup.

---

Key Features:

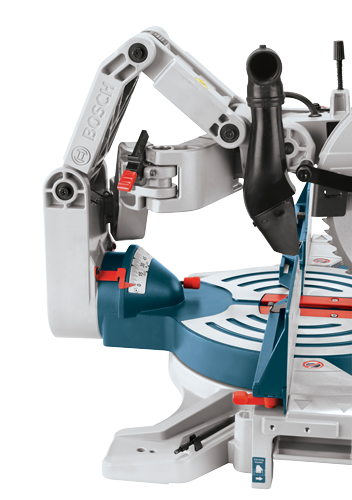

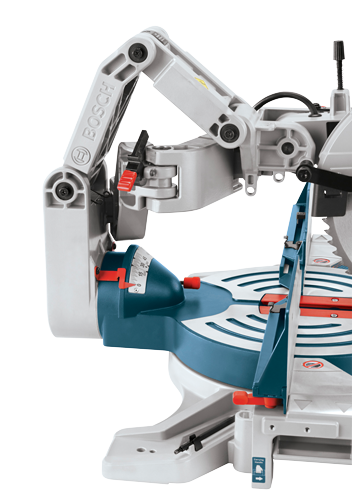

• Axial-Glide System: Smooth, accurate, space-saving glide mechanism for consistent performance
• Large Cutting Capacity: Crosscuts up to 3-1/2 in. x 13-1/2 in. with 52° left/60° right miter and 47° left/right bevel

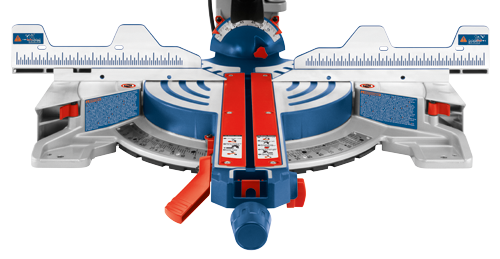

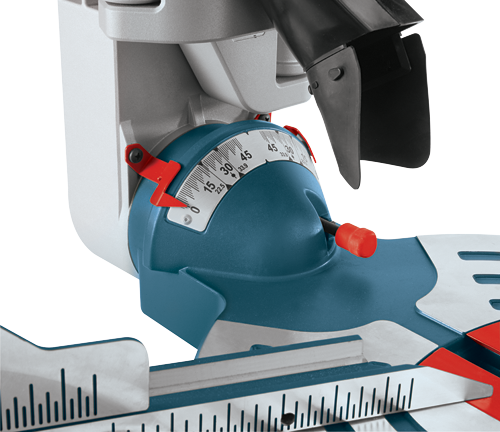

• Precision Controls: Upfront bevel lock, miter detent override, and etched stainless steel miter scale

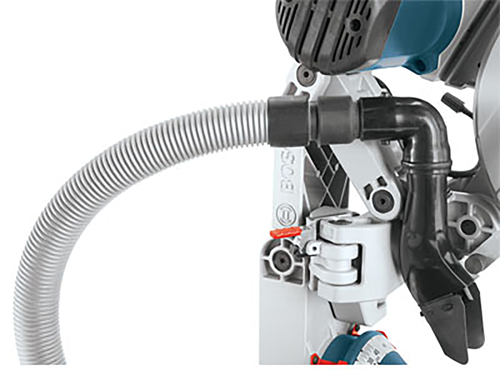

• Dust Management: Combination dust chute with vacuum adapter delivers category-best collection when hooked to a vac
• Comfortable Handling: Ergonomic soft-grip ambidextrous trigger handle with clear lower guard for visibility

---

Specifications Table:

Specification	Details
Model	GCM12SD
Amperage	15A
Blade Diameter	12 in
Blade Size	12 in
No-Load Speed	4,000 RPM
Voltage	120V
Weight	65 lb
Miter Angle Range	52° left, 60° right
Bevel Angle Range	47° left and 47° right
Bevel Stops	0°, 33.9°, 45°, 47° (L/R)
Miter Detents	0°, 15°, 22.5°, 31.6°, 45° (L/R), 60° (R)
Electric Motor Brake	Yes
Dust Collection	Yes; combination dust chute with vacuum adapter
Height	27 in
Length	32.375 in
Width	26.5 in
Table Height from Base	3.75 in
Max Cut Capacity (0° miter, 0° bevel)	3-1/2 in x 13-1/2 in (4x14 dimensional lumber)
Max Cut Capacity (0° miter, 45° left bevel)	2 in x 13-1/2 in (2x14 dimensional lumber)
Max Cut Capacity (0° miter, 45° right bevel)	1-1/2 in x 13-1/2 in (2x14 dimensional lumber)
Max Cut Capacity (45° miter, 0° bevel)	3-1/2 in x 9-1/2 in (4x10 dimensional lumber)
Max Cut Capacity (45° miter, 45° left bevel)	2 in x 9-1/2 in (2x10 dimensional lumber)
Max Cut Capacity (45° miter, 45° right bevel)	1-1/2 in x 9-1/2 in (2x10 dimensional lumber)
Max Base Molding Against Fence	3-7/8 in (6-3/4 in from 0° to 47° L)
Max Crown Molding (38° spring)	5-1/4 in (5-1/2 in from 0° to 47° L)
Max Crown Molding (45° spring)	6 in
Works With	Bosch miter saw stands T1B, T4B, GTA3800; Crown Molding Stops MS1233; Length Stop MS1234; Bosch vacuum hoses VH1622A/VH1635A via adapter; VAC008; other 22 mm and 35 mm hoses; VH1022, VH1035, VH1635 via VX120; VAC005/VAC006; adapters for 1-1/4 in and 1-1/2 in hoses VAC024 (VAC002 not compatible)
Includes	GCM12SD saw, 12 in 60-tooth blade, wrench, toolless vertical work clamp, dust bag/assembly, vacuum adapter elbow

---

Frequently Asked Questions (FAQ):

Q: Does this saw include a blade?
A: Yes, it includes a premium 12 in. 60-tooth carbide-tipped blade.

---

Q: What is the motor power and speed?
A: It has a 15-amp motor with 4,000 no-load RPM.

---

Q: What are the miter and bevel ranges?
A: Miter: 52° left, 60° right; Bevel: 47° left and right with detents at 0°, 33.9°, 45°.

---

Q: Can it connect to a vacuum?
A: Yes, it includes a vacuum adapter elbow and works with multiple Bosch anti-static hoses.

---

Q: What accessories are included?
A: Saw, 60T blade, wrench, toolless vertical work clamp, dust bag/assembly, and vacuum adapter elbow.

---

Cut with Confidence, Style, and Precision

The Bosch Axial‑Glide miter saw brings a sculptural elegance to the workshop while mastering clean, architectural lines in wood. Its clear lower guard and etched stainless scale are purposeful details that elevate both function and form. Pair it with the portable stand to create a refined, mobile workstation for trim, framing, or custom cabinetry. It’s a cornerstone tool for crafting luxurious, tailored spaces with uncompromising accuracy.

---

Elevate your projects with precise, smooth cuts—add the Bosch GCM12SD miter saw with stand to your cart today.
