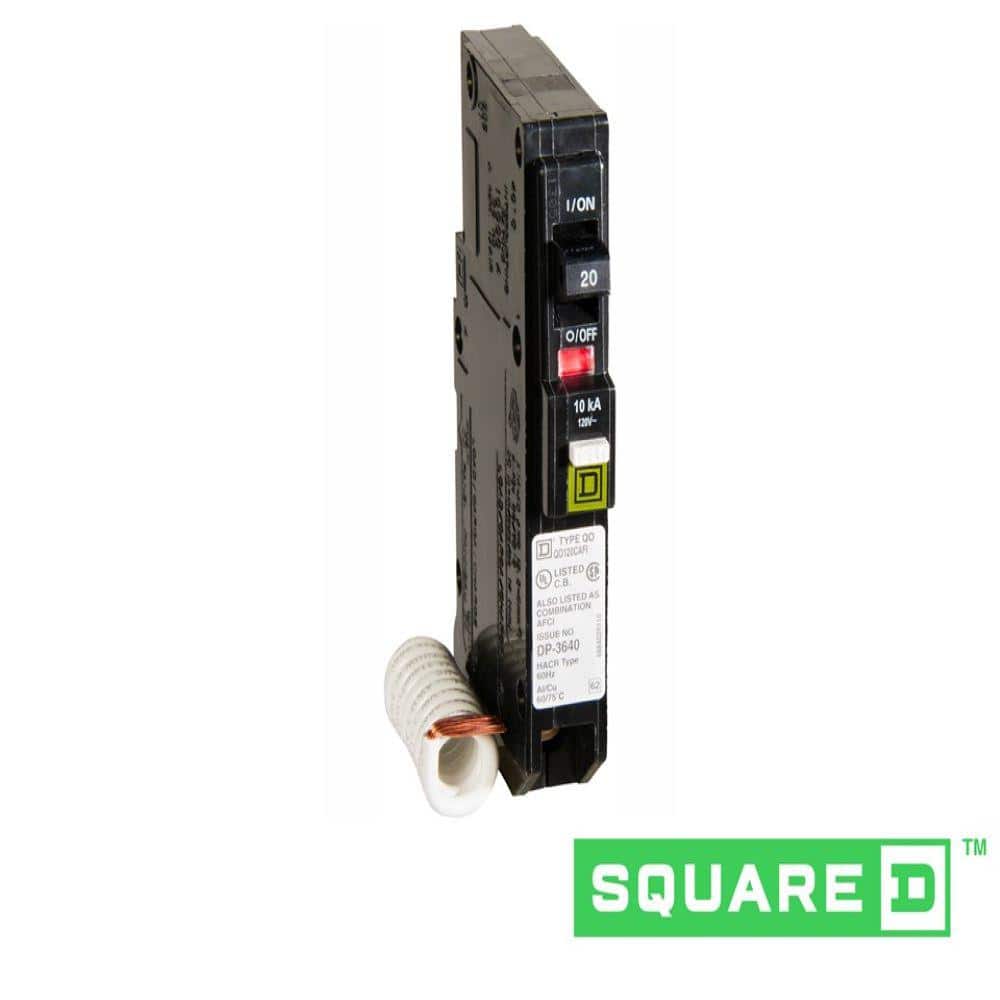

20 Amp Single-Pole Arc Fault Circuit Breaker

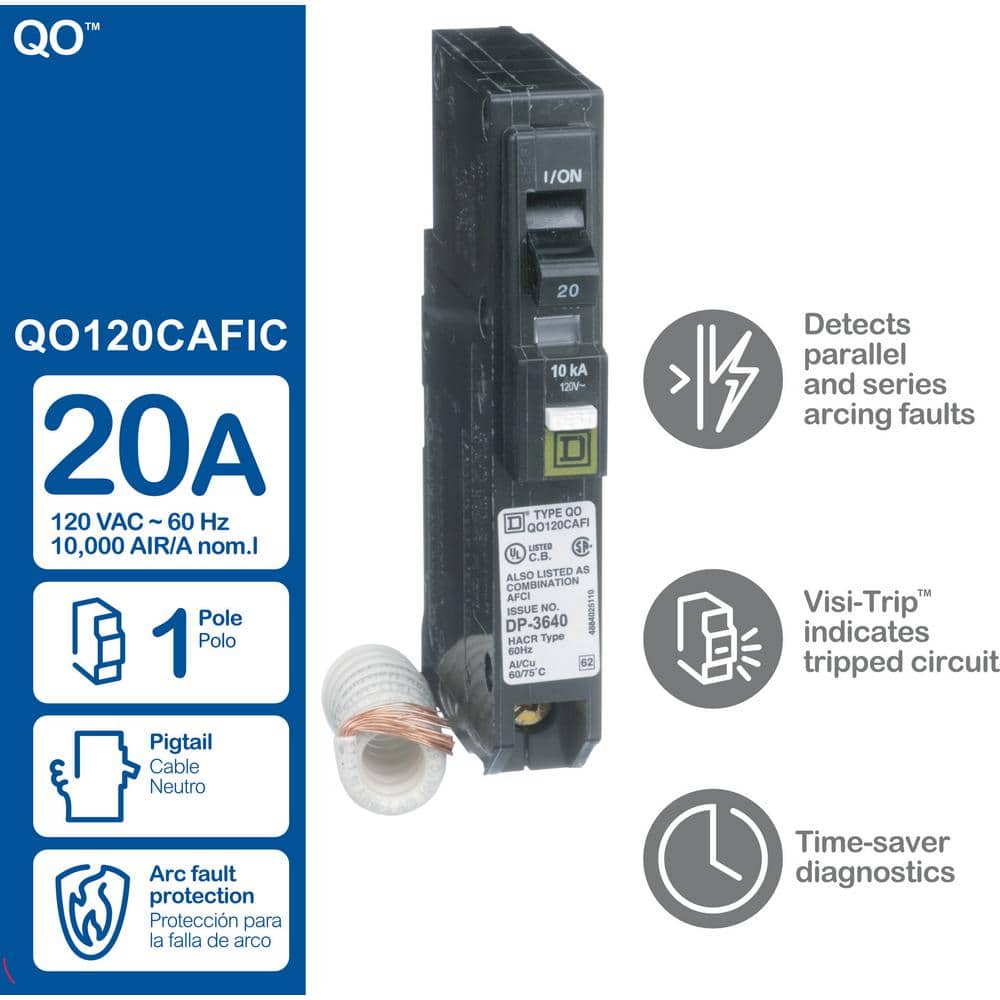

The Square D QO 20 Amp Single-Pole Arc-Fault Circuit Breaker is designed to protect your electrical system from overloads, short circuits, and dangerous arcing faults. Featuring innovative Time-Saver Diagnostics, it offers quick and precise fault identification, thus reducing troubleshooting time and effort.

---

Key Features:

• Protection: Designed to safeguard against overloads, short circuits, and arcing faults.
• Diagnostics: Built-in Time-Saver Diagnostics for faster fault recognition.
• Compatibility: Works seamlessly with QO load centers, CSED's, and NQOD panel boards.
• Safety Indicator: Features a highly visible Visit-Trip indicator for easy fault identification.
• Durability: Includes a limited lifetime warranty for guaranteed reliability.

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
AIC Rating	10000
Breaker Type	Standard
Connection Type	Pigtail
Interruption Type	AFCI
Maximum Amperage (A)	20 A
Mounting Type	Plug-On
Number of Poles	Single
Number of Spaces	1
Pack Size	1
Product Weight (lb.)	0.57 lb
Series Type	QO
Trip Unit	Electronic
Voltage (V)	120/240 V
Certifications and Listings	UL Listed
Manufacturer Warranty	Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the QO load center in which it is installed.
Product Depth (in.)	2.9 in
Product Height (in.)	4.8 in
Product Width (in.)	.75 in

---

Frequently Asked Questions (FAQ):

Q: How does the Time-Saver Diagnostics feature work?
A: Time-Saver Diagnostics provides advanced trip indication technology that helps identify the type of fault that occurred, reducing troubleshooting time and eliminating guesswork.

---

Q: Is this breaker compatible with older panel models?
A: The QO 20 Amp breaker is compatible with QO load centers, CSED's, and NQOD panel boards, so you'll need to ensure your system fits these specifications.

---

Q: What is the benefit of the Visit-Trip indicator?
A: The Visit-Trip indicator makes it easy to see which breaker has tripped with a clear red marker, simplifying maintenance in panels with multiple breakers.

---

Q: Can this breaker protect against all types of electrical faults?
A: Yes, this breaker is specifically designed to protect against overloads, short circuits, and arc faults, providing comprehensive electrical protection.

---

Q: Does this product come with a warranty?
A: Yes, Square D provides a limited lifetime warranty, covering defects in materials and workmanship under normal residential use.

---

Elevate Your Electrical Safety with Peace of Mind

Embrace unmatched security in your environments with the Square D Arc Fault Circuit Breaker, a cornerstone of protection for both residential and commercial spaces. Envision the sleek, intuitive functionality of the Time-Saver Diagnostics as it transforms safety protocols, offering both reliability and elegance in your electrical setup. Picture this essential device within modern interiors, safeguarding with an almost effortless grace, making it the ideal choice for those who value both aesthetic harmony and performance. A testament to luxurious living, this breaker speaks volumes about the marriage of style and necessity.

---

Upgrade to the Square D Arc Fault Circuit Breaker today for superior protection and troubleshooting ease in your electrical installations.
