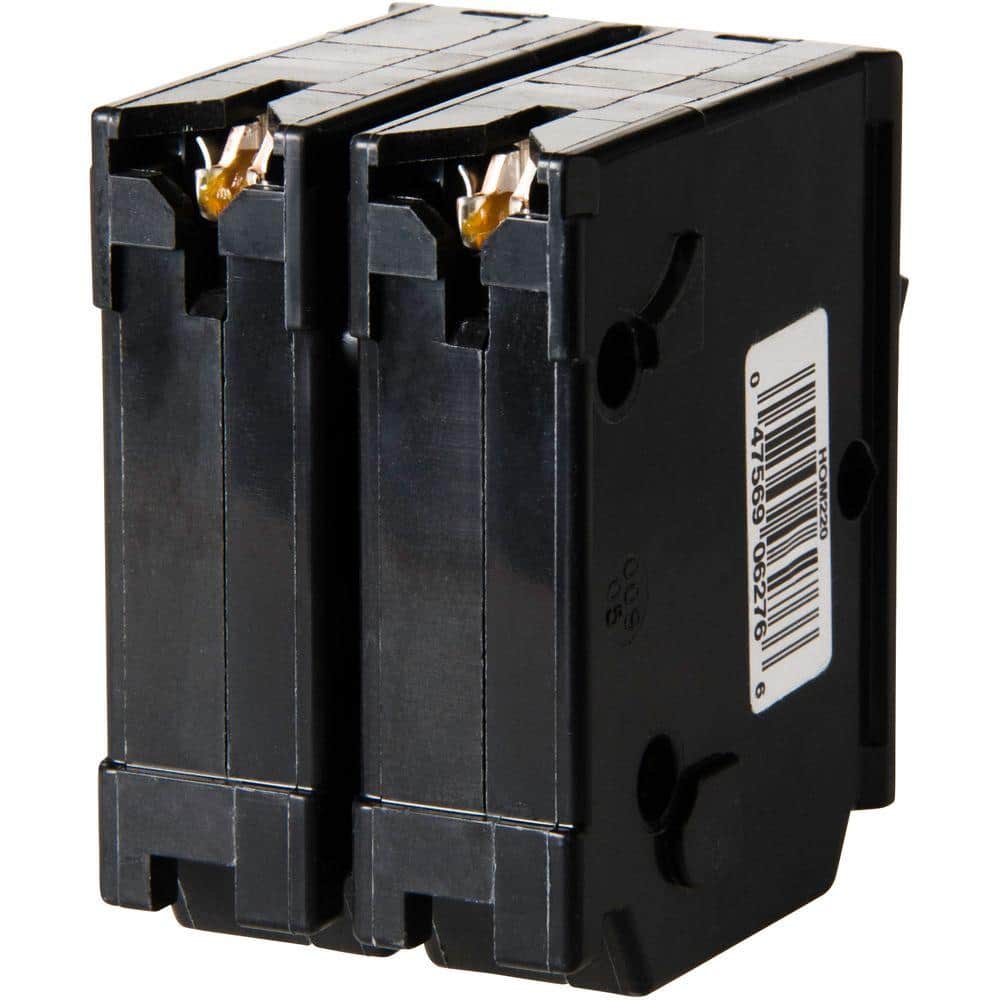

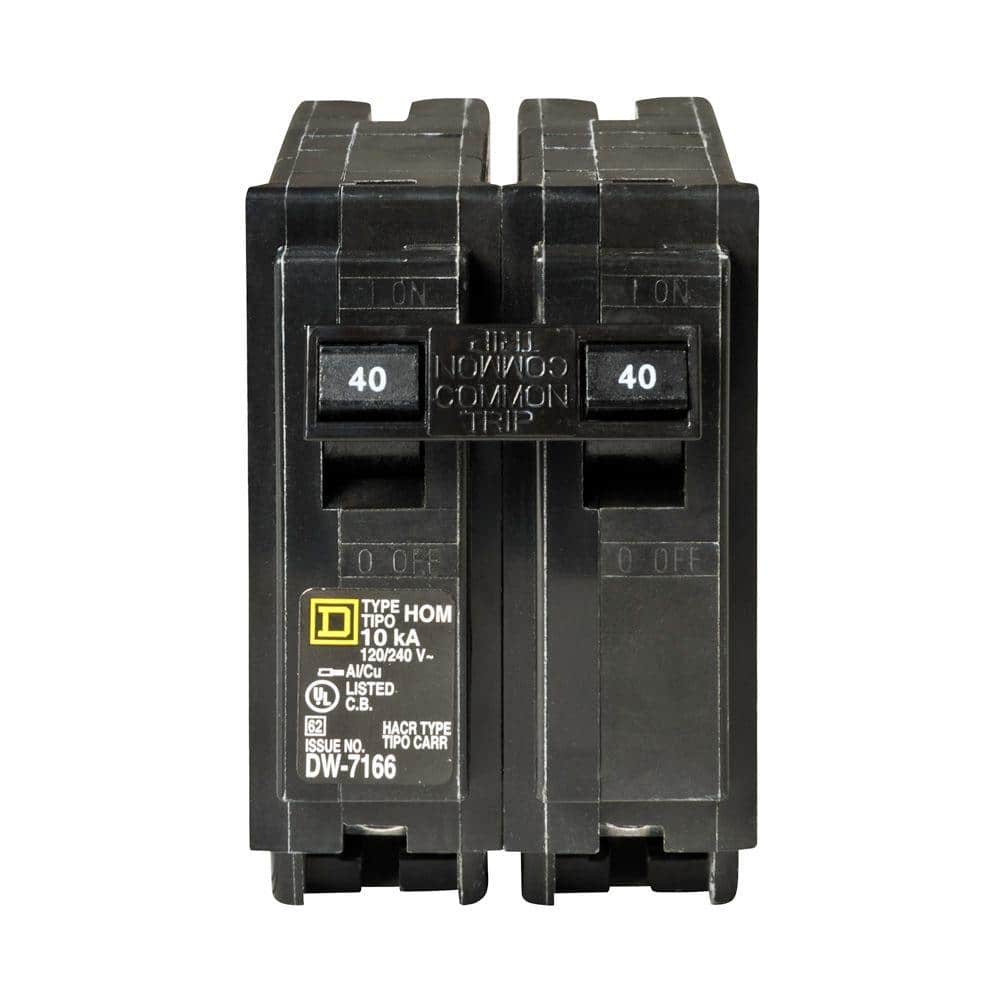

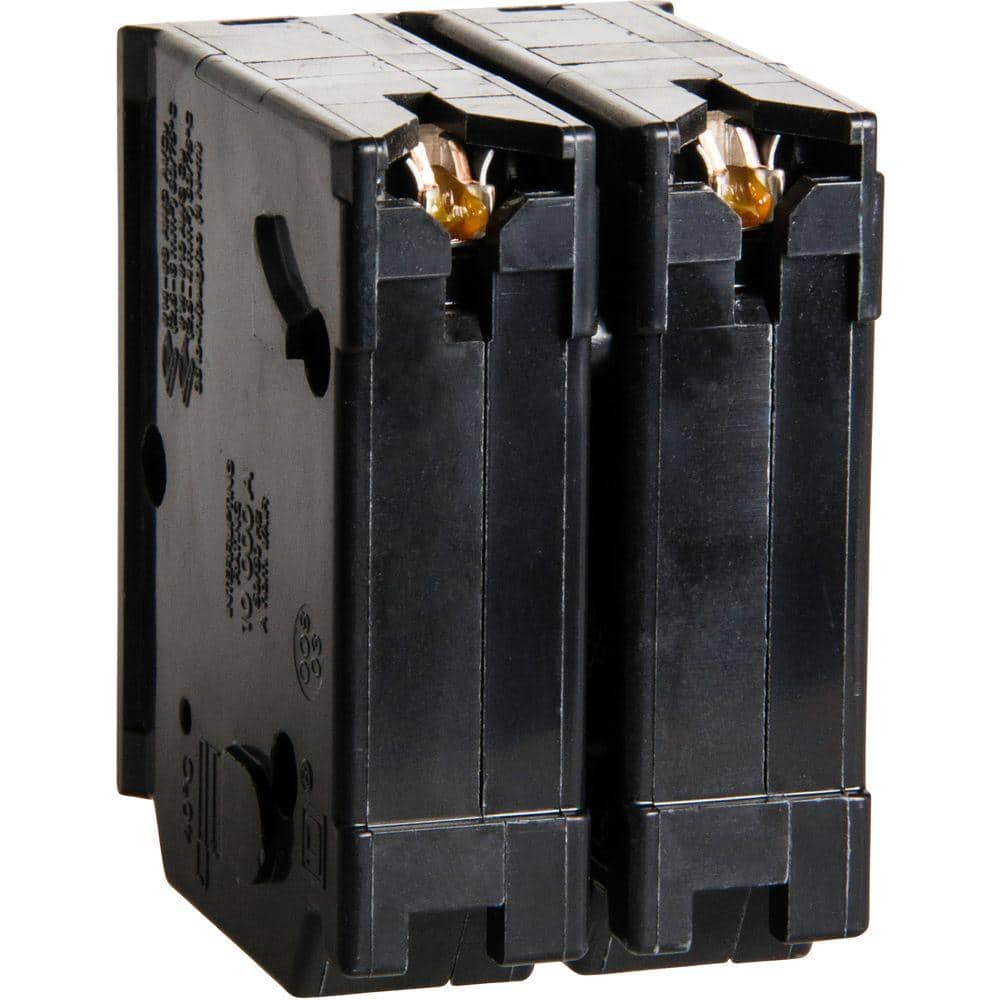

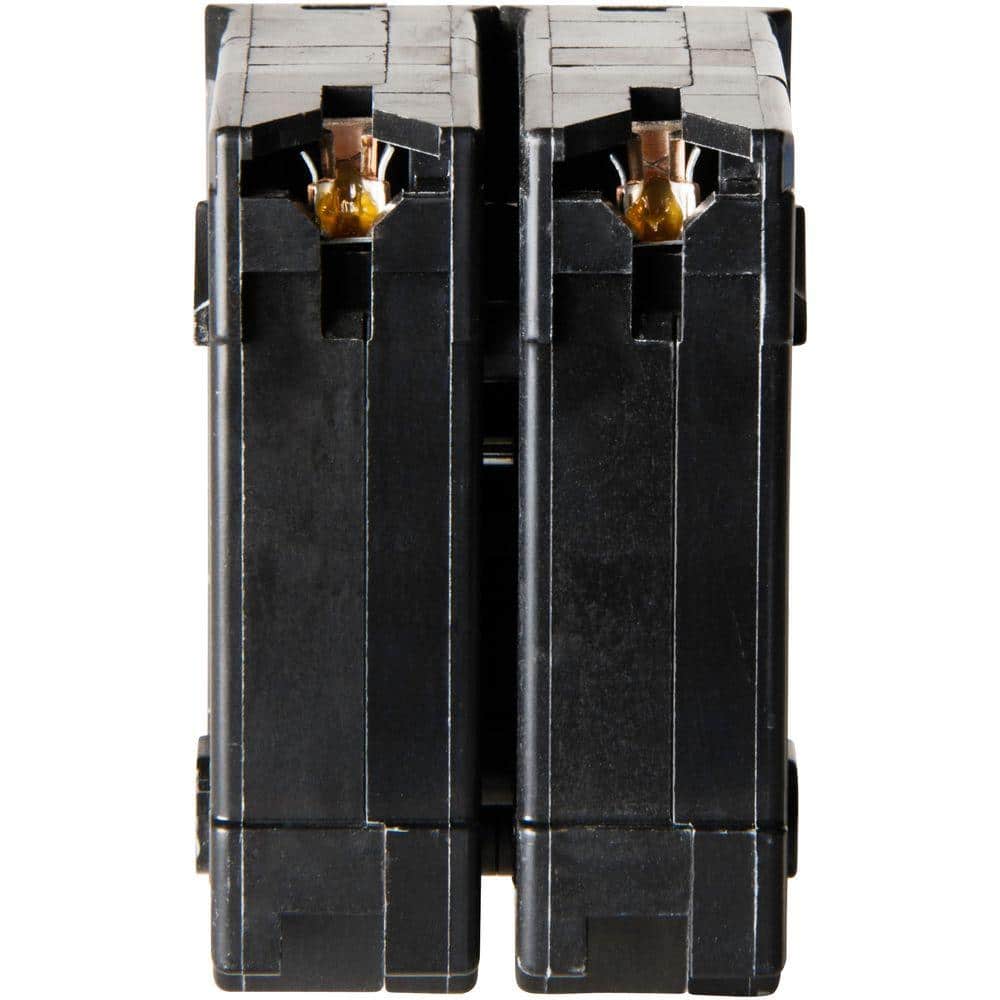

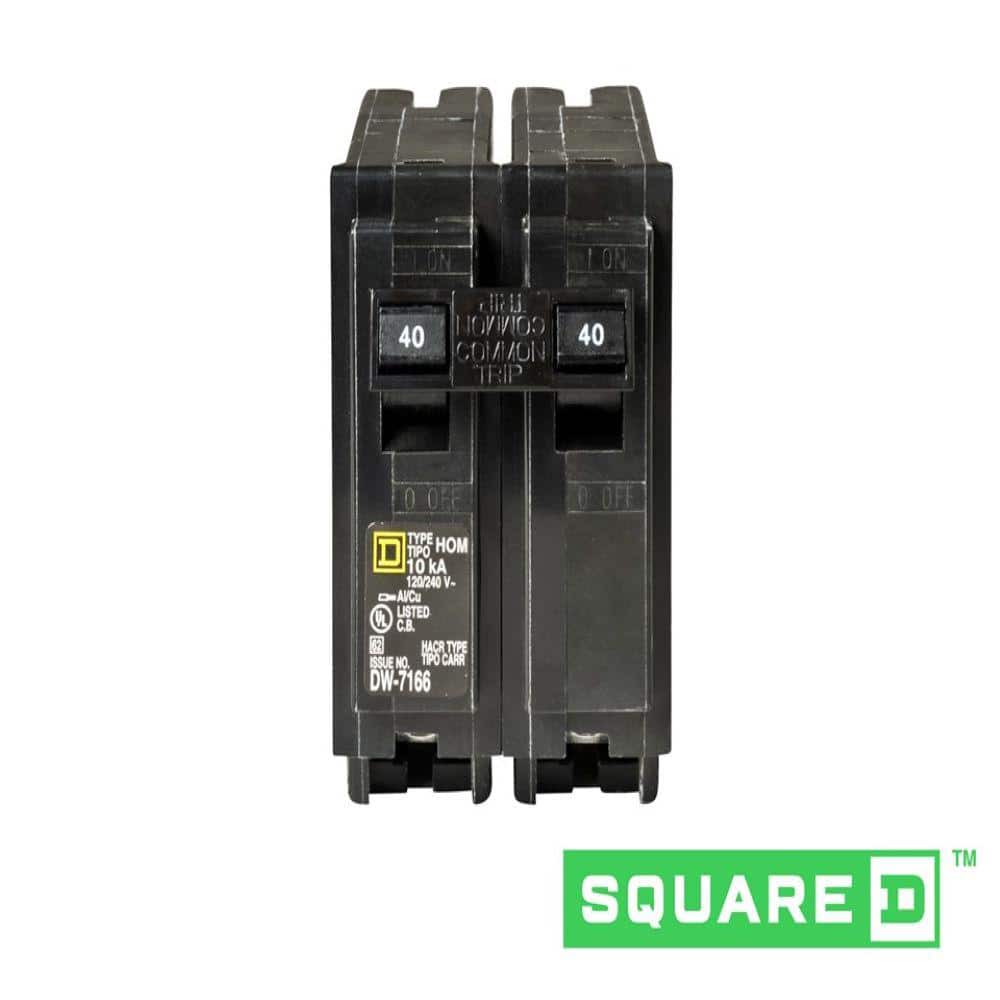

Homeline 40A 2-Pole Circuit Breaker

This Square D Homeline 40-amp, 2-pole thermal-magnetic circuit breaker provides reliable overload and short-circuit protection for residential branch circuits. It’s plug-on mounted and designed for Homeline load centers and CSEDs, rated 120/240 VAC with a 10,000 AIR interrupting capacity.

---

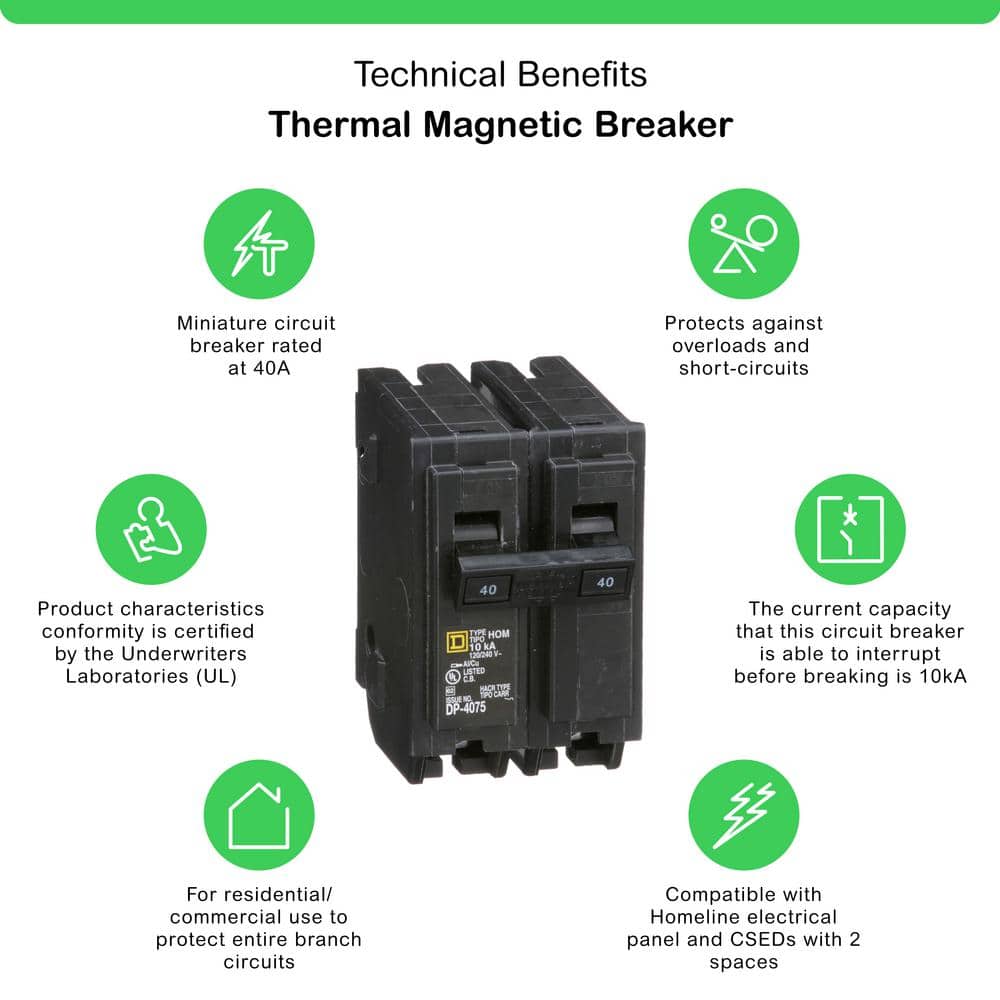

Key Features:

• Thermal-Magnetic Protection: Standard trip unit safeguards against overloads and short-circuits
• Homeline Compatibility: Plug-on design fits Homeline load centers and CSEDs using 2 spaces
• Reliable Interrupt Rating: 10,000 AIR for dependable fault interruption
• Certified Safety: UL Listed and ANSI compliant for residential use

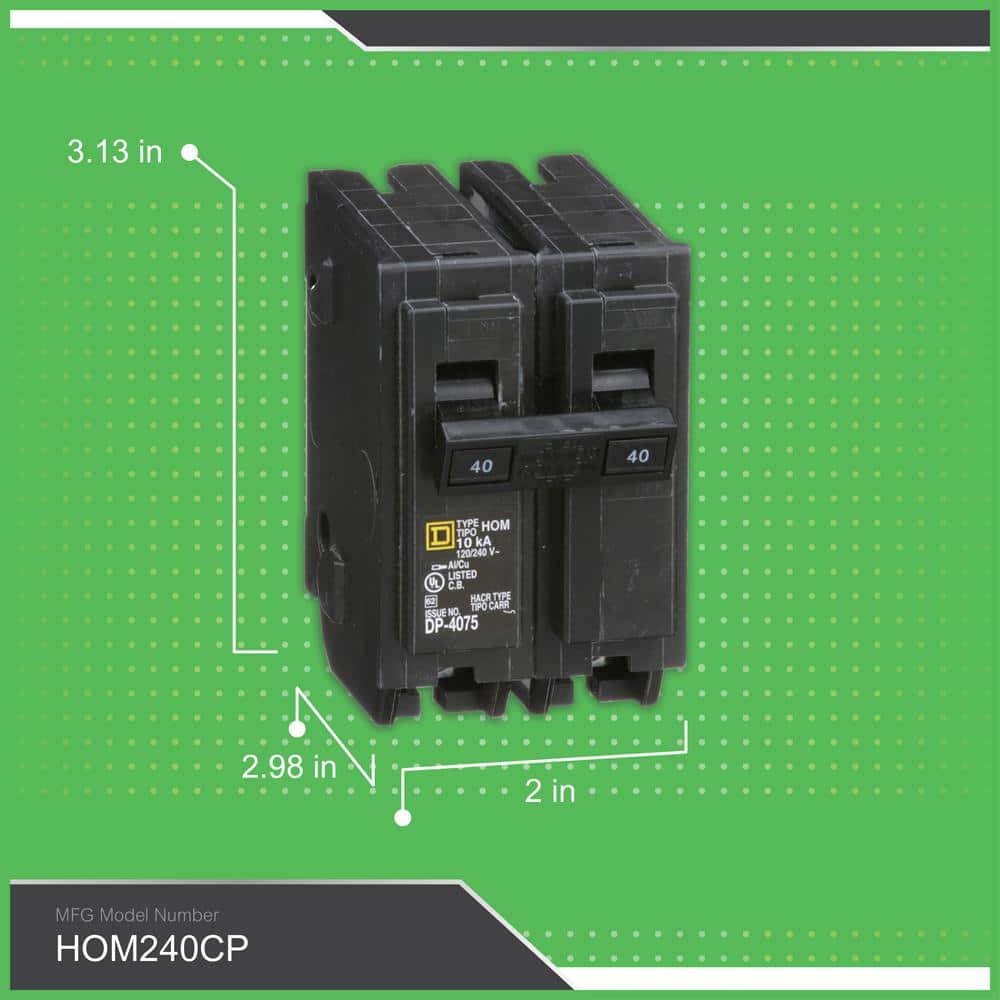

• Compact Dimensions: 3.13 in H x 2.98 in D x 2 in W for easy panel fit

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Series	Homeline
Amperage	40 A
Poles	2 (Double-Pole)
Voltage	120/240 VAC
Trip Unit	Thermal Magnetic (Standard Trip)
AIC Rating	10,000 AIR
Mounting Type	Plug-On
Connection Type	Non-Neutral
Pack Size	1
Certifications	UL Listed; ANSI compliant
Product Height	3.13 in
Product Depth	2.98 in
Product Width	2 in
HACR Rated	Yes
Application	Residential/commercial branch circuit protection

---

Frequently Asked Questions (FAQ):

Q: Is this breaker compatible with my Homeline panel?
A: Yes, it is designed for Square D Homeline load centers and CSED devices and requires two spaces.

---

Q: What is the voltage and amperage rating?
A: It is rated for 120/240 VAC and 40 amps.

---

Q: What kind of trip mechanism does it use?
A: A thermal-magnetic, standard trip unit.

---

Q: What is the interrupting rating (AIC)?
A: 10,000 AIR.

---

Q: Is it UL Listed?
A: Yes, the breaker is UL Listed.

---

Streamlined Power, Seamless Protection

This compact breaker delivers a quiet confidence—sleek, unobtrusive hardware that keeps a home’s electrical rhythm refined and reliable. The twin 40-amp handles and subtle geometry feel intentional, a crisp detail behind the scenes. Pair it with a clean, well-labeled Homeline panel to maintain a polished mechanical room. Essential performance wrapped in minimalist design—luxury is in the flawless function.

---

Equip your Homeline panel with dependable 40A protection—add this Square D breaker to your cart today.
