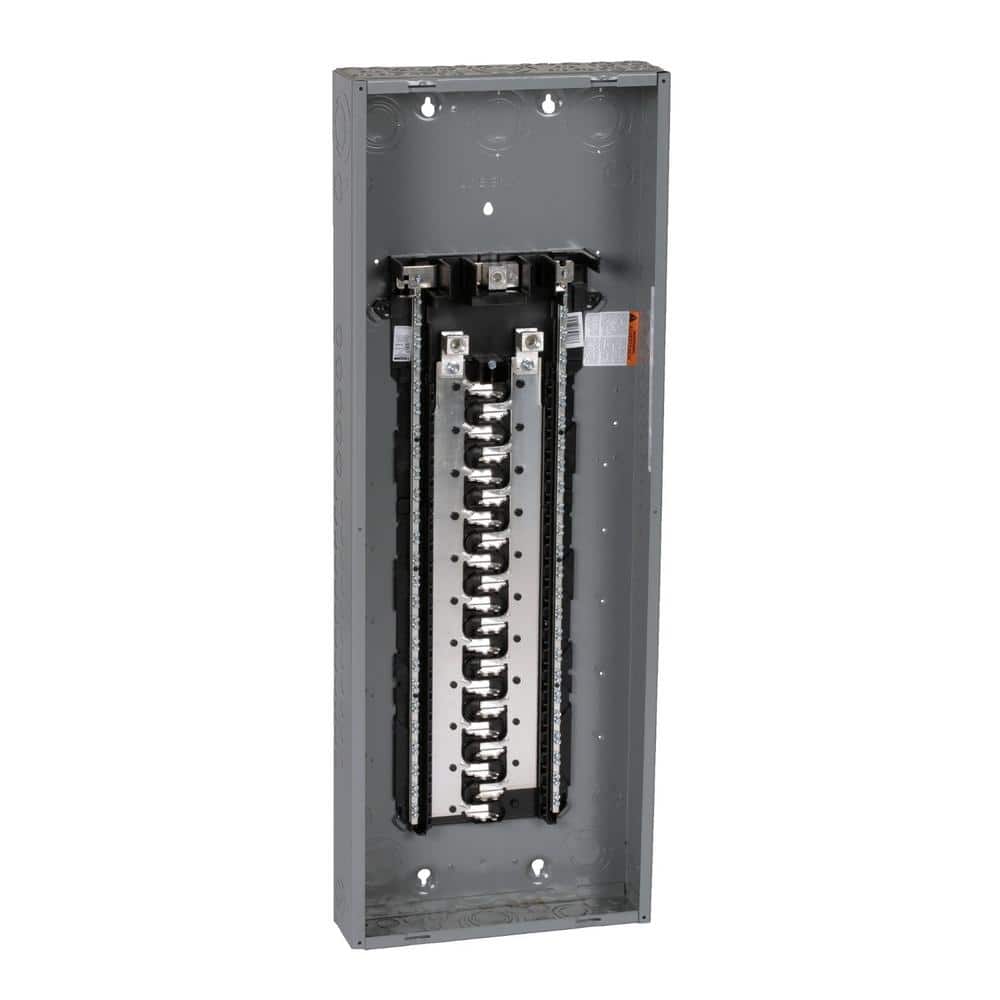

Square D Homeline 225 Amp 42-Space 84-Circuit Indoor Convertible Main Lugs Load Center with Cover
Regular price $339.59Square D Homeline 225 Amp Load Center
The Square D Homeline 225 Amp Load Center is an efficient and reliable choice for both residential and commercial power distribution. Designed for quick installation and wire savings, this load center offers 42 spaces and 84 circuits, equipped with a durable aluminum bus bar compatible with Homeline breakers.
Key Features:
- Simple Installation: Plug-on neutral design reduces wiring and speeds up the installation process.
- Versatile Configuration: Converts from main lugs to a main breaker load center with additional parts.
- Heavy-duty Design: Rugged thermoplastic interior assembly ensures long-lasting durability.
- Cost-saving: Straight-in mains help save on expensive cabling requirements.
- Flexible Wiring: Features up to 50% more neutral terminal screws to simplify and expedite installations.
Specifications Table:
| Specification | Details |
|---|---|
| Breaker Box Type | Subpanel |
| Connection Type | Neutral |
| Indoor/Outdoor | Indoor |
| Maximum Amperage (A) | 225 A |
| Mounting Type | Flush,Surface |
| NEMA Configuration | NEMA 1 |
| Number of Circuits | 84 |
| Number of Spaces | 42 |
| Product Weight (lb.) | 35.8 lb |
| Series Type | Homeline |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers. |

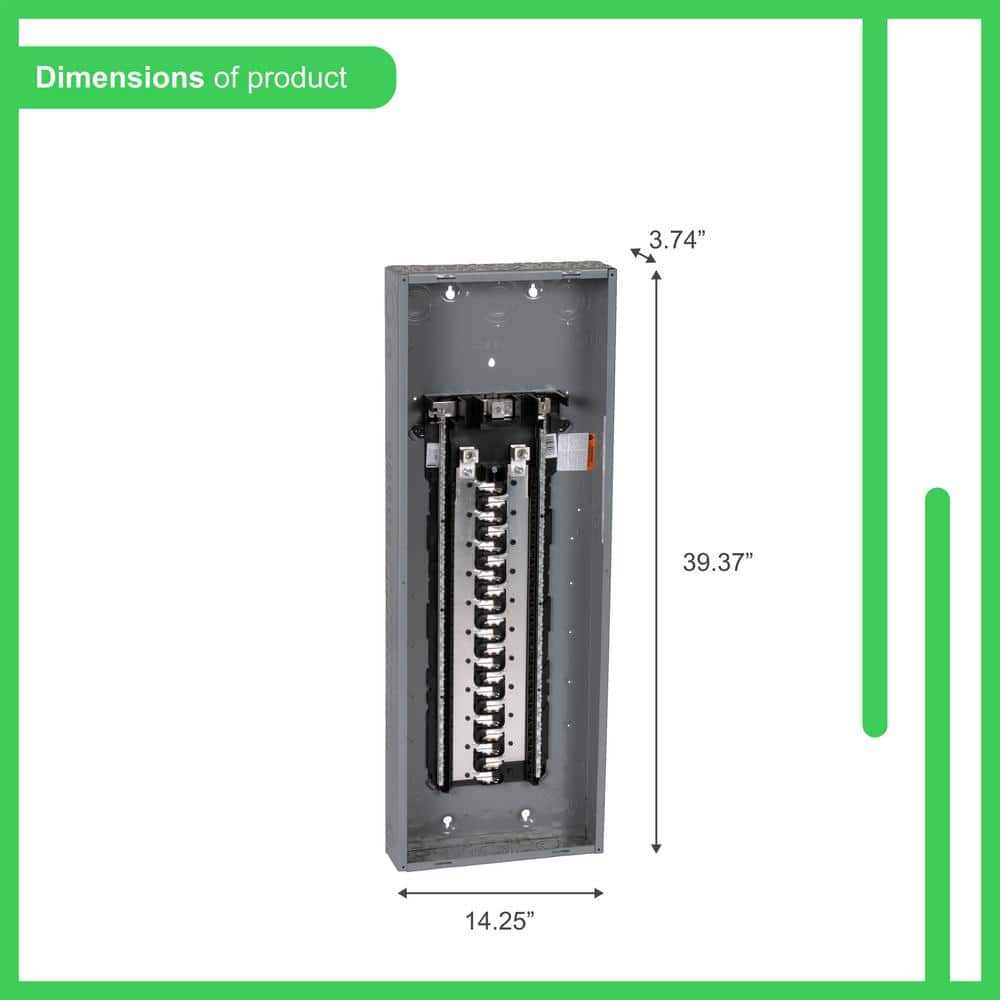

| Product Depth (in.) | 5.7 in |
| Product Height (in.) | 41.8 in |
| Product Width (in.) | 14.25 in |
Frequently Asked Questions (FAQ):
Q: Can this load center be installed outdoors?
A: No, this load center is designed for indoor use only per its NEMA 1 configuration.
Q: What type of breakers is this load center compatible with?
A: It's compatible with any Square D Homeline circuit breaker.
Q: How difficult is it to convert this load center to a main breaker type?
A: Conversion is straightforward with the QOM2 main breaker, which is sold separately.
Q: What protective measures does the product include for transportation and installation?
A: The interior can be removed with a single captive screw for easy protection from damage or theft on the job site.

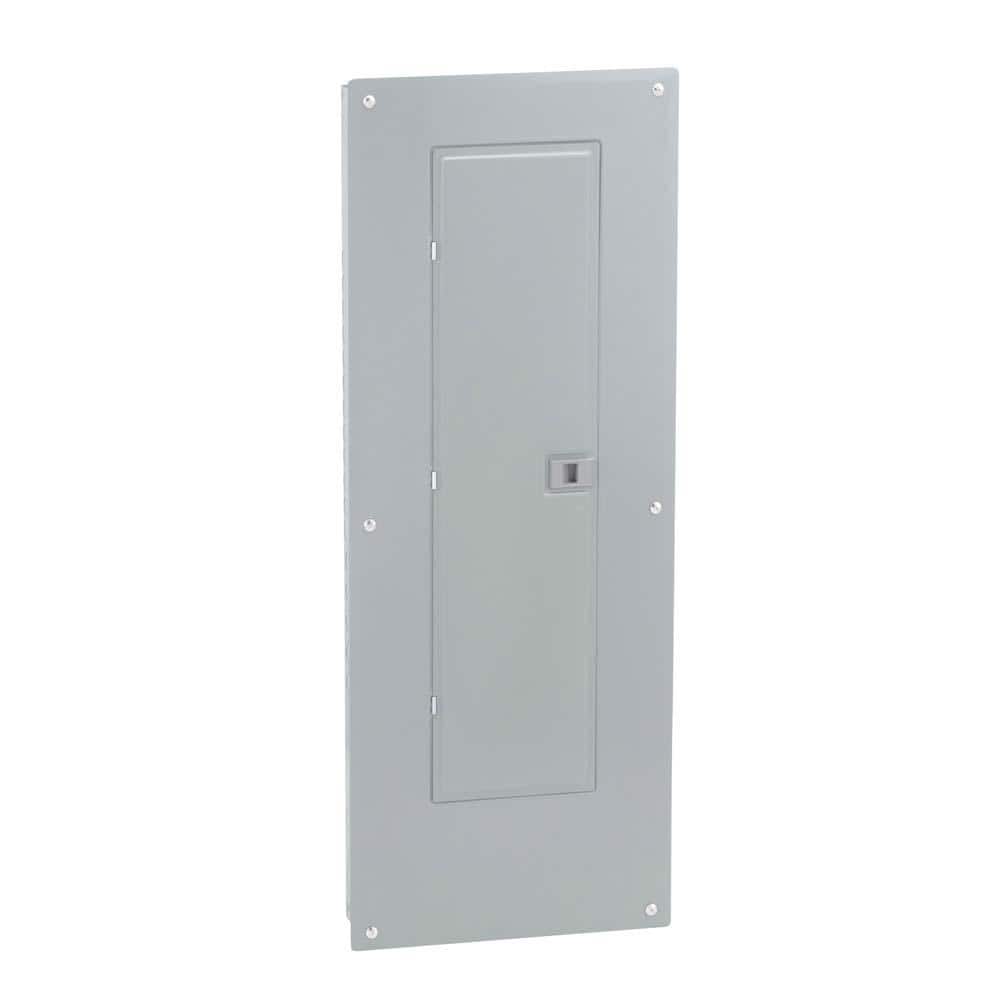

Q: How does the design contribute to a clean installation look?
A: The automatic flush adjusting cover and slot/square drive screws provide a sleek finish and reliable assembly.
Empower Your Space with Elegant Efficiency
Transform your utility room into a haven of efficiency with the Square D Homeline Load Center's sleek design and impeccable function. Its intuitive plug-on neutral configuration not only lends to a streamlined, clutter-free appearance but also ensures swift installation, making it a stylish and practical centerpiece. Imagine it as more than a functional necessity; present it gloriously in a carefully curated space along with contemporary matte black or brushed metal fixtures. An investment in the Homeline Load Center is subtle sophistication for the modern, energy-savvy home.
Ensure secure and efficient power distribution for your projects—upgrade to the Square D Homeline 225 Amp Load Center today.
