Square D Homeline 225 Amp Indoor Load Center

The Square D Homeline 225 Amp Indoor Load Center is a robust and efficient solution for residential and commercial applications, supporting up to 60 circuits. Engineered with a plated, aluminum bus bar and designed for quick installation, it accommodates Homeline plug-on neutral breakers and includes essential circuit breakers and a ground bar for reliable power distribution.

---

Key Features:

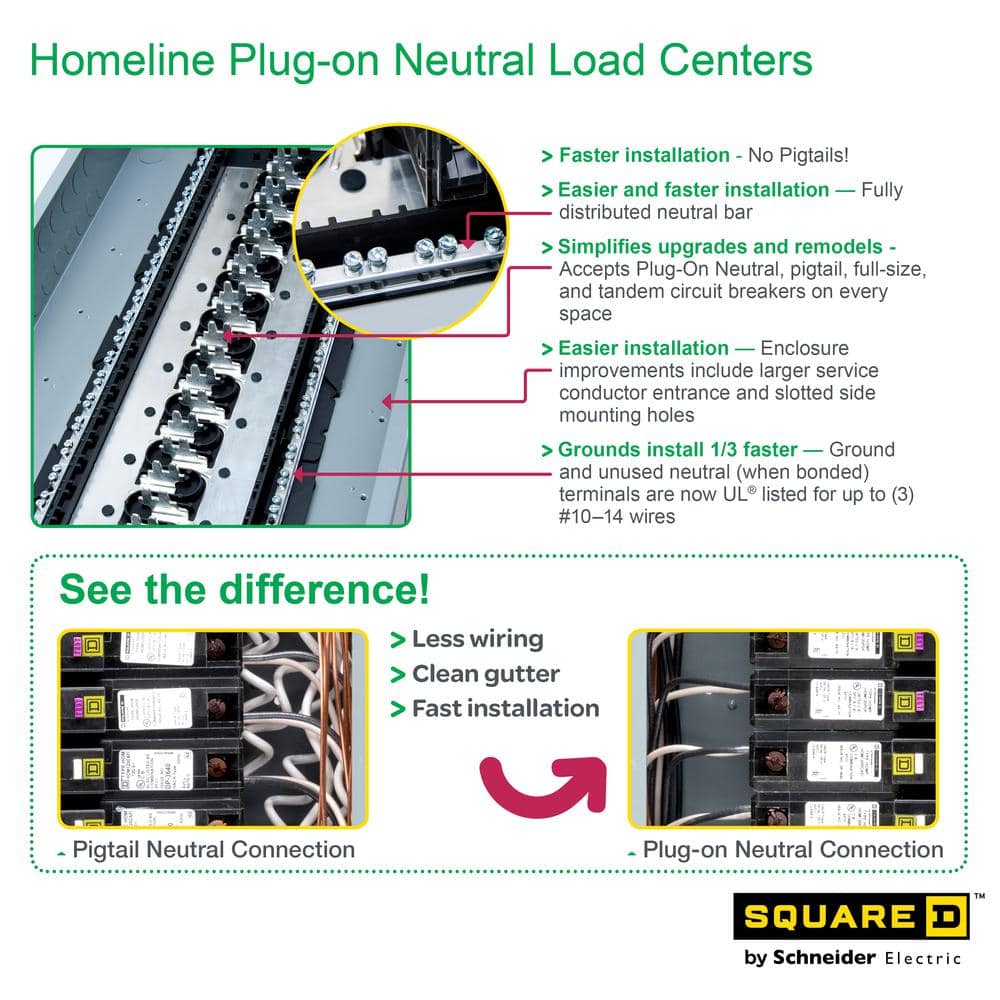

• Fast Installation: Plug-on neutral design drastically reduces installation time and simplifies wiring.
• High Capacity: Supports up to 30 spaces and 60 circuits for extensive power distribution.

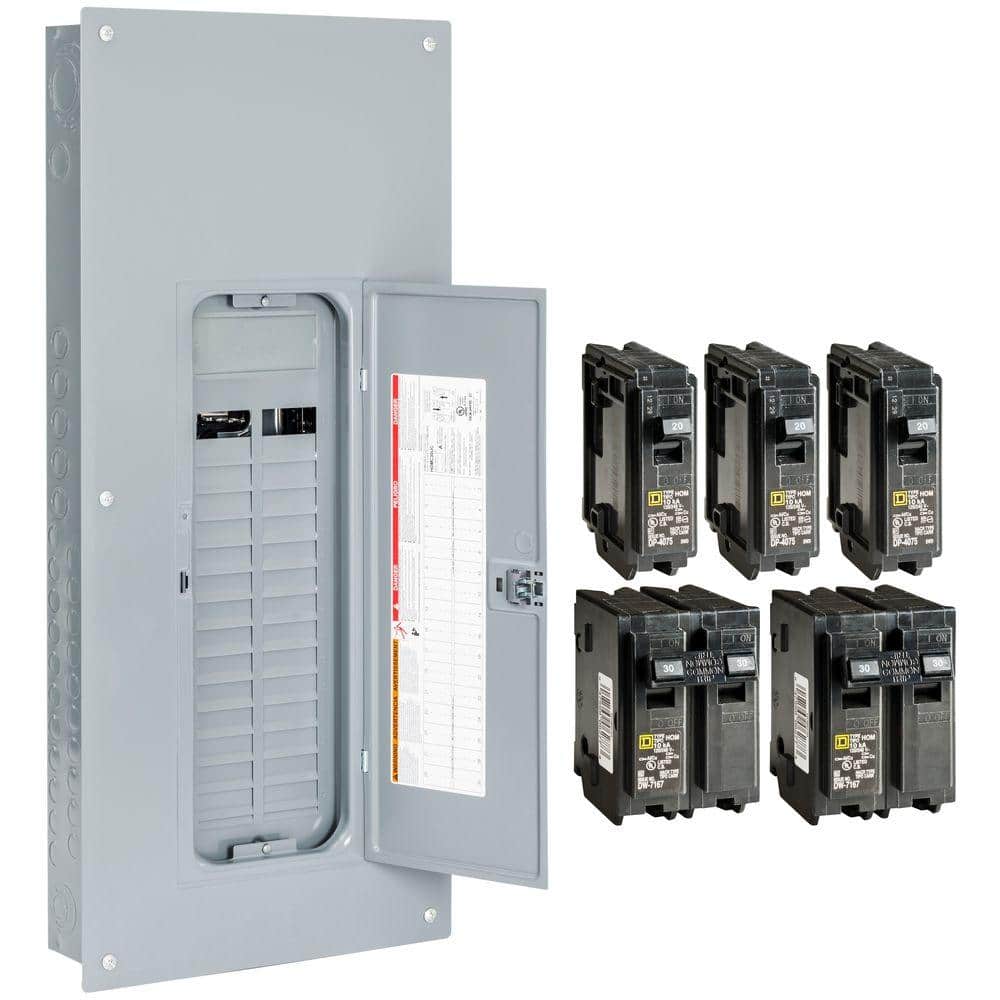

• Comprehensive Kit: Includes ground bars, a selection of breakers, and a combination flush/surface cover.
• Durable Construction: Features a rugged thermoplastic interior for long-lasting performance.
• Versatile Mounting: Can be mounted flush or surface to fit various installation needs.

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Breaker Box Type	Subpanel
Connection Type	Neutral
Electrical Product Type	Main Lug/ Main Lug Kit
Included	Circuit Breaker,Cover
Indoor/Outdoor	Indoor
Maximum Amperage (A)	225 A
Mounting Type	Flush,Surface
NEMA Configuration	NEMA 1
Number of Circuits	60
Number of Pieces	6
Number of Spaces	30
Phase Type	1 Phase
Product Weight (lb.)	33.16 lb
Series Type	Homeline
Voltage (V)	120/240 V
Certifications and Listings	UL Listed
Manufacturer Warranty	10 years

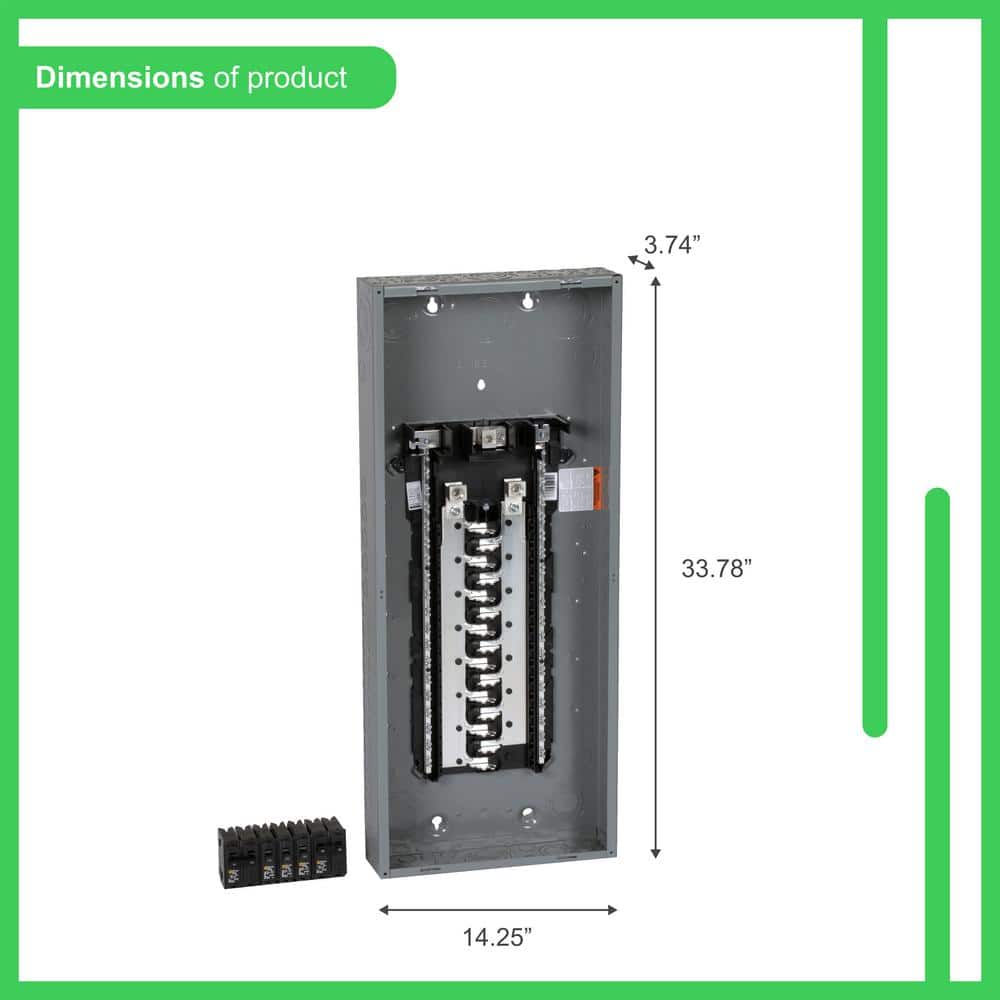

Product Depth (in.)	3.75 in
Product Height (in.)	33.78 in
Product Width (in.)	14.25 in

---

Frequently Asked Questions (FAQ):

Q: What types of breakers are compatible with this load center?
A: This load center is compatible with Square D Homeline circuit breakers, including full-size, tandem, and quad breakers.

---

Q: Can this load center be used for both overhead and underground feeds?
A: Yes, it accommodates overhead and underground feeds simply by rotating the device before installation.

---

Q: Is this load center suitable for both residential and commercial use?
A: Yes, it is UL listed for both residential and commercial settings, making it highly versatile.

---

Q: Does this load center come with a warranty?
A: Yes, it comes with a 10-year manufacturer warranty, ensuring quality and reliability.

---

Q: How many ground bars are included with the load center?
A: The load center includes two-equipment ground bars, which can be field-mounted in three locations for versatile wiring options.

---

A Masterpiece of Utility and Design

Elevate your space with the Square D Homeline Load Center, a paragon of functional elegance. Its seamless design and utilitarian charm blend effortlessly into modern interiors, offering not just power distribution but an element of crafted sophistication. Envision its sleek flush mounting within a custom-built utility nook, harmoniously balancing form and function. Truly, an indispensable asset to achieve luxurious living with intelligent style.

---

Discover ultimate reliability and efficiency for your electrical projects with the Square D Homeline Load Center—purchase yours today!
